Regency Fireplace Products Classic I1150 Installation

Download this manual

Model

Maximum Cordwood BTU's

EPA g/hr

Efficiency (EPA HHV)*

Efficiency (EPA LHV)

Flue Size

US Biomass Tax Rebate Eligible

Maximum Log Size

Firebox Size

*US Biomass Tax Rebate eligibility is based on the HHV value being

greater than or equal to 75%.

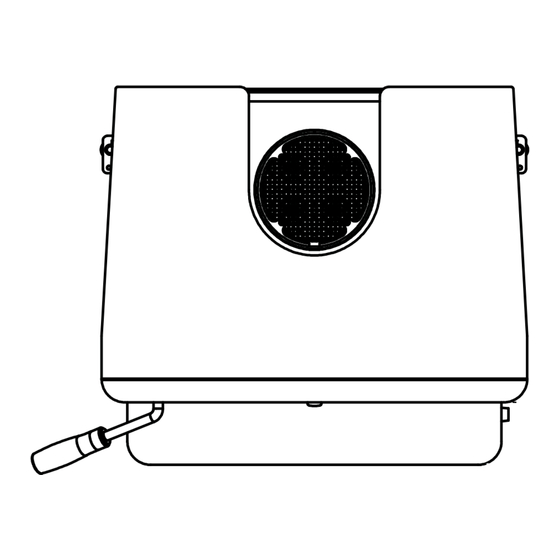

DIMENSIONS WITH STANDARD FLUE ADAPTOR

Classic

I1150 Wood Insert

™

I1150

55,000 BTU's

1.7 g/hr

70%

75%

6" (152mm)

18" (457 mm)

0.98 cu.ft.

Regency Inserts are designed to use either a 5.5" (140mm) or 6" (152mm) flue.

6" (152mm) Diameter

STANDARD FLUE ADAPTOR

*1-1/2" (38mm)

*Measurement from back of faceplate to fuel door opening

I1150 Classic

Wood Insert |

™

Need help?

Do you have a question about the Classic I1150 and is the answer not in the manual?

Page 1 Classic I1150 Wood Insert ™ Model I1150 Maximum Cordwood BTU’s 55,000 BTU’s EPA g/hr 1.7 g/hr Efficiency (EPA HHV)* Efficiency (EPA LHV) Flue Size 6" (152mm) US Biomass Tax Rebate Eligible Maximum Log Size 18” (457 mm) Firebox Size 0.98 cu.ft. *US Biomass Tax Rebate eligibility is based on the HHV value being greater than or equal to 75%.
Page 2 DIMENSIONS WITH OFFSET FLUE ADAPTOR 6" (152mm) Diameter OFFSET FLUE ADAPTOR *1-1/2" (38mm) *Measurement from back of faceplate to fuel door opening Regency Inserts are designed to use either a 5.5" (140mm) or 6" (152mm) flue. | I1150 Classic Wood Insert ™...
Page 3 CLEARANCES MASONRY FIREPLACE CLEARANCES The minimum required clearances to combustible materials when installed into a masonry fireplace are listed below. Unit Adjacent Mantel ** Side Minimum Minimum To Top of Unit To Side of Unit Side Wall (to Top of Facing Facing Hearth...
Page 4 INSTALLATION INTO A CHIMNEY SPECIFICATIONS MASONRY FIREPLACE Before installing, check and clean your chimney system thoroughly. If in doubt about its condition, Regency inserts are constructed with the highest seek professional advice. Your Regency Insert is quality materials and assembled under strict quality designed for installation into a masonry fireplace that control procedures that ensure years of trouble free is constructed in accordance with the requirements...
