Owners & Installation Manual
MODEL: i1150CSA
www.regency-fire.com
French Manual: https://bit.ly/30s3wce
Manuel en Français : https://bit.ly/30s3wce
Tested by:
0219WN027S
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
920-830
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.

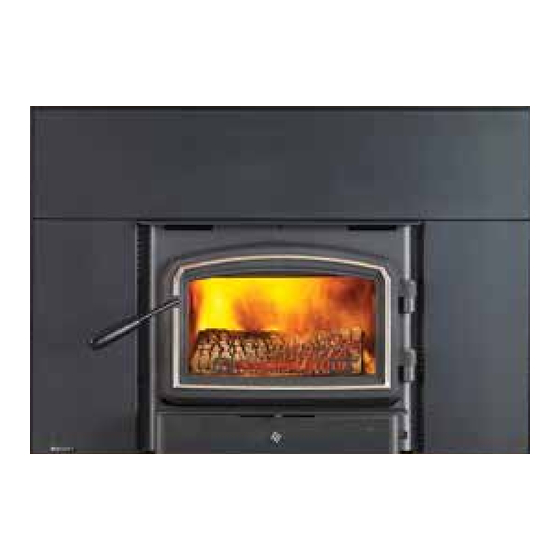

Classic™
I1150CSA
Wood Insert
09.25.24
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Classic I1150CSA
Summary of Contents for Regency Fireplace Products Classic I1150CSA
- Page 1 Classic™ I1150CSA Wood Insert Owners & Installation Manual MODEL: i1150CSA www.regency-fire.com French Manual: https://bit.ly/30s3wce Manuel en Français : https://bit.ly/30s3wce Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 0219WN027S FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
- Page 2 Thank you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. “This wood heater has a manufacturer set minimum low burn rate that must not be altered.
-
Page 3: Table Of Contents
table of contents Copy of the Safety Label for i1150CSA ......4 Operation Dimensions Operating Instructions ..........22 With Standard Flue Adaptor ........5 Draft Control ............22 With Offset Flue Adaptor ..........6 First Fire ..............22 Fan Operation ............23 Installation Ash Disposal ............23 Masonry Fireplace Clearances ........7 Safety Guidelines and Warnings........23 Fireplace Specifications ..........7 How to Determine if Alternate Floor Protection Materials... -
Page 4: Safety Decal
safety decal Copy of the i1150CSA Safety Decal (Duplicate Serial #) LISTED MASONRY FIREPLACE INSERT DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE CERTIFIED FOR USE IN CANADA MODEL: I1150CSA CERTIFIED TO / CERTIFIÉ : This is a copy of the label that accompanies each CAN/ULC 628:2022 0219WN027S i1150CSA Wood Insert. -
Page 5: Dimensions
dimensions With Standard Flue Adaptor 6" (152mm) Diameter STANDARD FLUE ADAPTOR *1-1/2" (38mm) *Measurement from back of faceplate to fuel door opening Regency Inserts are designed to use either a 5.5" (140mm) or 6" (152mm) flue. I1150CSA Regency Wood Insert... -
Page 6: With Offset Flue Adaptor
dimensions With Offset Flue Adaptor 6" (152mm) Diameter OFFSET FLUE ADAPTOR *1-1/2" (38mm) *Measurement from back of faceplate to fuel door opening Regency Inserts are designed to use either a 5.5" (140mm) or 6" (152mm) flue. | I1150CSA Regency Wood Insert... -
Page 7: Installation
installation Masonry Fireplace Clearances The minimum required clearances to combustible materials when installed into a masonry fireplace are listed below. Unit Adjacent Mantel ** Side Minimum Minimum To Top of Unit To Side of Unit Side Wall (to Top of Facing Facing Hearth... -
Page 8: How To Determine If Alternate Floor Protection Materials Are Acceptable
installation How to Determine if Alternate Floor Protection Materials are Acceptable All floor protection must be noncombustible (i.e. metals, brick, stone, mineral fiber boards, concrete board etc.). The noncombustible floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity). -
Page 9: Installation Into A Masonry Fireplace
installation Installation Into a Masonry Chimney Specifications Fireplace Before installing, check and clean your chimney system thoroughly. If in doubt about its condition, Regency inserts are constructed with the highest seek professional advice. Your Regency Insert is quality materials and assembled under strict quality designed for installation into a masonry fireplace that control procedures that ensure years of trouble free is constructed in accordance with the requirements... -
Page 10: Installing Your Insert
installation Installing 3. Install the unit by first setting the rear of 7. Ensure that the unit is still level. the unit into the fireplace. See Diagram Your Insert 3. Ensure that the unit is centered in the 8. To complete the installation and to ensure a existing fireplace and lined up with the flue secure fit and connection of the flue adaptor SAFETY NOTE: The insert is very heavy and... -
Page 11: Faceplate, Trim & Optional Bottom Faceplate & Fan Support Installation
I1150/I1500 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov 919-874 Part # - 919-874 installation Description: Prop. 65 Short form label Date: May 30/18 FACEPLATE, TRIM, FAN & OPTIONAL Colour: Black font on white Size: 5"W x 0.7"H BOTTOM FACEPLATE & FAN SUPPORT INSTALLATION Faceplate, Trim &... - Page 12 I1150/I1500 installation Regular/Oversize Faceplate Installation: Optional Regular/Oversize Bottom Faceplate 1) Thread the black 1/4" x 3/4" long hex bolts into the faceplate mounting Installation: bracket as shown in Diagram 1, leaving them approximately 1/4" out. 2) Fasten the faceplate mounting bracket to the side of the insert using 4) Position the assembled faceplate side and top to the insert.
- Page 13 I1150/I1500 installation Regular/Oversize Faceplate Trim Installation: 11) Mount the completed faceplate / trim assembly to the insert. Ensure to align the side faceplate slots with the hex bolts in the mounting (Black Trim included with Regular/Oversize Faceplate brackets and tighten to secure in place. Secure the Regency logo or Bottom Faceplate) plate to the bottom of the faceplate.
- Page 14 installation I1150/I1500 18) Secure the bottom faceplate to the 3-sided faceplate using the 4 14) Cut the bottom edge of the fan support and bottom faceplate (using supplied bolts/washers. a metal cutting blade) to the length measured in step 13. 19) Discard both side trims that were included with the regular/oversize 15) Remove the fan assembly from the ash lip of the insert and position faceplate and replace with the new extended trims supplied with the...
-
Page 15: Fan/Blower
installation Fan/Blower The fan should only be installed once the unit is in place in order to prevent any damage to the fan. Installer: Please record unit serial number here before installing blower. Serial No.______________________________ I1500 Fan assembly for use only with the room heater marked to indicate such use. FAN INSTALLATION FAN OPERATION (120V FAN) -
Page 16: Brick Installation
installation Brick Installation Firebrick is included to extend the life of your stove and radiate heat more evenly. Check to see that all firebricks are in their correct positions and have not become misaligned during shipping. Install all firebricks (if bricks were removed at install) per the Diagram below and place in their correct positions. Do not use a grate. -
Page 17: Baffle Installation
installation Baffle Installation Note: unit in images may not be identical to the I1150—they depict the process. 5. Install left and right baffle cover plate (installation of left baffle shown below). 1. Open the door. 2. Remove the front secondary air tube with pliers as shown below. Note: It will be easier to remove the air tubes by removing both the bottom right base brick and right side wall brick. -
Page 18: Glass Replacement
installation Glass Replacement Your Regency stove is supplied with 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement from an authorized Regency dealer only. -
Page 19: Wood Door & Handle Assembly
installation WOOD STOVES & INSERTS Wood Door & Handle Assembly WOOD DOOR & HANDLE ASSEMBLY Place the door onto the hinges and then place the door handle through the opening on the door, as shown in In preparation of installing the door handle, the nuts, Diagram 2. -
Page 20: Stainless Steel Smoke Deflector Installation
installation Stainless Steel Smoke Deflector Installation The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts which are accessible from behind the smoke deflector. Smoke deflector Smoke deflector is installed through the door opening in location shown in Diagram... -
Page 21: Seasoned Wood
operating instructions Seasoned Wood Whether you burn wood in a fireplace, stove or insert, good quality firewood is the key to convenience, efficiency and safety. Wet wood and pieces that are not the right size and shape for your wood burner can be frustrating, burn inefficiently and deposit creosote that can fuel a dangerous chimney fire. -
Page 22: Operating Instructions
operating instructions Optimum Fueling & Operating to the far left when facing the unit) for 6 -10 minutes. Now you can adjust the air control to Operating Procedures Instructions your desired position. After 15 minutes, the fan can be turned on. When your installation is completed and inspected With your unit now correctly installed and safety High Fire: Air control to far left. -
Page 23: Fan Operation
operating instructions Fan Operation Safety Guidelines CAUTION: HOT WHILE IN and Warnings OPERATION. KEEP CHILDREN, Automatic CLOTHING AND FURNITURE To operate the fan - turn on the rheostat. CAUTION: do not use chemicals as fluids AWAY. CONTACT MAY CAUSE to start fire. SKIN BURNS. -
Page 24: Maintenance
maintenance Maintenance dering one that can deposit creosote within the system. It is very important to carefully maintain your 5. The chimney and chimney connector should be fireplace stove, including burning seasoned wood inspected at least once every two months during and maintaining a clean stove and chimney system. -
Page 25: Secondary Air Tube Removal/Installation
maintenance Secondary Air Tube Removal/Installation 5. To reinstall or replace, first slide left side of tube into hole on left side air channel. Align tab on right side air channel with notch on right hand end of air tube. Firmly grip center of air tube with vise grips, use hammer to tap vise grips from left to right until the tube bottoms out into the air 1. -
Page 26: Vertical Stainless Deflector Replacement
maintenance Vertical Stainless Deflector Replacement 7/16'' Nuts 7/16'' Bolts Slide right + down to remove. Reverse to replace. Vertical Deflector Remove 2 front air tubes 1. Remove 2 front secondary air tubes / vermiculite baffles (see manual for details). 2. Loosen the two 7/16'' bolts + nuts to remove / replace vertical baffle. 3. -
Page 27: Annual Maintenance
maintenance Annual Maintenance Completely clean out entire unit Annually Inspect air tube and bricks Replace any damaged parts. Adjust door catch assembly If unable to obtain a tight seal on the door - replace door gasket seal. Readjust door catch after new gasket installed. Inspect condition and seal of: Glass Gasket Door Gasket... -
Page 28: Parts List
parts list Main Assembly Part # Description 172-942 Flue Adapter Standard 172-946 Flue Adapter Offset 075-955 Baffle Set Complete 033-953 Air Tubes (Each) 172-917 Fan Kit Complete 910-330 Fan Speed Controller 910-586 Fan Control Knob 911-418/P Replacement Fan Motor 910-142 Fan Thermodisc 021-973 Handle Assembly Complete... - Page 29 parts list Main Assembly I1150CSA Regency Wood Insert...
-
Page 30: Brick Panels
parts list Brick Panels 075-960 I1150CSA Brick Kit Complete Fire bricks Size 4-1/4" x 7" 4-1/2" x 7" 9" x 4-1/2" 9" x 2" 3-1/2" x 4-1/2" 4-1/4" x 8" 3-1/2" x 2-1/4" RD-14287 3.500 x2.2500 BRICK RD-14286 4.250 x 8.000 x 30 DEG BRICK 802-147 3.500 x 4.500 BRICK 802-152... -
Page 31: Faceplates
parts list Faceplates Part # Description 58) 172-920 Faceplate & Trim Set - Regular - Black 60) * Faceplate Right Side Regular / Oversize 61) * Faceplate Left Side Regular / Oversize 58) 172-922 Faceplate & Trim Set - Oversize - Black 62) * Faceplate Top Regular / Oversize 59) 171-928... -
Page 32: Warranty
warranty Indoor Wood Product Warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U S, Inc. (for US customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this Appliance provided the product remains in the original place of installation. - Page 33 warranty The authorized selling dealer, or an alternative authorized FPI dealer if pre-approved by FPI, is responsible for all in- field diagnosis and service work related to all warranty claims. FPI is not responsible for results or costs of workmanship of unauthorized FPI dealers or agents in the negligence of their service work. At all times, FPI reserves the right to inspect reported in the field/on location complaints of products claimed to be defective before processing or authorizing any claim.
- Page 34 warranty FPI has no obligation to enhance or modify any Appliance once manufactured (i.e. as products evolve, field modifications or upgrades will not be performed on existing Appliances). Any Appliance showing signs of neglect or misuse will not be covered under the terms of this warranty policy and may void this warranty, including Appliances with rusted or corroded fireboxes that have not been reported as rusted or corroded within three (3) months of installation/purchase.
-
Page 35: Warranty Registration Card
warranty Warranty Registration Card Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase. - Page 36 | I1150CSA Regency Wood Insert...
-
Page 37: Recycling
recycling PRODUCT LIFE CYCLE: By recycling your used appliances, you divert waste from your local landfills and help the environment. You also reduce the need for raw materials to manufacture new products. Contact your local municipality for appliance recycling services, local recycling programs, or appliance removal services to ensure your Regency appliance components, and packaging are properly recycled. - Page 38 notes | I1150CSA Regency Wood Insert...
- Page 39 I1150CSA Regency Wood Insert...
- Page 40 Installer: Please complete the following information Dealer Name & Address: _______________________________________ ___________________________________________________________ Installer: ___________________________________________________ Phone #: ___________________________________________________ Date Installed: _______________________________________________ Serial #: ____________________________________________________ Printed in Canada Regency is a trademark of FPI Fireplace Products International Ltd. © Copyright 2024, FPI Fireplace Products International Ltd. All rights reserved.
