Table of Contents
Advertisement
Cascades™

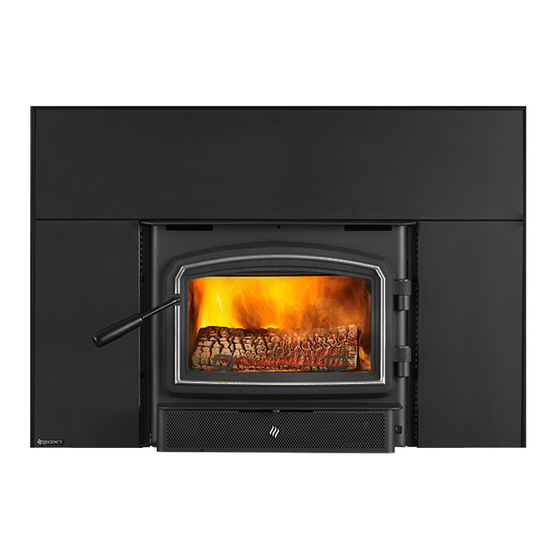

I2500 Wood
Fireplace
Insert
Owners & Installation Manual
www.regency-fire.com
French Manual: https://bit.ly/2YuraWc
Manuel en Français: https://bit.ly/2YuraWc
MODEL:
I2500
Tested & listed by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
0219WN025S
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-908d
07.17.19
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products Cascades I2500
Summary of Contents for Regency Fireplace Products Cascades I2500
- Page 1 Cascades™ I2500 Wood Fireplace Insert Owners & Installation Manual www.regency-fire.com French Manual: https://bit.ly/2YuraWc Manuel en Français: https://bit.ly/2YuraWc MODEL: I2500 Tested & listed by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 0219WN025S FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
- Page 2 Thank-you for purchasing a REGENCY FIREPLACE PRODUCT. The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. “This wood heater has a manufacturer set minimum low burn rate that must not be altered.
-
Page 3: Table Of Contents
table of contents safety label operating instructions Safety Label For I2500 ..........4 Operating Instructions ..........22 Draft Control ..............22 First Fire ..............22 Fan Operation ..............23 unit dimensions Ash Disposal ..............23 Safety Guidelines and Warnings .........23 Unit Dimensions ............5 maintenance installation Maintenance ..............24 Creosote ..............24 Before Installing Your Insert ...........6 Door Gasket ..............24... -
Page 4: Safety Label For I2500
safety decal SAFETY LABEL FOR I2500 This is a copy of the label that accompanies your Regency Insert. We have printed a copy of the contents here for your review. NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. -
Page 5: Unit Dimensions
dimensions 4 " 591mm 35" 890mm 8 " 792mm 8 " 137mm 17" 433mm 8 " 141mm From back of faceplate (not shown) to fuel door opening 7" (178mm) Regency I2500M... -
Page 6: Before Installing Your Insert
installation CHIMNEY Regency Inserts are constructed with the high- est quality materials and assembled under strict 7. Circulating air chambers (i.e. in a steel SPECIFICATIONS quality control procedures that insure years of fireplace liner or metal heat circulator) shall trouble free and reliable performance. not be blocked. -
Page 7: Installing Your Insert
installation INSTALLING YOUR INSERT Your insert is very heavy and will require two or three people to move it into position. The insert can be made a little lighter by removing the cast iron door by opening it and lifting it off its hinges. -
Page 8: Masonry And Factory Built Fireplace Clearances
installation MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES The minimum required clearances to combustible materials when installed into a masonry or factory built fireplace are listed below. Adjacent Mantle ** Side Minimum Minimum To Top of Unit Unit Side Wall (to Top of Facing Facing Hearth... -
Page 9: Installation Into Amasonry Fireplace
installation INSTALLATION INTO A STEP-BY-STEP MASONRY FIREPLACE INSTALLATION INTO A FACTORY BUILT The insert must be installed as per the requirements FIREPLACE of your local inspection authority. A full flue liner is required. 1. When installed in a factory built fireplace, a A full flue liner is a stainless steel rigid or flexible full stainless steel rigid or flexible flue liner is liner pipe which is routed from the insert outlet collar... -
Page 10: Stainless Steel Smoke Deflector Installation
installation STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts. Smoke deflector installed with 2 bolts. -
Page 11: Faceplate And Trim Installation
WOOD INSERT installation I2500M FACEPLATE AND TRIM INSTALLATION Wood Insert Faceplate & Trim Assembly Your Faceplate kit contains: 3) Slide the digital monitor operating tool bracket lining up the slots on the bracket to the 2 loose screws Set Faceplate panel (top, left & right) on item A on left hand side Once slid into position Set Trim (top, left, right) tighten screws on both left and right side (item A) - Page 12 installation Note: It may be easier to install the insulation, faceplate top and faceplate trim with the unit pulled slightly away from the fi replace face. If this is done, be very careful not to disturb the connector when shifting the unit to its fi nal position. 9) Now that your insert is installed, check once more that all the clearances from the unit to any combus- tible materials are correct as listed earlier.
-
Page 13: Flue Collar Removal And Installation & Deflector Replacement
installation FLUE COLLAR REMOVAL AND INSTALLATION & DEFLECTOR REPLACEMENT List of Tools required: 5. Remove locking clip from the front face of the Catalyst assembly by sliding - Tin snips up and out. - Pull rod (supplied with unit) - 1/2" socket / ratchet - 3/8"... - Page 14 installation 13. Insert the provided pull rod through the hole in 15. When re-installing flue collar after it has been the top center of the unit. Secure the threaded attached to the flex, be careful to guide the Cutout in end into the flue adaptor as shown in diagram bypass arm through front above the door.
-
Page 15: Catalyst Combustor Removal & Replacement
installation CATALYST COMBUSTOR REMOVAL AND REPLACEMENT List of Tools required: 7. Remove locking clip from the front face of the Catalyst assembly by - 7/16" socket / ratchet sliding up and out. - Hammer - Vice Grip 1. Allow the stove to burn out and cool down. 2. - Page 16 installation 12. Take your new or cleaned out round catalyst and install it into the square support. Then take the catalyst and square support and insert it into the cartridge in the unit. Take the flame shield and slide back end into the opening. After sliding flame shield into position—secure in place by sliding the clip down (reverse Step 7).
-
Page 17: Fan Installation
installation FAN INSTALLATION Installer: Please record unit serial number here before installing blower. Serial No.______________________________ CAUTION: Label all wires prior 1. Align the fan support with the offset clip 4. Push the Regency logo plate into the two holes on the bottom of the ashlip. to disconnection when servic- in the front bottom left corner of the fan. -
Page 18: Floor Protection
installation FLOOR PROTECTION 4) Important: push both baffles so they are Please check to ensure that your floor protection tight against the side walls. and hearth will meet the standards for clearance to combustibles. Your hearth extension must be made from a non-combustible material. -
Page 19: Wood Door & Handle Assembly
installation WOOD STOVES & INSERTS WOOD DOOR & HANDLE ASSEMBLY WOOD DOOR & HANDLE ASSEMBLY Place the door onto the hinges and then place the door handle through the opening on the door, as shown in In preparation of installing the door handle, the nuts, Diagram 2. -
Page 20: Brick Installation
installation BRICK INSTALLATION Firebrick is included to extend the life of your stove and radiate heat more evenly. Check to see that all firebricks are in their correct positions and have not become misaligned during shipping. Install all firebricks (if bricks were removed at install) per the diagram below and place in their correct positions. Do not use a grate. -
Page 21: Seasoned Wood
installation BYPASS OPERATING SEASONED WOOD HANDLE The I2500 is supplied with an air and bypass operat- Whether you burn wood in a fireplace, stove or insert, good quality firewood is the key to convenience, ing handle. The handle is used to open and close the efficiency and safety. -
Page 22: Operating Instructions
operating instructions FIRST FIRE OPERATING 7. For the first few days, the stove will give off an odour from the paint. This is to be expected as INSTRUCTIONS the high temperature paint becomes seasoned. When your installation is completed and inspected Windows and/or doors should be left open to you are ready for your first fire. -
Page 23: Fan Operation
operating instructions SAFETY GUIDELINES 15. The controls of your unit or the air supply pas- sages should not be altered to increase firing 16. Do not store any fuel closer than 2 feet from AND WARNINGS for any reason. your unit. Do not place wood, paper, furniture, drapes or other combustibles near the appliance. -
Page 24: Maintenance
operating instructions MAINTENANCE LATCH ADJUSTMENT 4) A small hot fire is preferable to a large smoul- dering one that can deposit creosote within the system. It is very important to carefully maintain your fire- The door latch may require adjustment as the door 5) The chimney and chimney connector should be place stove, including burning seasoned wood and gasket material compresses after a few fires. -
Page 25: Catalytic Combustor Part#021-531
maintenance CATALYTIC COMBUSTOR PART#021-531 ACHIEVING AND MAINTAINING CATALYST LIGHT-OFF: The temperature in the stove and the gases entering the combustor must ACHIEVING PROPER DRAFT: Draft is the force which moves air from the be raised to between 500F to 700F for catalytic activity to be initiated. appliance up through the chimney. -
Page 26: Troubleshooting Guide
maintenance DO NOT BURN: CAUTION: DO NOT BURN GARBAGE • Treated wood OR FLAMMABLE LIQUIDS SUCH AS • Coal GASOLINE, NAPTHA OR ENGINE • Garbage • Cardboard OIL. SOME FUELS COULD GENER- • Solvents ATE CARBON MONOXIDE AND ARE • Colored Paper VERY DANGEROUS. -
Page 27: Annual Maintenance
maintenance Annual Maintenance Completely clean out entire unit Annually Inspect air tube, Catalytic Combustor and bricks Replace any damaged parts. Adjust door catch assembly If unable to obtain a tight seal on the door - replace door gasket seal. Readjust door catch after new gasket installed. Inspect condition and seal of: Glass Gasket Door Gasket... -
Page 28: Main Assembly & Options - I2500
parts list MAIN ASSEMBLY & OPTIONS - I2500 Part # Description Part # Description Part # Description 850-251 Door Assy - Large Black 23) 142-917 Fan Assembly 42) 163-931 Convection Grill - Nickel (Opt) 850-253 Door Assy - Large Nickel Accent 24) 910-157/P Fan Motor 120 Volts 163-930 Convection Grill - Blk... -
Page 29: Faceplates - I2500
parts list FACEPLATES - I2500 Part # Description 140-911 Faceplate & Trim Set - Regular 180-570 Black Trim Regular (set of 3) 285) * Trim Right Regular 286) * Trim Top Regular 287) * Trim Left Regular 288) * Faceplate Side Regular 289) * Faceplate Top Regular 140-913 Faceplate & Trim Set - Oversize 180-572 Black Trim Oversize (set of 3) 295) * Trim Right Oversize 296) * Trim Top Oversize 297) * Trim Left Oversize 298) * Faceplate Side Oversize 299) * Faceplate Top Oversize *Not available as a replacement part. OVERSIZE REGULAR Regency I2500M... -
Page 30: Brick Panels - I2500
parts list BRICK PANELS - I2500 Part # Description 180-960 Firebrick - Complete Set 70) 902-111 Brick Regular Full Size: 1-1/4" x 4-1/2" x 9" 75) * Brick Partial: 1-1/4 x 4-1/2" x 2" 76) * Brick Partial: 1-1/4" x 2" x 9" 30 | Regency I2500M... -
Page 31: Combustor Assembly - I2500
parts list CATALYTIC COMBUSTOR Part # Description 075-101 Catalyst slide 075-102 Gasket bracket 075-104 Long shield bracket 936-236 Rope gasket 1/2" diameter 075-043 Rod lock 075-531 5.83 diameter combustor assembly 075-044 Cat cradle 181-053 Vertical flame shield 075-103 Rod clip lock Regency I2500M... -
Page 32: Warranty
warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below. - Page 33 warranty All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you). All claims must be complete and provide full details as requested by FPI to receive consideration for evaluation. Incomplete claims may be rejected.
- Page 34 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 35 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 36 36 | Regency I2500M...
- Page 37 NO LABOR WILL APPLY. All warranty claims must be sent to: Regency Fireplace Products By Authorized Regency Dealer * Prices subject to change.
- Page 38 warranty 38 | Regency I2500M...
- Page 39 Regency I2500M...
- Page 40 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ Printed in Canada Regency and Classic are trademarks of FPI Fireplace Products International Ltd. © Copyright 2019, FPI Fireplace Products International Ltd. All rights reserved.
