Sencor SWS 4500 User Manual

Sencor SWS 4500 User Manual

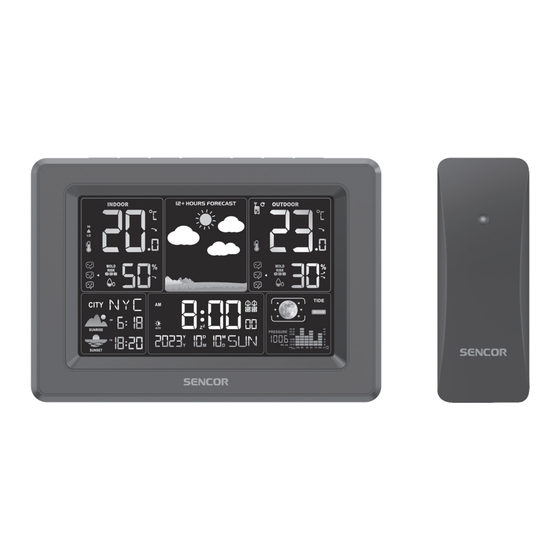

Weather station with wireless sensor

Advertisement

Quick Links

EN
User Manual
CZ
Uživatelská příručka
SK
Používateľská príručka
HU
Felhasználói kézikönyv
PL
Podręcznik użytkownika
Weather Station with Wireless Sensor
Meteorologická stanice s bezdrátovým
snímačem
Meteorologická stanica s bezdrôtovým
snímačom
Meteorológiai állomás vezeték nélküli
érzékelővel
Stacja pogodowa z czujnikiem
bezprzewodowym
SWS 4500

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWS 4500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sencor SWS 4500

  • Page 1 SWS 4500 User Manual Weather Station with Wireless Sensor Uživatelská příručka Meteorologická stanice s bezdrátovým snímačem Používateľská príručka Meteorologická stanica s bezdrôtovým snímačom Felhasználói kézikönyv Meteorológiai állomás vezeték nélküli érzékelővel Podręcznik użytkownika Stacja pogodowa z czujnikiem bezprzewodowym...
  • Page 2 We thank you for the purchase of our Color Display Weather Station. It has been designed and constructed using innovative components and techniques to enable the perfect display by this device. This unit is also equipped with an outdoor sensor. Please read the entire instruction manual before using the product and then save it for future reference.
  • Page 3: Package Contents

    PACKAGE CONTENTS 1× Digital Weather Station 1× Remote Sensor 1× User Manual 1× DC Adaptor (Batteries are not included) 1× Power Supply MAIN UNIT INSTALLATION – Remove the protective film that is applied to the LCD screen prior to using the product. –...
  • Page 4 Low Battery Indicator When battery power for main unit is lower than 3.6V,or when the power for remote sensor is lower than 2.5V, the low battery indicator will display on the LCD. When it is powered by DC adaptor,the batteries are for memory function. If the low battery indicator for main unit still shows, that means the batteries’...
  • Page 5 1. Freezing Alert 2. Weather Forecast 3. Sensor Channel 4. Rolling display of 3 channels 5. Outdoor temperature and humidity 6. Low battery Indicator (sensor) 7. Trends for temperature and humidity 8. Tides 9. Moon Phase 10. Barometer Pressure Bar 11.
  • Page 6 SENSOR 1. LED light 2. Battery compartment Cover 3. Hanging hole 4. Channel shift 5. Rope hanging hole Waterproofing for daily use, lever: IP54. When the red led light flash, it is sending signal to main unit. Be sure our sensor is mounted vertically, to allow moisture to drain out properly. Keep out of direct sunlight &...
  • Page 7: Buttons Function

    – Indoor &Outdoor temperature HI & LO alert (independent setting). – 150countries Sunrise/sunset time – Barometer pressure bar and value display – Moon Phase & Tide Indicator – 3-mode brightness: Bright/Dim/Off – C/F(Celsius/Fahrenheit) switchable – Max/ Min memory records – Low battery indicator –...
  • Page 8: Time Setting Mode

    TIME SETTING MODE – In standard mode, press and hold MODE button for 3 seconds to enter time setting – The setting item flash at a frequency of 1HZ. Short press the MODE button to select the setting items. The order is: Language →button tone ON/OFF→RCC ON/OFF(ON:ZONE±12HR)→Year→DM/ MD→Month→Day→...
  • Page 9: Alarm Setting Mode

    ALARM SETTING MODE – In standard mode, single press MODE button to switch to alarm clock display mode – Single press each time to switch AL1(M-F)’AL1(S-S)’AL2(M-F)’AL2(S-S). then it will return to time display mode after 5 seconds of no operation; snooze time: 5~60 Minutes –...
  • Page 10 – When the setting item flashes at 1HZ frequency, short press the UP button to add 1, and long press the UP button to quickly add up at 8 steps/second. – When the setting item flashes at 1HZ frequency, short press the DOWN button to decrease by 1, and long press the DOWN button to quickly decrease at 8 steps/second.
  • Page 11: Atmospheric Pressure

    INDOOR/OUTDOOR TEMPERATURE AND HUMIDITY AND TREND Indoor temperature range:-9.9ºC~50ºC Outdoor temperature range:-40ºC~60ºC LL.L & HH.H will display when out of range Indoor/outdoor humidity detection range: 1% to 99%; if it is higher than 99%, it will display 99%, if it is lower than 1%, it will display 1% 2.Trends: Trends Icon will not display at the moment of powering on.
  • Page 12 MOLD RISK WARNING There are 3 levels of mold risk warning: LO, ME and HI, when the level of mold risk warning is LO or ME, the symbol display all the time. When the level is HI, the symbol “HI” flashes. Temperature No Risk Low Risk...
  • Page 13: Frost Alert

    FROST ALERT – When the outdoor display temperature of the current RF channel is within the range of 0~2.9ºC, the frost point alarm symbol “ “ flashes; – when temperature of the outdoor channel is lower than 0ºC, the frost and snow symbol “ “...
  • Page 14 If the receiver only receives 1 or 2 channels within 3 minutes, the channel that does not receive a signal will no longer be automatically opened for reception in the future, and only the channel that has been paired and registered will be received, unless it is powered on again, reset or manually forced pairing to receive all channels.
  • Page 15 Adapter technical specifications: Manufacturer’s name or trade mark, commercial DONGGUAN SHIJIE HUAXU ELECTRONICS registration number and address: FACTORY, Commercial Registration Number: 440429543, Address: No.200, Technology East Road ,Shijie TownDongguan City,Guangdong, P.R.China Model identifier: HX075-0501200-AG-001 Input voltage: AC100 - 240V Input AC frequency: 50/60Hz Output voltage: DC5.0V...
  • Page 16 Country CITY Abbr. Germany Saarbrucken Germany Schwerin Denmark Aalborg Denmark Aarhus Denmark Copenhagen Denmark Odense Spain Alicante Spain Andorra Spain Badajoz Spain Barcelona Spain Bilbao Spain Cadiz Spain Cordoba Spain Ibiza Spain A Coruna Spain Leon Spain Las Palmas Spain Madrid Spain Malaga...
  • Page 17 Country CITY Abbr. France Paris France Perpignan France Lille France Rouen France Strasbourg France Toulouse Finland Helsinki U.K. Aberdeen U.K. Belfast U.K. Birmingham U.K. Bristol U.K. Edinburgh U.K. Glasgow U.K. London U.K. Manchester U.K. Plymouth Hungary Budapest Croatia Zagreb Italy Ancona Italy Bari...
  • Page 18 Country CITY Abbr. Italy Venice Italy Verona Italy Imperia Ireland Dublin Duchy of Luxembourg Luxemburg Norway Bergen Norway Oslo Norway Stavanger Netherlands Amsterdam Netherlands Eindhoven Netherlands Enschede Netherlands Groningen Netherlands The Hague Netherlands Rotterdam Portugal Evora Portugal Coimbra Portugal Faro Portugal Leiria Portugal...
  • Page 19 Country CITY Abbr. Belgium Antwerp Belgium Bruges Belgium Brussels Belgium Charleroi Belgium Liege Switzerland Basel Switzerland Bern Switzerland Chur Switzerland Geneva Switzerland Locarno Switzerland Lucerne Switzerland St.Moritz Switzerland St.Gallen Switzerland Sion Switzerland Vaduz Switzerland Zurich Czech Republic Prague Greece Athens Romania Bucharest Bulgaria...
  • Page 20: Technical Specifications

    TECHNICAL SPECIFICATIONS Weather Forecast Icon (Sunny, Partly Cloudy, Cloudy, Rainy, Thunderstorm, Snowy) 12 ~ 24 Hour Forecast Based on Changing Air Pressure and Temperature Indoor Temperature and Humidity Reading with Comfort and Trend Indicator Outdoor Temperature and Humidity Reading with Trend Indicator Radio Controlled Clock by Signal DCF77 (Manual Setting Possible) Barometric Pressure Value Bar Chart for Pressure Changes (-1, -2, -3, -6, -12 hours)
  • Page 21 This product complies with EU requirements. FAST ČR, a. s. hereby declares that the radio device type SWS 4500 complies with Directive 2014/53/EU. For full version of the EU declaration of conformity, please refer to the website: www.sencor.cz...
  • Page 22 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
