- Page 1 SWS 9300 COLOR WEATHER STATION USER MANUAL WITH 5-IN-1 SENSOR METEOROLOGICKÁ STANICE S BAREVNÝM UŽIVATELSKÁ PŘÍRUČKA DISPLEJEM A SNÍMAČEM 5-V-1 METEOROLOGICKÁ STANICA S FAREBNÝM POUŽÍVATEĽSKÁ PRÍRUČKA DISPLEJOM A SNÍMAČOM 5-V-1 METEOROLÓGIAI ÁLLOMÁS SZÍNES KIJELZŐVEL FELHASZNÁLÓI KÉZIKÖNV ÉS 5 AZ 1-BEN ÉRZÉKELŐVEL STACJA POGODOWA Z KOLOROWYM INSTRUKCJA OBSŁUGI...
- Page 2 INTRODUCTION Thank you for your purchase of this delicate color weather station with 5-IN-1 sensor. The wireless 5-IN-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, and wind vane, temperature and humidity sensors. It is fully assembled and calibrated for your easy installation.
-
Page 3: Temperature And Humidity Sensor

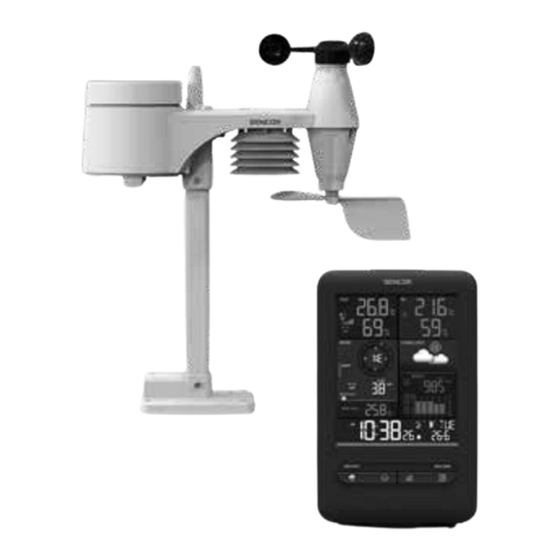

WIRELESS 5-IN-1 SENSOR 1. Rain collector 2. Balance indicator 3. Antenna 4. Wind cups 5. Mounting pole 6. Radiation shield 7. Wind vane 8. Mounting base 9. Mounting clamp 10. Red LED indicator 11. [RESET] key 12. Battery door 13. Mounting clamp screws AIN GAUGE 1. -
Page 4: Indoor Temperature And Humidity
INDOOR TEMPERATURE AND HUMIDITY 1. Indoor indicator 2. Comfort indication 3. Indoor temperature 4. Indoor humidity OUTDOOR TEMPERATURE AND HUMIDITY 1. Outdoor indicator 2. Outdoor sensor low battery indicator 3. Outdoor signal strength indicator 4. Outdoor temperature 5. Outdoor humidity WEATHER FORECAST Weather forecast icon BAROMETER... -
Page 5: Installation
INSTALLATION WIRELESS 5-IN-1 SENSOR Your wireless 5-IN-1 sensor measures wind speed, wind direction, rainfall, temperature and humidity for you. It’s fully assembled and calibrated for your easy installation. BATTERY AND INSTALLATION Unscrew the battery door at bottom of unit and insert the batteries according to the +/- polarity indicated. -
Page 6: Mounting Guidelines
Step 4 Place the nut in the hexagon hole of the stand, then insert the screw in other side and then tighten it by the screw driver. Install the wireless 5-IN-1 sensor in Add rubber an open location with no obstructions pads before above and around the sensor for Point to... -
Page 7: Power Up The Console
POWER UP THE CONSOLE 1. Plug the power adapter USB plug to power up the main unit. 2. Once the main unit power up, all the segments of the LCD will be shown briefly before entering the radiocontrolled time reception mode. 3. -
Page 8: Signal Strength Indicator
SIGNAL STRENGTH INDICATOR The signal indicator displays signal strength in 4 levels. Wave segment flashing means time signals are being received. The signal quality could be classified into four types: No signal quality Weak signal quality Acceptable signal quality Excellent signal quality NOTE: - Everyday the unit will automatically search for the time signal at 2:00am, 8:00am, 2:00pm and 8:00pm... -
Page 9: Activating Alarm And Temperature Pre-Alarm Function
5. Press [ALARM] key to save and exit the setting. NOTE: - In alarm mode, the “ ” icon will display on the LCD. - The alarm function will turn on automatically once you set the alarm time. ACTIVATING ALARM AND TEMPERATURE PRE-ALARM FUNCTION 1. - Page 10 BAROMETRIC/ATMOSPHERIC PRESSURE TO SELECT THE PRESSURE DISPLAY MODE 1. Press and hold the [BARO] key for 2 seconds to enter select model: 2. Press [UP] or [DOWN] key to select between: ABS the absolute atmospheric pressure of your location. REL the relative atmospheric pressure based on the sea. 3.
-
Page 11: Beaufort Scale
TO SELECT THE MEASUREMENT UNIT FOR THE RAINFALL 1. Press and hold the [RAIN] key 2 seconds to enter unit setting mode. 2. Use [UP] or [DOWN] key to toggle between mm (millimeter) and in (inch). 3. Press the [RAIN] key to confirm and exit. WIND SPEED / WIND DIRECTION TO READ THE WIND DIRECTION Wind Direction Indicator... - Page 12 5.6 ~ 11 km/h Wind felt on exposed skin. Lea- 4 ~ 7 mph Light breeze ves rustle. Wind vanes begin to 4 ~ 6 knot move. 1.6 ~ 3.3 m/s 12 ~ 19 km/h 8 ~ 12 mph Leaves and small twigs constantly Gentle breeze moving, light flags extended.
- Page 13 103 ~ 117 km/h 64 ~ 73 mph Widespread vegetation and Violent storm structural damage likely. 56 ~ 63 knot 28.5 ~ 32.6 m/s ≥ 118 km/h Severe widespread damage to ≥ 74 mph vegetation and structures. Debris Hurricane force and unsecured objects are hurled ≥...
- Page 14 MAX/MIN MEMORY FUNCTION 1. Press the MAX/MIN key to check the maximum/minimum records. The checking orders will be: Outdoor max temperature Outdoor min temperature Outdoor max humidity Outdoor min humidity Indoor max temperature Indoor min tem- perature Indoor Max humidity Indoor min humidity Max feels like tem- perature...
-
Page 15: Wireless Signal Reception
WIRELESS SIGNAL RECEPTION The 5-IN-1 sensor is capable of transmitting data wirelessly over an approximate operating of 150m range (line of sight). Occasionally, due to intermittent physical obstructions or oth- er environmental interference, the signal may be weaken or lost. In case that the sensor signal is lost completely, you will need to relocate the Console or the wireless 5-IN-1 sen- sor. -
Page 16: Moon Phase
3. Use [UP] or [DOWN] key to change to lower part (Southern Hemisphere). 4. Press the [WIND] key to confirm and exit. NOTE: Changing from hemisphere setting will automatically switch the direction of the moon phase on the display. MOON PHASE In the Northern hemi- Northern Southern... -
Page 17: Troubleshooting
TROUBLESHOOTING Problem / Symptom Solution Strange or no measurement of Rain Sensor 1. Check the drain hole in the rain collector. 2. Check the balance indicator. Strange or no measurement of Thermo / Hygro 1. Check the radiation shield. Sensor 2. -
Page 18: Specifications
SPECIFICATIONS CONSOLE Dimensions (W × H × D) 118 × 192.5 × 21mm (without attach table stand) Weight 260g Main power 5V DC 600mA input adaptor Backup battery CR2032 Support sensor Wireless 5-in-1 sensor (Wind speed, Wind direction, Rain gauge, thermo-hygro) RF frequency 868Mhz (for EU or UK version) RADIO-CONTROLLED / ATOMIC CLOCK... - Page 19 INDOOR HUMIDITY Displayed range 20% to 90% RH (<20%: LO; > 90%: HI) (Temperature between 0°C to 60°C) Operating range 20% to 90% RH Resolution Accuracy 20 ~ 40% RH, ± 8% RH, at 25°C (77°F) 41% ~ 70% RH, ± 5% RH, at 25°C (77°F) 71% ~ 90% RH, ±...
- Page 20 HUA XU ELECTRONICS FACTORY, No. 1, Shi Tang Bei de mark, commercial regist- Street 2, Shi Jie Town, Dong Guan City, Guang Dong, ration number and address: P.R.China Model identifier: SWS 9300 Input voltage: AC100 - 240V Input AC frequency: 50/60Hz Output voltage: DC5.0V...
- Page 21 The product meets EU requirements. Hereby, FAST ČR, a.s. declares that the radio equipment type SWS 9300 is in compliance with Directive 2014/53/EU. For the full version of the EU declaration of conformity, please refer to the following website: www sencor.com...
- Page 22 Data on presented documents differs from data on products. Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial number or the warranty seal has been damaged). Authorized service centers Visit www.sencor.eu for detailed information about authorized service centers.
