Altronix TROVE T2PDK75F16S Installation Manual page 4

1. Fasten spacers onto metal pems configuration (A) of backplane (Fig. 3, pg. 4).
2. Position PDK modules over corresponding spacers and mount them utilizing pan head screws (provided) (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
PDK Access Controller
red1, red2, red4

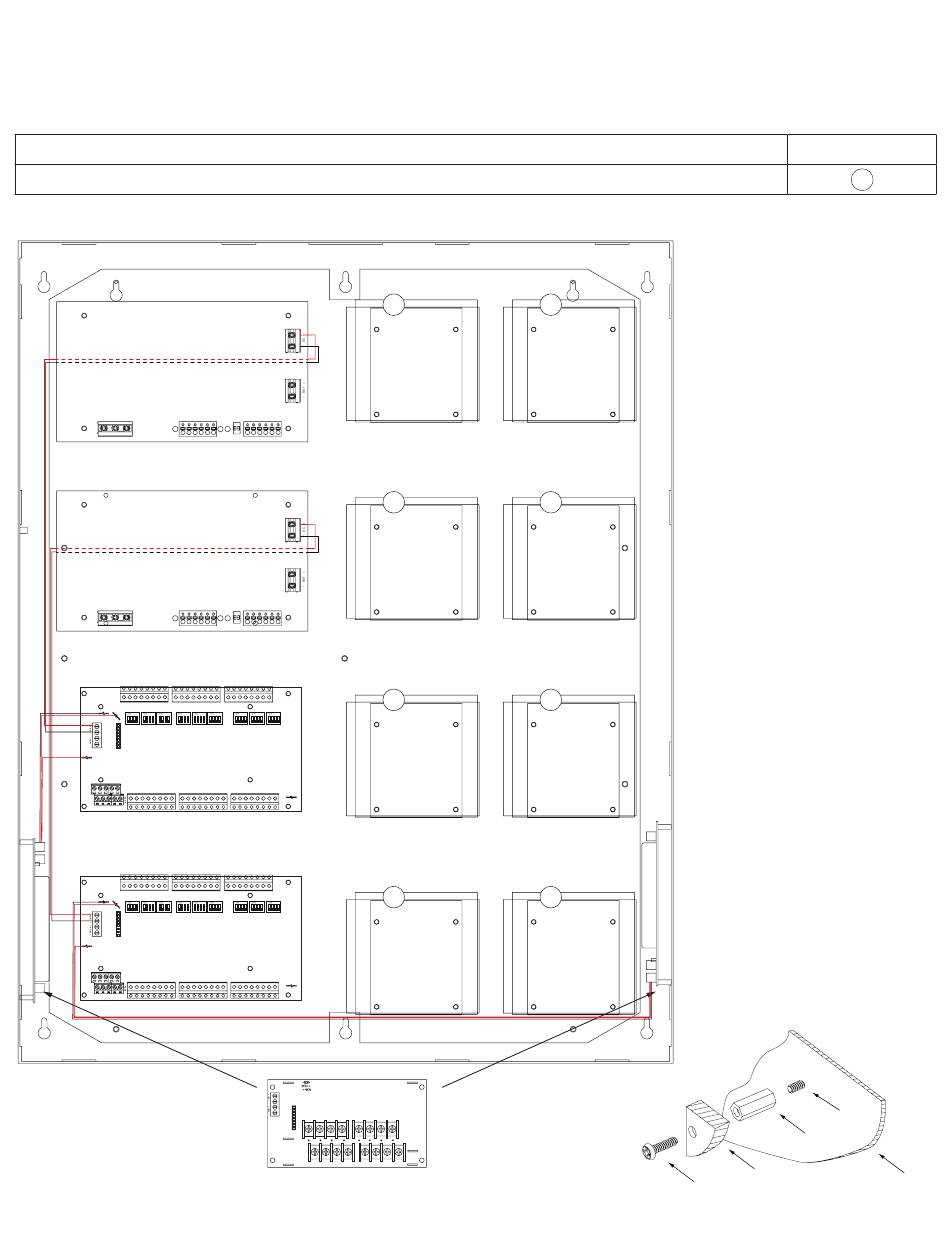

Fig. 3
Altronix eFlow104NB
L G N
Altronix eFlow104NB
L G N
Input 1 Input 2 Input 3 Input 4 Input 5 Input 6
NO–––NC FACP OUTPUT NO–––NC
COM--
DIP DIP DIP DIP
PWR1+
1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8
Altronix ACMS12(CB)
PWR2+
Output 1 Output 2 Output 3 Output 4 Output 5
–F –R – + – + – + – + – + –
NC GND GND
C RST EOL +F +R
Altronix VR6s are mounted
below ACMS12(CB)s
Input 1 Input 2 Input 3 Input 4 Input 5 Input 6
NO–––NC NO–––NC
COM-- FACP OUTPUT
DIP DIP DIP DIP
PWR1+
1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 8
Altronix ACMS12(CB)
PWR2+
Output 1 Output 2 Output 3 Output 4 Output 5
NC GND GND –F –R – + – + – + – + – + –
C RST EOL +F +R
PDS8(CB)s are mounted to both sides
of Trove2 enclosure
- 4 -
T2PDK77F24S(D): Configuration of PDK Modules:
Input 7 Input 8 Input 9 Input 10 Input 11 Input 12
FACP OUTPUT NO–––NC FACP OUTPUT
DIP DIP DIP DIP DIP
5 6 7 8 5 6 7 8 9 10 11 12 9 10 11 12 9 10 11 12
COM--
Output 6 Output 7 Output 8 Output 9 Output 10 Output 11 Output 12
+ – + – + – + – + – + – +
Input 7 Input 8 Input 9 Input 10 Input 11 Input 12
NO–––NC
FACP OUTPUT FACP OUTPUT
DIP DIP DIP DIP DIP
5 6 7 8 5 6 7 8 9 10 11 12 9 10 11 12 9 10 11 12
COM--
Output 6 Output 7 Output 8 Output 9 Output 10 Output 11 Output 12
+ – + – + – + – + – + – +
OFF
PWR1 + IN1 Fuse
IN1
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6
COM (--- )
N
PWR2 +
1 2 3 4 5
Common Power Outputs (NEG)
A A
A A
A A
A A
PWR1 +
OUT7 OUT8
COM (--- )
PWR2 +
6 7 8
Pem Mounting
A
Pem
Spacer
Pan Head PDK module
Screw
Trove PDK eFlow Kits Installation Guide
Fig. 3a
Backplane
