Altronix T2428300E Installation Instructions

Overview:

T2428300E CCTV and Accessory Power Supply is designed for powering CCTV Cameras, environmental housings, and
other video accessories. It provides 24VAC or 28VAC output.

Specifications:

Input:
• 115VAC 50/60Hz, 2.7A.
Output:
• 24VAC @ 14A or 28VAC @ 12.5A supply current.
Additional Features:
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
Enclosure Dimensions:
12.25" x 7.25" x 4.5" (311.15mm x 184.15mm x 114.3mm)
Optional: Available with 220VAC input.
Order model # T2428300220E.
Installation Instructions:
1. Mount the AC power supply in desired location.
2. Connect the AC (115VAC 50/60 Hz) to the black and
white flying leads of the transformer (Fig. 1).
3. Measure output voltage before connecting devices.
This helps avoiding potential damage.
4. Connect devices to the secondary flying leads:
- Yellow and Brown for 24VAC
(open circuit voltage @ 115VAC approx. 26.1VAC).
- Black and Brown for 28VAC
(open circuit voltage @ 115VAC approx. 30.4VAC).
5. Upon completion of the wiring secure enclosure door with screws (supplied).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This
installation should be made by qualified service personnel and should conform to the National Electrical
Code and all local codes.

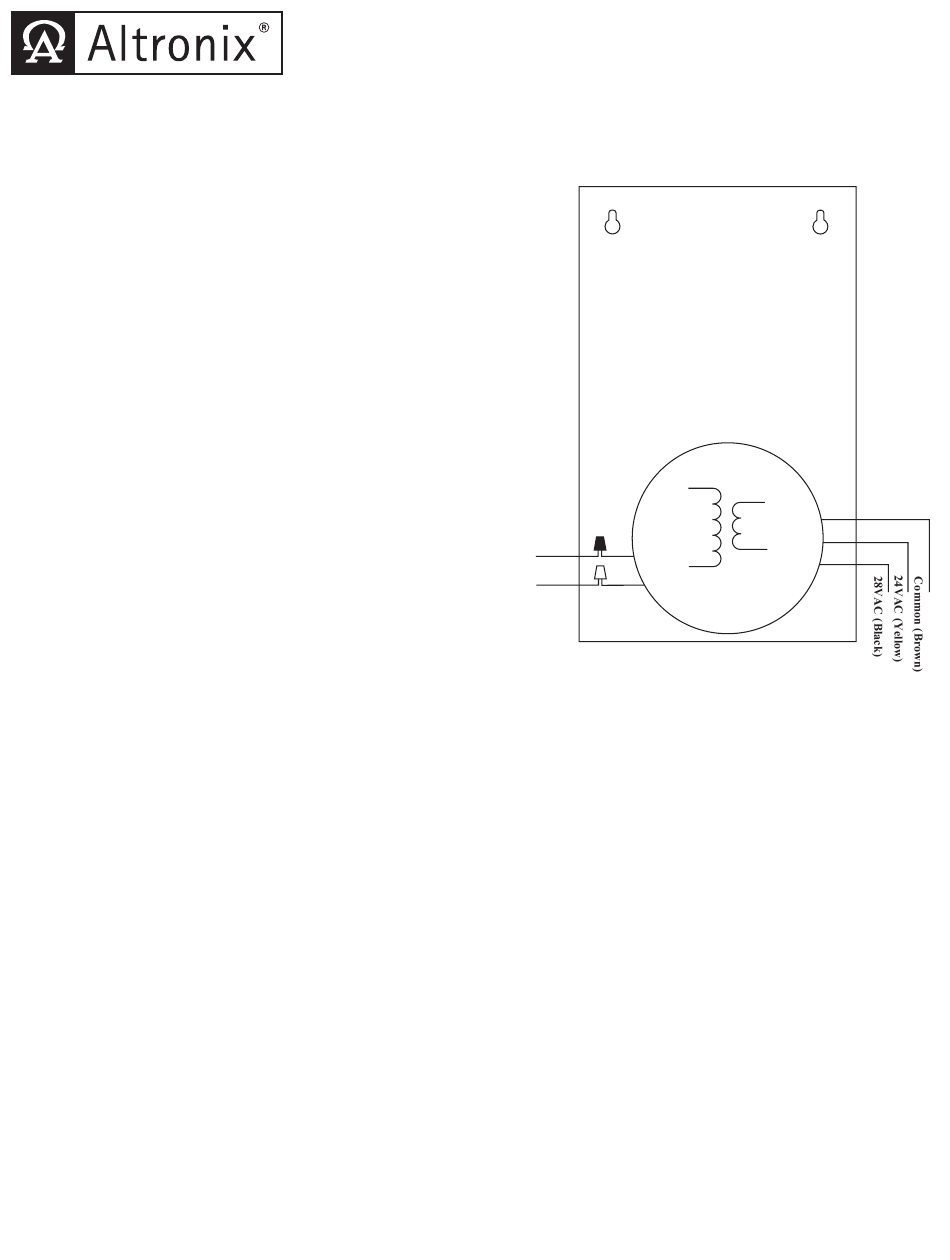

T2428300E
High Current CCTV Camera and Accessory Power Supply
115 VAC
50/60Hz,
Input
2.7A
XFMR
Fig. 1
