1. Fasten spacers onto metal pems configuration (A) of backplane (Fig. 2, pg. 3).
2. Position PDK modules over corresponding spacers and mount them utilizing pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
PDK Access Controller
red1, red2, red4

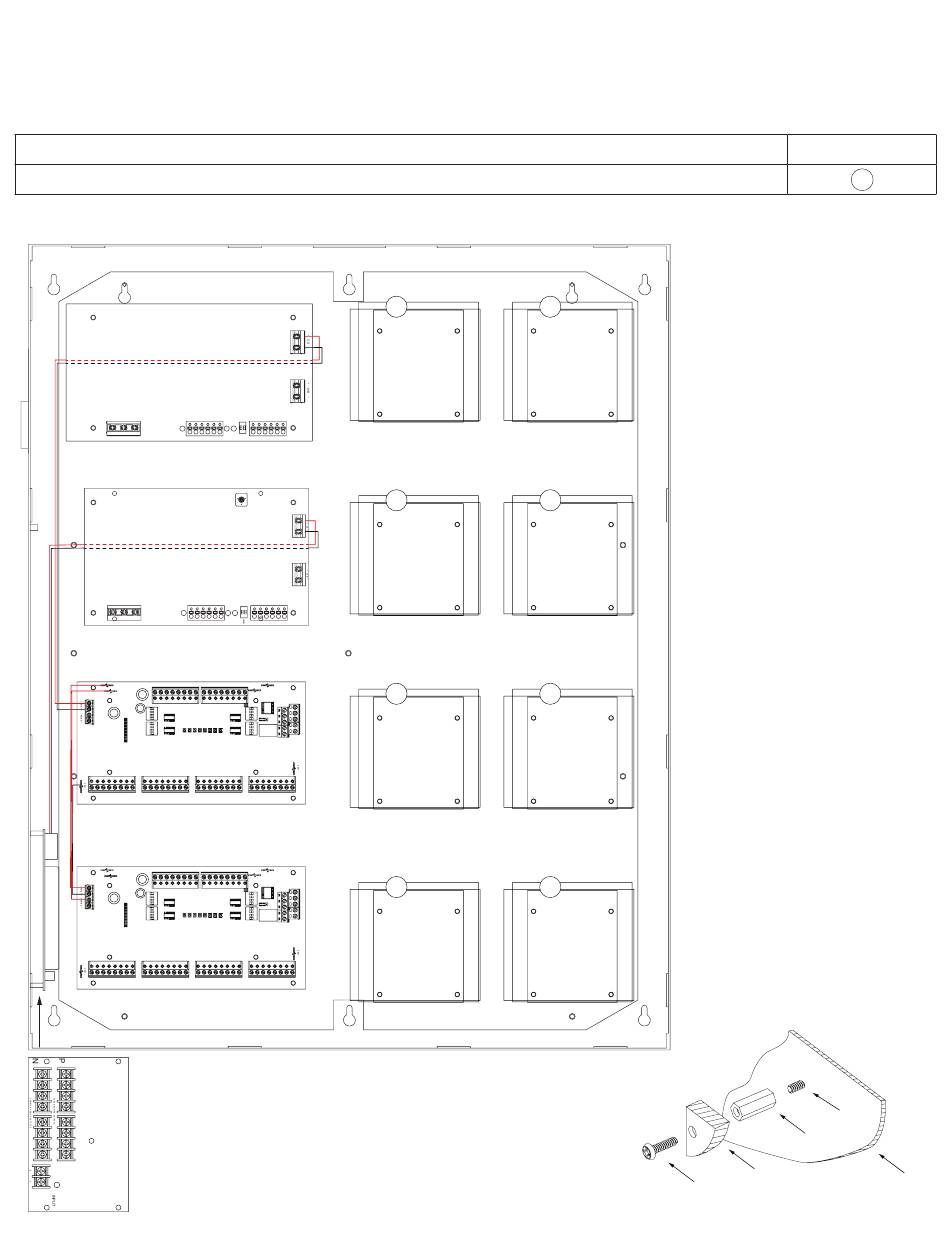

Fig. 2
Altronix eFlow104NB
L G N
Altronix eFlow102NB
AC1
L G N
NC
PWR1 +
PWR2 +
Altronix ACMS8(CB)
Altronix VR6 is mounted under ACMS8(CB)
PWR1 +
PWR2 +
Altronix ACMS8(CB)
PD8UL(CB) is mounted on
the left side wall
of Trove2 enclosure
Altronix
PD8UL(CB)
Trove PDK eFlow Kits Installation Guide
T2PDK75F16S(D): Configuration of PDK Modules:
AC DC
1 min enable
C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
AC FAIL BAT FAIL SUPERVISED RESET
PWR1 +
PWR2 +
PWR1 +
PWR2 +
A A
A A
A A
A A
Pem Mounting
A
Pem
Spacer
Pan Head PDK module
Screw
Fig. 2a
Backplane
