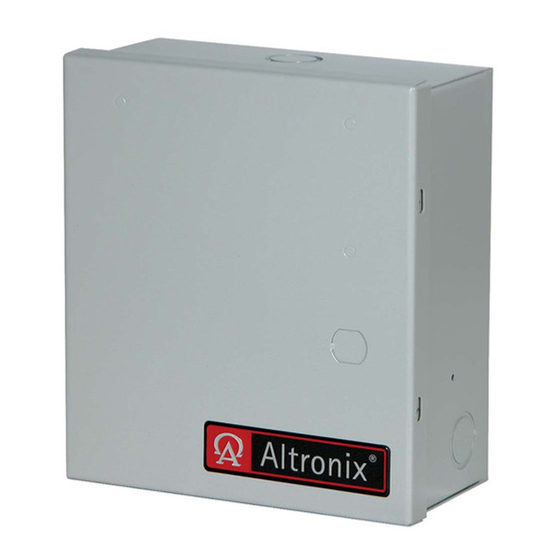

Altronix T2428100CP Quick Start Manual

Overview:

Altronix T2428100CP provides power for electronic power supplies and equipment including security, access control, and
surveillance devices.

Specifications:

• Input: 115VAC 50/60Hz, 0.95A.
• Output: 24VAC @ 4A or 28VAC @ 3.5A supply current.
• In-line fuse rated @ 3.5A/250V.
• 220VAC models are available upon request.

Installation Instructions:

1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two (2) keyholes in the enclosure.
Install two (2) upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the
two (2) upper screws, level and secure. Mark the position of the lower two (2) holes. Remove the enclosure. Drill the lower holes and install
the two (2) fasteners. Place the enclosure's upper keyholes over the two (2) upper screws. Install the two (2) lower screws and make sure
to tighten all screws (Enclosure Dimensions, pg. 2).
2. Connect the AC (115VAC 50/60 Hz) to the black and white flying leads of the transformer (Fig. 1).
3. Measure output voltage before connecting device. This helps avoiding potential damage.
4. For 24VAC configuration use terminals marked [COM] and [24VAC].
For 28VAC configuration use terminals marked [COM] and [28VAC].
5. Upon completion of the wiring secure enclosure door with screws (supplied).
WARNING: This installation should be made by qualified service personnel and should conform to the National Electrical Code
and all local codes.

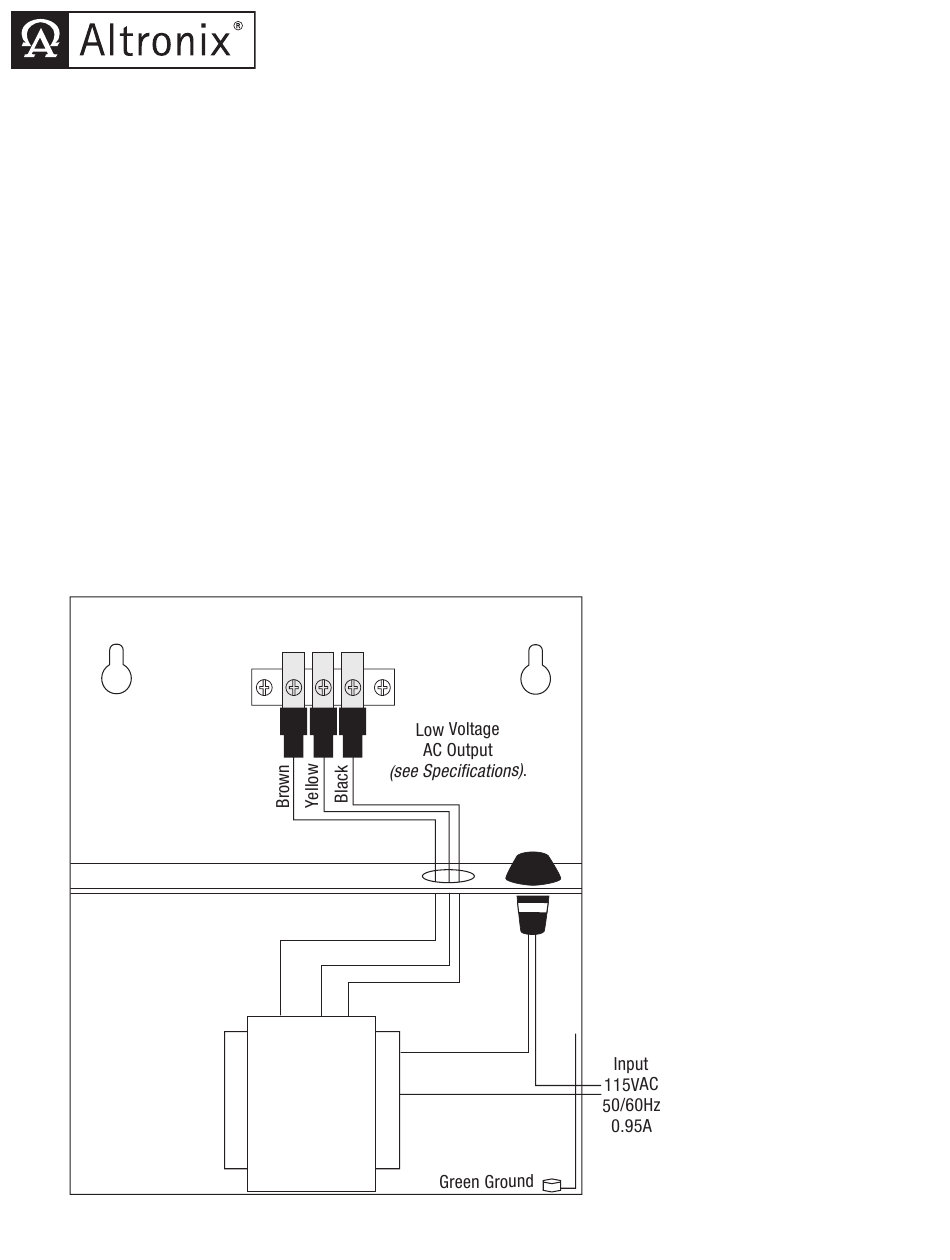

Fig. 1
T2428100CP
AC Power Supply
24 28
Com
VAC VAC
Black Lead
White Lead
XFMR
