Summary of Contents for SHOWTEC Phantom 60 LED Bar

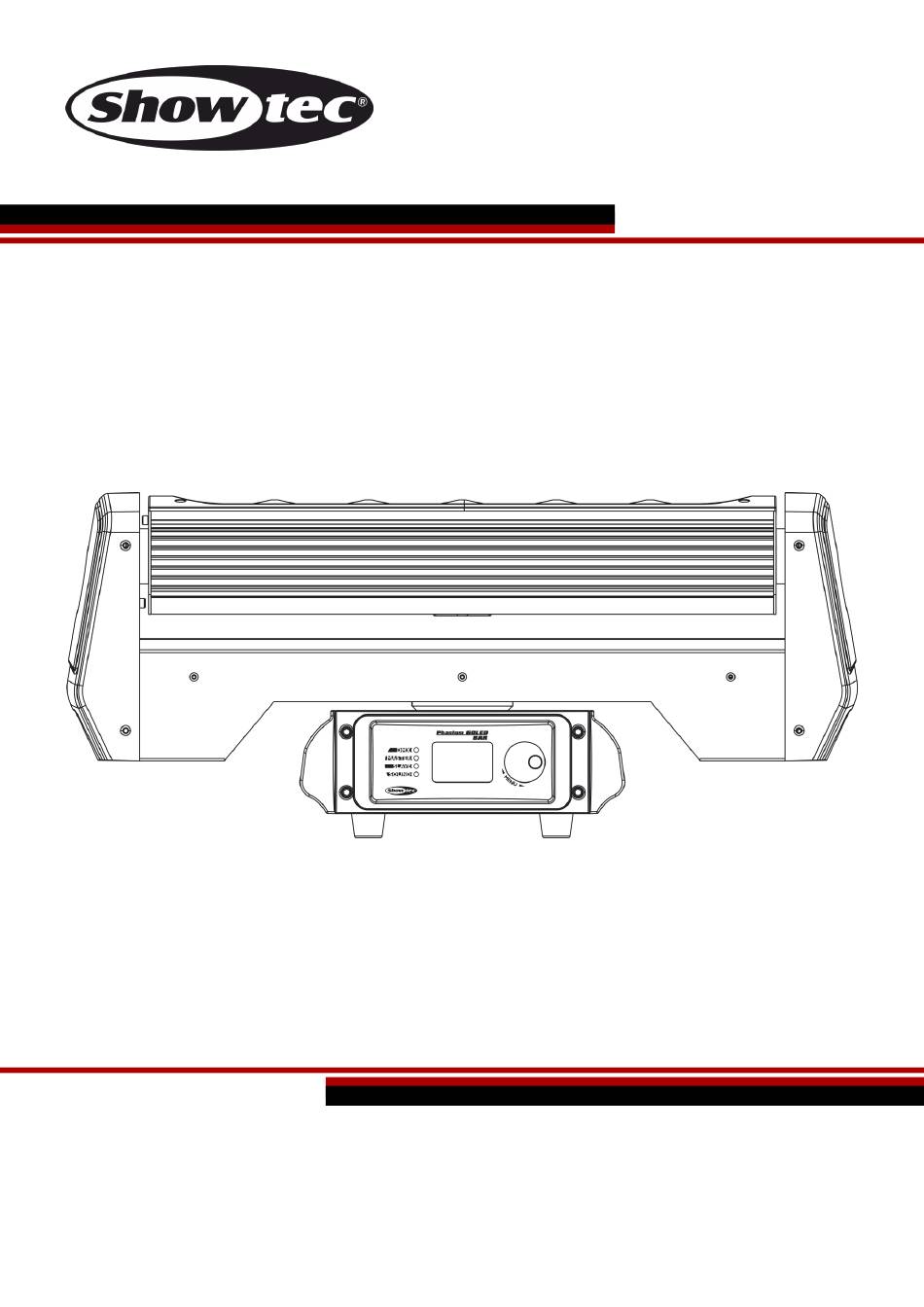

Page 1 MANUAL ENGLISH Phantom 60 LED Bar Ordercode: 40061 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
Page 2: Table Of Contents
Phantom 60 LED Bar Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Frontside..................................8 Backside ..................................
Page 3 Phantom 60 LED Bar Troubleshooting ................................32 No Light ..................................32 No Response to DMX..............................33 Product Specifications ..............................34 Dimensions ..................................35 Notes ....................................36 Ordercode: 40061...
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec Phantom 60 LED Bar  1 x mounting bracket ...
Page 5 For replacement use fuses of same type and rating only.  The user is responsible for correct positioning and operating of the Phantom 60 LED Bar. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure:  If the Phantom 60 LED Bar is lowered from the ceiling or high joists, professional trussing systems have to be used.  Use a clamp to mount the Phantom 60 LED Bar, with the mounting bracket, to the trussing system.
Page 7: Connection With The Mains
Phantom 60 LED Bar The Phantom 60 LED Bar can be placed on a flat stage floor or be mounted to any kind of truss by means of a mounting bracket. Improper installation can cause serious damage to people and property! Connection with the mains Connect the device to the mains with the power-plug.
Page 8: Return Procedure
Phantom 60 LED Bar Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Page 9: Description Of The Device
Phantom 60 LED Bar Description of the device Features The Showtec Phantom 60 LED Bar is a moving batten with high output and great effects.  Input voltage: 100-240V AC, 50/60Hz  Power consumption: 125W  Light source: 6 x 10W RGBW LEDs ...
Page 10: Backside
10) 3-pin DMX signal connector OUT Installation Remove all packing materials from the Phantom 60 LED Bar. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.
Page 11: Control Modes
Phantom 60 LED Bar Control Modes There are 5 modes: • Built-in programs (Master mode) • Manual • Sound-controlled • Master/Slave mode • DMX-512 (9CH, 17CH, 33CH, 41CH) One Phantom (Built-in Programs and Manual) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
Page 12: Multiple Phantoms (Dmx Control)
Phantom 60 LED Bar Multiple Phantoms (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket.
Page 13: Fixture Linking
Phantom 60 LED Bar Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
Page 14: Control Panel
Phantom 60 LED Bar The Phantom 60 LED Bar can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel Press and turn the control to navigate through the menu options Fig. 05 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller.
Page 15: Menu Overview
Phantom 60 LED Bar Menu Overview Ordercode: 40061...
Page 16: Main Menu Options
Phantom 60 LED Bar Main Menu Options There are 5 menu modes: • 1. DMX-512 • 2. Channel Mode • 3. Run Mode • 4. Functions • 5. Version 1. DMX-512 01) While in the main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu.
Page 17: Channel Mode
Phantom 60 LED Bar 2. Channel Mode 01) While in the main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 4 available channel modes: ...
Page 18: Slave Mode
Phantom 60 LED Bar 3.3 Slave Mode 01) Turn the MENU control (03) to choose one of 2 built-in Slave modes. 02) Turn the MENU control (03) to toggle between the 2 slave functions:  Slave1 (normal slave mode) ...
Page 19: Functions Mode
Phantom 60 LED Bar 4. Functions Mode 01) While in the main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 9 available functions: ...
Page 20: Dimmer Curve
Phantom 60 LED Bar 4.3 Dimmer Curve 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 4 available modes:  Square Law  Linear  S-curve  InvSquare Law 03) Press the MENU control (03) to confirm the mode of your choice.
Page 21: Back Light
Phantom 60 LED Bar 4.6 Back Light 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 3 options:  ON (Display continuously ON)  OFF (Display turns OFF after 15 seconds) ...
Page 22: Dmx Channels
Phantom 60 LED Bar DMX Channels 9 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position you wish.
Page 23 Phantom 60 LED Bar 210-216 Color30(R000, G000, B000, W255) 217-223 Color31(R075, G075, B000, W255) 224-230 Color32(R000, G000, B100, W255) 231-255 Color33(R255, G255, B255, W255) Channel 7 – Color Switch/Flow Dimmer must be open 0-15 Not functional 16-23 Color switch 1...
Page 24: Channels
Phantom 60 LED Bar 201-220 Pan/Tilt blackout ON 221-240 Pan/Tilt blackout OFF 241-255 Not functional 17 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position you wish.
Page 25 Phantom 60 LED Bar 112-118 Color16(R000, G255, B255, W150) 119-125 Color17(R000, G100, B255, W255) 126-132 Color18(R000, G000, B255, W100) 133-139 Color19(R000, G000, B255, W050) 140-146 Color20(R000, G000, B255, W000) 147-153 Color21(R075, G000, B255, W000) 154-160 Color22(R160, G000, B255, W000) 161-167...
Page 26 Phantom 60 LED Bar Channel 13 – Functions Dimmer and CH10 must be open No function 6-10 Show1 11-20 Show2 21-30 Show3 31-40 Show4 41-50 Show5 51-60 Show6 61-70 Show7 71-80 Show8 81-90 Slave1 91-96 Slave2 97-160 Sound sensitivity, from low sensitivity to high sensitivity...
Page 27: Channels
Phantom 60 LED Bar 33 Channels The Phantom 60 LED Bar is equipped with 6 x 10W RGBW LEDs. Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position you wish.
Page 28 Phantom 60 LED Bar Channel 13 – White 1 color intensity Dimmer must be open 0-255 Gradual adjustment White, from 0 – 100% Channel 14 – Red 2 color intensity Dimmer must be open 0-255 Gradual adjustment Red, from 0 – 100% Channel 15 –...
Page 29: Channels
Phantom 60 LED Bar 41 Channels The Phantom 60 LED Bar is equipped with 6 x 10W RGBW LEDs. Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position you wish.
Page 30 Phantom 60 LED Bar 56-62 Color8(R000, G255, B000, W255) 63-69 Color9(R000, G255, B000, W150) 70-76 Color10(R000, G255, B000, W050) 77-83 Color11(R000, G255, B000, W000) 84-90 Color12(R000, G255, B050, W000) 91-97 Color13(R000, G255, B150, W000) 98-104 Color14(R000, G255, B255, W000) 105-111...
Page 31 Phantom 60 LED Bar Channel 12 – Color Switch/Flow Speed CH11 must be set between 16-255 0-255 From slow to fast Channel 13 – Functions Dimmer and CH10 must be open No function 6-10 Show1 11-20 Show2 21-30 Show3 31-40...
Page 32 Phantom 60 LED Bar Channel 24 – Blue 2 color intensity Dimmer must be open, CH10, 11 must be closed 0-255 Gradual adjustment Blue, from 0 – 100% Channel 25 – White 2 color intensity Dimmer must be open, CH10, 11 must be closed 0-255 Gradual adjustment White, from 0 –...
Page 33: Maintenance
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Phantom 60 LED Bar, as this may damage the unit and the warranty will become void.
Page 34: No Response To Dmx
Phantom 60 LED Bar No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Page 35: Product Specifications
Phantom 60 LED Bar Product Specifications Model: Showtec Phantom 60 LED Bar Input voltage: 100-240V AC, 50/60Hz Power consumption: 125W DMX linking: 30pcs Fuse: T3A/250V Dimensions: 580 x 150 x 255 mm (LxWxH) Weight: 8,36 kg Operating and Programming: Signal pin OUT:...
Page 36: Dimensions
Phantom 60 LED Bar Dimensions Ordercode: 40061...
Page 37: Notes
Phantom 60 LED Bar Notes Ordercode: 40061...
Page 38 Phantom 60 LED Bar Ordercode: 40061...
Page 39 Phantom 60 LED Bar Ordercode: 40061...
