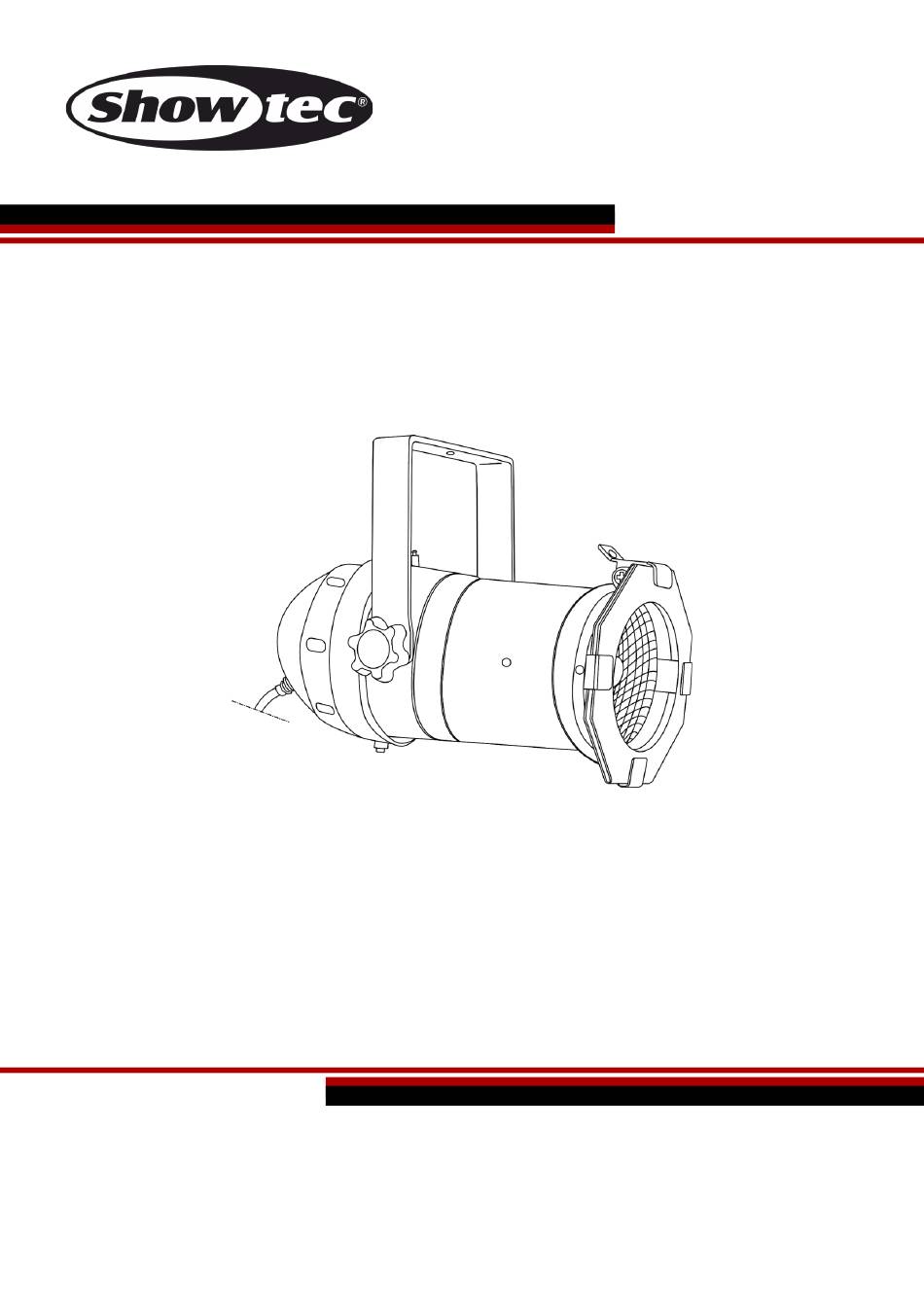

- Page 1 MANUAL ENGLISH PAR 56 Warm-On-Dim Ordercode: 43315 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PAR 56 Warm-On-Dim Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Optional accessories ..............................6 Overview .................................. -
Page 3: Warning
Your shipment includes: ● Showtec PAR 56 Warm-On-Dim with 0,5m Schuko power cable ● 1x Filter frame ● User manual... - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
PAR 56 Warm-On-Dim Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 0,5 meter. -
Page 6: Connection With The Mains
PAR 56 Warm-On-Dim Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER... -
Page 7: Description Of The Device
PAR 56 Warm-On-Dim Description of the device Features The Showtec PAR 56 Warm-On-Dim is a small LED parcan with high output and great effects. ● Input voltage: 230V AC, 50/60Hz ● Power consumption: 39,4 W (full output) ● Power cable 0,5m with Schuko connector ●... -
Page 8: Installation
PAR 56 Warm-On-Dim Installation Remove all packing materials from the PAR 56 Warm-On-Dim. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 9: Troubleshooting
01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LED. Return the PAR 56 to your Showtec dealer. 03) If all of the above appears to be O.K., plug the unit in again. -
Page 10: Product Specifications
PAR 56 Warm-On-Dim Product Specifications Model: Showtec PAR 56 Warm-On-Dim Input Voltage: 230V AC, 50/60Hz Power consumption: 39,4 W (full output) IP rating: IP-20 Dimensions: 365 x 250 x 323 mm incl. bracket (LxWxH) Weight: 1,86 kg Electro-mechanical effects: Light source:... -
Page 11: Dimensions
PAR 56 Warm-On-Dim Dimensions Ordercode: 43315... - Page 12 ©2020 Showtec...
