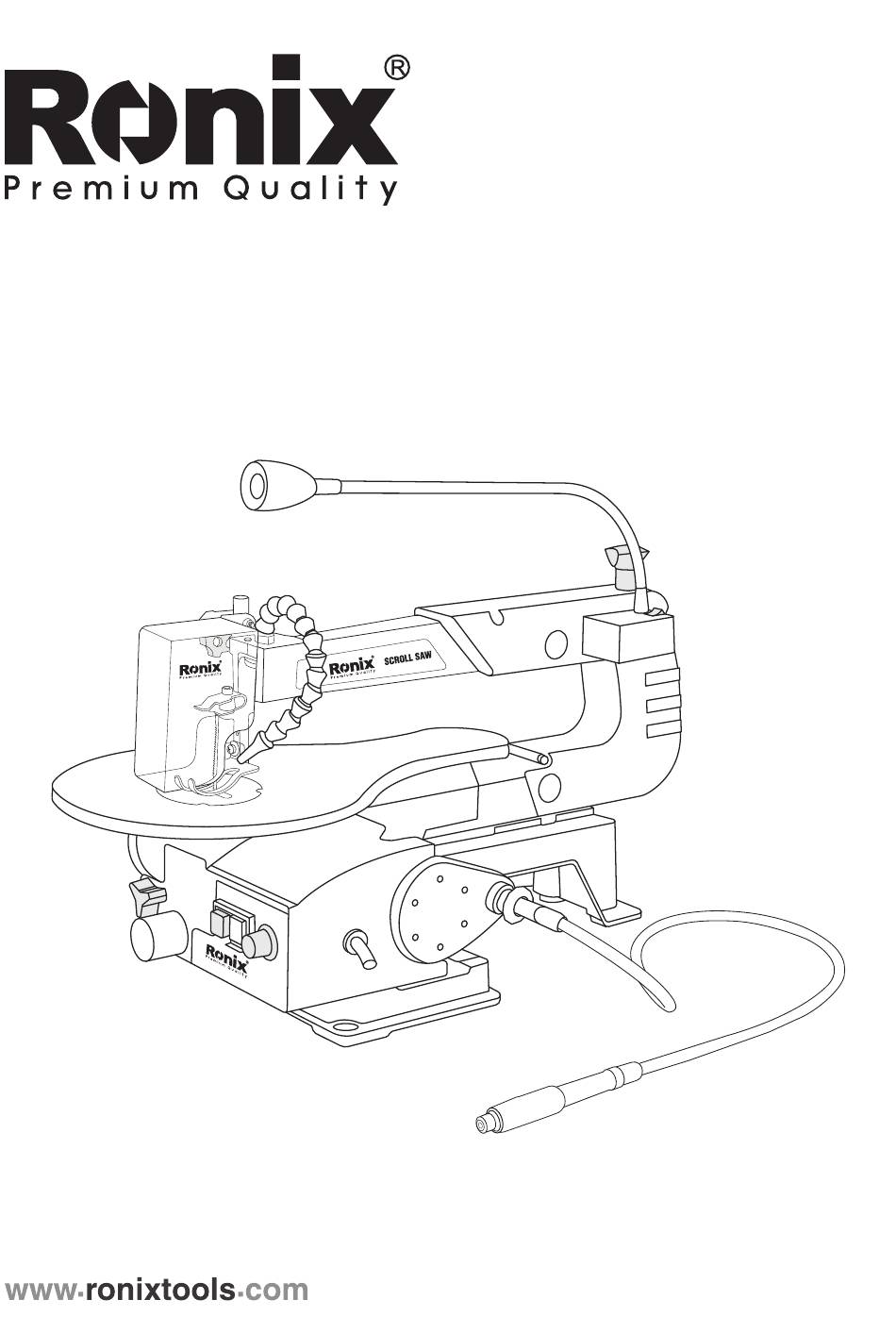

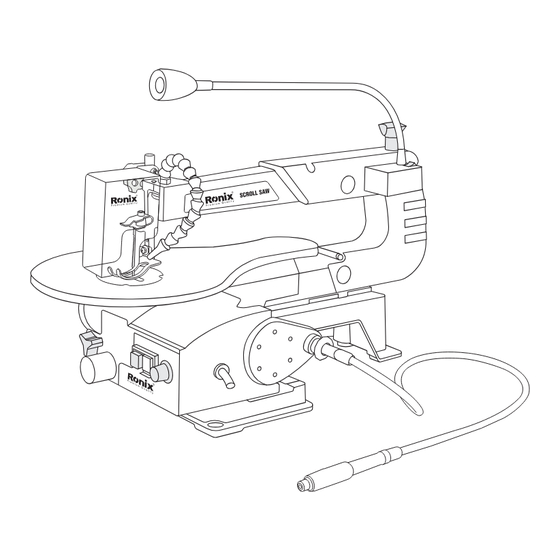

- Page 1 SCROLL SAW 5701...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION 5701 Model Power 120W Voltage 220-240V Frequency 50-60Hz Motor Type Magnetic Steel Motor Speed Range 400RPM-1600RPM Base Plate Size 400×245×95mm 0° To 45° Tilt Range Blade Length 125mm Blade Material 60Si2Mn 0°: 50mm Cutting Depth 45°: 23mm Cutting Size... -
Page 4: Part List
PART LIST 1- Switch 2- Speed Variator 3- LED Light 4- Blower System 5- Safety Cover 6- Blade Attachment System 7- Table 8- Tilting Table 9- Blade Tension 10- Dust Outlet Pipe 11- Soft Shaft GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. -
Page 5: Work Area Safety
warnings and instructions may result in electric shock, fire, and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool” in the warnings refers to your mains-operated (corded) power tools or battery-operated (cordless) power tools. WORK AREA SAFETY - Don’t operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. -
Page 6: Personal Safety
- Use of power supply via an RCD with a rated residual current of 30mA or less is always recommended. PERSONAL SAFETY - Stay alert, watch what you are doing, and use common sense when operating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol, or medication. - Page 7 rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 8 CONTENTS OF BOX 4mm hexagon wrench ASSEMBLING THE BLADE FUNCTIONS OF THE MACHINE SCROLL SAW...
-
Page 9: Speed Adjustment
SPEED ADJUSTMENT ORIENTATION OF THE BLADE USE OF LIGHTING USER MANUAL... - Page 10 USE OF BLOWING SYSTEM SAFETY COVER ADJUSTMENT CONNECTING TO VACUUM CLEANER SCROLL SAW...
- Page 11 SETTING OF THE BLADE TENSION CONSUMABLES REPLACING USER MANUAL...
-
Page 12: Blade Change
CHANGING OF CARBON BRUSH BLADE CHANGE SCROLL SAW... -
Page 13: Cleaning And Maintenance
- The blade should have the toothing facing down. ASSEMBLING SOFT SHAFT CLEANING AND MAINTENANCE 1- The use of safety goggles and the safety guard prevent the risk of injury if the blade breaks. 2- Before storing the tool, release tension of the blade. USER MANUAL... - Page 14 Nominal frequency and power Nominal power No-load speed Read the Instructions before use Wear Protective eyewear Wear a dust mask Wear hearing protective equipment Use rubber gloves Acoustic pressure level Acoustic pressure level Conforms to CE standards Subjected to recycling Weight Danger SCROLL SAW...
