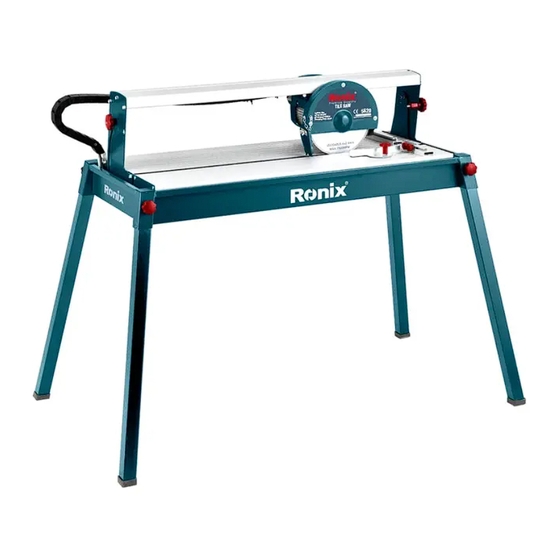

TILE SAW
5620

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5620 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 5620

Summary of Contents for Ronix 5620

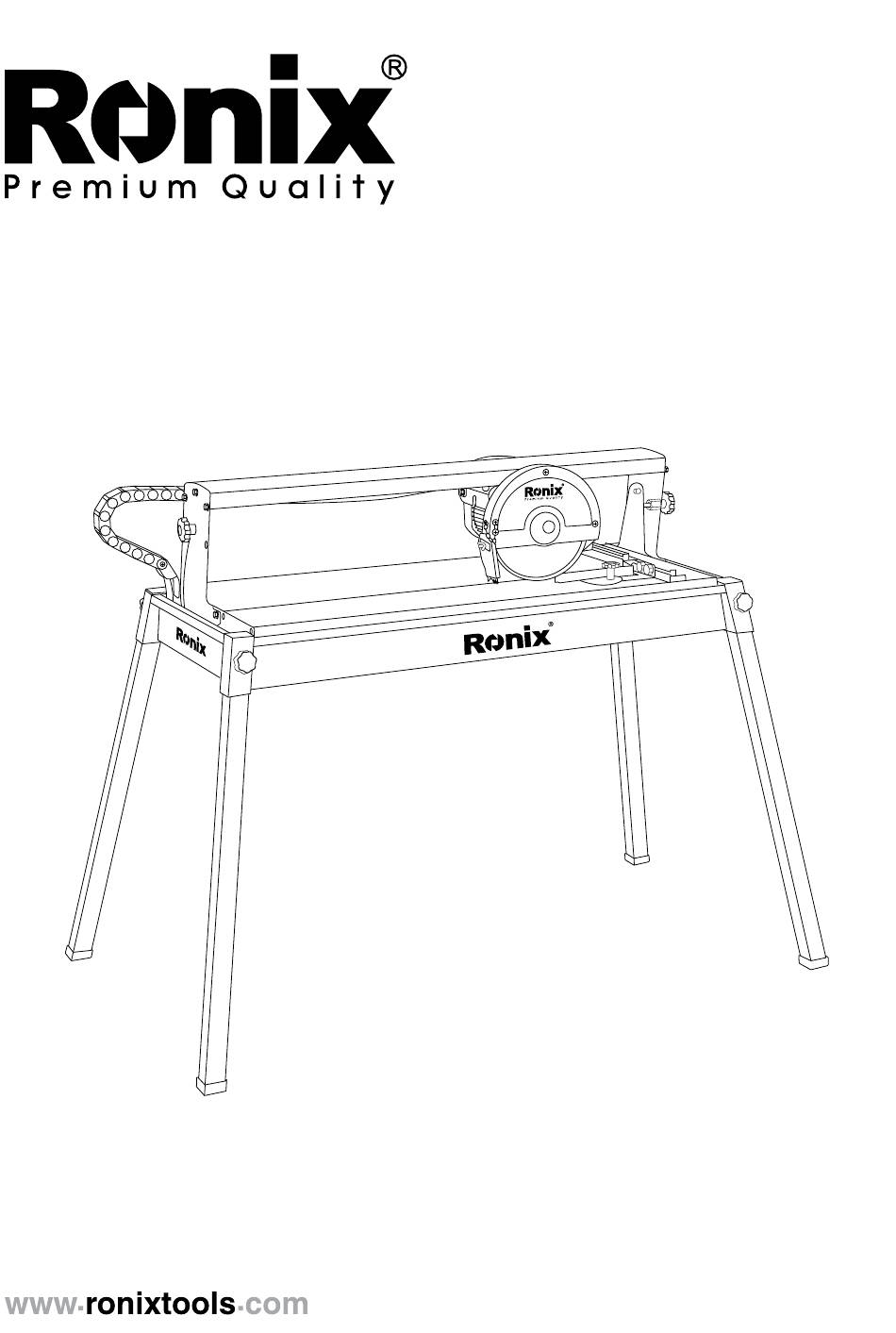

  • Page 1 TILE SAW 5620...

  • Page 3: Specification

    SPECIFICATION Model 5620 Power 800W Voltage 230V Frequency 50Hz Length: 1230mm×Width: Product Dimention 690mm×Height: 820mm Table Dimention 890×394mm φ φ Disk Diameter 200× 25.4×2.4mm Table Material Aluminum Profile Disk Material 65Mn, Corundum, Metal Powder No Load Speed 2990RPM 0-45° Angle Cutting 0°: 32mm...

  • Page 4: Part List

    PART LIST Handle Blade Guide Cover Beam Engine Angle rotation Plate Guide ruler Work Table Leg locking knob Locking Water tank Cutting blade Angle knob Ruler Support Legs SAFETY SYMBOL WARNING! Attention! Read and remember the following graphic safety symbols. They inform you of the actions you must take to ensure the safety of those around you and yourself, as well as the measures needed to ensure the safe and lasting operation of the tile machine.

  • Page 5: Safety Rules

    The danger of electric shock. If this instruction is not observed, the tile cutting machine is in danger of injury or damage. SAFETY RULES PLACE OF WORK - Familiar with the environment around the workplace. - Possible danger due to noise from tile cutting machinery. - Do not use tile cutting machines in wet places, water vapor environments and close places.
  • Page 6 increases), and safety helmets (if related hazards). - Make sure that when you open it, you don’t keep custom and fixing tools, wrenches, etc. - Avoid unintentional launches. Before connecting the tile cutter to the plug the socket puts the start key in the closed position. ATTENTION! Cheer up and work responsibly! Do not use a tile cutter if you are tired, or if you are affected by alcohol or reaction reducing drugs and other...

  • Page 7: Electrical Safety

    - Turn off the tile machine and take out the plug every time you work and rest. ELECTRICAL SAFETY - The equipment plug should match the socket. - The plug should not be modified in any way to reduce the risk of electric shock.
  • Page 8 the extension cable or the combination of the fixed cable and the extension cable. The extension cord should have a plug at one end and a socket compatible with the ceramic tile electromechanical plug at the other end. Relationship between cable length and conductor section size and consumed current.
  • Page 9 SPECIAL SECURITY RULES - Avoid unintentional launches. Always disconnect the network cable from the socket, before performing any tool maintenance or disk replacement work. - Use only the drive recommended by the manufacturer for a given drive models. - Only the attached pressure washer can be used. The maximum allowable speed specified on the cutting disc shall be greater than the maximum speed of the tool spindle.

  • Page 10: Before Operation

    BEFORE WORKING, MAKE SURE 1- The power supply voltage of the instrument motor matches the power supply network voltage. 2- The power grid socket is grounded. It is recommended to connect through ROS tool (maximum value Leakage current 30mA). 3- Sockets, extension cords, power cords and their plugs are in good condition, electrical insulation is not damaged, and contact is good.

  • Page 11: Installation Of Pump

    INSTALLATION OF PUMP 1- Install the water tank on the base. Fix its position with locking knobs. 2- Install the water pump inside the water tank. 3- Press the pump body gently until it clicks. Click to indicate that the pump is fixed. 4- Lay hoses and cords around the pump.
  • Page 12 FILL THE TANK WITH WATER Electric ceramic tile machine equipped with special cooling water tank. Cut diamond disks. ATTENTION! It is strictly forbidden to operate the tile cutting machine without cooling the cutting plate with water! 1- Pour clear water into the tank to the maximum water level specified on the tank.

  • Page 13: Operation

    CUTTING DISC INSTALLATION ATTENTION! Before replacing the cutting disc, be sure to turn off the tile cutter and disconnect the plug from the socket. 1- Remove the protective cover of the cutting disc by loosening the screw. 2- Loosen the nut (left hand thread) with two wrenches. The wrench may not match.
  • Page 14 6- Connect the tile machine to the 220V power network. 7- Open the tile cutting machine, wait for the maximum speed of the cutting disk, hold the motor moving handle tightly, and smoothly move the motor and cutting disk block on the guide rail frame for cutting. START 1- Connect the power tool to the power supply.

  • Page 15: Straight Line Cutting

    STRAIGHT LINE CUTTING 1- Pour water into the tank. 2- Tighten all fixing bolts. 3- Mark cutting lines on the machined parts. 4- Put the tile on the table and press it tightly against the support of the guide rail and the rack at the corner inclined plane. Adjust the angle ruler if necessary inclined plane.
  • Page 16 ANGULAR CUTTING 1- Operating procedure is same as the straight line cutting. 2- To perform angle cutting, set the bevel angle rack (J) to the required angle,using ruler knob (I). SUGGESTIONS ON HOW TO HANDLE CERAMIC TILES - After opening the tool, start cutting the tiles after the spindle is fully rotated.

  • Page 17: Maintenance And Repair

    and clean. This will make the cutting more precise and safe. MAINTENANCE AND REPAIR - After work, before cleaning, replace diamond disc or tank with Disconnect the cable plug from the network socket with water. - The tile cutting machine must be cleaned immediately after the work is finished.
  • Page 18 Check the grid Low voltage voltage Check the grid Network congestion The engine is not voltage running at full speed, Contact service nor is it running at Winding fracture center full power Replace the extender It's too long. with a shorter Extension cord extender Reduce engine...
  • Page 19 - Tile cutting machine, user manual, and all accessories should follow Store in a dry and safe place. This provides an opportunity to get all the details and all the necessary information in the future. - Tools should be kept in the manufacturer’s packaging, heated, Ventilated spaces inaccessible to children at temperatures of + 5°C to +35°C and relative humidity not exceeding 85% (+ 25°C), excluding direct sunlight.
