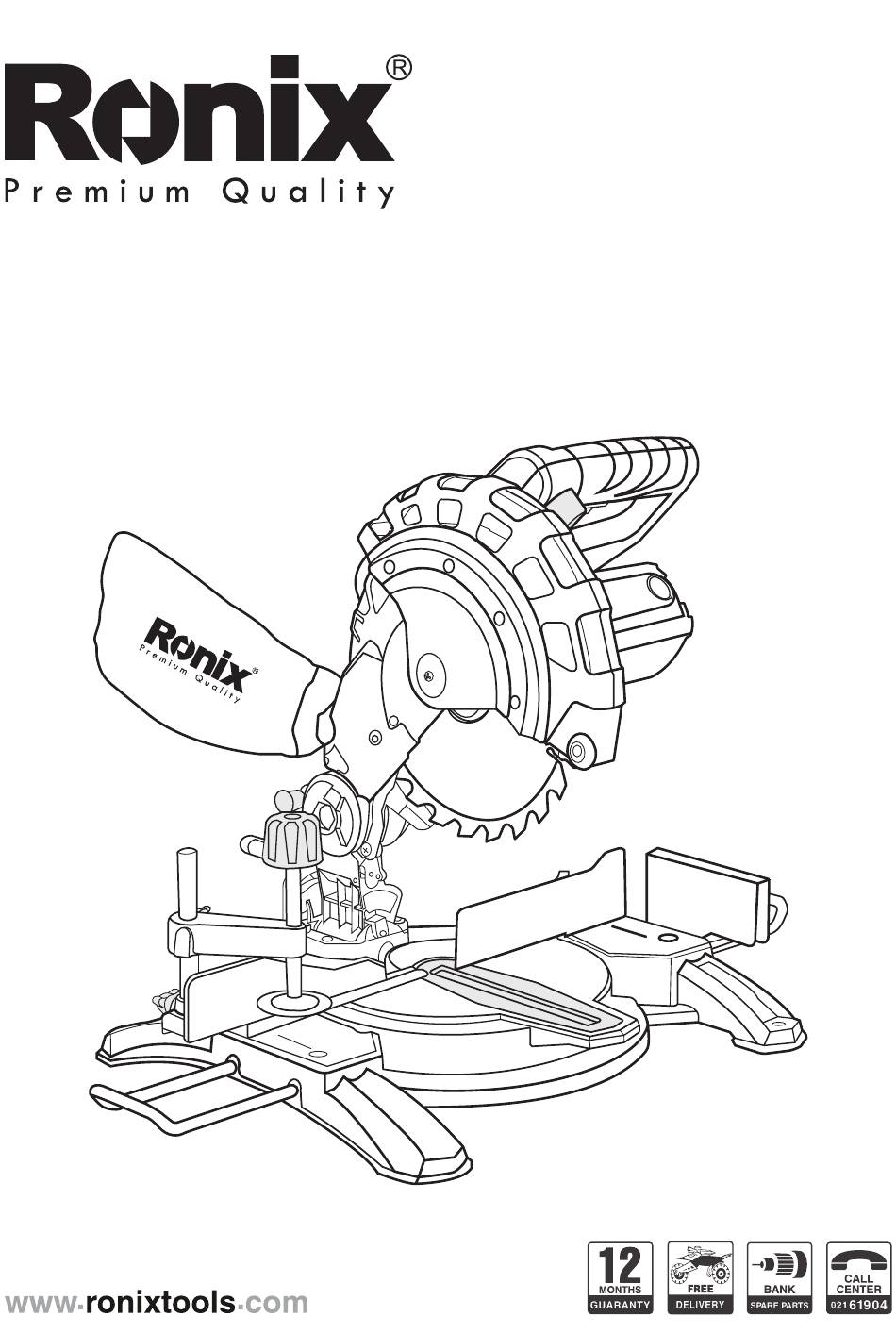

- Page 1 MITRE SAW 5100...
-
Page 2: Specification
SPECIFICATION Model 5100 Voltage 220V Frequency 50Hz Power 1450W No load Speed 5000RPM Blade Diameter 210mm (8") 0°/90°:60x120 mm 45°/90°:60x85 mm Cutting Capacity 0°/45°:34x120 mm 45°/45°:34x85 mm PART LIST Handle Dust Collecting Bag On/Off Switch Carbon Brush Cover Movable Guard... -
Page 3: General Safety Rules
EXAMINE ALL PARTS CAREFULLY WARNING! If any part is missing or damaged, do not plug in the mitre saw until you have replaced the missing or damaged parts. GENERAL SAFETY RULES WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. - Page 4 if cutting operations create dust. 10) Connect dust extraction equipment. If devices are provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used. 11) Do not abuse the cable. Never pull the cable to disconnect it from the socket.
- Page 5 switch does not turn it on and off. 21) WARNING. The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury. 22) Have your tool repaired by a qualified person. This electric tool com- plies with the relevant safety rules.
- Page 6 - gloves for handling saw blades (saw blades shall be carried in a holder wherever practicable) and rough material. WARNING! Ensure that the arm is securely fixed when bevelling Keep the floor area around the machine level, well maintained and free of loose materials e.g.
-
Page 7: Environmental Protection
SYMBOLS V .... volts A... amperes Hz... hertz W..... watts min..minutes - ..alternating current h... hours Class II Construction I …………...ON O ....OFF min -1 …………………..revolutions per minute Wear safety goggles Wear ear protection Wear a breathing mask Read and understand instruction manual: to reduce the risk of injury, user and all bystanders must read and understand instruction manual before using this product.
