Summary of Contents for Ronix 4120

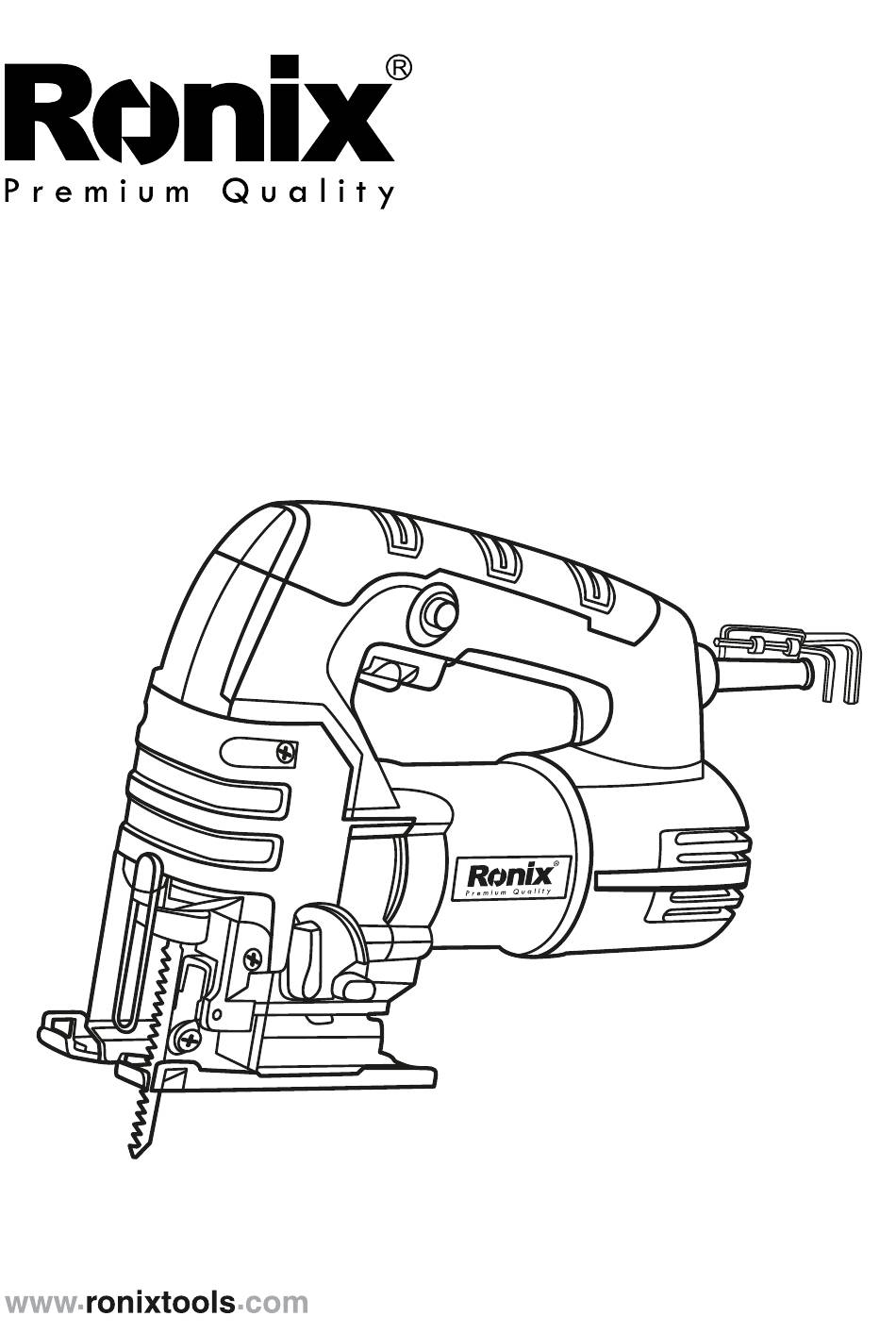

- Page 1 JIGSAW 4120...
-
Page 2: Specifications
SPECIFICATIONS Model 4120 Power 650W Voltage 220V Frequency 50Hz Max Capacity in Wood 60mm Max Capacity in Metal 10mm Orbital Action 4-Position Bevel Cutting Capacity 0-45Degree No-load RPM 0-3100 RPM Weight 2.75kg Accessories Hex Key 2pc , Wood Blade 2pc... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS FOR YOUR SAFTY Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Additionally, the general safety instructions either in the enclosed booklet or those added in the center of these operating instructions must be observed. - Page 4 blade has come to a stop before pulling it out of the cut. This avoids kickback and the tool can be placed down securely. - Use only undamaged blades that are in proper condition. Bent or dull saw blades can break or cause kickback. - After switching off, do not (brake) the saw blade by applying sideward pressure against it.
-
Page 5: Bevel Cutting
NOTE: Occasionally lubricate the roller. HEX WRENCH STORAGE When not in use, store the hex wrench as shown in the figure to keep it from being lost. ANTI-SPLINTERING DEVICE For splinter-free cuts, the anti-splintering device can be used. To install the anti-splintering device, move the base all the way forward and insert it between the two protrusions of the base. - Page 6 tilting the base. Raise the dust cover all the way before making bevel cuts. With the base titled, you can make bevel cuts at any angle between 0° and 45° (left or right). Loosen the bolt on the back of the base with the hex wrench.
-
Page 7: Metal Cutting
FINISHING EDGES To trim edges or make dimensional adjustment, run the blade lightly along cut edges. METAL CUTTING Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause significant blade wear. The underside of the workplace can be greased instead of using a coolant. MAINTENANCE CAUTION: Always be sure that the tool is switched off and unplugged...
