Wiring

Wire Requirements

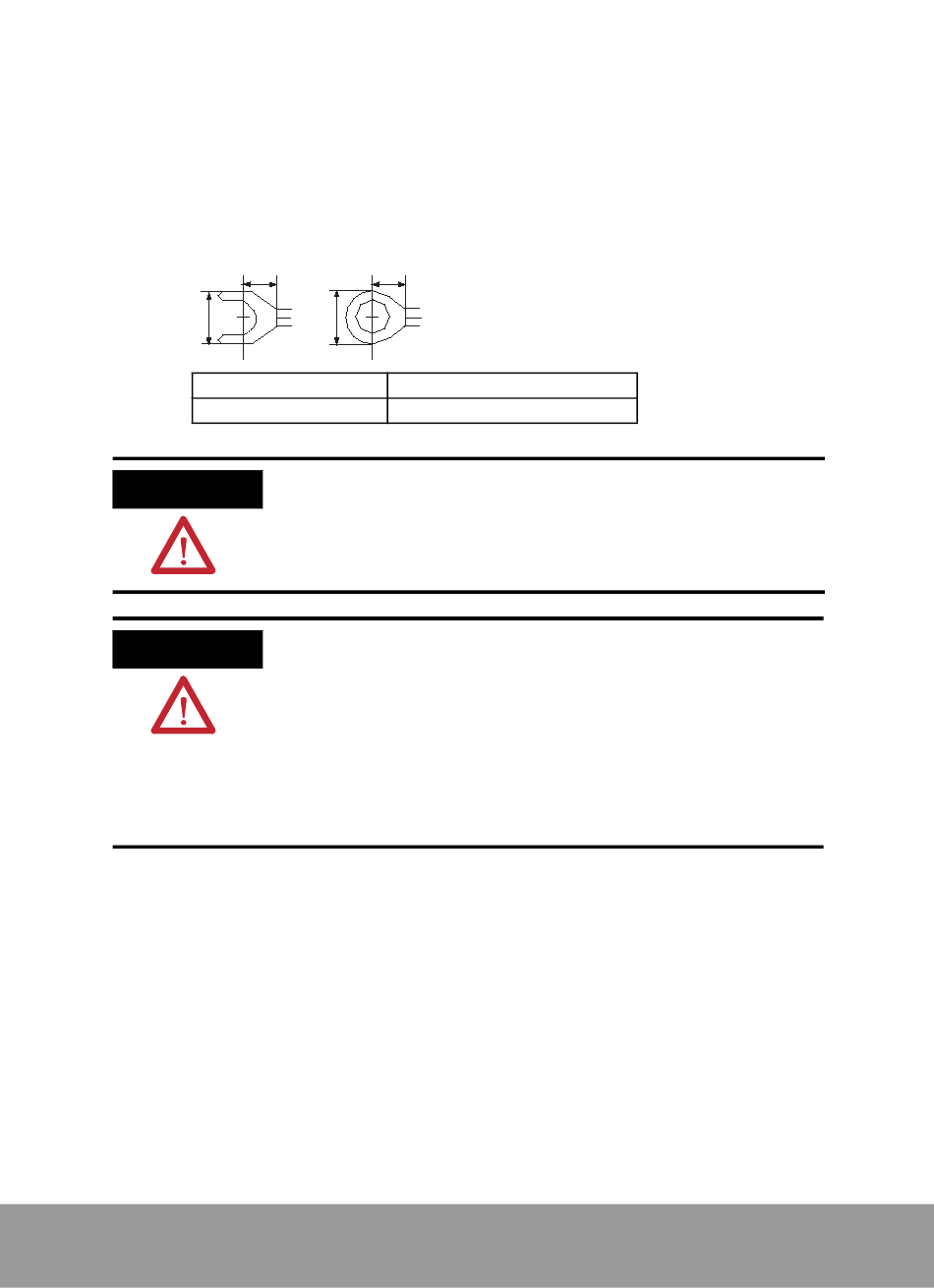

• Use the terminals that comply with the specifications given below.
• Set terminal wiring torque to from 5 to 7kgfcm.
• Use wiring cables of #16 to #22 AWG.
L
W
Solderless terminal
M3.0
ATTENTION
WARNING
L
W
Wiring torque
0.5 to 0.7 Nm (5 to 7 kgfcm)
Set terminal wiring torque to within the specified range
(0.5 to 0.7 Nm) when wiring with terminal block.
Otherwise, it may cause terminal block damage or contact
defects leading to product damage or personal injury.
Make sure to disconnect power to the controller system
before performing installation, wiring, maintenance and
cleaning. Never touch the power terminals when the
power is on. Otherwise it may cause electrical shock.
Route wires of different signal characteristics by separate
paths. Separate incoming power to the controller by a
path separate from the I/O device wiring. Shield the signal
lines to prevent noises which can cause product
malfunction.
Terminal size
= 6.35 mm (0.25 in) or less
W
L = 6.35 mm (0.25 in) or less
