ATTENTION

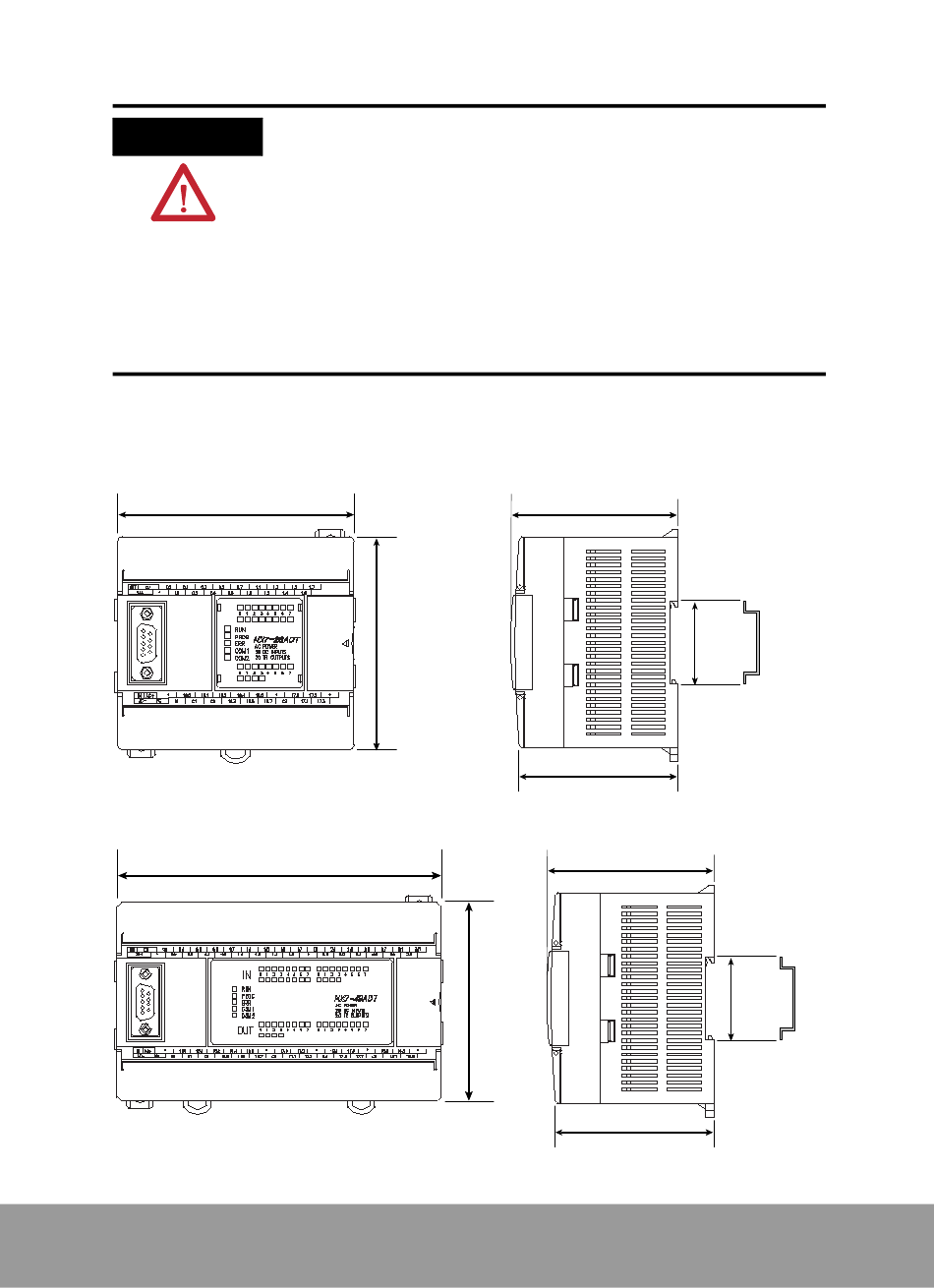

Controller Dimensions
10-, 14-, 20- and 28-point controllers
100 mm
40- and 48-point controllers
146 mm
Before powering on
Make sure to follow these directions before powering on
your PLC system.
• When installing the system, ensure that there are no
metal chips or conductive fragments that stick to wiring
cables.
• Ensure that power supply and I/O wirings and power
supply voltage are all correct.
• Securely fasten installation and terminal screws.
• Set the operation mode switch to PROG mode.
90 mm
90 mm
79.0 mm
35 mm
76.6 mm
79.0 mm
35 mm
76.6 mm
DIN rail
DIN
rail
11
