Crestron Saros ICT5T-12-W-T-EACH+ Quick Start

SAROS ICT5T-12-W-T-EACH+

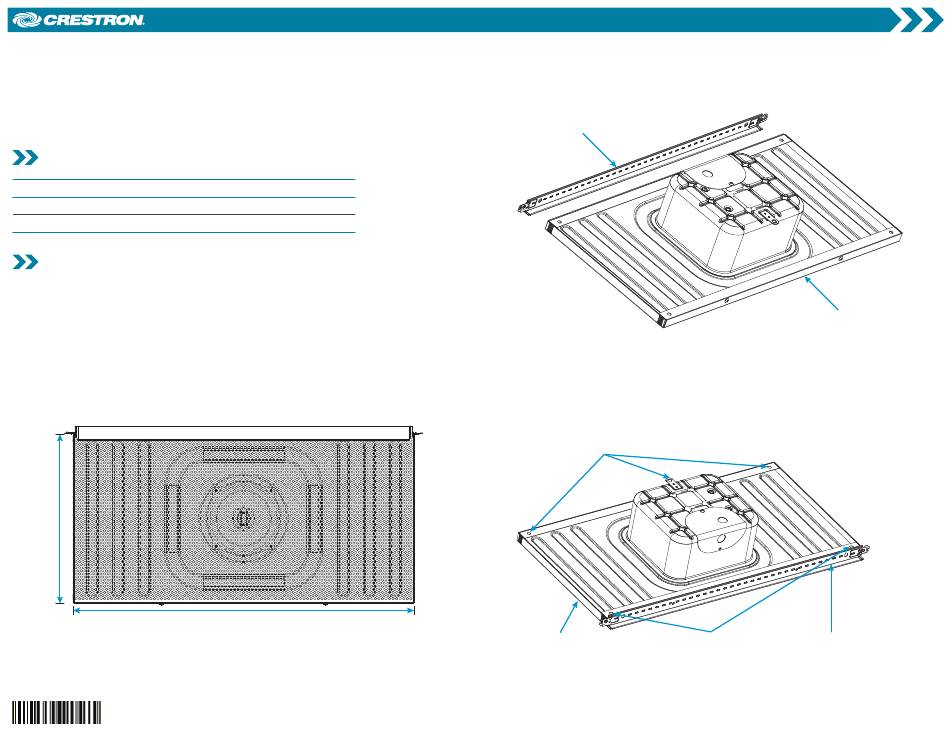

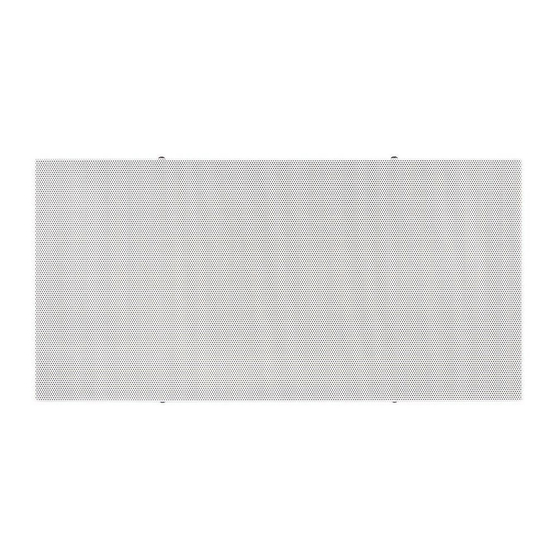

Saros® In-Ceiling Tile Loudspeaker
The Saros ICT5T loudspeaker is a 1 ft x 2 ft in-ceiling tile loudspeaker designed for installation
in a suspended ceiling grid using 15/16 in. tees and 2 ft x 2 ft or 2 ft x 4 ft tiles. With a
4 in. overall height, the loudspeaker has a very low profile and can be installed in a crowded
plenum space.
Check the Box
Item
SAROS ICT5T-12-W-T-EACH+
Cross Tee, 2 ft
Install the Speaker
Required Tools/Recommended Accessories
• Utility knife
• Flat blade screwdriver
• #1 Phillips screwdriver
• SPKA-ST-15 Safety Tether/Tie Down Kit (sold separately)
Install the Loudspeaker
The loudspeaker has the following dimensions for installation in a 2 ft x 2 ft or 2 ft x 4 ft
suspended ceiling grid.
11-7/8 in.
1. Remove a 2 ft x 2 ft or 2 ft x 4 ft tile from the suspended ceiling grid.
2. Use a utility knife to cut a 1 ft x 2 ft section from the end of the tile.
Qty
2
2
23-3/4 in.
3. Install the 2 ft cross tee in the grid so the loudspeaker and ceiling tiles are supported on
four sides.
Cross Tee
NOTE: The loudspeaker is designed for use with a suspended ceiling grid with 15/16 in.
cross tees.
4. Return the remaining ceiling tile to the suspended ceiling grid and place the
loudspeaker in the new opening on the grid.
5. To secure the loudspeaker and make the loudspeaker terminations, temporarily remove
an adjacent tile for access to the area above the loudspeaker.
6. Secure the loudspeaker to the building structure above using SPKA-ST-15 Safety
Tether/Tie Down Kits (sold separately) or ceiling grid hanger wire.
Attachment Points
Loudspeaker
CAUTION: When attaching the loudspeaker to the building structure, always observe
local building codes for compliance with the authority having jurisdiction.
NOTE:
Secure the loudspeaker at the corner points for optimal installation. At a
minimum, secure the tab located at the top of the loudspeaker.
Quick Start
Loudspeaker
Attachment Points Cross Tee
