SAROS ICT5T-12-W-T-EACH+*/SAROS ICT5T-22-W-T-EACH+
Saros® In-Ceiling Tile Loudspeakers
The Saros ICT5T series of loudspeakers are designed for installation in a suspended ceiling grid using 15/16 in. tees and 2 ft x 2 ft or 2 ft x 4 ft tiles.
With a 4 in. overall height, the loudspeakers have a very low profile and can be installed in a crowded plenum space.

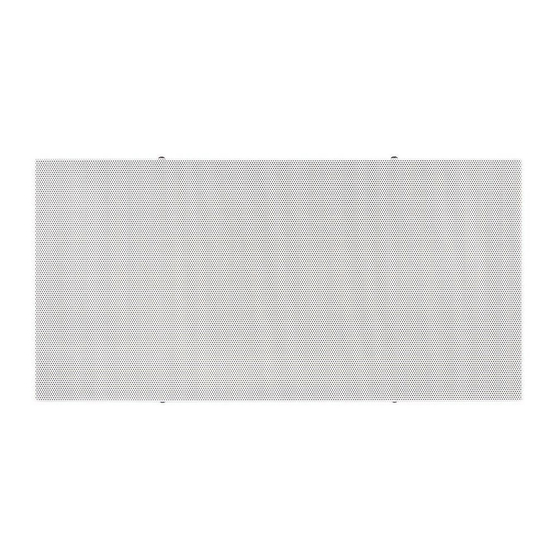

The ICT5T-12 is a 1 ft x 2 ft in-ceiling tile loudspeaker while the ICT5T-22 is a 2 ft x 2 ft in-ceiling tile loudspeaker.
Check the Box
Item
SAROS ICT5T-12-W-T-EACH+*
Cross Tee, 2 ft
SAROS ICT5T-22-W-T-EACH+
Cross Tee, 2 ft
Install the Speaker
Required Tools/Recommended Accessories
•
Utility knife
•
Flat blade screwdriver
•
#1 Phillips screwdriver
•
SPKA-ST-15 Safety Tether/Tie Down Kit (sold separately)
Install the Loudspeaker

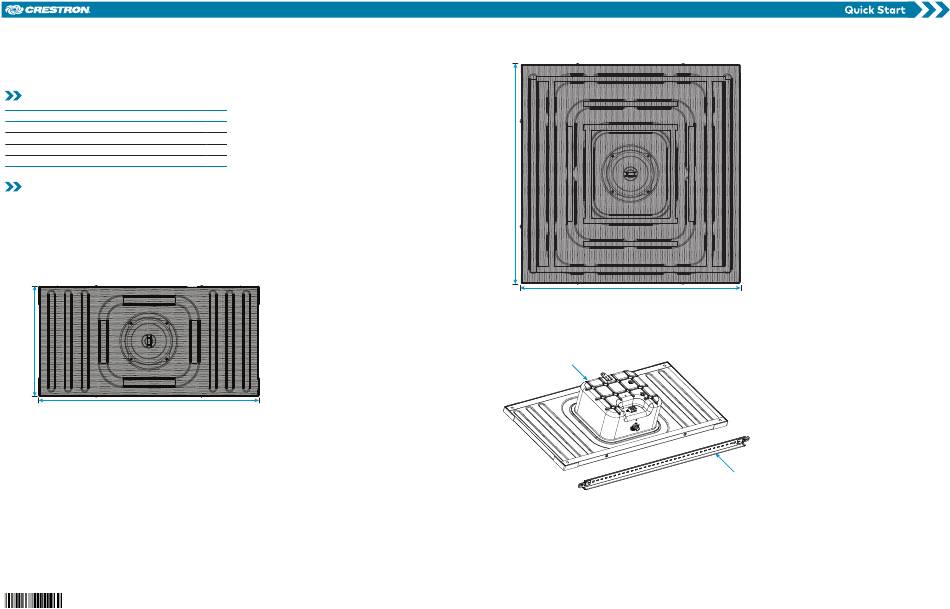

The ICT5T-12 loudspeaker has the following dimensions for installation in a 2 ft x 2 ft or 2 ft x 4 ft suspended ceiling grid.
11-7/8 in.
23-3/4 in.
Qty
2
2
2
2
The ICT5T-22 loudspeaker has the following dimensions for installation in a 2 ft x 2 ft or 2 ft x 4 ft suspended ceiling grid.
23-3/4 in.
23-3/4 in.
1.
Remove a 2 ft x 2 ft or 2 ft x 4 ft tile from the suspended ceiling grid.
2.
When installing the loudspeaker in a tile space that is larger than the loudspeaker, use a utility knife to cut a 1 ft x 2 ft (for the 1 ft x 2 ft
loudspeaker) or a 2 ft x 2 ft (for the 2 ft x 2 ft loudspeaker) section from the end of the tile.
3.
When installing the loudspeaker in a tile space that is larger than the loudspeaker, install the included cross tee in the grid so the loudspeaker
and ceiling tiles are supported on four sides.
Install cross tee (ICT5T-12 shown)
Loudspeaker
NOTE:
The loudspeaker is designed for use with a suspended ceiling grid with 15/16 in. cross tees.
4.
Return the remaining ceiling tile to the suspended ceiling grid and place the loudspeaker in the new opening on the grid.
5.
To secure the loudspeaker and make the loudspeaker terminations, temporarily remove an adjacent tile for access to the area above the
loudspeaker.
Cross tee
