Classic Exhibits visionary MOD-1357 Setup

MOD-1357 - iPad Kiosk
Side View

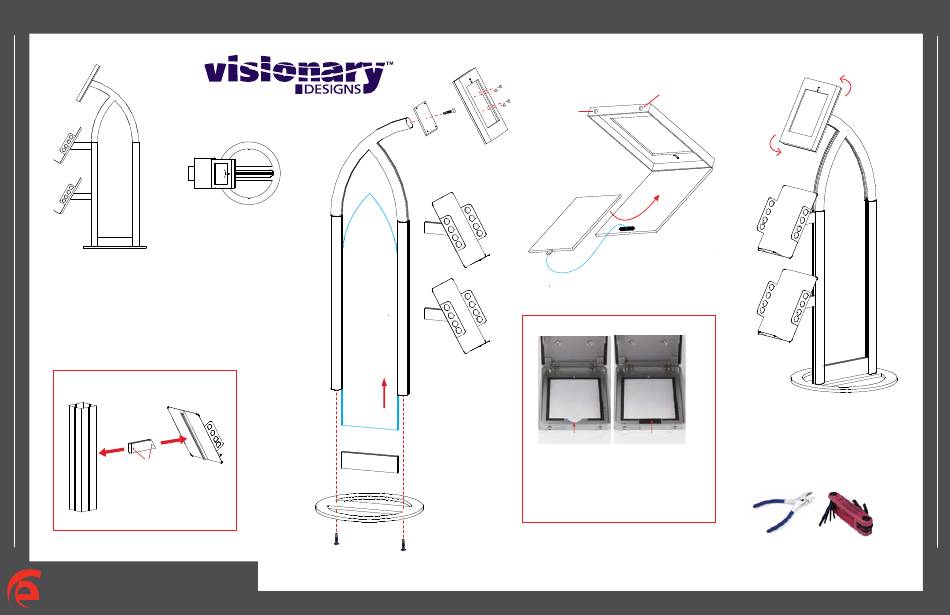

Steps:
1) Slide infill between stand verticals as shown.
2) Attach horizontal [2] between stand verticals.
3) Attach base [1] to stand verticals using bolts.
4) Attach square plate [3] to stand using bolt.
5) Attach clamshell [4] to square plate [3] using hex nuts.
6) Insert iPad and feed wire through hole.
7) Attach pamphlet trays to stand. Refer to detail.
Adjustable Pamphlet Tray Attachment
*
Tighten Lock
to Secure
Attach connector piece to tray
as shown. Then connect
assembled pamphlet
tray to vertical extrusion.
w w w . c l a s s i c e x h i b i t s . c o m
Plan View
Infill
2
1
WHEN DISASSEMBLING, TIGHTEN ALL SCREWS AND NUTS TO PREVENT LOSS DURING SHIPPING.
Hex
Nuts
3
Lock
4
Square
Clamshell
Plate
iPad
*
*
Optional Cover for Home Button
Stand
Foam Lining
Removed
1) Remove foam lining from inside bottom of
clamshell as shown.
2) Attach Home Button Shield with double-sided
tape to inside of clamshell, keeping top of
shield flush with clamshell opening as shown.
Base
NOTE: This is a permanent fix and can't be easily
Plate removed.
Lock
Wire
Access
Home Button Shield
Tools Required:
1) Hex Tool
2) Pliers
866.652.2100
When assembled
© 2013
