Order #XXXXX -

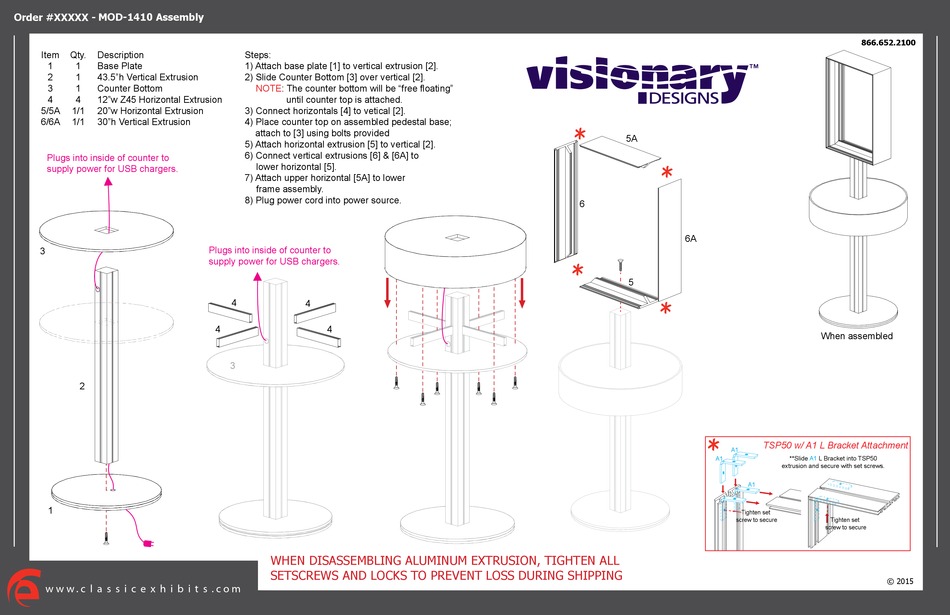

MOD-1410 Assembly
Item
Qty.
Description
1
1
Base Plate
2
1
43.5"h Vertical Extrusion
3
1
Counter Bottom
4
4
12"w Z45 Horizontal Extrusion
5/5A
1/1
20"w Horizontal Extrusion
6/6A
1/1
30"h Vertical Extrusion
Plugs into inside of counter to
supply power for USB chargers.
3
2
1
w w w . c l a s s i c e x h i b i t s . c o m
Steps:
1) Attach base plate [1] to vertical extrusion [2].
2) Slide Counter Bottom [3] over vertical [2].
NOTE: The counter bottom will be "free floating"
until counter top is attached.
3) Connect horizontals [4] to vetical [2].
4) Place counter top on assembled pedestal base;
attach to [3] using bolts provided
5) Attach horizontal extrusion [5] to vertical [2].
6) Connect vertical extrusions [6] & [6A] to
lower horizontal [5].
7) Attach upper horizontal [5A] to lower
frame assembly.
8) Plug power cord into power source.
Plugs into inside of counter to
supply power for USB chargers.
4
4
4
4
3
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
*
5A
*
6
6A
*
5
*
*
A1
A1
A1
Tighten set
screw to secure
Step 1
866.652.2100
When assembled
TSP50 w/ A1 L Bracket Attachment
**Slide
A1
L Bracket into TSP50
extrusion and secure with set screws.
Tighten set
screw to secure
© 2015
Page 1 of X
