Introducing the PCIe-DAS1602/16

The PCIe-DAS1602/16 is a multifunction measurement and control board designed for the PCI Express (PCIe)
bus. The device is fully compatible with software written for the PCIM-DAS1602/16.
The PCIe-DAS1602/16 provides the following features:
16 single-ended (SE) or eight differential (DIFF) input channels

16-bit A/D resolution

100 kS/s sample rate

Dual 12-bit analog outputs

32 DIO channels

Three 16-bit counters


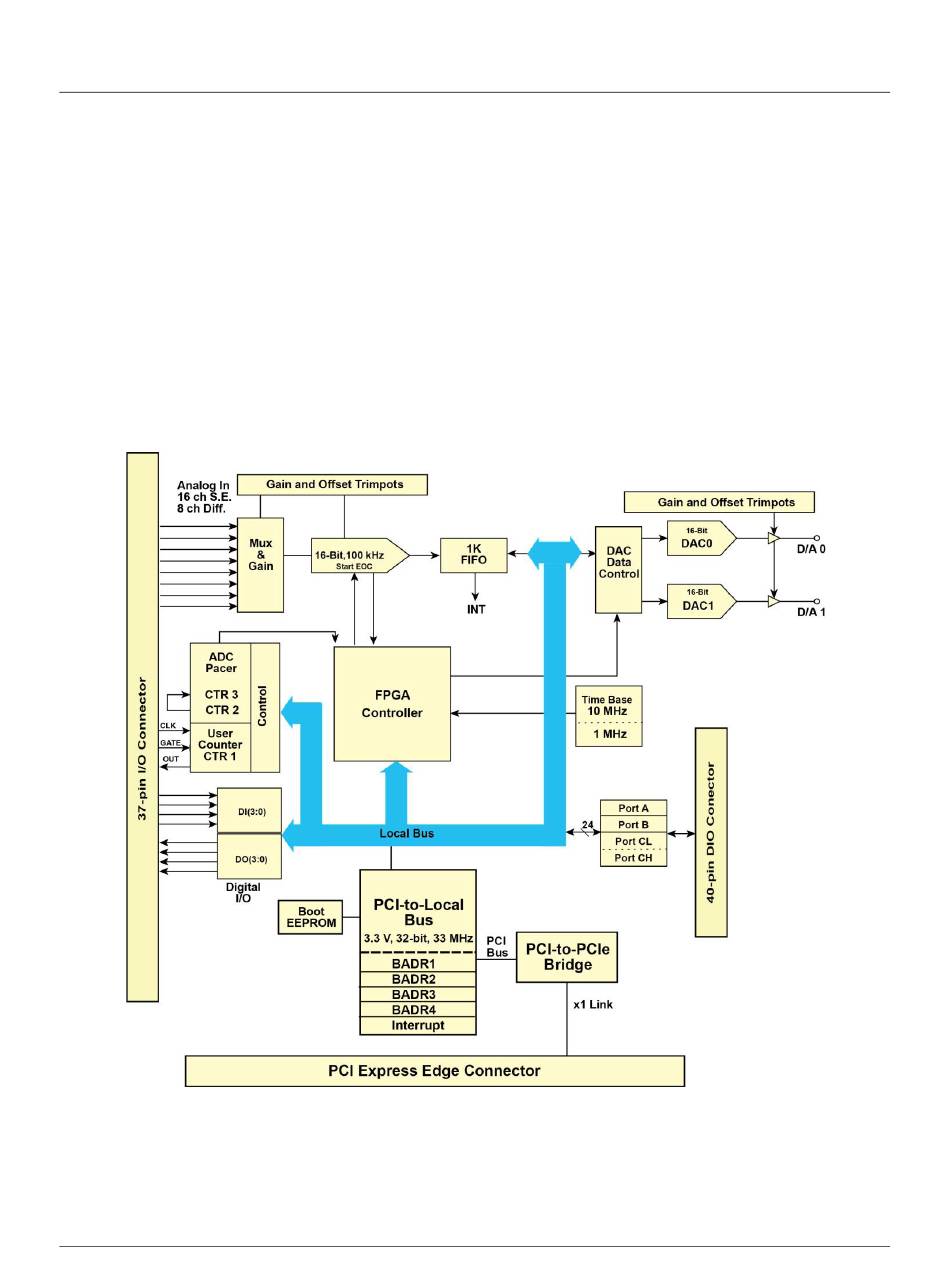

Functional block diagram

PCIe-DAS1602/16 functions are illustrated in the block diagram shown here.
Figure 1. PCIe-DAS1602/16 functional block diagram
