Bose ControlSpace ESP-00 II Service Manual page 76

TEST PROCEDURES

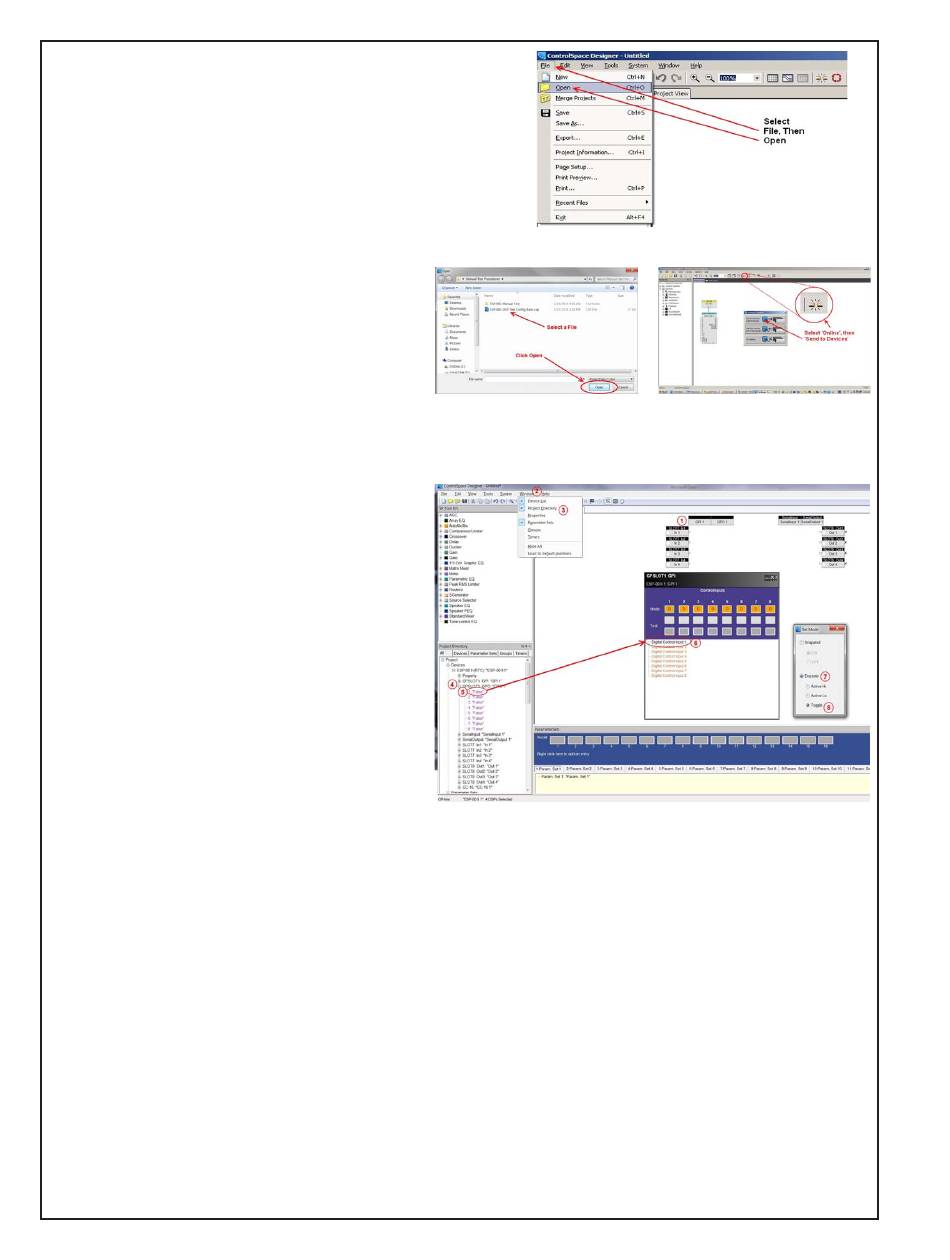

2.2 Select File -> Open ->. In the Project Files
Folder, Select the Configuration file for the Model
Type ESP-00 II DUT. ex: ESP-00 II DUT Test Config
Basic.csp. See Figures D & E.
2.3 Push the Config file to the DUT by selecting
'Online' and clicking on 'Send to Devices'. See Figure
F. This will setup the DUT for audio paths required for
test.
Figure D
2.4 Go Offline.
Note: This action (sending the design
file to the DUT) may verify the integrity
of the ethernet connection but will not be
adequate for testing throughput capacity
Figure E Figure F
as needed for passing audio over IP.
It does verify that the communication path
is open and working.
2.5 Set-up the GPIO parameters by
opening the ESP-00 II tab at the top of
the ControlSpace Designer (CSD)
Workspace. See Figure G for setup
steps.
2.6 Double click on the GPI1 Block (1).
GPSLOT1 GPI Control should open.
2.7 Click Window (2), Click Project
Directory (3) which opens to the left side
of CSD.
2.8 Click GPSLOT1 GPO + to Expand
Figure G
the tree (4).
2.9 Click and Drag the Port '1 False' (5) and drop into the Digital Control Input 1 (6).
2.10 On the Set Mode Box, Select Discrete (7), Select Toggle (8), and close the dialog box.
2.11 Repeat Steps 2.9 and 2.10 for the remaining Ports 2 thru 8.
2.12 Click 'Go Online', Figure F, and 'Send to Devices'.
3.0 Audio Precision ATS-2 Settings
NOTE: These tests utilize the Audio Precision ATS-2. Although the test equipment used may
vary, the settings described as follows should be used.
76
