Summary of Contents for Bose CSP-428

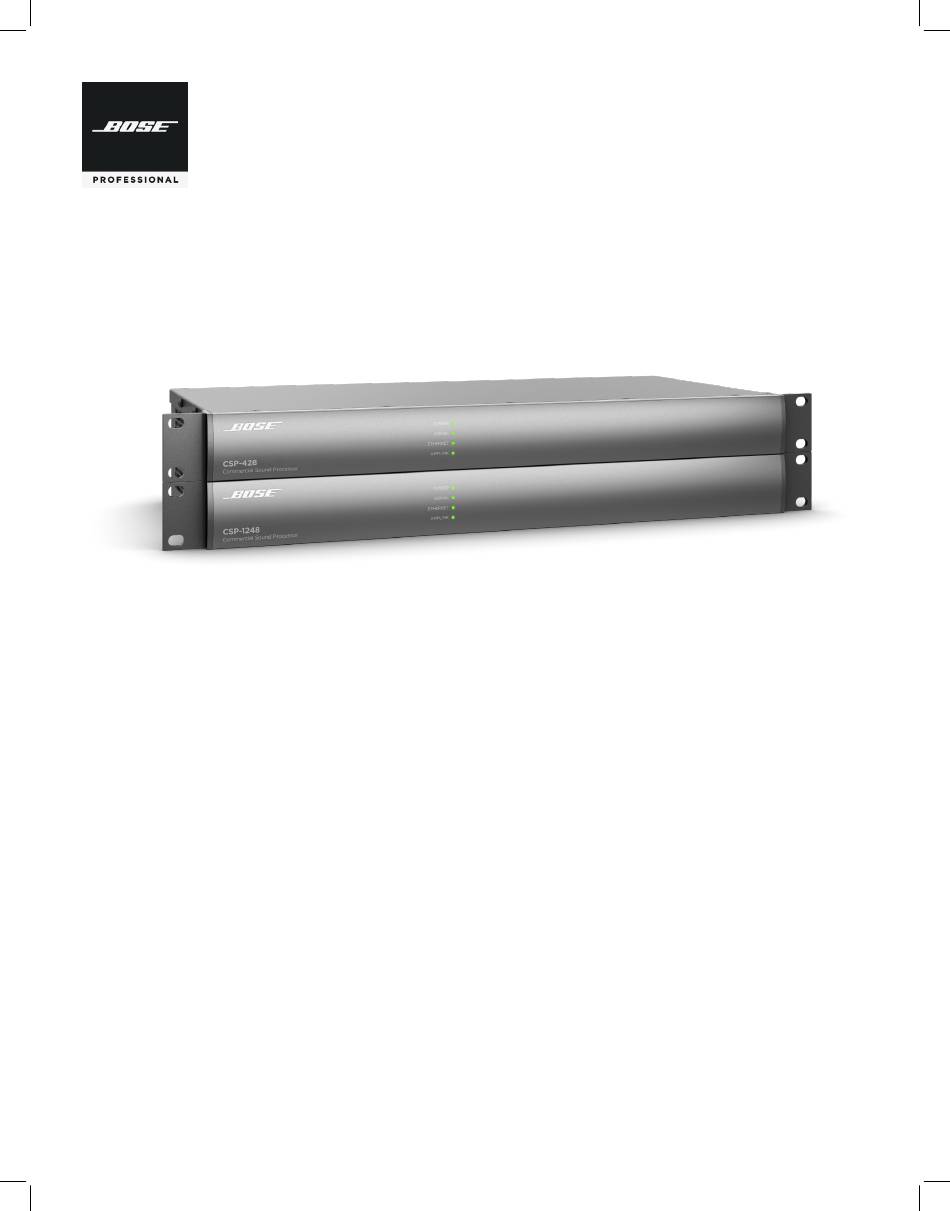

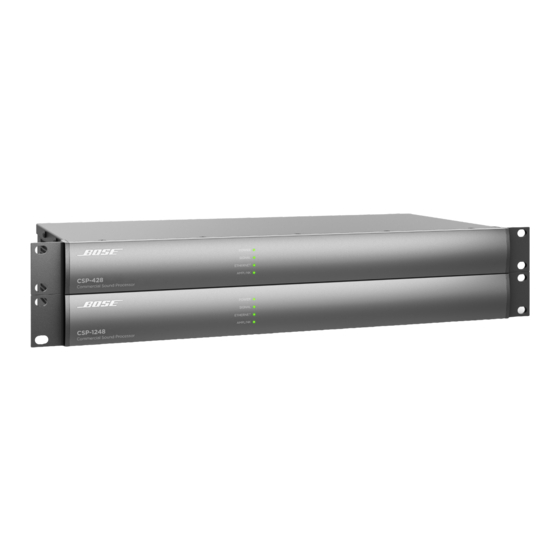

- Page 1 CSP-428 & CSP-1248 Commercial Sound Processors Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
- Page 2 Do not expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like). Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.
- Page 3 Importador para México: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 objetos dentro del aparato, si se expone el aparato a la lluvia o la humedad, si no funciona normalmente o si se ha caído.
- Page 4 Importateur pour l’UE : Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Pays-Bas AVERTISSEMENTS/PRÉCAUTIONS : Importateur pour le Mexique : Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Pour plus d’informations sur l’importateur et le service : +5255 (5202) 3545 Ce symbole sur le produit signale les instructions importantes mentionnées dans le guide d’installation, relatives au...
- Page 5 Netzsteckers, wenn Flüssigkeiten oder Gegenstände in das Gehäuse gelangt sind, das Gerät Regen oder Feuchtigkeit Importeur aus Mexiko: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, ausgesetzt wurde, fallen gelassen wurde oder nicht ordnungsgemäß funktioniert.
- Page 6 Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi funziona normalmente o è caduto. Importatore per il Messico: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 AVVISI/AVVERTENZE: México, D.F.
- Page 7 Producten die accu’s of batterijen bevatten NIET blootstellen aan overmatige warmte (zoals direct zonlicht, vuur en dergelijke). Gebruik uitsluitend het door de fabrikant aanbevolen montagemateriaal. Omwille van de ventilatievereisten raadt Bose af om het product in een besloten ruimte te plaatsen, zoals in een nis in de muur of een dichte kast.
-
Page 8: Table Of Contents
Power Connection ......................................17 Accessing the CSP Configuration Utility ............................17 Maintenance Firmware & Software Updates ................................18 Battery Replacement ....................................18 Troubleshooting ......................................19 Technical Information Technical Specifications ................................... 20 CSP-428 ........................................20 CSP-1248 ........................................22 8 • English CSP-428/1248 • Installation Guide... -
Page 9: Overview
Right-sized connectivity for cost-effective commercial installation options. Models feature balanced analog I/O (CSP-1248: 8 × 4, CSP-428: 2 × 2), mono-summed RCA inputs (CSP-1248: 4 pair, CSP-428: 2 pair), 8 control inputs, 1 control output, a mute contact, Ethernet network (for configuration or wall control) and Bose AmpLink. -
Page 10: Package Contents
Overview PRO.BOSE.COM Package Contents Your Bose CSP includes the following accessories, depending on the model: CSP-428 or CSP-1248: Accessories CSP-428 CSP-1248 AC power cord Cable ties 2-pin Euroblock (orange) 2-pin Euroblock (black) 3-pin Euroblock (green) 4-pin Euroblock (green) 6-pin Euroblock (orange) -
Page 11: Available Accessories
PRO.BOSE.COM Overview Available Accessories The CSP-428 and CSP-1248 are compatible with Bose ControlCenter digital zone controllers and the AVM-1 sense microphone. Below is a list of compatible devices: Model Part Number Notes ControlSpace ControlCenter CC-1D PC 079059 (US, white) Uses Network port. Requires additional Power-over-Ethernet (PoE) switch. -
Page 12: Product Details
Red: Clipping (–2 dBFS to 0 dBFS) Ethernet: Green: Ethernet link established Connection status indication of Ethernet ports. Yellow: Active transmission/reception AmpLink: Connection status indication of Green: AmpLink is active AmpLink-equipped amplifiers. 12 • English CSP-428/1248 • Installation Guide... -
Page 13: Rear Panel
PBX (private branch exchange) terminal. To use the built-in AutoVolume feature, connect one or more Bose AVM-1 sense microphones to any of these inputs (see the AVM-1 installation guide for more information). See Installation > Analog Audio Connections (page 14) for more information. -
Page 14: Installation
(1 RU) in height and requiring a mounting depth of 208 millimeters (8.2 inches) from the front rack rail. Use four fasteners with washers (not included) to mount the CSP. The CSP-428 and CSP-1248 use active side ventilation and can safely operate in ambient conditions from 0 °C to 40 °C (32 °F to 104 °F). -
Page 15: Amplink Connection
See Overview > Available Accessories (page 11) for a list of compatible accessories. Mute with Standard Contact Closure The CSP-428 and CSP-1248 are designed to mute all outputs either when the Mute contacts are either shorted together or opened, depending on how the CSP is configured. -
Page 16: Control I/O Connections
Use proper precautions when driving inductive loads. Sink Limits: 100 mA (maximum). External supplies must be ≤ 24 VDC. Example: Control output connections for a current sink 16 • English CSP-428/1248 • Installation Guide... -
Page 17: Network Connection
PRO.BOSE.COM Installation Network Connection The CSP-428 and CSP-1248 include a Network port on the rear panel for network connection. Use a foiled or unshielded twisted-pair (F/UTP) Cat 5e cable (not included) to connect this port on each CSP to your network or computer. -
Page 18: Maintenance
PRO.BOSE.COM Maintenance Firmware & Software Updates Bose periodically releases updates for the CSP firmware. Follow the steps below to update the firmware of your CSP. Open the CSP configuration utility (see Accessing the CSP Configuration Utility on page 17). 2. Access Settings > Firmware > Select File. -
Page 19: Troubleshooting
The Power LED is red. Disconnect the power cord from the power outlet, and then reconnect it. If the issue continues, call your Bose Professional sales/support representative. The Ethernet LED is off. Make sure that the processor's Network port is securely connected to a computer, hub, or switch using a foiled or unshielded twisted-pair (F/UTP) Cat 5e cable (not included). -
Page 20: Technical Information
Output Voltage High: 8 V (open circuit), 2.5 V at 10 mA, Low: < 1 V at 100 mA, push-pull Output Current 10 mA source, 100 mA sink (24 VDC max external supply voltage) 20 • English CSP-428/1248 • Installation Guide... - Page 21 Active, side venting with fan Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F) Humidity 80% (without condensation) General Configuration Software Integrated web server with configuration utility Network Control Ethernet (RJ-45), 10/100MBase-T Installation Guide • CSP-428/1248 English • 21...
-
Page 22: Csp-1248
10 mA source, 100 mA sink (24 VDC max external supply voltage) Indicators and Controls LED Status Indicators Power/Status, Signal, Ethernet, AmpLink Audio Signal Indication Green (–60 to –20 dBFS), yellow (–20 to –2 dBFS), red (–2 dBFS to Clip) 22 • English CSP-428/1248 • Installation Guide... - Page 23 Active, side venting with fan Storage Temperature –40 °C to 70 °C (–40 °F to 158 °F) Humidity 80% (without condensation) General Configuration Software Integrated web server with configuration utility Network Control Ethernet (RJ-45), 10/100MBase-T Installation Guide • CSP-428/1248 English • 23...
- Page 24 ©2018 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM814842 Rev. 00 December 2018...
