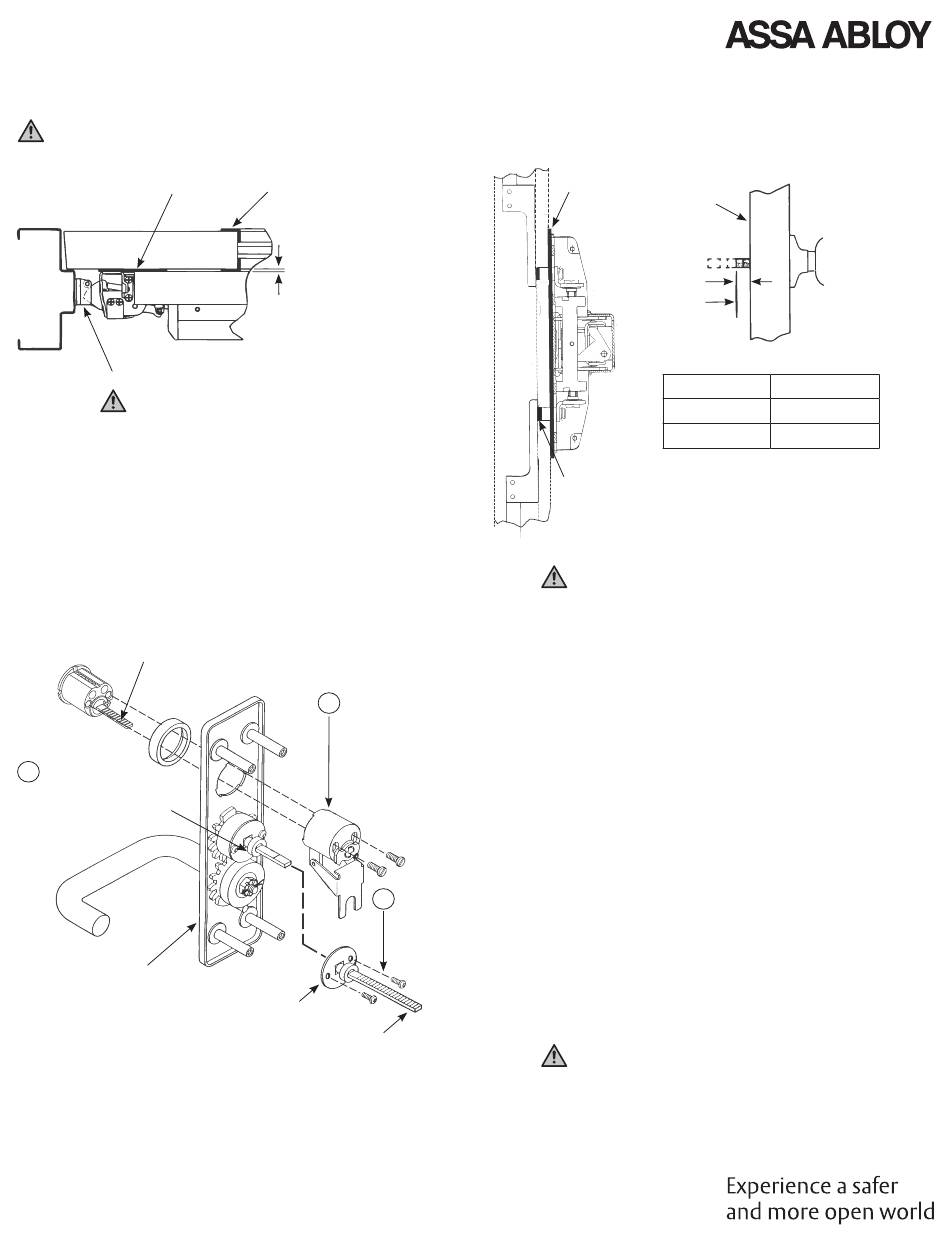

Assa Abloy 724 Installation Instructions page 2

Caution: Strike Location Will Vary
Device Shim
See Page 1
Strike
Caution: Strike location will vary. Adjust strike to
compensate for the shim height.
Spindle Assembly
For Night Latch Function
Replace Tailpiece as required (Longer Tailpiece
and Retainer Ring provided) to maintain proper
length See Figure 1, above.
2 Spindle Assembly
60-7000-0217
Remove and replace
with 60-7000-0213
when required.
Trim Assembly
1-855-557-5078 • www.assaabloy.com
Copyright © 2001, 2013, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Raised Molding
Clear Raised Door Molding
Use (1) Shim for each 1/8" (3mm)
of device lift needed.
1 Cylinder Housing
Assembly
60-7000-0215
Must be disassembled
prior to removal of
spindle assembly.
3
Spindle Assembly
60-7000-0213
With longer Tailpiece
for RIM, SVR, and CVR
when required.
Drive Plate
Tailpiece
Yoke Pin Shim Location
Device Shim
See Page 1
Hold A
Cut Line
NARROW STILE
Yoke Pin Shim
60-7020-1064
Place under Yoke Pin. Use equal number as device shim to
match added thickness.
Caution: When removing the spindle assembly
from the trim, keep the clutch spring and screws, they
are needed for reassembly. When finished, check the
lock and unlock function before mounting. Follow detail
Figure 1 for sizing the tailpiece to the door thickness.
For Thumbpiece Applications:
Thumbpiece applications follow the same procedure
as above, but the original smaller drive plate must be
used with the new tailpiece included in the kit. To do this
remove the cylinder housing assembly and the original
spindle assembly from the trim (steps 1 & 2 to left).
Remove the retaining ring from both spindle assemblies,
switch the tailpieces and reassemble (longer tail-piece to
the smaller drive plate) with a retaining ring. Reattach to
trim using clutch spring and screws; then reassemble the
cylinder housing with the cylinder.
540F or 440F Trim Applications:
For 540F or 440F Trim remove roll pin from Tailpiece
assembly (keep pin), remove Tailpiece and replace
with optional Tailpiece supplied. Use initial roll pin to
reassemble. Size to fit, see Figure 1, above.
Strike
Caution: Strike location will vary. Adjust strike to
compensate for the shim height.
Clear Raised Door Molding
Use (1) Shim for each 1/8" (3mm) of device lift needed.
Figure 1.
Device
Mounting
Surface
(See Note)
Note: Measure from device seat (door
face -shown- or shim surface)
TRIM SERIES DIM A
WIDE STILE 5/16" (8mm)
1/4" (6mm)
80-9470-0724-000 12/23
