Installation Instructions
Yale 1800, 2100 & 7000 Series and Corbin Russwin ED2000 Series
Exit Device Shim Kits

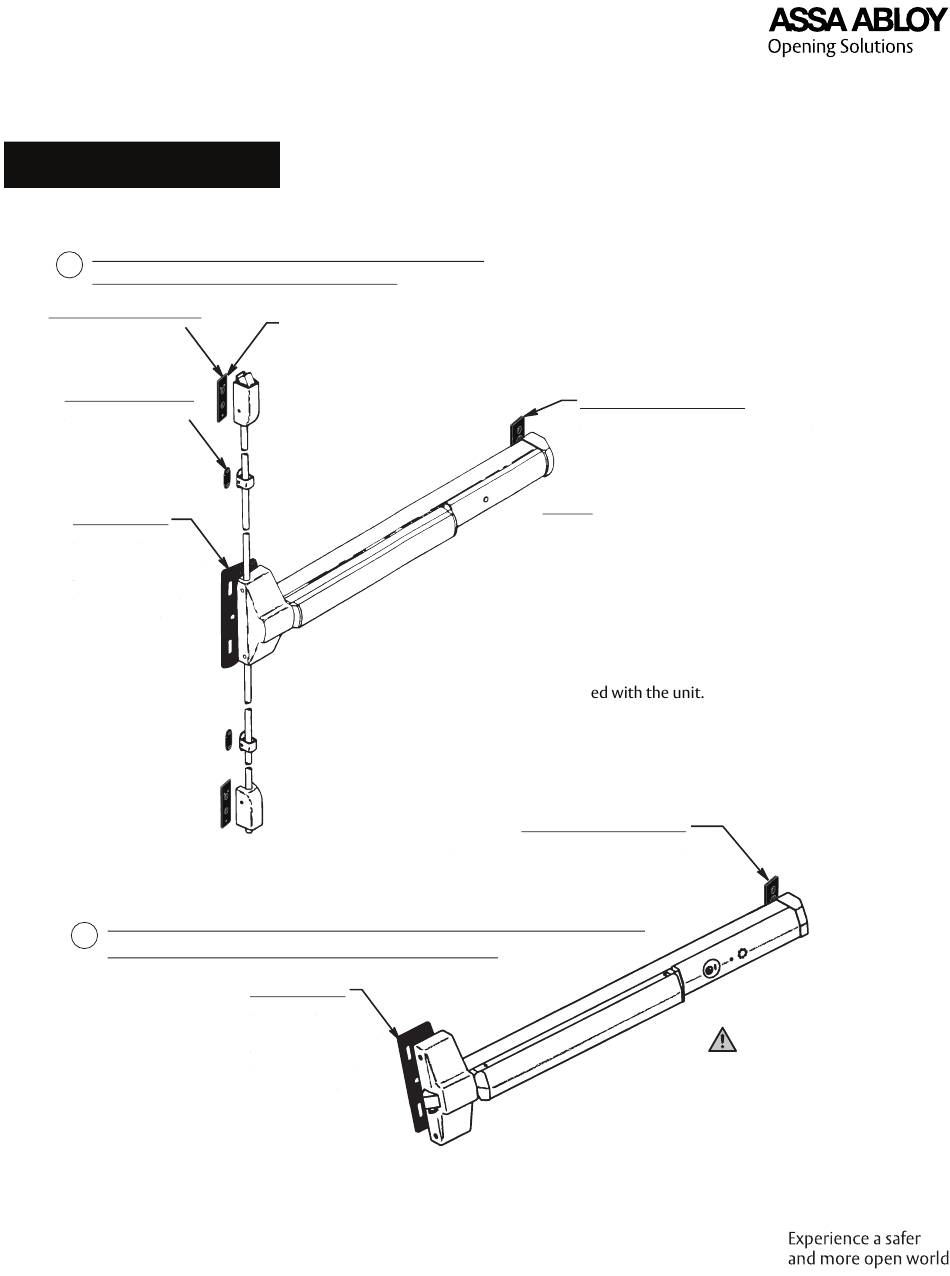

Shim Locations
#724, 724WS, 724NS, and 224 Shim Kits f or
1
Surface Vertical Rod Exit Devices
Vertical Latch Shim
Rod Guide Shim
Device Shim
#723, 723WS, 723NS, 723NSWS, and 223 Shim Kits
2
for Rim, Mortise , & CVR Exit Devices
Attention Installer
Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Assa Abloy Locks & Hardware makes no representations or
warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated
opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-800-438-1951 • www.assaabloy.com
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Note: Use shim in addition
to the Latch Mounting Plate
Top and Bottom
Device Shim
Device End Cap Shim
Notes:
1. Each standard shim kit contains 2 sets of
1/8" thick shims. Windstorm (WS) shim kits
contain 3 sets of 1/8" thick shims.
2. Place shims , as required. Use (1) shim
for each 1/8" (3mm) of device lift needed.
When mounting the device, position shims
as shown, using the installation instructions
pack
provided.
3. For Concealed Vertical Rod Device
see yoke pin shim location per illustration
on page 2.
Device End Cap Shim
MEMN18 1/23
Use longer screws
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information go
to www.P65warnings.ca.gov.
