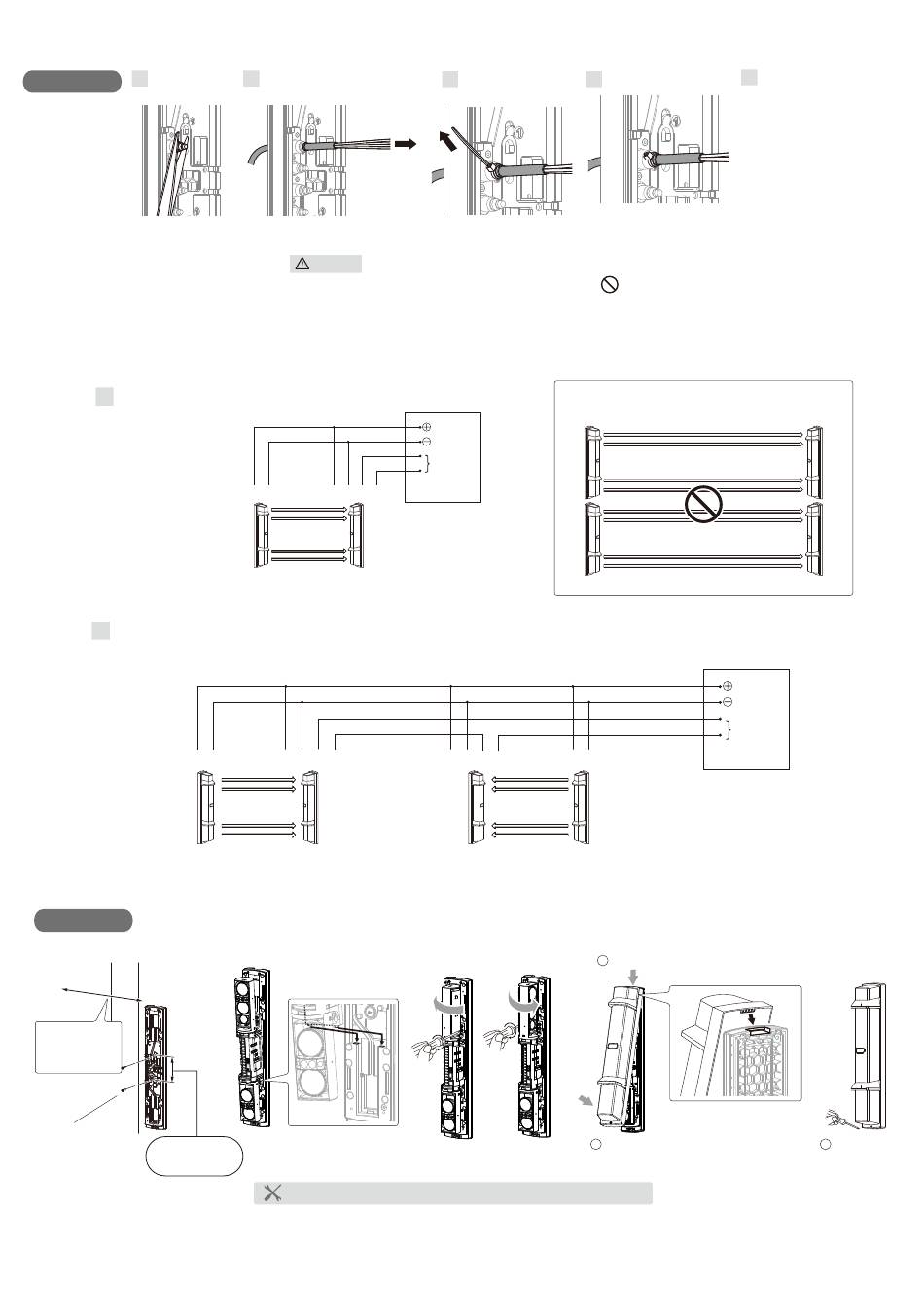

Optex Smart Line Series Installation Instructions page 2

Wiring 1
Cut the bush to
the cable size
< Wiring diagram >
1
1 Set
Connect the power supplies in parallel.
2
2 Sets in the line
Connect the power supply in parallel. Connect the units serially for a normally closed alarm output and in parallel for a normally open output
(the figure below shows an example for a normally closed alarm output).
(1) (2)
Transmitter
Mounting
Side wall
Distance from
the side wall:
at least 1 m
4×20 self tapping
83.5 mm
for gang box
2
Run the cable through the bush
Caution
Do not exceed specifications that may cause fire or damage.
CONTROL PANEL
(1) (2) (1) (2) (5) (6)
Transmitter Receiver
(1) (2) (5) (6)
Receiver
Make function settings and optical alignment before mounting the cover.
3 4
Tie the cable
Note>>
2 Sets stacking installation is not available.
POWER
ALARM
N.C.
Transmitter
(1) (2) (5) (6) (1) (2)
Receiver Transmitter
3
1
4
2
2
- 2 -
5
Connect to the terminals
Cut off excess ties
Refer to "Terminal" on the
previous page to make
connections to the terminals
and refer to "Optical alignment"
on the next page to make
alignment for the maximum
level of light reception.
CONTROL PANEL
POWER
ALARM
N.C.
1 Hook on the upper part of the chassis.
Push the lower part of the cover
until it clicks into position.
Receiver
Fasten the cover
3
lock screw.
