World Class Design | World Class Function | 30 Years Expertise in Industrial Motor Control
DC MOTOR DRIVE
PL / PLX
Product Manual
HG105281EN00 Issue 1 (03/2024)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sprint Electric PL Series

Summary of Contents for Sprint Electric PL Series

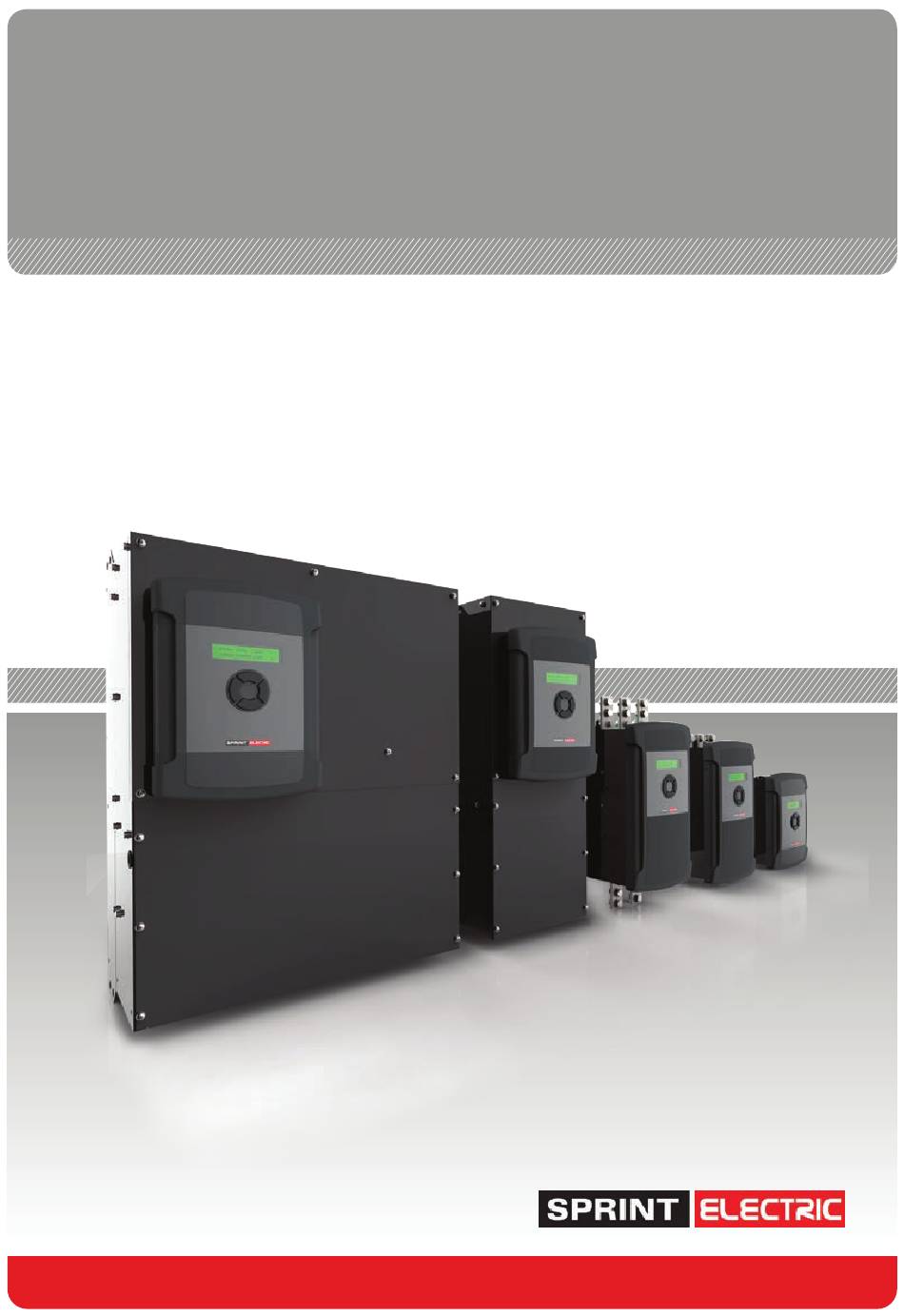

  • Page 1 World Class Design | World Class Function | 30 Years Expertise in Industrial Motor Control DC MOTOR DRIVE PL / PLX Product Manual HG105281EN00 Issue 1 (03/2024)
  • Page 2 Please read this information before installing or using the product. Install, use and maintain this product following the procedures provided. The manual(s) cannot provide all details, variations and contingencies required for your installation, operation and maintenance of this product or the apparatus with this product installed.
  • Page 3 WARNING! Only qualifi ed personnel must install, operate and maintain this equipment. A qualifi ed person is someone technically competent and familiar with all safety information, established safety practices, installation, operation, maintenance and the hazards involved with this equipment and any associated machinery. Hazards This equipment can endanger life through rotating machinery and high voltages.
  • Page 4 Weight Consideration should be given to the weight of our heavier products when handling. Risk assessment Under fault conditions or conditions not intended: the motor speed may be incorrect; the motor speed may be excessive; the direction of rotation may be incorrect; the motor may be energised.
  • Page 5 Hazards The following WARNINGS are contained in the text of this manual. The Hazard symbols are page links in the pdf of this manual. WARNING! PERSONAL INJURY HAZARD Read and understand the General Risks given at the front of this manual when performing measurements and investigating failures.
  • Page 6 WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Perform the QuickStart steps ("3 QuickStart Guide" on page 12) as written and in the correct sequence. WARNING! EQUIPMENT DAMAGE HAZARD It may be necessary for installations to have over-riding external independent systems for de-energising the supply side or dc contactor. In this case, we recommend that the CSTOP terminal is opened 100 ms prior to de-energising the supply side or dc side contactor.
  • Page 7 WARNING! EQUIPMENT DAMAGE HAZARD Field reversal or disconnection. After the PL/X inhibits the field output, it can take several seconds for the field current to decay to zero due to the high inductance of motor fields. Do not open-circuit the field unless the field current has reached zero. You cannot use the field current monitors or field active flag to confirm that zero current is flowing because the PL/X cannot measure the decaying current after an inhibit.
  • Page 8 WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD The PL/X suspends Comms operation while in CONFIGURATION mode. Refer to the FIELDBUS manual, HG105409EN00. WARNING! PERSONAL INJURY HAZARD EQUIPMENT DAMAGE HAZARD It is important that the parameter , is set as closely as 680)Iarm 680)Iarm BURDEN BURDEN OHMS...
  • Page 9 The following CAUTIONS are contained in the text of this manual. CAUTION! Do not use field weakening when using Armature Voltage Feedback, selected in the CALIBRATION menu. If AVF is selected and field weakening is enabled, the PL/X will trip when entering the field weakening region.
  • Page 11 Contents: 1 Introduction 1 Introduction Product overview 1.1.1 Features and benefits ..................2 PL/X principle of operation Useful page references Testing using a small motor Configuration tool Archiving PL/X Recipes What to do in the event of a problem 1.7.1 A simple clarification of a technical issue.............

  • Page 12: Table Of Contents

    Contents (cont.): 5 Mechanical installation 5 Mechanical installation Cover dimensions for the PL/X family Mechanical installation - Frame 1 PL/X 5-50 5.2.1 Mounting the Frame 1 PL/X 5-50..............36 Mechanical installation - Frame 2 PL/X 65-145 5.3.1 Mounting the Frame 2 PL/X 65-145 .............37 Mechanical installation - Frame 3 PL/X 185-265 5.4.1 Mounting the Frame 3 PL/X 185-265............39...
  • Page 13 Contents (cont.): 7.6.2 About digital outputs ..................63 7.6.2.1 Short-circuit/overload condition ............63 7.6.3 About analog inputs ..................64 7.6.3.1 Analog tachogenerator input ...............64 7.6.4 Motor thermistor ..................64 Control terminals - electrical specification Control terminals - default functions Signal test pins 8 How to use the keypad 8 How to use the keypad Diagnostic Summary screens Keypad functions...
  • Page 14 Contents (cont.): 10.8 Cooling 10.8.1 Internal fan ....................109 10.9 Installation guide for EMC 10.9.1 EN61800-3 operating environments ............110 10.9.1.1 Guidelines when using a filter ............110 10.9.2 Earthing and screening guidelines ............111 10.10 Approvals UL, cUL, CE 10.10.1 EMC Compliance statement for PL/X ............113 10.10.1.1 CE Emissions ..................
  • Page 15 Contents (cont.): 11.4 CHANGE PARAMETERS / JOG CRAWL SLACK 11.4.1 37)JOG SPEED 1 ..................141 11.4.2 38)JOG SPEED 2 ..................141 11.4.3 39)SLACK SPEED 1 ..................141 11.4.4 40)SLACK SPEED 2 ..................141 11.4.5 41)CRAWL SPEED ..................142 11.4.6 42)JOG MODE SELECT .................142 11.4.7 43)JOG/SLACK RAMP ..................143 11.5 CHANGE PARAMETERS / MOTORISED POT RAMP...
  • Page 16 Contents (cont.): 11.10.3 89)UPPER CUR CLAMP ................170 11.10.4 90)LOWER CUR CLAMP ................170 11.10.5 91)EXTRA CUR REF ..................170 11.10.6 92)AUTOTUNE ENABLE ................171 11.10.7 93)CUR PROP GAIN ..................172 11.10.8 94)CUR INT GAIN ..................172 11.10.9 95)CUR DISCONTINUITY ................173 11.10.9.1 Setting the current loop control terms manually ......173 11.10.10 96)4-QUADRANT MODE ................
  • Page 17 Contents (cont.): 11.16.3 240)MARKER ENABLE..................201 11.16.3.1 Marker specification ................201 11.16.4 241)MARKER OFFSET ...................202 11.16.5 242)POSITION REF ..................204 11.16.6 243)MARKER FREQ MON ................204 11.16.7 244)IN POSITION FLAG ................204 12 The DIAGNOSTICS menu 12 The DIAGNOSTICS menu 12.1 DIAGNOSTICS 12.1.1 169)EL1/2 RMS MON ...................205 12.1.2 170)DC KILOWATTS MON ................205 12.2 DIAGNOSTICS / SPEED LOOP MONITOR...
  • Page 18 Contents (cont.): 13 The MOTOR DRIVE ALARMS menu 13 The MOTOR DRIVE ALARMS menu 13.1 MOTOR DRIVE ALARMS 13.1.1 171)SPD TRIP ENABLE .................225 13.1.2 172)SPEED TRIP TOL ..................227 13.1.3 173)FLD LOSS TRIP EN ................227 13.1.4 174)DOP SCCT TRIP EN ................228 13.1.5 175)MISSING PULSE EN ................228 13.1.6...
  • Page 19 Contents (cont.): 16.2.6 434)PID1 RATIO2..................255 16.2.7 435)PID1 DIVIDER2 ..................255 16.2.8 436)PID1 PROP GAIN ..................256 16.2.9 437)PID1 INTEGRAL TC ................256 16.2.10 438)PID1 DERIV TC ..................256 16.2.11 439)PID1 FILTER TC ..................257 16.2.12 440)PID1 INT PRESET ..................257 16.2.13 441)PID1 PRESET VAL ..................257 16.2.14 442)PID1 RESET ...................258 16.2.15 443)PID1 POS CLAMP .................258 16.2.16 444)PID1 NEG CLAMP .................258 16.2.17 445)PID1 OUTPUT TRIM ................259...
  • Page 20 Contents (cont.): 16.6 APPLICATION BLOCKS / TORQUE COMPENSATOR 16.6.1 500)TORQUE DEMAND MN ................282 16.6.2 501)TORQUE TRIM IP ..................283 16.6.3 502)STICTION COMP ..................283 16.6.4 503)STIC.WEB SPD THR ................283 16.6.5 504)STATIC FRICTION .................284 16.6.6 505)DYNAMIC FRICTION ................284 16.6.7 506)FRICTION SIGN ..................285 16.6.8 507)FIXED INERTIA ..................285 16.6.9 508)VARIABLE INERTIA ................286 16.6.10 509)MATERIAL WIDTH ................287 16.6.11 510)ACCEL LINE SPEED................287...
  • Page 21 Contents (cont.): 16.11 APPLICATION BLOCKS / FILTER 1, 2 16.11.1 568)FILTER1 OP MON .................308 16.11.2 569)FILTER1 TC ....................308 16.11.3 GET FROM ....................308 16.11.4 Fixed low pass filter ..................309 16.12 APPLICATION BLOCKS / BATCH COUNTER 16.12.1 578)COUNTER COUNT ................311 16.12.2 579)COUNTER CLOCK ................. 311 16.12.3 580)COUNTER RESET ..................
  • Page 22 Contents (cont.): 17.5 CONFIGURATION / ANALOG OUTPUTS 17.5.1 250)Iarm OP RECTIFY .................336 17.5.2 260)SCOPE OP SELECT ................336 17.6 ANALOG OUTPUTS / AOP1/2/3 SETUP 17.6.1 Default connections for AOP1/2/3 ............338 17.6.2 251)AOP1 DIVIDER ..................338 17.6.3 252)AOP1 OFFSET..................339 17.6.4 253)AOP1 RECTIFY EN ................339 17.6.5 GET FROM ....................339 17.7...
  • Page 23 Contents (cont.): 17.16 CONFIGURATION / JUMPER CONNECTIONS 17.16.1 GET FROM ....................360 17.16.2 GOTO ......................360 17.17 CONFIGURATION / BLOCK OP CONFIG 17.17.1 Other GOTOs ....................361 17.17.2 GOTO ......................361 17.18 CONFIGURATION / FIELDBUS CONFIG 17.19 CONFIGURATION / DRIVE PERSONALITY 17.19.1 677)RECIPE PAGE ..................363 17.19.2 678)MAX CUR RESPONSE ................365 17.19.3 680)Iarm BURDEN OHMS ................365 17.19.3.1 Frames 1 - 3 (PL/X5 - PL/X265) ............
  • Page 24 Figures: Figure 1 The basic arrangement of the PL/X control loop ..........3 Figure 2 Power wiring diagram ..................15 Figure 3 Control wiring diagram..................16 Figure 4 DC tachogenerator ..................... 16 Figure 5 Encoder ......................16 Figure 6 Frame 1 - top connections................. 17 Figure 7 Frame 1 - bottom connections ................
  • Page 25 Figures: Figure 39 JOG CRAWL SLACK, including RUN MODE RAMPS - block diagram ....140 Figure 40 MOTORISED POT RAMP - block diagram ............144 Figure 41 STOP MODE RAMP - block diagram ..............149 Figure 42 Contactor Control - block diagram ..............150 Figure 43 Speed profile when stopping ................
  • Page 26 Figures: Figure 78 C/O SWITCH 1 - block diagram ................ 318 Figure 79 16-bit Demultiplex - block diagram ..............322 Figure 80 UIP2 (Universal Inputs) - block diagram ............328 Figure 81 AOP4 (T29) Current Feedback - block diagram ..........336 Figure 82 AOP1 (T10) Speed Feedback - block diagram ..........
  • Page 27 1 Introduction Introduction Sprint Electric PL/X Digital DC Drives are for use in industrial (non-domestic) applications to control the speed of dc motors. The PL/X series comprises five frame sizes. Each frame Frame 1 - PL/X5-50 size offers several different current ratings in two quadrant and four quadrant configurations.
  • Page 28 1.1 Product overview 1.1.1 Features and benefits Applications advice and training is available from Sprint Electric. • General: • The PL/X unit is an open-chassis component for use in a suitable enclosure. • Calibration requires no setting of switches or soldering of resistors.

  • Page 29: Figure 1 The Basic Arrangement Of The Pl/X Control Loop

    1.2 PL/X principle of operation Signal at this point = armature current demand Speed Speed Current Firing circuit and reference error error 3-phase bridge from user amplifier amplifier ac in; dc out Current INNER CURRENT LOOP limits impose Current Speed here feedback feedback...

  • Page 30: Application Blocks / C/O Switch 1 To

    1.3 Useful page references We recommend that you complete the QuickStart, which Page 12 includes an Autotune procedure. To properly configure your drive for the specific motor, you will need to enter relevant parameter settings into the Calibration menu. The PL/X has a built-in default configuration suitable for most Page 50 applications that you can modify if required.
  • Page 31 1.4 Testing using a small motor Select from two different motor parameter sets for the PL/X: MOTOR 1 (default) and MOTOR 2. Refer to "11.1.15 20)MOTOR 1,2 SELECT" on page 126. MOTOR 2 contains a set of parameters with values to suit very small motors for use during a system test: •...
  • Page 32 1.6 Archiving PL/X Recipes After establishing a working set of parameters and configuration connections, we recommend archiving your changes. DCS tools are available for creating an archive. Please contact Sprint-Electric for details of using DCS. 1.7 What to do in the event of a problem Is the PL/X being commissioned for the first time? If so, have you been able to tick the boxes in "3.4 Essential pre-start checks"...
  • Page 33 1.7.3 Finding the software version of the unit Refer to "15.1.3 SOFTWARE VERSION" on page 242. 1.7.4 How to reset the unit Refer to "17.19.1 677)RECIPE PAGE" on page 363: • NORMAL RESET • 2-KEY RESET • 3-KEY RESET • 4-KEY ROM RESET 1.7.4.1 4-KEY RESET (to factory defaults) Performing a 4-KEY RESET restores the factory block connections and parameter defaults,...

  • Page 34: Application Blocks / Multi-Function 1 To

    2 Commissioning Commissioning The suggested Commissioning strategy starts in the safest possible mode of operation and progressively exercises each element of the system to achieve full functionality. IMPORTANT: Incorrect control of the main contactor is the most common failure encountered, and we highly recommend that you read this chapter very carefully. The following table outlines the sequential steps for commissioning the drive.

  • Page 35: Configuration / Universal Inputs / Uip2 To

    2.1 Understanding main contactor operation The purpose of the main contactor is to provide electro-mechanical isolation of the motor armature from the power supply. The essential elements of controlling the contactor are as follows: It must be possible to release the contactor without relying on electronics. The contactor must not break current.
  • Page 36 2.1.1 Main contactor control Q & A Question Why is it so important to prevent the contactor from 1) Breaking current 2) Making current? 1) Breaking current Answer The motor armature is an inductive load, helping to smooth the current by storing electrical energy during a charging period and releasing it during a discharging period.
  • Page 37 Question Even if the contactor operates according to recommendations, how is protection provided if the contactor coil supply is lost? Answer It is a complicated problem to solve using electronics. The only reliable insurance is to insert a DC semiconductor fuse in the armature circuit. This fuse should open before the thyristor junction fails.
  • Page 38 3 QuickStart Guide QuickStart Guide 3.1 Introduction Follow the steps outlined in this guide to install and initiate the PL/X as a basic speed controller, employing ARMATURE VOLTAGE feedback mode for optimal safety. The PL/X drive displays user-friendly menus and parameter names. Use the key sequences we provide at each step to navigate and edit parameter values with no knowledge of the menu system required.
  • Page 39 Entering key sequences Use the PL/X keypad to enter the key sequences in the order given. This will navigate the menus in the fewest key presses. LEFT RIGHT Several sequences reset at the Diagnostic Summary screens, located at the top of the menu system. This reset is used as a helpful reference point in case you lose your way.
  • Page 40 3.2 Record your CALIBRATION parameter data Measure the supply voltage and record it below. Also, record the parameter values from the motor and feedback device nameplates for entry into the Calibration menu later. Description Example values Record your value Units Property "S"...

  • Page 41: Figure 2 Power Wiring Diagram

    3.3 Installation 3.3.1 Connect the drive WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Before beginning to connect the drive, ensure that all power is OFF. Make sure that you route power and control wiring in separate conduit/cable trays. Wiring must meet all applicable national and local electrical regulations. Make sure that the voltages on the EL1/EL2/EL3 terminals are in-phase with the voltages on L1/L2/L3.

  • Page 42: Figure 3 Control Wiring Diagram

    PL/X CONTROL WIRING RAMP MAIN I +10VDC CONTRL START CSTOP +24VDC CLAMP SCR ENA CSTOP START Note: Jumper T6 to T27 Figure 3 Control wiring diagram 3.3.1.2 Optional feedback devices ENCODER FEEDBACK +24V EARTH EXTERNAL POWER SUPPLY TWISTED SHIELDED PAIRS TACHO FEEDBACK TACH TACH...

  • Page 43: Figure 6 Frame 1 - Top Connections

    3.3.2 Frame 1 - PL/X5-50 Field (F+ and F-) and EL1, EL2, EL3 Input ac busbars (L1, L2, L3) supply terminals and armature (A+ and A-) Figure 6 Frame 1 - top connections Control terminals 1 - 36 Earth/Ground Control power supply (L, N, E): Terminals 41 - 48 Terminals 51 (E), 52 (N) and 53 (L) for contactor control and...

  • Page 44: Figure 8 Frame 2 - Top Connections

    3.3.3 Frame 2 - PL/X65-145 Input ac busbars (L1, L2, L3) Field (F+ and F-) and EL1, EL2, EL3 supply terminals Figure 8 Frame 2 - top connections Terminals 41 - 48 for contactor control and remote armature sensing Control terminals 1 - 36 Control power supply (L, N, E):...

  • Page 45: Figure 10 Frame 3 - Top Connections

    3.3.4 Frame 3 - PL/X185-265 Input ac busbars (L1, L2, L3) Field (F+ and F- 110 Vac and EL1, EL2, EL3 external fan supply terminals supply (B1, B2) Figure 10 Frame 3 - top connections Control terminals 1 - 36 Control power supply...

  • Page 46: Figure 12 Frame 4 - Top And Bottom Connections

    3.3.5 Frame 4 - PL/X275-440 Control terminals 1 - 36 240 Vac external fan Control power supply supply terminals (L, N, E) terminals 51 (E), B1 (N), B2 (L) 52 (N), 53 (L) Contactor control and remote Field (F+, F-) and armature sensing supply terminals EL1, EL2, EL3...

  • Page 47: Figure 13 Frame 5 - Top And Bottom Connections

    3.3.6 Frame 5 - PL/X520-980 Control terminals 1 - 36 240 Vac external fan Control power supply supply terminals (L, N, E) terminals 51 (E), Contactor control B1 (N), B2 (L) 52 (N), 53 (L) and remote armature sensing terminals 41 - 48 Field (F+, F-) and supply terminals EL1, EL2, EL3...
  • Page 48 3.4 Essential pre-start checks Make the essential mechanical and electrical pre-start checks before applying power to the motor. You need to ensure that you can mark each item on the checklists as completed. Failing to comply with these requirements may cause incorrect functioning or damage to the drive and/or installation - this will invalidate any Warranty.
  • Page 49 3.4.2 CHECK LIST: Electrical  Tick each each item when complete. Check that all external fuses are of the correct rating and type. The total  clearing I t ratings of the main fuse and auxiliary fuse must be smaller in value than the rating specified in the rating tables.
  • Page 50 3.5 Final checks BEFORE applying power • Recheck all wiring, especially the drive's chassis ground. • Use a multimeter to check the L1, L2, L3, F+, F-, A+, and A- terminals for short-circuits to ground. All readings should be greater than 1 MΩ. If any resistances are lower than 1 MΩ, correct them before you apply power.
  • Page 51 3.7 QuickStart steps Always commission the drive using ARMATURE VOLTAGE feedback, even if the motor has a dc tacho or encoder. It allows verification of the feedback polarity, ensuring that the motor does not run out of control. WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Follow the QuickStart steps below as written and in the correct numerical order.
  • Page 52 Check the control terminals Letter Terminal Function THERMISTOR Complete these checks to ensure that the drive contactor is sequenced correctly before the 3-phase power is applied. START NOTE: The value under the letters TRJSC in the display indicates the actual Control input terminal status. CSTOP Hold down the LEFT key to display the Diagnostic Summary screens.
  • Page 53 • Autotune is a static test. • There is no need to disconnect the motor from the load. • The motor field is automatically disabled. • If the motor back emf is detected to be above a certain level implying excessive rotation, Autotune aborts.
  • Page 54 Hold down the LEFT key to display the Diagnostic Summary screens. Release the key. Increase the potentiometer setting until the motor turns slowly. Check motor rotation. If L-L-D-R-5xD-R 26)RAMP INPUT it is turning backwards, 75.14 % stop, turn off ALL power to the drive and swap the armature leads (A+ and A-).
  • Page 55 3.8 Options 3.8.1 Feedback 3.8.1.1 Feedback calibration Enter your values from Page 14 for DC Tachogenerator or Encoder: Start the drive. Energise the START input (T33) to start the drive. Check the field voltage at the F+ and F- terminals. When the motor is cold, you will measure less than the rated field voltage.
  • Page 56 3.8.1.2 Preparing for Tacho/Encoder use Hold down the LEFT key to display the Diagnostic Summary screens. Release the key. Check to ensure the speed reference is positive (+): R-D-R-R-R 123)TOTAL SPD REF MN 26.50 % Check the sign of the feedback: DC tachogenerator: 129)TACHO VOLTS MON 23.19 AMPS...
  • Page 57 4 Self-test messages Self-test messages A group of self-test messages provide information about problems occurring in the PL/X that are not related to the motion control system. A message displays when a problem occurs and is not saved internally for later access. Take remedial action to cure the problem, which clears the message.
  • Page 58 Self Test Message The ENABLE GOTO,GETFROM configuration selection parameter name has been left in the ENABLED state. Set to DISABLED DISABLE GOTO, GETFROM to run the PL/X. This alarm will appear at power-up if the self- INITIALISING calibration of the analog inputs has exceeded their SELF CAL TOLERANCE normal tolerance.
  • Page 59 Self Test Message At the end of a configuration session, the ENABLE !!!!!! ALARM !!!!!!! GOTO,GETFROM window must be set to DISABLED. GOTO CONFLICT This message appears if any PIN has more than one GOTO accidentally connected to it during the session. It will also appear as an alarm message when asking the PL/X to run while there is a GOTO CONFLICT, e.g.
  • Page 60 Self Test Message This message will appear if a PARAMETER SAVE on parameter name RECIPE PAGE = 3-KEY RESET or a DRIVE RECEIVE of a AUTHORISATION NEEDED page 3 file is attempted, AND the Supplier has locked the page. A Page 3 lock may be protecting a Recipe from being overwritten.

  • Page 61: Mechanical Installation

    5 Mechanical installation Mechanical installation 5.1 Cover dimensions for the PL/X family Figure 14 PL/X family - cover dimensions Model Width Height Depth 2-quadrant PLX 4-quadrant (mm) (mm) (mm) PL and PLX 5 - 980 NOTE: The PL/X is an open chassis component for use in a suitable enclosure. Mechanical installation...

  • Page 62: Mechanical Installation - Frame 1 Pl/X

    5.2 Mechanical installation - Frame 1 PL/X 5-50 Figure 15 Frame 1 PL/X 5-50 dimensions Model Height Force Width Height Depth Fixing centres Weight at rear vented 2-quadrant PLX 4-quadrant (mm) (mm) (mm) (mm) (mm) (mm) (kg) PL and PLX 5-20 PL and PLX 30-50...

  • Page 63: Mechanical Installation - Frame 2 Pl/X

    5.3 Mechanical installation - Frame 2 PL/X 65-145 31.5 71.1 ac busbar: 112 flow 3 x ac power FANS terminals auxiliary terminals control terminals 60.5 202.6 earth stud: 80 arm busbar: 103 international ground symbol identifies 2 x dc power main earth main equipment ground connection on heatsink terminals...

  • Page 64: Mechanical Installation - Frame 3 Pl/X

    5.4 Mechanical installation - Frame 3 PL/X 185-265 35.2 35.4 3 x ac power terminals 38.1 38.1 38.1 27.9 27.8 auxiliary terminals control terminals 38.1 38.1 33.8 39.5 2 x dc power main earth terminals 202.6 terminal Figure 17 Frame 3 PL/X 185-265 dimensions Model Height Height...

  • Page 65: Mounting The Frame 3 Pl/X 185-265

    5.4.1 Mounting the Frame 3 PL/X 185-265 • Mount the PL/X vertically (as shown) using the four mounting slots: M8 (5/16 inch) screws. All mounting hole dimensions are ±2 mm. • Mount the main contactor to avoid the transmission of mechanical operating shock to the PL/X busbars, for example, by ensuring to fit the Line Reactor between the contactor and PL/X.

  • Page 66: Venting Using A Back Panel Aperture

    5.4.1.1 Venting using a back panel aperture Cut out an aperture in the back panel using the template provided. This preferred mounting method allows the maximum volume of cool air to flow over the PL/X's heatsink. For installations requiring a 50°C internal enclosure ambient, this method is a requirement.

  • Page 67: Mechanical Installation - Frame 4 Pl/X

    5.5 Mechanical installation - Frame 4 PL/X 275-440 51.5 lift points control terminals field supply output terminals 3 x ac power terminals 2 x dc power terminals 63.5 main earth terminal Figure 19 Frame 4 PL/X 275-440 dimensions Model Height Height Force Width...

  • Page 68: Mounting The Frame 4 Pl/X 275-440

    5.5.1 Mounting the Frame 4 PL/X 275-440 Refer to "6 Venting for PL/X 275-980" on page 45. • Mount the drive vertically (as shown) using the four mounting slots: M8 (5/16 inch) screws. All mounting hole dimensions are ±2 mm. •...

  • Page 69: Mechanical Installation - Frame 5 Pl/X

    5.6 Mechanical installation - Frame 5 PL/X 520-980 3 x ac power terminals (standard top entry) 51.5 3 x ac power terminals control terminals field supply 3 x ac power terminals output terminals (bottom entry option) 2 x dc power terminals 63.5 2 x main earth...

  • Page 70: Mounting The Frame 5 Pl/X 520-980

    5.6.1 Mounting the Frame 5 PL/X 520-980 Refer to "6 Venting for PL/X 275-980" on page 45. • Mount vertically (as shown) using the eight mounting slots: M8 (5/16 inch) screws. All mounting hole dimensions are ±2 mm. • Mount the main contactor to avoid the transmission of mechanical operating shock to the PL/X busbars, for example, by ensuring to fit the Line Reactor between the contactor and PL/X.

  • Page 71: Venting For Pl/X

    6 Venting for PL/X 275-980 Venting for PL/X 275-980 These Frame 4 and Frame 5 drives have a very efficient cooling system consisting of a powerful integral centrifugal fan mounted at the bottom of the PL/X. It blows air over a high dissipation heatsink to maintain the required operating temperatures under all operating limits.

  • Page 72: Venting Summary

    6.1 Venting summary • Ensure a clean uninterruptible supply of cool filtered air is available for the PL/X; and the safe, adequate removal of the exhaust air. • Use the venting kit (optional)/exhaust fans and ducting, or both to keep the hot exhaust air separate from the cooling input air within the enclosure.

  • Page 73: Venting Kit (Optional)

    Hole in enclosure roof 100 x 252 mm 6.2 Venting kit (optional) 280 mm Mount the cowl on Fit the cowl with the enclosure roof this lip facing using the pillars forward to Air i provided. direct exhaust air away from Select the the air intakes.

  • Page 74: Venting Kit For Pl/X 275 - 440

    6.2.1 Venting kit for PL/X 275 - 440 This venting kit comprises two steel ducts designed to telescope together, providing an adjustable duct length of between 270 mm to 538 mm. It consists of three main components: The lower duct. Fit this within the side cheeks, directly above the heatsink exhaust area.

  • Page 75: Electrical Installation

    7 Electrical installation Electrical installation WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Electric shock risk! Electrical devices constitute a safety hazard. Do not attempt to commission the PL/X unless you: • are qualified and have the knowledge and skills to use it safely. •...

  • Page 76: Basic Application Wiring Diagram

    7.1 Basic application wiring diagram Below is a very basic speed or torque control application, combining Method 1 Power Wiring and Method 1 Control Wiring, which can later be adapted to your requirements. Note that this arrangement of the contactor allows continuous phase sensing on EL1/2/3. +24V CSTOP START...

  • Page 77: Power Wiring Connections

    7.2 Power wiring connections WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Ensure that all wiring is electrically isolated and cannot be made "live" unintentionally by other personnel. If performing high voltage or dielectric tests on the motor or wiring, you must disconnect the PL/X first.

  • Page 78: Power Wiring Methods

    7.3 Power wiring methods IMPORTANT: Please read the General Risks and safety information at the front of this manual before proceeding. There are various ways of implementing main contactor control, and each method has its advantages and disadvantages. Refer to "Figure 23 Basic application wiring diagram: speed or torque control" on page 50 and substitute your selected Power Wiring method into the diagram.

  • Page 79: Method 2 - Power Wiring

    7.3.2 METHOD 2 - Power wiring MAIN SEMICONDUCTOR FUSES WARNING! The phase order of MAIN EL1/EL2/EL3 CONTACTOR must be the same as L1/L2/L3 MOTOR ARMATURE AUXILIARY SEMICONDUCTOR FUSES DC SEMICONDUCTOR FUSE MOTOR LINE for regenerative applications FIELD REACTOR EL1 EL2 EL3 F- METHOD 2 Power Wiring Figure 25 Main contactor isolating AC stack and auxiliary supplies Advantages...

  • Page 80: Method 3 - Power Wiring

    7.3.3 METHOD 3 - Power wiring MAIN MOTOR ARMATURE SEMICONDUCTOR FUSES WARNING! The phase order of EL1/EL2/EL3 must be the same as L1/L2/L3 T41 + and T43 - MAIN AV SENSING AUXILIARY CONTACTOR INPUTS used 42 43 SEMICONDUCTOR with auxiliary only with DC FUSES contact...

  • Page 81: Power Wiring Connections

    7.4 Power wiring connections POWER WIRING CONNECTIONS Use the quick-release catches on the sides of the endcaps to remove the PL/X top and bottom endcaps. Connect all power supplies: L1, L2, L3, EL1, EL2, EL3, T51, T52, T53, and B1, B2 (where fitted).

  • Page 82: Output Voltage Range

    POWER WIRING CONNECTIONS Fusing Protect the PL/X using correctly rated semiconductor fuses - three main fuses and three auxiliary fuses. Failure to do so will invalidate the Warranty. NOTE For applications where regeneration occurs most or all of the time, we recommend also fitting a DC-side semiconductor fuse to provide extra protection for the PL/X in the event of an unsequenced power loss when regeneration is taking place.

  • Page 83: Power Supplies

    7.4.4 Power supplies The power supplies you provide MUST be suitable for the motor used. PL/X 275-980 models are available with the L1, L2, L3 main supply terminals with a top entry (standard) or bottom entry (option). 7.4.4.1 Main supply inputs: L1, L2, L3 PL/X 5-265 12-500 Vac nominal ±10%, 50-60 Hz, 3-phase (CE rating) 12-480 Vac nominal ±10%, 50-60 Hz, 3-phase (UL rating)

  • Page 84: Control Wiring Methods

    7.5 Control wiring methods Study this section carefully and choose the control wiring mode required for your application. Refer to "Figure 23 Basic application wiring diagram: speed or torque control" on page 50 and substitute your selected Control Wiring method into the diagram. 7.5.1 METHOD 1 - Control wiring (QuickStart) Internal contacts...

  • Page 85: Method 2 Control Wiring

    7.5.2 METHOD 2 - Control wiring Internal contacts +24 V COIL, energised by Stop mode (START or JOG) ramp delay INTERNAL AND CSTOP RELAY Terminated CONTACTS by RUN going LOW 47 48 CONTACTOR COIL SUPPLY COAST STOP Must be High START prior to START RC SNUBBER...

  • Page 86: Method 3 - Control Wiring

    7.5.3 METHOD 3 - Control wiring Internal contacts +24 V COIL, energised by Stop mode (START or JOG) ramp delay INTERNAL AND CSTOP RELAY Terminated CONTACTS by RUN going LOW 47 48 COAST STOP Must be High CONTACTOR COIL SUPPLY prior to START RC SNUBBER across contactor coil.

  • Page 87: Control Wiring Connections

    7.6 Control wiring connections IMPORTANT: Please read the General Risks and safety information at the front of this manual before proceeding. There are various ways of implementing main contactor control, and each method has its advantages and disadvantages. Refer to "Figure 23 Basic application wiring diagram: speed or torque control" on page 50 and substitute elements of your Power Wiring and Control Wiring method selections into the diagram as required.

  • Page 88: About Digital Inputs

    7.6.1 About digital inputs The most frequent types of problem is short-circuits and excessive voltages when applied to the digital inputs and outputs: • All digital inputs and outputs can withstand up to +50 V applied continuously. • All digital outputs, including the 24 V customer supply, can withstand a direct short- circuit to 0 V.

  • Page 89: About Digital Outputs

    sign, or phase quadrature. Refer to "11.2 CHANGE PARAMETERS/CALIBRATION/ENCODER SCALING" on page 127. NOTE: The Universal Inputs (UIPs) offer much higher noise immunity for 24 V logic signals. 7.6.2 About digital outputs When digital outputs become shorted, the 24 V output continues to operate with a current capability of 50 mA to ensure that the CSTOP line does not go low and shut down the PL/X.

  • Page 90: About Analog Inputs

    This input is intended solely for the connection of an analog bipolar DC tachogenerator. The PL series 2-quadrant drives can also use an AC tachogenerator with a rectified output, but we do not recommend this. Connect the tachogenerator to terminals T25 (0 V) and T26 (TACH).

  • Page 91: Control Terminals - Electrical Specification

    7.7 Control terminals - electrical specification Below is the electrical specification for each terminal. Making changes to factory default settings does not affect the electrical specification. Control terminals - electrical specification Terminal Universal UIP2 Inputs UIP3 8 analog inputs with up to 2 mV +sign resolution. UIP4 4 input voltage ranges ±5/10/20/30 V on each input.
  • Page 92 This terminal connector is devoted to essentially fixed function controls: Control terminals - electrical specification Terminal Control clean protective earth connection. Tacho Input ±200 V range. Input impedance 150 kΩ. TACH Reference +10 V Outputs ±10.00 V, 0.5%, 10 mA maximum. Short-circuit protection to 0 V. -10 V Armature ±5 V linear output for ±100% model rating current.
  • Page 93 These terminal connectors are on the lower power board: Control terminals - electrical specification Terminal Remote AVF RA+ RA- used for remote sensing of armature volts. NOTE: when using remote AVF the armature volts signal is read 3.3% high. Do not connect to this terminal. RA+ RA- used for remote sensing of armature volts.

  • Page 94: Control Terminals - Default Functions

    7.8 Control terminals - default functions The default functions will suit most applications. However, you can select an alternative function for all programmable terminals. NOTE: Control terminals on the lower power board, terminal numbers 41 to 53, are not programmable. To restore the PL/X to its default settings, refer to "1.7.4 How to reset the unit"...
  • Page 95 Control terminals - default functions Terminal Total Speed ANALOG OUTPUT: 0 to ±10 V linear output for 0 to AOP2 Reference ±100% total speed reference. Total Current ANALOG OUTPUT: 0 to ±10 V linear output for 0 to Demand ±100% current demand. Programmable Unipolar or AOP3 Bipolar output mode.
  • Page 96 Control terminals - default functions Terminal 0 V terminal This MUST be used for protective clean earth connection. 0 V INPUT: Full speed setting range: ±10 V to ±200 V. TACH Tachogenerator Refer to 8)MAX 8)MAX TACHO TACHO VOLTS VOLTS User +10 V +10 V.
  • Page 97 Control terminals - default functions Terminal DIGITAL INPUT: Jog input with programmable contactor drop-out delay. When the Jog input is held high, the PL/X jogs (rotates slowly while being requested), provided that T33 (START) is low. Remove the Jog input to cause the PL/X to ramp down to zero and obey the Jog/Slack Ramp time.
  • Page 98 Control terminals - default functions Terminal COAST STOP DIGITAL INPUT: Coast stop. This drops the contactor out immediately (100 ms). main contactor control When the input is high, the PL/X operates normally. When the input is low (0 V) or open-circuit, the main contactor is open and the PL/X no longer operates.

  • Page 99: Signal Test Pins

    Control terminals - default functions Terminal Earth Used for dirty earth connection of control supply. EARTH 51 Control Power If the voltage falls below 80 Vac, the PL/X begins an orderly shutdown sequence. Refer to "10.7 Supply loss shutdown" on page 106. 7.9 Signal test pins These test pins are used to monitor certain feedback signals: Vref...

  • Page 100: How To Use The Keypad

    8 How to use the keypad How to use the keypad 8.1 Diagnostic Summary screens The Diagnostic Summary screens are at the top of the menu system, alternating approximately every five seconds. Press the RIGHT key to view the ENTRY MENU. Hold down the LEFT key to display the Diagnostic Summary screens.

  • Page 101: Keypad Functions

    8.2 Keypad functions Use the PL/X keypad to navigate through the menus and change parameter settings. Press a key by tapping it quickly (use your fingertip for more accurate results). Hold the key down to advance rapidly to a distant selection or value. Also, you can use the keypad to load a Drive Personality.

  • Page 102: About The Menu System

    9 About the Menu System About the Menu System The menu system forms a tree-like structure, divided into four levels, with two Diagnostic Summary screens as the entry point to Level 1. You can select to view the FULL menu system containing over 700 parameters arranged into blocks or a REDUCED menu system holding approximately 50 of the often-used adjustable parameters contained in their relevant blocks.

  • Page 103: Configuring The Drive

    9.1 Configuring the drive The PL/X menu system comprises both "hard-wired" blocks and blocks that can be re- wired to create a user configuration. Each block holds parameters. Configuration using the HMI Each parameter stores a value. To begin a Configuration session, you must A parameter is identifiable by CONFIGURATION CONFIGURATION / / ENABLE...

  • Page 104: Figure 33 Configuring The Pl/X

    • A parameter can only be written to by one GOTO. • A GET FROM can only be read from one parameter. • The same parameter can connect to multiple GET FROMs. Parameter Block Parameter GETFROM GOTO Write a value to a block (to perform some function on the value) and read the new value Parameter Jumper Parameter...

  • Page 105: Saving Your Changes

    9.2 Saving your changes • Changes made to parameters are effective immediately. • To make configuration changes using the HMI, set to ENABLED. ENABLE ENABLE GOTO GOTO GETFROM GETFROM Configuration changes become effective when you set ENABLE ENABLE GOTO GOTO GETFROM GETFROM DISABLED.

  • Page 106: The Menu Tree Structure

    9.5 The menu tree structure The QuickStart parameters and PARAMETER SAVE are highlighted in red. SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode ENTRY MENU LEVEL 1 0000 STOP CHANGE PARAMETERS 2 RUN MODE RAMPS 21)RAMP OP MONITOR 22)FORWARD UP TIME DIAGNOSTICS 23)FORWARD DOWN TIME MOTOR DRIVE ALARMS 2...
  • Page 107 CHANGE PARAMETERS 2 SPEED CONTROL 69)MAX POS SPEED REF 70)MAX NEG SPEED REF 71)SPEED PROP GAIN 72)SPEED INT T.C. 73)SPEED INT RESET SPEED PI ADAPTION 74)SPD ADPT LO BRPNT 75)SPD ADPT HI BRPNT 76)LO BRPNT PRP GAIN 77)LO BRPNT INT T.C. 78)INT % DURING RAMP 79)SPD ADAPT ENABLE CURRENT CONTROL...
  • Page 108 SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode ENTRY MENU LEVEL 1 0000 STOP CHANGE PARAMETERS DIAGNOSTICS SPEED LOOP MONITOR 3 123)TOTAL SPD REF MN 124)SPEED DEMAND MON MOTOR DRIVE ALARMS 2 125)SPEED ERROR MON SERIAL LINKS 126)ARM VOLTS MON DISPLAY FUNCTIONS 127)ARM VOLTS % MON APPLICATION BLOCKS...
  • Page 109 DIAGNOSTICS 2 FIELDBUS 200)FBUS ON-LINE MON 203)FBUS BITS INPUT 169)EL1/2 RMS MON 213)FBUS BITS OUTPUT 170)DC KILOWATTS MON 223)ANYBUS TYPE SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode ENTRY MENU LEVEL 1 0000 STOP CHANGE PARAMETERS DIAGNOSTICS MOTOR DRIVE ALARMS 2 171)SPD TRIP ENABLE 172)SPEED TRIP TOL SERIAL LINKS...
  • Page 110 SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode ENTRY MENU LEVEL 1 0000 STOP CHANGE PARAMETERS DIAGNOSTICS MOTOR DRIVE ALARMS SERIAL LINKS DISPLAY FUNCTIONS REDUCED MENU ENABLE PASSWORD CONTROL ENTER PASSWORD APPLICATION BLOCKS LANGUAGE SELECT ALTER PASSWORD CONFIGURATION SOFTWARE VERSION PARAMETER SAVE SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode...
  • Page 111 SPD% Iarm Ifld RJSC Sref Ilim -Ilim mode ENTRY MENU LEVEL 1 0000 STOP CHANGE PARAMETERS DIAGNOSTICS MOTOR DRIVE ALARMS 2 SERIAL LINKS DISPLAY FUNCTIONS APPLICATION BLOCKS CONFIGURATION ENABLE GOTO,GETFROM PARAMETER SAVE UNIVERSAL INPUTS UIP2 (T2) SETUP 320)UIP2 IP RANGE 321)UIP2 IP OFFSET 322)UIP2 CAL RATIO 323)UIP2 MAX CLAMP...
  • Page 112 CONFIGURATION UNIVERSAL INPUTS UIP6 (T6) SETUP 360)UIP6 IP RANGE 361)UIP6 IP OFFSET 362)UIP6 CAL RATIO 363)UIP6 MAX CLAMP 364)UIP6 MIN CLAMP UIP ANALOG GOTO UIP DIGITAL OP1 GOTO UIP DIGITAL OP2 GOTO 365)UIP6 HI VAL OP1 366)UIP6 LO VAL OP1 367)UIP6 HI VAL OP2 368)UIP6 LO VAL OP2 369)UIP6 THRESHOLD...
  • Page 113 CONFIGURATION ANALOG OUTPUTS 250)Iarm OP RECTIFY AOP1 (T10) SETUP 251)AOP1 DIVIDER 252)AOP1 OFFSET 253)AOP1 RECTIFY EN GET FROM AOP2 (T11) SETUP 254)AOP2 DIVIDER 255)AOP2 OFFSET 256)AOP2 RECTIFY EN GET FROM AOP3 (T12) SETUP 257)AOP3 DIVIDER 258)AOP3 OFFSET 259)AOP3 RECTIFY EN GET FROM 260)SCOPE OP SELECT DIGITAL INPUTS...
  • Page 114 DIGITAL IN/OUTPUTS DIO1 (T18) SETUP CONFIGURATION 271)DIO1 OP MODE 272)DIO1 RECTIFY EN 273)DIO1 THRESHOLD 274)DIO1 INVERT MODE GET FROM GOTO 275)DIO1 IP HI VALUE 276)DIO1 IP LO VALUE DIO2 (T19) SETUP 277)DIO2 OP MODE 278)DIO2 RECTIFY EN 279)DIO2 THRESHOLD 280)DIO2 INVERT MODE GET FROM GOTO 281)DIO2 IP HI VALUE...
  • Page 115 DIGITAL OUTPUTS DOP1 (T22) SETUP CONFIGURATION 261)DOP1 RECTIFY EN 262)DOP1 THRESHOLD 263)DOP1 INVERT MODE GET FROM DOP2 (T23) SETUP 264)DOP2 RECTIFY EN 265)DOP2 THRESHOLD 266)DOP2 INVERT MODE GET FROM DOP3 (T24) SETUP 267)DOP3 RECTIFY EN 268)DOP3 THRESHOLD STAGING POSTS 296)DIGITAL POST 1 269)DOP3 INVERT MODE 297)DIGITAL POST 2 GET FROM...
  • Page 116 GET FROM CONFIGURATION FIELDBUS CONFIG JUMPER 1 JUMPER 2 BIT-PACKED GETFROM GOTO JUMPER 9 JUMPER 16 BIT-PACKED GOTO 199)FBUS DATA CONTROL 202)FBUS NODE ID 224)FBUS BAUD RATE Refer to "17.20 CONFIGURATION/DRIVE DRIVE PERSONALITY PASSIVE MOTOR SET PERSONALITY/PASSIVE MOTOR SET" on page 677)RECIPE PAGE 371.

  • Page 117: Technical Specifications

    10 Technical specifications Technical specifications 10.1 General information General information Ingress IP00. This product is classified as a component and must be used in a Protection suitable enclosure. Control Fully isolated from power circuit. circuits Control Advanced PI with fully adaptive current loops for optimum dynamic action performance.
  • Page 118 General information Diagnostics With first fault latch, automatic display and power off memory. Diagnostic monitoring of all parameters in engineering and/or % units. Full diagnostic information available over RS232 or ethernet (with additional hardware) when using a distributed control systems (DCS) software graphical tool.

  • Page 119: Product Rating Labels

    10.2 Product rating labels Product rating labels and any applicable product standard labels are on the side of the drive. We use the unique product serial number to identify the drive's model type and power ratings. 10.3 Electrical ratings • The motor output power rating is based on the power output of the drive and a motor efficiency of 90%: Va*Ia*0.9.

  • Page 120: Frame 3 - Pl/X 185-265

    10.3.3 Frame 3 - PL/X 185-265 Model Maximum continuous shaft ratings 2-quadrant Maximum continuous current (A) Output power PLX 4-quadrant 100% Output DC Input AC Field Amps at 460 V at 500 V PL and PLX PL and PLX PL and PLX High-power field output option available at extra cost.

  • Page 121: Short-Circuit Ratings

    10.4 Short-circuit ratings These products are suitable for use on a circuit capable of delivering not more than the short circuit ratings given below at 480Vac maximum when used with Semiconductor Fuses Classes aR, gR or gS. Short Circuit Values are based on UL508C Table 45.1 (products are pre February 1st 2020 - UL 61800-5-1).

  • Page 122: Fuses

    10.5 Fuses • Use only UL Recognised fuses in all installations. • All fuses intended to protect the Semiconductors must be type aR or gS(gR). • DO NOT use type aR fuses for branch protection as they provide no overload protection.

  • Page 123: Main And Auxiliary Fuses

    10.5.2 500 V: main and auxiliary fuses Output Output MAIN FUSES AUX FUSES Model Part No. Holders Size Part No. Holders Size AC Fuse Kit * Amps PL/PLX5 CH01612A CP105004‡ 10*38 55 CH01610A CP105004‡ 10*38 ACFUSEKIT-PL/X5 PL/PLX10 CH00730A CP102053‡ 14*51 55 CH01610A CP105004‡...

  • Page 124: Dc Fuses

    10.5.3 500 V: DC fuses We recommend fitting a DC-side semiconductor fuse to PL/X units used in applications where regeneration occurs most or all of the time to add increased protection against an unsequenced power loss during regeneration. Output Output DC FUSES Model DC Amps...

  • Page 125: 600/690 V: Main And Auxiliary Fuses

    10.5.4 600/690 V: main and auxiliary fuses Output Output MAIN FUSES AUX FUSES Model PL Part No. Fuse Size I Part No. Holders Size AC Fuse Kit * Amps Assembly PL275MV/HV 210k CH014K63 CH103301 33 CH00850A CP105503# 000 ACFUSEKIT-PL/X275 PL315MV/HV 300k CH014K70 CH103302 33...

  • Page 126: 600/690 V: Dc Fuses

    10.5.5 600/690 V: DC fuses We recommend fitting a DC-side semiconductor fuse to PL/X units used in applications where regeneration occurs most or all of the time to add increased protection against an unsequenced power loss during regeneration. DC FUSES Output Output Model PL...

  • Page 127: Square Body Fuses For Frames 4 And 5

    10.5.6 Square body fuses for frames 4 and 5 We offer a range of Square Body Semiconductor Fuses for our high current DC drives, frames 4 and 5. A frame 5 drive may require two parallel fuses depending on its supply current requirements.

  • Page 128: Mounting Square Body Semiconductor Fuses

    10.5.6.3 Mounting square body semiconductor fuses It is essential that the fuse body makes good contact with the copper busbar. Fit the fuses as shown below. Preferred fixing method fixing stud fixing bolt 9 mm +1-0 Fuse Fuse Fit the M12 studs through the busbars (clearance hole required) and into the fuse. Tighten the stud using a suitable hex key to 15Nm.
  • Page 129 Current path It is important that the length of the current path is equal for both fuses otherwise the fuses will not share the current equally. current load Fuse A Fuse B current load CORRECT current load Fuse A will carry more Fuse A Fuse B...
  • Page 130 Cooling Try to ensure that one fuse does not heat the other. air flow air flow Fuse A Fuse B Fuse B Fuse A strain PREFERRED Mechanical stress Provide allowance for minor length variations on the two fuses. air flow Fuse B Fuse B Fuse A...

  • Page 131: Line Reactors

    10.6 Line reactors Only use CSA/UL certified line reactors for installations complying with CSA/UL codes. These line reactors are not certified. Refer to supplier for certified alternatives and reactor dimensions. 10.6.2 Frames 1-3 - PL/X 5-265 Model Maximum continuous 2-quadrant current (A) Line Reactor type PLX 4-quadrant...

  • Page 132: Supply Loss Shutdown

    10.7 Supply loss shutdown The drive has three supply ports: Provides power for the internal control PORT 1 Control supply, 1-phase. electronics. Provides power for the field and is PORT 2 EL1/2/3 Auxiliary supply, 3-phase. used for synchronisation. Provides power for the armature PORT 3 L1/2/3 Main supply, 3-phase.

  • Page 133: L1/2/3 Ac Supply Level Different To El1/2/3

    10.7.2 L1/2/3 AC supply level different to EL1/2/3 It is not unusual for the armature voltage and the field voltage of old motors, in particular, to be different enough to warrant supplying them with independent levels of AC voltage, e.g. low voltage field.

  • Page 134: Changing Control Or Power Cards

    The field voltage required in the above example is 100 V, probably for operation from a rectified 110 V supply. However, with the PL/X ability to control the field current, it is preferable to feed the field supply with a higher voltage, e.g. 130 V. This provides the control loop with a supply margin, enabling more effective control.

  • Page 135: Cooling

    10.8 Cooling • Please consider the total component dissipation within the enclosure when calculating the required air throughput, including the fuses, line reactors and other sources of dissipation. • Refer to "10 Technical specifications" on page 91 - line reactor and semiconductor fuse ratings for component dissipation ratings.

  • Page 136: Installation Guide For Emc

    10.9 Installation guide for EMC Give special consideration to installations in member states of the European Union regarding noise suppression and immunity. IEC 1800-3 (EN61800-3) classifies the drive units as Basic Drive Modules (BDM) only for professional assemblers and the Industrial environment.

  • Page 137: Earthing And Screening Guidelines

    The AC connections from the filter to the drive must be less than 0.3 m long. If longer, they must be correctly screened. The AC filter, drive earth and motor cable screen should connect directly to the metal of the cabinet. Do not run filtered and unfiltered AC supply cables together.

  • Page 138: Figure 35 Earthing Diagram For A Typical Installation

    Figure 35 Earthing diagram for a typical installation Technical specifications...

  • Page 139: Approvals Ul, Cul, Ce

    10.10 Approvals UL, cUL, CE 10.10.1 EMC Compliance statement for PL/X This apparatus complies with the protection requirements of the EMC Directive 2014/30/EU as follows: 10.10.1.1 CE Emissions Control supply port and control signal port Conducted and radiated emissions comply with the following standards: Description General Standard Referenced Standard...

  • Page 140: The Change Parameters Menu

    11 The CHANGE PARAMETERS menu The CHANGE PARAMETERS menu This section lists the editable menus and parameters contained in the CHANGE CHANGE PARAMETERS PARAMETERS menu. Most parameter "factory settings" are suitable for use, but you MUST enter the maximum ratings for your motor and PL/X into the CALIBRATION menu below. 11.1 CHANGE PARAMETERS/CALIBRATION These parameters set the maximum ratings for the motor and PL/X.

  • Page 141: Figure 37 Calibration - Block Diagram

    PIN 143 F+ / F- Field amps % Rated feedback Tachogenerator Internal isolated sensors DC shunt wound field and/or Encoder for field current motor PIN 144 amps Field amps A+ / A- feedback PIN 126 AV monitor Isolated sensors PIN 127 for armature AV % monitor current and PL/X...

  • Page 142: 2)Rated Arm Amps

    11.1.1 2)RATED ARM AMPS Set the desired 100% continuous rated motor current in Amps. Parameter description Range Default RATED ARMATURE AMPS 33-100% of PL/X rating (33%) XXX.X A We state this parameter in Amps. For example, the ENTRY MENU ENTRY MENU LEVEL LEVEL PLX15 range of values is 36 A (100%) to 12 A (33%).

  • Page 143: 4)Rated Field Amps

    11.1.3 4)RATED FIELD AMPS Set the desired 100% DC output field current in Amps. Parameter description Range Default RATED FIELD AMPS 0.1 A -100% 25% Amps of model rating Enter the rated field current from the motor rating ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 144: 6)Desired Max Rpm

    11.1.5 6)DESIRED MAX RPM Set the desired maximum speed of the motor in revolutions per minute. Parameter description Range Default DESIRED MAXIMUM RPM 0-6000 rpm 1500 rpm This rpm value will represent a 100% speed. ENTRY MENU ENTRY MENU LEVEL LEVEL •...

  • Page 145: 8)Max Tacho Volts

    11.1.7 8)MAX TACHO VOLTS Scale the tacho input for full feedback Volts at 100% speed. Parameter description Range Default MAXIMUM TACHO VOLTS ±200.00 V 60.00 V Find the tacho scaling. For example: ENTRY MENU ENTRY MENU LEVEL LEVEL tacho rating x 100% speed of tacho = tacho scaling CHANGE PARAMETERS CHANGE PARAMETERS...

  • Page 146: 9)Speed Fbk Type

    11.1.8 9)SPEED FBK TYPE Select the source of speed feedback. Parameter description Range Default SPEED FEEDBACK TYPE ARMATURE VOLTS ARMATURE VOLTS ANALOG TACHO ENCODER ENCODER + ARM VOLTS ENCODER + TACHO We derive Speed Feedback from a combination (one ENTRY MENU ENTRY MENU LEVEL LEVEL...
  • Page 147 1) ANALOG TACHO: Note: With an additional This transducer will provide a DC voltage that is bi-directional, shaft-mounted proportional to speed. Refer to "7.6.3.1 Analog encoder it is possible to lock tachogenerator input" on page 64. and/or orientate the shaft at zero speed.
  • Page 148 3) ENCODER + ARM VOLTS: AVF feedback usually In this mode, the AVF provides the main dynamic contains ripple. It is feedback, while the encoder feedback is trimming the therefore advisable to accuracy to an extremely high level. reduce the SPEED CONTROL loop gains with AVF feedback Note that low frequencies give poor performance.

  • Page 149: 14)Ir Compensation

    11.1.9 14)IR COMPENSATION Set the % compensation for the AVF signal due to IR drop. Parameter description Range Default IR COMPENSATION 0-100.00% 0.00 % This parameter is for when speed ARMATURE ARMATURE VOLTS VOLTS ENTRY MENU ENTRY MENU LEVEL LEVEL feedback is selected.

  • Page 150: 16)Arm Volts Trim

    11.1.11 16)ARM VOLTS TRIM Set a positive trim factor for armature volts feedback. Parameter description Range Default ARMATURE VOLTS TRIM 1.0000 to 1.1000 1.0000 You can apply this trim factor with the PL/X running. ENTRY MENU ENTRY MENU LEVEL LEVEL The factor is always greater than unity and thus can CHANGE PARAMETERS CHANGE PARAMETERS...

  • Page 151: 18)Rated Arm Volts

    11.1.13 18)RATED ARM VOLTS Set the desired maximum armature voltage. Parameter description Range Default RATED ARMATURE VOLTS 0.0 to 1000.0 V 460.0 V DC NOTE: This value must not exceed the maximum rated ENTRY MENU ENTRY MENU LEVEL LEVEL armature volts defined on the motor rating plate. CHANGE PARAMETERS CHANGE PARAMETERS The armature volts is approximately proportional to the...

  • Page 152: 20)Motor 1,2 Select

    Example: • With set to 500 19)EL1 19)EL1 / / 2 2 / / 3 3 RATED RATED AC V, the alarm will detect at 375 V on EL1/2/3. (75% of 500 = 375) Refer to "13.3 MOTOR DRIVE ALARMS / DRIVE TRIP MESSAGE"...

  • Page 153: Change Parameters/Calibration/Encoder Scaling

    11.2 CHANGE PARAMETERS/CALIBRATION/ENCODER SCALING The ENCODER SCALING menu allows you to set the encoder parameters. (Ignore this menu if there is no encoder). NOTE: You can monitor the Encoder RPM whether it is ENTRY MENU ENTRY MENU LEVEL LEVEL being used for feedback or not: CHANGE PARAMETERS CHANGE PARAMETERS DIAGNOSTICS...
  • Page 154 QUADRATURE Note that encoders with transition quadrature outputs require HI state the phase difference between LO state the two pulse trains to remain as close to 90 degrees as Channel A leading B possible: • If the encoder is not mounted and centred accurately on the shaft, it can impact the pulse train...

  • Page 155: 11)Encoder Lines

    11.2.2 11)ENCODER LINES Enter the encoder resolution in pulses per revolution. Parameter description Range Default ENCODER LINES 1-6000 1000 Enter the number of lines from the encoder rating ENTRY MENU ENTRY MENU LEVEL LEVEL plate. CHANGE PARAMETERS CHANGE PARAMETERS Alternatively, enter the number of cycles of high/low CALIBRATION CALIBRATION for one pulse train during one revolution.

  • Page 156: 13)Encoder Sign

    11.2.4 13)ENCODER SIGN Modify the encoder rotation sign. Parameter description Range Default ENCODER SIGN INVERT NON-INVERT NON-INVERT Use this parameter to invert the encoder feedback sign. ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS NOTE: The armature voltage or Tacho component automatically provides the feedback sign while using CALIBRATION CALIBRATION...

  • Page 157: Change Parameters / Run Mode Ramps

    11.3 CHANGE PARAMETERS / RUN MODE RAMPS This block sets the rate of acceleration and deceleration of the motor independently of the incoming reference. There are four independent up/down/forward/reverse ENTRY MENU ENTRY MENU LEVEL LEVEL ramp times and an output that indicates that ramping is taking place.

  • Page 158: Figure 38 Run Mode Ramps, Including Jog Crawl Slack - Block Diagram

    Figure 38 RUN MODE RAMPS, including JOG CRAWL SLACK - block diagram The CHANGE PARAMETERS menu...

  • Page 159: 21)Ramp Op Monitor

    Operating START RAMP Applied Ramp Contactor Function MODE Time State input input input total SELECT level level value Refer to input parameter level 168)RUNNING 168)RUNNING MODE MODE MON Stopped reference Stop ramp Stopped high reference Stop ramp Running high reference Run mode ramp ON Crawl high...

  • Page 160: 23)Forward Down Time

    11.3.3 23)FORWARD DOWN TIME Set the ramp time for 100-0% of the forward (positive) reference. Parameter description Range Default FORWARD DOWN TIME 0.1 to 600.0 seconds 10.0 seconds ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS RUN MODE RAMPS RUN MODE RAMPS 23)FORWARD DOWN TIME 23)FORWARD DOWN TIME...

  • Page 161: 26)Ramp Input

    11.3.6 26)RAMP INPUT Set the run mode ramps input value. Parameter description Range Default RAMP INPUT ±105.00% 0.00% By default this parameter connects to T4, allowing ENTRY MENU ENTRY MENU LEVEL LEVEL an external analog reference to enter the ramp input CHANGE PARAMETERS CHANGE PARAMETERS value.

  • Page 162: 28)Reverse Min Speed

    11.3.8 28)REVERSE MIN SPEED Support the reverse (negative) ramp output at a minimum level. Parameter description Range Default REVERSE MINIMUM SPEED 0.00 to -105.00% 0.00% With set to greater than 0.5%, 27)FORWARD 27)FORWARD MIN MIN SPEED SPEED ENTRY MENU ENTRY MENU LEVEL LEVEL set from 0 to -0.5%, then...

  • Page 163: 30)Ramp Ext Preset

    11.3.10 30)RAMP EXT PRESET Enable to hold the ramp in preset mode. Parameter description Range Default RAMP EXTERNAL PRESET DISABLED DISABLED ENABLED A logic high enables this preset mode. ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS RUN MODE RAMPS RUN MODE RAMPS 30)RAMP EXT PRESET 30)RAMP EXT PRESET...

  • Page 164: 33)Ramp Hold

    11.3.13 33)RAMP HOLD Enable to hold the ramp at the present value. Parameter description Range Default RAMP HOLD DISABLED DISABLED ENABLED NOTE: The function overrides 30)RAMP 30)RAMP EXT EXT PRESET PRESET ENTRY MENU ENTRY MENU LEVEL LEVEL function. 33)RAMP 33)RAMP HOLD HOLD CHANGE PARAMETERS CHANGE PARAMETERS...

  • Page 165: Change Parameters / Jog Crawl Slack

    11.4 CHANGE PARAMETERS / JOG CRAWL SLACK This menu provides adjustment for parameters associated with jogging, slack take-up and crawling. Refer to "11.4.6 42)JOG MODE SELECT" on page 142 ENTRY MENU ENTRY MENU LEVEL LEVEL for a table showing the eight modes of operation CHANGE PARAMETERS CHANGE PARAMETERS available.

  • Page 166: Figure 39 Jog Crawl Slack, Including Run Mode Ramps - Block Diagram

    Figure 39 JOG CRAWL SLACK, including RUN MODE RAMPS - block diagram The CHANGE PARAMETERS menu...

  • Page 167: Jog Speed 1

    11.4.1 37)JOG SPEED 1 Set the value of jog speed 1, usually used for a forward jog. Parameter description Range Default JOG SPEED 1 ±100.00% 5.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS JOG CRAWL SLACK JOG CRAWL SLACK 37)JOG SPEED 1 37)JOG SPEED 1 11.4.2 38)JOG SPEED 2...

  • Page 168: 41)Crawl Speed

    11.4.5 41)CRAWL SPEED Set the value of crawl speed. Parameter description Range Default CRAWL SPEED ±100.00% 10.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS JOG CRAWL SLACK JOG CRAWL SLACK 41)CRAWL SPEED 41)CRAWL SPEED 11.4.6 42)JOG MODE SELECT Select a JOG mode.

  • Page 169: 43)Jog/Slack Ramp

    11.4.7 43)JOG/SLACK RAMP Set a ramp time for jog/slack mode. Parameter description Range Default JOG/SLACK RAMP 0.1 to 600.0 seconds 1.0 seconds The jog and slack modes use this ramp time: ENTRY MENU ENTRY MENU LEVEL LEVEL • This ramp time applies irrespective of ramp speed CHANGE PARAMETERS CHANGE PARAMETERS demand polarity and direction.

  • Page 170: Change Parameters / Motorised Pot Ramp

    11.5 CHANGE PARAMETERS / MOTORISED POT RAMP This menu controls parameters for the motorised potentiometer function (MP) (the default terminal function for terminals T7, T8, T9). The motorised potentiometer function provides ENTRY MENU ENTRY MENU LEVEL LEVEL a ramping facility that is in addition to the usual CHANGE PARAMETERS CHANGE PARAMETERS reference ramp.

  • Page 171: 45)Mp Op Monitor

    11.5.1 45)MP OP MONITOR Monitor the output value of the motorised potentiometer function. Parameter description Range MOTORISED POTENTIOMETER ±300.00% OUTPUT MONITOR Refer to "11.7.1 62)INT SPEED REF 1" on page 158. ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS MOTORISED POT RAMP MOTORISED POT RAMP 45)MP OP MONITOR...

  • Page 172: 48)Mp Up Command

    11.5.4 48)MP UP COMMAND Enable the motorised potentiometer to rotate towards the positive limit. Parameter description Range Default MOTORISED POTENTIOMETER DISABLED DISABLED UP COMMAND ENABLED NOTE: There is no ramping when parameters ENTRY MENU ENTRY MENU LEVEL LEVEL are both MP UP UP COMMAND COMMAND...

  • Page 173: 51)Mp Min Clamp

    11.5.7 51)MP MIN CLAMP Set the limit of negative (anti-clockwise) rotation of the motorised potentiometer. Parameter description Range Default MOTORISED POTENTIOMETER ±300.00% -100.00% MINIMUM CLAMP Clamps the parameter: 53)MP 53)MP PRESET PRESET VALUE VALUE ENTRY MENU ENTRY MENU LEVEL LEVEL •...

  • Page 174: 54)Mp Memory Boot-Up

    11.5.10 54)MP MEMORY BOOT-UP Select to restore the last value of the MOP when powering up the PLX. Parameter description Range Default MOTORISED POTENTIOMETER DISABLED DISABLED MEMORY BOOT-UP ENABLED Enabling this parameter allows the last output value ENTRY MENU ENTRY MENU LEVEL LEVEL of the motorised output potentiometer to be saved on...

  • Page 175: Change Parameters / Stop Mode Ramp

    11.6 CHANGE PARAMETERS / STOP MODE RAMP Use this menu to control the behaviour when removing START. Refer to "Figure 46 SPEED CONTROL - block diagram" ENTRY MENU ENTRY MENU LEVEL LEVEL on page 161. CHANGE PARAMETERS CHANGE PARAMETERS STOP MODE RAMP STOP MODE RAMP 56)STOP RAMP TIME 56)STOP RAMP TIME...

  • Page 176: Figure 42 Contactor Control - Block Diagram

    Zero Interlocks 117)ZERO INTLK SPD % 116)ZERO REF START 1.00% Disabled run mode ramp demand run enable speed feedback 120)AT ZERO SPD FLAG 121)AT STANDSTILL total speed reference at zero reference 119)AT ZERO REF FLAG Iarm demand firing inhibit 118)ZERO INTLK CUR% 115)STANDSTILL ENBL 1.50% Disabled...

  • Page 177: Figure 43 Speed Profile When Stopping

    The following conditions must be true for the main contactor to be energised and remain energised: All alarms AND supply synchronisation healthy. 699)READY 699)READY FLAG FLAG CSTOP at 24 V. NOTE: CSTOP must be high for at least 50 ms prior to START and/or JOG going high.

  • Page 178: Precise Stopping

    Stop time limit PIN 57 SPEED REFERENCE Motor speed follows Start down ramp goes low Contactor drops out at SPEED this time if it has not Drop out speed DEMAND already dropped out, set by PIN 59 Stop ramp e.g. motor unable to Motor will coast if time is set by slow down fast enough...

  • Page 179: 56)Stop Ramp Time

    11.6.2 56)STOP RAMP TIME Set the 100-0% down ramp time upon removal of START. Parameter description Range Default STOP RAMP TIME 0.1 to 600.0 seconds 10.0 seconds A standard 4-quadrant drive can motor and brake in ENTRY MENU ENTRY MENU LEVEL LEVEL both forward and reverse directions.

  • Page 180: 58)Live Delay Mode

    11.6.4 58)LIVE DELAY MODE Enable the drive during the drop-out delay time. Parameter description Range Default LIVE DELAY MODE DISABLED DISABLED ENABLED Use this to maintain the drive's enabled state whenever ENTRY MENU ENTRY MENU LEVEL LEVEL the contactor drop-out delay timer is running. For CHANGE PARAMETERS CHANGE PARAMETERS example, when an unwanted external force is trying to...

  • Page 181: 60)Drop-Out Delay

    11.6.6 60)DROP-OUT DELAY Add a time delay to the drop-out command. Parameter description Range Default DROP-OUT DELAY 0.1 to 600.0 seconds 1.0 seconds You can use this function to prevent frequent contactor ENTRY MENU ENTRY MENU LEVEL LEVEL drop-outs during jogging. CHANGE PARAMETERS CHANGE PARAMETERS It works by adding a time delay to the function that...

  • Page 182: Change Parameters / Speed Ref Summer

    11.7 CHANGE PARAMETERS / SPEED REF SUMMER The block diagram below shows the signal paths for ENTRY MENU ENTRY MENU LEVEL LEVEL the speed loop error amplifier. There are four speed reference inputs: CHANGE PARAMETERS CHANGE PARAMETERS • Motorised potentiometer to SPEED REF SUMMER SPEED REF SUMMER 62)INT...

  • Page 183: Figure 45 Speed Ref Summer - Block Diagram

    Figure 45 SPEED REF SUMMER - block diagram The CHANGE PARAMETERS menu...

  • Page 184: 62)Int Speed Ref 1

    11.7.1 62)INT SPEED REF 1 Set the level of internal speed reference 1. Parameter description Range Default INTERNAL SPEED REFERENCE 1 ±105.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS SPEED REF SUMMER SPEED REF SUMMER 62)INT SPEED REF 1 62)INT SPEED REF 1 11.7.2 63)SPEED REF 2 Set the level of auxiliary speed reference 2.

  • Page 185: 65)Ramped Spd Ref 4

    11.7.4 65)RAMPED SPD REF 4 Monitor of speed reference 4. Parameter description Range Default RAMPED SPEED REFERENCE 4 ±105.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS SPEED REF SUMMER SPEED REF SUMMER 65)RAMPED SPEED REF 4 65)RAMPED SPEED REF 4 11.7.5 66)SPD/CUR REF3 SIGN Invert the speed/current reference 3.

  • Page 186: Change Parameters / Speed Control

    11.8 CHANGE PARAMETERS / SPEED CONTROL Parameter adjustment of the speed loop error amplifier is available via this menu and sub-menu. SPEED SPEED PI PI ADAPTION ADAPTION menu refers to the block diagram SPEED SPEED CONTROL CONTROL ENTRY MENU ENTRY MENU LEVEL LEVEL below, starting after the second summing junction:...

  • Page 187: Figure 46 Speed Control - Block Diagram

    Figure 46 SPEED CONTROL - block diagram The CHANGE PARAMETERS menu...

  • Page 188: 69)Max Pos Speed Ref

    11.8.1 69)MAX POS SPEED REF Set the positive limit level of total speed reference. Parameter description Range Default MAXIMUM POSITIVE SPEED 0.00 to +105.00% 105.00% REFERENCE ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS SPEED CONTROL SPEED CONTROL 69)MAX POS SPEED REF 69)MAX POS SPEED REF 11.8.2 70)MAX NEG SPEED REF...

  • Page 189: 72)Speed Int T.c

    11.8.4 72)SPEED INT T.C. Set the integral time constant of the speed loop error amplifier. Parameter description Range Default SPEED INTEGRAL TIME CONSTANT 0.001 to 30.000 1.000 seconds seconds Match this to the mechanical time constant of the ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 190: Change Parameters / Speed Control / Speed Pi Adaption

    11.9 CHANGE PARAMETERS / SPEED CONTROL / SPEED PI ADAPTION You can modify the gains of the proportional and integral terms set in the SPEED CONTROL menu. In this menu, you can enter the low to high values of ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 191: 74)Spd Adpt Lo Brpnt

    11.9.2 74)SPD ADPT LO BRPNT Set the low breakpoint for the commencement of gain change. Parameter description Range Default SPEED ADAPTION LOW BREAKPOINT 0.00 to 100.00% 1.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS SPEED CONTROL SPEED CONTROL SPEED PI ADAPTION SPEED PI ADAPTION 74)SPD ADPT LO BRPNT...

  • Page 192: 77)Lo Brpnt Int T.c

    11.9.5 77)LO BRPNT INT T.C. Set the integral time constant below the low breakpoint. Parameter description Range Default LOW BREAKPOINT INTEGRAL TIME 0.001 to 30.000 1.000 seconds CONSTANT seconds ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS SPEED CONTROL SPEED CONTROL SPEED PI ADAPTION SPEED PI ADAPTION...

  • Page 193: Change Parameters / Current Control

    11.10 CHANGE PARAMETERS / CURRENT CONTROL The current control menu looks complex but is not too difficult to understand when considered as separate blocks. Refer to "Figure 48 CURRENT CONTROL: block diagram" ENTRY MENU ENTRY MENU LEVEL LEVEL on page 168. CHANGE PARAMETERS CHANGE PARAMETERS The current control loop gets its current reference...

  • Page 194: Figure 48 Current Control: Block Diagram

    Figure 48 CURRENT CONTROL: block diagram The CHANGE PARAMETERS menu...

  • Page 195: 81)Cur Clamp Scaler

    11.10.1 81)CUR CLAMP SCALER Set the clamp scaling value for the upper/lower clamps. Parameter description Range Default CURRENT CLAMP SCALER 0.00 to 150.00% 150.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS CURRENT CONTROL CURRENT CONTROL 81)CUR CLAMP SCALER 81)CUR CLAMP SCALER 11.10.2 88)DUAL I CLAMP ENBL Enable the upper and lower dual clamps to be independent.

  • Page 196: 89)Upper Cur Clamp

    11.10.3 89)UPPER CUR CLAMP Modify the upper current limit percentage. Parameter description Range Default UPPER CURRENT CLAMP ±100.00% +100.00% The product of this parameter and 81)CUR 81)CUR CLAMP CLAMP ENTRY MENU ENTRY MENU LEVEL LEVEL sets the limit. SCALER SCALER CHANGE PARAMETERS CHANGE PARAMETERS With the upper clamp set to negative and the lower...

  • Page 197: 92)Autotune Enable

    11.10.6 92)AUTOTUNE ENABLE Enable the Autotune routine. Parameter description Range Default AUTOTUNE ENABLE DISABLED DISABLED ENABLED When ENABLED, the Autotune routine operates once ENTRY MENU ENTRY MENU LEVEL LEVEL the main contactor energises and the PL/X runs. CHANGE PARAMETERS CHANGE PARAMETERS Typically, Autotuning can take from a few seconds to one minute to complete.

  • Page 198: 93)Cur Prop Gain

    The Autotune will find that the current goes NOTE: There is a hidden continuous at a high level in Stage 1. During Stage PIN which contains 2, the induced current demand perturbations 707) 707) flag cause a current overload to occur, and the AUTOTUNE AUTOTUNE MONITOR MONITOR...

  • Page 199: 95)Cur Discontinuity

    11.10.9 95)CUR DISCONTINUITY Set the discontinuous current boundary level of the motor. Parameter description Range Default CURRENT DISCONTINUITY 0.00 to 200.00% 13.00% Performing an Autotune will set this parameter. The ENTRY MENU ENTRY MENU LEVEL LEVEL motor/supply combination will possess a property CHANGE PARAMETERS CHANGE PARAMETERS called the discontinuous-continuous current point that...

  • Page 200: 96)4-Quadrant Mode

    11.10.10 96)4-QUADRANT MODE Allow models with regenerative capabilities to be 2-quadrant. Parameter description Range Default 4-QUADRANT MODE DISABLED ENABLED ENABLED is ENABLED, then the 96)4-QUADRANT 96)4-QUADRANT MODE MODE ENTRY MENU ENTRY MENU LEVEL LEVEL regenerative capability will be determined by the model.

  • Page 201: Change Parameters / Current Control / Current Overload

    11.11 CHANGE PARAMETERS / CURRENT CONTROL / CURRENT OVERLOAD The CURRENT OVERLOAD menu allows you to set the current % target limit. It is usually the full-load current of the motor. ENTRY MENU ENTRY MENU LEVEL LEVEL Having the facility to set this parameter independently CHANGE PARAMETERS CHANGE PARAMETERS allows further flexibility.

  • Page 202: 82)O/Load % Target

    11.11.1 82)O/LOAD % TARGET Set the current limit target level after excessive load. Parameter description Range Default OVERLOAD % TARGET 0.00 to 105.00% 105.00% An internal integrator with a finite capacity fills up ENTRY MENU ENTRY MENU LEVEL LEVEL when the armature current exceeds PIN 82 ( 82)O/ 82)O/ CHANGE PARAMETERS...

  • Page 203: Achieving Overloads >150

    11.11.1.1 Achieving overloads >150% Use this to provide higher overload percentages on motors with a smaller rating than the PL/X model. The example below shows how parameter delivers a 82)O 82)O / / LOAD LOAD % % TARGET TARGET 200% overload for a 9 A motor using a 12 A PL/X5: For the PL/X5, a setting of 100% in represents 12 A, the drive's 2)RATED...

  • Page 204: 83)O/Load Ramp Time

    11.11.2 83)O/LOAD RAMP TIME Set the time taken to reduce the current limit by 100%. Parameter description Range Default OVERLOAD RAMP TIME 0.1 to 20.0 seconds 20.0 seconds For example, if: ENTRY MENU ENTRY MENU LEVEL LEVEL Current Limit = 150% CHANGE PARAMETERS CHANGE PARAMETERS = 20 seconds...

  • Page 205: Change Parameters / Current Control / I Dynamic Profile

    11.12 CHANGE PARAMETERS / CURRENT CONTROL / I DYNAMIC PROFILE NOTE: This function works for rotation in both ENTRY MENU ENTRY MENU LEVEL LEVEL directions. CHANGE PARAMETERS CHANGE PARAMETERS Use this clamp to change the current limit according to CURRENT CONTROL CURRENT CONTROL speed.

  • Page 206: 84)I Profile Enable

    11.12.1 84)I PROFILE ENABLE Enable the dynamic profile function. Parameter description Range Default CURRENT PROFILE ENABLE DISABLED DISABLED ENABLED ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS CURRENT CONTROL CURRENT CONTROL I DYNAMIC PROFILE I DYNAMIC PROFILE 84)I PROFILE ENABLE 84)I PROFILE ENABLE 11.12.2 85)SPD BRPNT AT HI I Set the speed breakpoint for 150% CURRENT LIMIT.

  • Page 207: 87)Cur Limit At Lo I

    11.12.4 87)CUR LIMIT AT LO I Set the current limit prevailing at 86)SPEED 86)SPEED BRPNT BRPNT AT AT LO LO I I Parameter description Range Default CURRENT LIMIT AT LOW CURRENT 0.00 to 150.00% 100.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS...

  • Page 208: Change Parameters / Field Control

    11.13 CHANGE PARAMETERS / FIELD CONTROL The field controller within the PL/X consists of a single- ENTRY MENU ENTRY MENU LEVEL LEVEL phase, half-controlled thyristor bridge with a flywheel path. Terminals EL2 and EL3 deliver the AC supply to the CHANGE PARAMETERS CHANGE PARAMETERS bridge, and the rectified output appears at terminals F+...

  • Page 209: Figure 52 Field Control - Block Diagram

    Figure 52 FIELD CONTROL - block diagram The CHANGE PARAMETERS menu...
  • Page 210 NOTE: Please ensure that 4)RATED 4)RATED FIELD FIELD AMPS AMPS sufficiently high to force the 100)FIELD 100)FIELD VOLTS VOLTS OP OP % % clamp into operation at the desired voltage under all conditions. , scaled by 4)RATED 4)RATED FIELD FIELD AMPS AMPS 114)FIELD 114)FIELD...

  • Page 211: 99)Field Enable

    11.13.1 99)FIELD ENABLE Enable/disable the field output. Parameter description Range Default FIELD ENABLE DISABLED ENABLED ENABLED NOTE: Disabling the field control will automatically ENTRY MENU ENTRY MENU LEVEL LEVEL inhibit the field fail alarm. CHANGE PARAMETERS CHANGE PARAMETERS FIELD CONTROL FIELD CONTROL 99)FIELD ENABLE 99)FIELD ENABLE...

  • Page 212: 101)Field Prop Gain

    11.13.3 101)FIELD PROP GAIN Set the proportional gain of the field current control loop. Parameter description Range Default FIELD PROPORTIONAL GAIN 0 to 1000 Increase the parameter value to improve response. ENTRY MENU ENTRY MENU LEVEL LEVEL However, too much may cause instability in the field CHANGE PARAMETERS CHANGE PARAMETERS current.

  • Page 213: 112)Standby Fld Cur

    11.13.6 112)STANDBY FLD CUR Set the standby value of the field current. Parameter description Range Default STANDBY FIELD CURRENT 0.00 to 100.00% 25.00% Use this to keep the motor warm during off periods to ENTRY MENU ENTRY MENU LEVEL LEVEL help prevent condensation in cold climates.

  • Page 214: Change Parameters / Field Control/Fld Weakening Menu

    11.14 CHANGE PARAMETERS / FIELD CONTROL/FLD WEAKENING MENU Enable this function to control field weakening. ENTRY MENU ENTRY MENU LEVEL LEVEL There are five adjustable control terms: CHANGE PARAMETERS CHANGE PARAMETERS • error terms: FIELD CONTROL FIELD CONTROL proportional (P) FIELD WEAKENING MENU FIELD WEAKENING MENU integral (I)

  • Page 215: 103)Fld Weak Enable

    11.14.1 103)FLD WEAK ENABLE Enable/disable the field weakening. Parameter description Range Default FIELD WEAKENING ENABLE DISABLED DISABLED ENABLED ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS FIELD CONTROL FIELD CONTROL FIELD WEAKENING MENU FIELD WEAKENING MENU 103)FLD WEAK ENABLE 103)FLD WEAK ENABLE 11.14.2 104)FLD WK PROP GAIN Set the proportional gain of the field weakening loop.

  • Page 216: 106)Fld Wk Drv Tc Ms

    11.14.4 106)FLD WK DRV TC ms Set the derivative time constant of the weakening loop. Parameter description Range Default FIELD WEAKENING DERIVATIVE TIME 10 to 5000 CONSTANT in milliseconds Generally, keep this parameter between 5 and 10% of ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 217: 109)Spillover Avf

    11.14.7 109)SPILLOVER AVF % Set the armature voltage % at which field weakening begins. Parameter description Range Default SPILLOVER ARMATURE VOLTAGE 0.00 to 100.00% of 100.00% FEEDBACK % rated AVF NOTE: The rated armature voltage is settable in the ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 218: Change Parameters / Zero Interlocks

    11.15 CHANGE PARAMETERS / ZERO INTERLOCKS Use this menu to enable two interlocking functions that are associated with zero speed. Their normal standstill behaviour is as follows. The condition of ‘zero speed and current demand’ AND ‘zero speed feedback’ being satisfied removes the firing ENTRY MENU ENTRY MENU LEVEL...

  • Page 219: Figure 53 Zero Interlocks - Block Diagram

    Figure 53 ZERO INTERLOCKS - block diagram The CHANGE PARAMETERS menu...

  • Page 220: 115)Standstill Enbl

    11.15.1 115)STANDSTILL ENBL Enable/disable the standstill function. Parameter description Range Default STANDSTILL ENABLE DISABLED DISABLED ENABLED If enabled, the standstill function will inhibit the stack ENTRY MENU ENTRY MENU LEVEL LEVEL firing when there is a zero reference AND zero speed. CHANGE PARAMETERS CHANGE PARAMETERS This parameter must be DISABLED for the operation...

  • Page 221: 118)Zero Intlk Cur

    11.15.4 118)ZERO INTLK CUR % Set the current % for the start and standstill blocks. Parameter description Range Default ZERO INTERLOCK CURRENT % 0.00 to 100.00% 1.50% ENTRY MENU ENTRY MENU LEVEL LEVEL CHANGE PARAMETERS CHANGE PARAMETERS ZERO INTERLOCKS ZERO INTERLOCKS 118)ZERO INTLK CUR % 118)ZERO INTLK CUR % 11.15.5 119)AT ZERO REF FLAG...

  • Page 222: 121)At Standstill

    11.15.7 121)AT STANDSTILL Monitor the standstill status. Parameter description Range AT STANDSTILL HIGH (at standstill) This flag operates irrespective of the state of 115) 115) ENTRY MENU ENTRY MENU LEVEL LEVEL STANDSTILL STANDSTILL ENBL ENBL CHANGE PARAMETERS CHANGE PARAMETERS 11.15.7.1 Low speed performance ZERO INTERLOCKS ZERO INTERLOCKS When running at very low speeds, the SPEED PI...

  • Page 223: Change Parameters / Zero Interlocks / Spindle Orientate

    11.16 CHANGE PARAMETERS / ZERO INTERLOCKS / SPINDLE ORIENTATE This sub-menu provides spindle orientation when the mechanical system is fitted with an incremental encoder (a bi-directional incremental encoder, with A and B channels plus marker output) to provide position feedback. If not using the SPINDLE ORIENTATE function, terminal T16 becomes available for other use.

  • Page 224: Spindle Orientate Operation

    position. The PL/X uses to defeat 241)MARKER 241)MARKER OFFSET OFFSET this problem, performing a one-off positioning of the shaft to a known position each time the spindle orientate block actions, e.g. to top dead centre. 242) 242) is then always referred to this known POSITION POSITION REF position.

  • Page 225: Figure 54 Spindle Orientate - Block Diagram

    Figure 54 SPINDLE ORIENTATE - block diagram The CHANGE PARAMETERS menu...
  • Page 226 The sequence of operation is as follows. The speed demand and feedback fall and remain below for 400 ms. It 117)ZERO 117)ZERO INTLK INTLK SPD SPD % % includes stopping sequences using terminals T33 or T32. The spindle orientation block is activated. The PL/X calculates the shaft position at the last marker to be input before the speed falls below 117)ZERO...

  • Page 227: 122)Zero Speed Lock

    11.16.2 122)ZERO SPEED LOCK Set the position control gain for zero speed shaft lock. Parameter description Range Default ZERO SPEED LOCK 0.00 to 100.00 0.00 NOTE: If this value is nonzero, AND both speed demand ENTRY MENU ENTRY MENU LEVEL LEVEL and feedback are less than , an...

  • Page 228: 241)Marker Offset

    1 revolution Type 1 Logic Threshold Type 2 Logic Threshold Type 3 Logic Threshold point of position measurement point of position measurement Figure 55 MARKER ENABLE Type 1 is the preferred marker signal because it is well away from the logic threshold for most of the time, and so noise is very unlikely to cause a false marker reading.

  • Page 229: Figure 55 Marker Enable

    Example: If the encoder mounts on the motor shaft, but the spindle requiring orientation connects to the motor via a gearbox (meaning the motor shaft and therefore encoder rotate faster than the spindle), then the number of counts per revolution of the spindle increases by a factor equal to the gearbox ratio.

  • Page 230: 242)Position Ref

    11.16.5 242)POSITION REF Enter a position reference referred to 241)MARKER 241)MARKER OFFSET OFFSET Parameter description Range Default POSITION REFERENCE ±30000 counts 0 counts NOTE: may be adjusted at any 242)POSITION 242)POSITION REF ENTRY MENU ENTRY MENU LEVEL LEVEL time. If the system is above the zero lock threshold, CHANGE PARAMETERS CHANGE PARAMETERS then changing this value will have no effect.

  • Page 231: The Diagnostics Menu

    12 The DIAGNOSTICS menu The DIAGNOSTICS menu The diagnostics menu provides a monitoring facility for all the main drive parameters. 12.1 DIAGNOSTICS The Diagnostics menu monitors important parameters ENTRY MENU ENTRY MENU LEVEL LEVEL within permanently functioning blocks (less important parameters can be found in their block menus).

  • Page 232: Diagnostics / Speed Loop Monitor

    12.2 DIAGNOSTICS / SPEED LOOP MONITOR This menu allows monitoring of the parameters associated with the speed loop. Feedback sources can also be read in engineering units, ENTRY MENU ENTRY MENU LEVEL LEVEL eliminating difficult-to-interpret voltmeter readings during commissioning. DIAGNOSTICS DIAGNOSTICS SPEED LOOP MONITOR SPEED LOOP MONITOR...

  • Page 233: 125)Speed Error Mon

    12.2.3 125)SPEED ERROR MON Monitor the value of the speed error as a % of full scale. Parameter description Range SPEED ERROR MONITOR ±300.00% ENTRY MENU ENTRY MENU LEVEL LEVEL DIAGNOSTICS DIAGNOSTICS SPEED LOOP MONITOR SPEED LOOP MONITOR 125)SPD ERROR MON 125)SPD ERROR MON 12.2.4 126)ARM VOLTS MON Monitor the average DC armature voltage independently of feedback type.

  • Page 234: 128)Back Emf % Mon

    12.2.6 128)BACK EMF % MON Monitor the value of the average DC back emf as a % of the desired maximum back emf. Parameter description Range BACK EMF % MONITOR ±300.00% NOTE: Back EMF = AVF – IR drop. ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 235: 132)Encoder Rpm Mon

    12.2.9 132)ENCODER RPM MON Monitor the value of the encoder revs per minute independently of feedback type. Parameter description Range ENCODER RPM MONITOR ±7500 rpm Refer to "11.2.3 12)MOT/ENC SPD RATIO" on page ENTRY MENU ENTRY MENU LEVEL LEVEL 129. DIAGNOSTICS DIAGNOSTICS SPEED LOOP MONITOR...

  • Page 236: Diagnostics / Arm I Loop Monitor

    12.3 DIAGNOSTICS / ARM I LOOP MONITOR This menu allows monitoring of the parameters associated with the current loop. Feedback current can also be read in Amps, eliminating ENTRY MENU ENTRY MENU LEVEL LEVEL difficult-to-interpret ammeter readings during commissioning. DIAGNOSTICS DIAGNOSTICS ARM I LOOP MONITOR ARM I LOOP MONITOR...

  • Page 237: 135)Arm Cur Amps Mon

    12.3.3 135)ARM CUR AMPS MON Monitor the value of the average DC armature current in Amps. Parameter description Range ARMATURE CURRENT AMPS ±3000.0 A MONITOR ENTRY MENU ENTRY MENU LEVEL LEVEL DIAGNOSTICS DIAGNOSTICS ARM I LOOP MONITOR ARM I LOOP MONITOR 135)ARM CUR AMPS MON 135)ARM CUR AMPS MON 12.3.4 136)UPPER CUR LIM MN...

  • Page 238: 139)Actual Lower Lim

    12.3.7 139)ACTUAL LOWER LIM Monitor the % value of the prevailing lower limit in the current clamp block. Parameter description Range ACTUAL LOWER LIMIT ±150.00% The prevailing source is the clamp with the lowest ENTRY MENU ENTRY MENU LEVEL LEVEL setting.

  • Page 239: Diagnostics / Field I Loop Monitor

    12.4 DIAGNOSTICS / FIELD I LOOP MONITOR This menu allows monitoring of the parameters associated with the field control loop. The motor field current can also be read in Amps, ENTRY MENU ENTRY MENU LEVEL LEVEL eliminating difficult-to-interpret ammeter readings during commissioning.

  • Page 240: 146)Angle Of Advance

    12.4.4 146)ANGLE OF ADVANCE Monitor the value of the field bridge firing angle of advance in degrees. Parameter description Range ANGLE OF ADVANCE 0 to 180 DEG NOTE: This parameter is only updated if the field is ENTRY MENU ENTRY MENU LEVEL LEVEL enabled.

  • Page 241: 147)Field Active Mon

    12.4.5 147)FIELD ACTIVE MON Monitor the field output for being active (ENABLED) or inactive (DISABLED). Parameter description Range FIELD ACTIVE MONITOR DISABLED ENABLED ENTRY MENU ENTRY MENU LEVEL LEVEL DIAGNOSTICS DIAGNOSTICS FIELD I LOOP MONITOR FIELD I LOOP MONITOR 147)FIELD ACTIVE MON 147)FIELD ACTIVE MON The DIAGNOSTICS menu...

  • Page 242: Diagnostics / Analog Io Monitor

    12.5 DIAGNOSTICS / ANALOG IO MONITOR This menu allows monitoring of the analog input and output functions. UIP2 to UIP9 are universal inputs and are usable as ENTRY MENU ENTRY MENU LEVEL LEVEL digital inputs, analog inputs, or both. The analog value DIAGNOSTICS DIAGNOSTICS appears in this menu, and simultaneously the digital...

  • Page 243: 159)Aop1 (T10) Mon To 161)Aop3 (T12) Mon

    12.5.2 159)AOP1 (T10) MON to 161)AOP3 (T12) MON Monitor the analog output voltage for AOP1/2/3. Parameter description Range 159- ANALOG OUTPUT MONITOR ±11.300 V Note that the analog output monitors for AOP1/2/3 ENTRY MENU ENTRY MENU LEVEL LEVEL show the value written to that output. If it is overloaded DIAGNOSTICS DIAGNOSTICS or shorted, the PL/X cannot display the correct value.

  • Page 244: Diagnostics / Digital Io Monitor

    12.6 DIAGNOSTICS / DIGITAL IO MONITOR This menu allows monitoring of the digital input and output functions. UIP2 to UIP9 are universal inputs and are usable as ENTRY MENU ENTRY MENU LEVEL LEVEL digital inputs, analog inputs, or both. The digital logic level appears in this menu, and simultaneously the DIAGNOSTICS DIAGNOSTICS...

  • Page 245: 164)Dop 123Trjsc Cip

    12.6.3 164)DOP 123TRJSC CIP Monitor the digital logic level for DOP1 to 3 and Therm, Run, Jog, Start, Cstop Parameter description Range DIGITAL OUTPUT CONTROL INPUT 0 / 1 for 8 signals (0 = low) The DOP value shown is the intended value. If the DOP ENTRY MENU ENTRY MENU LEVEL...

  • Page 246: 167)Drive Run Flag

    12.6.6 167)DRIVE RUN FLAG Monitor if a command to RUN has been issued to the current loop. Parameter description Range DRIVE RUN FLAG LOW (Stop) HIGH (Run) ENTRY MENU ENTRY MENU LEVEL LEVEL DIAGNOSTICS DIAGNOSTICS DIGITAL IO MONITOR DIGITAL IO MONITOR 167)DRIVE RUN FLAG 167)DRIVE RUN FLAG 12.6.7 168)RUNNING MODE MON...

  • Page 247: Diagnostics / Block Op Monitor

    12.7 DIAGNOSTICS / BLOCK OP MONITOR The majority of blocks have an output monitor, usually the first parameter in the associated menu. The outputs are contained in each functional block ENTRY MENU ENTRY MENU LEVEL LEVEL because, when programming, it is convenient to have DIAGNOSTICS DIAGNOSTICS the output monitor in the same menu as the relevant...

  • Page 248: Diagnostics / Fieldbus

    12.8 DIAGNOSTICS / FIELDBUS This menu provides information about the status of the Fieldbus communications. Refer to the FIELDBUS manual, HG105409EN00. ENTRY MENU ENTRY MENU LEVEL LEVEL DIAGNOSTICS DIAGNOSTICS FIELDBUS FIELDBUS 200)FBUS ON-LINE MON 200)FBUS ON-LINE MON 203)FBUS BITS INPUT 203)FBUS BITS INPUT 213)FBUS BITS OUTPUT 213)FBUS BITS OUTPUT...

  • Page 249: The Motor Drive Alarms Menu

    13 The MOTOR DRIVE ALARMS menu The MOTOR DRIVE ALARMS menu WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Semiconductor electronics deliver all sixteen motor drive alarms. Local safety codes may mandate the use of electro-mechanical alarm systems. Test all alarms in the final application before use. The manufacturer and suppliers of the PL/X are not responsible for system safety.

  • Page 250: Figure 56 Motor Drive Alarms - Block Diagram

    Figure 56 MOTOR DRIVE ALARMS - block diagram The MOTOR DRIVE ALARMS menu...

  • Page 251: 171)Spd Trip Enable

    13.1.1 171)SPD TRIP ENABLE Enable/disable the speed feedback mismatch TRIP. Parameter description Range Default SPEED TRIP ENABLE DISABLED ENABLED ENABLED NOTE: Using armature voltage feedback suppresses ENTRY MENU ENTRY MENU LEVEL LEVEL this alarm. MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS The PL/X continuously compares the speed feedback 171)SPD TRIP ENABLE 171)SPD TRIP ENABLE...
  • Page 252 Feedback type Fault mode Result if trip ENABLED Result if trip DISABLED Armature Voltage No faults normally possible. Alarm suppressed Alarm suppressed Armature voltage mode Drive TRIP when field Drive TRIP when field selected with field weakening weakening region entered. weakening region entered.

  • Page 253: 172)Speed Trip Tol

    13.1.2 172)SPEED TRIP TOL Set the speed feedback mismatch trip tolerance. Parameter description Range Default SPEED TRIP TOLERANCE 0.00 to 100.00% 50.00% If this value is set too low, then spurious alarms may be ENTRY MENU ENTRY MENU LEVEL LEVEL caused by dynamic lags or non-linear effects.

  • Page 254: 174)Dop Scct Trip En

    13.1.4 174)DOP SCCT TRIP EN Enable/disable the digital output short-circuit alarm trip. Parameter description Range Default DIGITAL OUTPUT SHORT-CIRCUIT DISABLED DISABLED TRIP ENABLE ENABLED All digital outputs and the 24 V user supply will ENTRY MENU ENTRY MENU LEVEL LEVEL withstand a direct short-circuit to 0 V.

  • Page 255: 176)Ref Exch Trip En

    13.1.6 176)REF EXCH TRIP EN Enable/disable the REFERENCE EXCHANGE data link alarm trip. Parameter description Range Default REFERENCE EXCHANGE TRIP ENABLE DISABLED DISABLED ENABLED Alarm delay: 1.5 seconds. ENTRY MENU ENTRY MENU LEVEL LEVEL The PL/X can transmit and receive a speed reference, MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS or any other single parameter, to or from another drive...

  • Page 256: 182)Stored Trip Mon

    13.1.9 182)STORED TRIP MON Monitor the status of the 16 active alarms (4 groups of 4 in HEX code). Parameter description Range STORED TRIP MONITOR Refer to table below. The four characters in the window are HEX codes. ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 257: 183)Ext Trip Reset

    13.1.10 183)EXT TRIP RESET Enable/disable the trip to be reset by START on T33 going low. Parameter description Range Default EXTERNAL TRIP RESET DISABLED ENABLED ENABLED When DISABLED, this prevents re-starting after a trip. ENTRY MENU ENTRY MENU LEVEL LEVEL MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS WARNING!

  • Page 258: Motor Drive Alarms / Stall Trip Menu

    13.2 MOTOR DRIVE ALARMS / STALL TRIP MENU Refer to"11.11.1.1 Achieving overloads >150%" on ENTRY MENU ENTRY MENU LEVEL LEVEL page 177. In this case, you must set 179)STALL 179)STALL set below for stall MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS CUR LEVEL LEVEL 82)O...

  • Page 259: 179)Stall Cur Level

    13.2.2 179)STALL CUR LEVEL Set the stall alarm trip LEVEL as a % of rated motor Amps. Parameter description Range Default STALL CURRENT LEVEL 0.00 to 150.00% 95.00% ENTRY MENU ENTRY MENU LEVEL LEVEL MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS STALL TRIP MENU STALL TRIP MENU 179)STALL CUR LEVEL...

  • Page 260: Motor Drive Alarms / Drive Trip Message

    13.3 MOTOR DRIVE ALARMS / DRIVE TRIP MESSAGE The name of the active alarm that triggers the PL/X to ENTRY MENU ENTRY MENU LEVEL LEVEL shut down is stored and displayed. For example, the MOTOR DRIVE ALARMS MOTOR DRIVE ALARMS PL/X may show the following: DRIVE TRIP MESSAGE 3 DRIVE TRIP MESSAGE 3...
  • Page 261 : Alarms DRIVE DRIVE TRIP TRIP MESSAGE MESSAGE Alarm delay time: 15 seconds. !!!!!! ALARM !!!!!!! FIELD OVERCURRENT The PL/X checks that the field current does not exceed 115% of 4)RATED 4)RATED FIELD FIELD AMPS AMPS Regulator failure, or a poorly tuned control loop causing overshoots, can cause this alarm to activate.
  • Page 262 : Alarms DRIVE DRIVE TRIP TRIP MESSAGE MESSAGE Alarm delay time: 0.5 seconds + 177)OVERSPEED 177)OVERSPEED !!!!!! ALARM !!!!!!! (Refer to "13.1.7 177)OVERSPEED DELAY" on DELAY DELAY OVERSPEED page 229). This alarm operates if the speed feedback signal exceeds 110% of the rated speed for longer than the alarm delay time.
  • Page 263 : Alarms DRIVE DRIVE TRIP TRIP MESSAGE MESSAGE Continued... !!!!!! ALARM !!!!!!! The Control Supply on T52 and T53 can tolerate a SUPPLY PHASE LOSS supply loss for 300 ms at 240 Vac, and 30 ms at 110 Vac, before requesting permanent shut down. Refer to "11.1.14 19)EL1/2/3 RATED AC"...
  • Page 264 : Alarms DRIVE DRIVE TRIP TRIP MESSAGE MESSAGE Alarm delay time: 0.75 seconds. !!!!!! ALARM !!!!!!! HEATSINK OVERTEMP This alarm operates if there is a blower failure or restriction of the cooling airflow causing the heatsink temperature to rise to an unacceptable level. •...
  • Page 265 : Alarms DRIVE DRIVE TRIP TRIP MESSAGE MESSAGE This alarm operates if the User aborts Autotune: MOTOR DRIVE ALARMS 2 • It quits the Autotune function if the coast stop, AUTOTUNE QUIT start or run terminals are disabled (taken low). •...

  • Page 266: The Serial Links Menu

    14 The SERIAL LINKS menu The SERIAL LINKS menu NOTE: We retain references to PL PILOT and early Windows PCs in this manual for users with older PL/Xs. A Recipe (backed-up configuration) created in the legacy Pilot configuration tool is not (necessarily) the same as one of the three Recipe pages described on Page 363. WARNING! PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD...

  • Page 267: The Display Functions Menu

    15 The DISPLAY FUNCTIONS menu The DISPLAY FUNCTIONS menu Use this menu to adjust the display presentation, provide password control, select a display language, and display the software version. 15.1 DISPLAY FUNCTIONS The REDUCED MENU shows only the more commonly ENTRY MENU ENTRY MENU LEVEL...

  • Page 268: Software Version

    15.1.3 SOFTWARE VERSION The software version of the installed code. Parameter description Range SOFTWARE VERSION Version number ENTRY MENU ENTRY MENU LEVEL LEVEL DISPLAY FUNCTIONS DISPLAY FUNCTIONS SOFTWARE VERSION SOFTWARE VERSION The DISPLAY FUNCTIONS menu...

  • Page 269: Display Functions / Password Control

    Recipe 0000 0000 page NORMAL RESET, using a 4-KEY RESET. Refer to "9.3 Restoring parameters to default conditions" on page If you have lost your password, contact Sprint Electric for assistance. The DISPLAY FUNCTIONS menu...

  • Page 270: Enter Password

    15.2.1 ENTER PASSWORD Enter the correct password here to unlock the parameters. Parameter description Range Default ENTER PASSWORD 0000 to FFFF 0000 • Entering a correct password causes ALTER ENTRY MENU ENTRY MENU LEVEL LEVEL PASSWORD to display the password. DISPLAY FUNCTIONS DISPLAY FUNCTIONS •...

  • Page 271: The Application Blocks Menu

    16 The APPLICATION BLOCKS menu The APPLICATION BLOCKS menu The PL/X contains a comprehensive range of extra system application blocks. Use these to create complex control applications. When application blocks are processed, the workload ENTRY MENU ENTRY MENU LEVEL LEVEL on the internal microprocessor increases: APPLICATION BLOCKS APPLICATION BLOCKS...

  • Page 272: Application Blocks / Summer

    16.1 APPLICATION BLOCKS / SUMMER 1, 2 Program a general-purpose signal summing and scaling block. There are two identical, independent SUMMER blocks. They identify by the suffix 1 and 2. This description shows only the PINs for SUMMER1. ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 273: Figure 57 Summer1, Summer 2 - Block Diagrams

    Figure 57 SUMMER1, SUMMER 2 - block diagrams The APPLICATION BLOCKS menu...

  • Page 274: 402)Summer1 Sign1

    16.1.2 402)SUMMER1 SIGN1 Invert the signal arriving at Input 1. Parameter description Range Default SUMMER1 SIGN1 INVERT NON-INVERT NON-INVERT ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS SUMMER 1 SUMMER 1 402)SUMMER1 SIGN1 402)SUMMER1 SIGN1 16.1.3 403)SUMMER1 SIGN2 Invert the signal arriving at Input 2.

  • Page 275: 405)Summer1 Ratio2

    16.1.5 405)SUMMER1 RATIO2 Set the ratio value for the signal arriving at Input 2. Parameter description Range Default SUMMER1 RATIO2 ±3.0000 1.0000 ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS SUMMER 1 SUMMER 1 405)SUMMER1 RATIO2 405)SUMMER1 RATIO2 16.1.6 406)SUMMER1 DIVIDER1 Set the divisor for the signal arriving at Input 1.

  • Page 276: 408)Summer1 Input1

    16.1.8 408)SUMMER1 INPUT1 Set the value for Input 1. Parameter description Range Default SUMMER1 INPUT1 ±300.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS SUMMER 1 SUMMER 1 408)SUMMER1 INPUT1 408)SUMMER1 INPUT1 16.1.9 409)SUMMER1 INPUT2 Set the value for Input 2. Parameter description Range Default...

  • Page 277: 411)Summer1 Deadband

    16.1.11 411)SUMMER1 DEADBAND Set ±% deadband width, centred on 0.00%, for Input 1. Parameter description Range Default SUMMER1 DEADBAND 0.00 to 100.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS SUMMER 1 SUMMER 1 411)SUMMER1 DEADBAND 411)SUMMER1 DEADBAND 16.1.12 412)SUMMER1 OP INVRT Invert the output signal from the SUMMER1 block.

  • Page 278: Application Blocks / Pid

    16.2 APPLICATION BLOCKS / PID 1, 2 The PID block performs the function of a classical PID to allow the implementation of an external control loop. Typical uses are Dancer Arm, Loadcell Tension, Centre Driven Winding. There are two identical, independent PID blocks. They identify by the suffix 1 and 2. This description shows only the PINs for PID1.

  • Page 279: Figure 58 Pid 1, 2 - Block Diagram

    Figure 58 PID 1, 2 - block diagram The APPLICATION BLOCKS menu...

  • Page 280: 429)Pid1 Op Monitor

    16.2.1 429)PID1 OP MONITOR Monitor the final output of the PID1 block. Parameter description Range PID1 OUTPUT MONITOR ±300.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PID 1 PID 1 429)PID1 OP MONITOR 429)PID1 OP MONITOR 16.2.2 430)PID1 INPUT1 Set the value for PID Input 1.

  • Page 281: 433)Pid1 Input2

    16.2.5 433)PID1 INPUT2 Set the value for PID Input 2. Parameter description Range Default PID1 INPUT2 ±300.00% 0.00% This is normally the PID feedback. ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PID 1 PID 1 433)PID1 INPUT2 433)PID1 INPUT2 16.2.6 434)PID1 RATIO2 Set the scaling factor for the PID Input 2 value.

  • Page 282: 436)Pid1 Prop Gain

    16.2.8 436)PID1 PROP GAIN Set the PID gain independently of the I and D time constants. Parameter description Range Default PID1 PROPORTIONAL GAIN 0.0 to 100.0 Proportional output = gain x (1 + DiffT/IntT) X error%. ENTRY MENU ENTRY MENU LEVEL LEVEL A higher gain usually provides a faster response.

  • Page 283: 439)Pid1 Filter Tc

    16.2.11 439)PID1 FILTER TC Set the time constant of the PID output filter. Parameter description Range Default PID1 FILTER TIME CONSTANT 0.000 to 10.000 0.100 seconds seconds The derivative of a noisy error signal can lead to ENTRY MENU ENTRY MENU LEVEL LEVEL unwanted output excursions.

  • Page 284: 442)Pid1 Reset

    16.2.14 442)PID1 RESET Enable/disable PID1 RESET. Parameter description Range Default PID1 RESET DISABLED DISABLED ENABLED • When DISABLED, this turns on the Output and ENTRY MENU ENTRY MENU LEVEL LEVEL releases the integrator. APPLICATION BLOCKS APPLICATION BLOCKS • When ENABLED, the Output stage and the integrator set to 0.00%.

  • Page 285: 445)Pid1 Output Trim

    16.2.17 445)PID1 OUTPUT TRIM Set the scaling trim factor for the PID output. Parameter description Range Default PID1 OUTPUT TRIM ±3.0000 0.2000 Invert the output of the PID by selecting a negative trim ENTRY MENU ENTRY MENU LEVEL LEVEL factor. APPLICATION BLOCKS APPLICATION BLOCKS PID 1...

  • Page 286: 447)Pid1 Min Prop Gn

    16.2.19 447)PID1 MIN PROP GN Set the minimum value for the PID parameter profile output. Parameter description Range Default PID1 MINIMUM PROPORTIONAL 0.00 to 100.00% 20.00% GAIN ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PID 1 PID 1 447)PID1 MIN PROP GN 447)PID1 MIN PROP GN 16.2.20 448)PID1 X-AXIS MIN...

  • Page 287: 449)Pid1 Profiled Gn

    16.2.22 449)PID1 PROFILED GN Monitor the PID profiled proportional gain. Parameter description Range PID1 PROFILED PROPORTIONAL GAIN 0.0 to 100.0 ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PID 1 PID 1 449)PID1 PROFILED GN 449)PID1 PROFILED GN 16.2.23 450)PID1 CLAMP FLAG Monitor the PID output for having reached the clamp limits.

  • Page 288: Application Blocks/ Parameter Profiler

    16.3 APPLICATION BLOCKS/ PARAMETER PROFILER Use this block to modulate one parameter according to the magnitude of another. A typical example is changing the gain of a block as the error increases. The block symbol shows the profiler working in the ENTRY MENU ENTRY MENU LEVEL...

  • Page 289: Figure 60 Parameter Profile - Profile For Y Increasing With X

    Y-AXIS PROFILER Xmax These X and Y axis values are always associated with each other PROFLR Y AT Xmax PROFILER Xmin These X and Y axis values are always associated with each other PROFLR Y AT Xmin X-AXIS The graph shows the positive quadrant only. It is helpful to consider as coordinates each pair of minimum and maximum values.

  • Page 290: Figure 62 Parameter Profile - Examples Of General Profiles

    X Rectify X Rectify DISABLED DISABLED Coord Xmax Coord Xmax And Y at Xmax And Y at Xmax Coord Xmin And Y at Xmin Coord Xmin And Y at Xmin X Rectify DISABLED Coord Xmax And Y at Xmax Coord Xmax And Y at Xmax Coord Xmin Coord Xmin...

  • Page 291: 475)Profile Y Op Mon

    16.3.1 475)PROFILE Y OP MON Monitor the final output of the parameter profiler block. Parameter description Range PROFILE Y OUTPUT MONITOR ±300.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PARAMETER PROFILER PARAMETER PROFILER 475)PROFILE Y OP MON 475)PROFILE Y OP MON 16.3.2 476)PROFILER MODE Set the mode for the profile curve between minimum and maximum.

  • Page 292: 478)Proflr Y At Xmax

    16.3.4 478)PROFLR Y AT Xmax Set the corresponding value for the Y-axis at Xmax. Parameter description Range Default PROFILER Y AT Xmax ±300.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PARAMETER PROFILER PARAMETER PROFILER 478)PROFLR Y AT Xmax 478)PROFLR Y AT Xmax 16.3.5 479)PROFILER Xmin Set the minimum value for the X-axis input.

  • Page 293: 481)Proflr X Rectify

    16.3.7 481)PROFLR X RECTIFY Enable/disable the X-axis input. Parameter description Range Default PROFILER X RECTIFY DISABLED ENABLED ENABLED Enable to rectify the X-axis input. ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PARAMETER PROFILER PARAMETER PROFILER 481)PROFLR X RECTIFY 481)PROFLR X RECTIFY 16.3.8 PRFL X-AXIS GET FROM Set the PIN for the profile X-axis input signal source.

  • Page 294: Application Blocks / Reel Diameter Calc

    16.4 APPLICATION BLOCKS / REEL DIAMETER CALC This block performs reel diameter calculation and provides a diameter output for control of web winding tension systems. For a constant web speed, the reel shaft slows down as ENTRY MENU ENTRY MENU LEVEL LEVEL the reel diameter increases.
  • Page 295 Some systems require the tension of the web to taper according to the reel diameter. This technique will prevent reel collapse or damage to delicate materials. A taper control block is available for this function: "16.5 APPLICATION BLOCKS / TAPER TENSION CALC" on page 275.

  • Page 296: Figure 63 Reel Diameter Calc - Block Diagram

    Figure 63 REEL DIAMETER CALC - block diagram The APPLICATION BLOCKS menu...

  • Page 297: 483)Diameter Op Mon

    16.4.1 483)DIAMETER OP MON Monitor the output result of the diameter calculator. Parameter description Range DIAMETER OUTPUT MONITOR 0.00 to +100.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS REEL DIAMETER CALC REEL DIAMETER CALC 483)DIAMETER OP MON 483)DIAMETER OP MON 16.4.2 484)DIA WEB SPEED IP Set the input value for the web speed prior to rectifying.

  • Page 298: 486)Diameter Min

    16.4.4 486)DIAMETER MIN Set a minimum clamp level for the diameter calculator. Parameter description Range Default DIAMETER MINIMUM 0.00 to +100.00% 10.00% Also, use this value as a scaling factor for the diameter ENTRY MENU ENTRY MENU LEVEL LEVEL calculation. APPLICATION BLOCKS APPLICATION BLOCKS Result (%) = (Web/Reel) x (Dia min).

  • Page 299: 489)Dia Filter Tc

    16.4.7 489)DIA FILTER TC Set the filter time constant for the diameter calculation. Parameter description Range Default DIAMETER FILTER TIME CONSTANT 0.00 to 200.00 5.00 seconds seconds This value applies a filter to the output to remove small transients in the raw calculation. The difference ENTRY MENU ENTRY MENU LEVEL...

  • Page 300: 492)Dia Web Brk Thr

    16.4.10 492)DIA WEB BRK THR. Set the threshold at which the web break flag will be activated. Parameter description Range Default DIAMETER WEB BREAK THRESHOLD 0.00 to +100.00% 7.50% A break in the web will cause a sudden change in the ENTRY MENU ENTRY MENU LEVEL...

  • Page 301: Application Blocks / Taper Tension Calc

    16.5 APPLICATION BLOCKS / TAPER TENSION CALC This block allows the introduction of positive or negative taper to a tension reference and the capability for externally trimming the final output. The taper profile can be selected to be hyperbolic or ENTRY MENU ENTRY MENU LEVEL...

  • Page 302: Linear Taper Equation

    16.5.1 Linear taper equation Tapered tension% = (Tension ref% / 100%) X (100% - (Dia% - Min dia%) X Taper strength% / 100%). 16.5.2 Hyperbolic taper equation Tapered tension% = (Tension ref% / 100%) X (100% - (Dia% - Min dia%) X Taper strength% / Dia%). 16.5.2.1 Taper graphs showing tension versus diameter TENSION...

  • Page 303: 494)Total Tension Mn

    16.5.3 494)TOTAL TENSION MN Monitor the total output of the taper tension calculator. Parameter description Range TOTAL TENSION MONITOR ±100.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS TAPER TENSION CALC TAPER TENSION CALC 494)TOTAL TENSION MN 494)TOTAL TENSION MN 16.5.4 495)TENSION REF Set the tension reference for the taper tension calculator.

  • Page 304: 497)Hyperbolic Taper

    16.5.6 497)HYPERBOLIC TAPER Enable/disable the taper profile. Parameter description Range Default HYPERBOLIC TAPER DISABLED DISABLED ENABLED When ENABLED, the taper profile is hyperbolic. ENTRY MENU ENTRY MENU LEVEL LEVEL When DISABLED, the taper profile is linear. APPLICATION BLOCKS APPLICATION BLOCKS Refer to "16.5.5 496)TAPER STRENGTH"...

  • Page 305: Application Blocks / Torque Compensator

    16.6 APPLICATION BLOCKS / TORQUE COMPENSATOR Use this block to add loss compensation to the tension demand signal generated by the TAPER TENSION CALC block. The result is steered to the positive or negative current limits to provide a torque clamp giving the correct tension. The losses in the winding system are friction and inertia.

  • Page 306: Figure 66 Torque Compensator - Block Diagram

    Figure 66 TORQUE COMPENSATOR - block diagram The APPLICATION BLOCKS menu...

  • Page 307: Figure 67 Torque Compensator Inertia Compensator - Block Diagram

    Figure 67 TORQUE COMPENSATOR INERTIA COMPENSATOR - block diagram The APPLICATION BLOCKS menu...

  • Page 308: 500)Torque Demand Mn

    Figure 68 TORQUE COMPENSATOR FRICTION COMPENSATOR - block diagram 16.6.1 500)TORQUE DEMAND MN Monitor the total torque demand reference. Parameter description Range TORQUE DEMAND MONITOR ±300.00% The torque demand reference is the sum of all the ENTRY MENU ENTRY MENU LEVEL LEVEL compensation components and the scaled tension...

  • Page 309: 501)Torque Trim Ip

    16.6.2 501)TORQUE TRIM IP Add a torque trim input to the compensation. Parameter description Range Default TORQUE TRIM INPUT ±150.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS TORQUE COMPENSATOR TORQUE COMPENSATOR 501)TORQUE TRIM IP 501)TORQUE TRIM IP 16.6.3 502)STICTION COMP Set the level of compensation required to overcome stiction.

  • Page 310: 504)Static Friction

    16.6.5 504)STATIC FRICTION Set the compensation required to overcome static friction. Parameter description Range Default STATIC FRICTION ±300.00% 0.00% A compensation applied at a constant level throughout ENTRY MENU ENTRY MENU LEVEL LEVEL the speed range. APPLICATION BLOCKS APPLICATION BLOCKS Record the value for (in the Diagnostics ARM CUR...

  • Page 311: 506)Friction Sign

    16.6.7 506)FRICTION SIGN Set the total friction compensation polarity for forward or reverse. Parameter description Range Default FRICTION SIGN INVERT NON-INVERT NON-INVERT ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS TORQUE COMPENSATOR TORQUE COMPENSATOR 506)FRICTION SIGN 506)FRICTION SIGN 16.6.8 507)FIXED INERTIA Set the compensation required to overcome fixed mass inertia.

  • Page 312: 508)Variable Inertia

    16.6.9 508)VARIABLE INERTIA Set the compensation required to overcome variable mass inertia. Parameter description Range Default VARIABLE INERTIA ±300.00% 0.00% This compensation depends upon the reel diameter, ENTRY MENU ENTRY MENU LEVEL LEVEL so the REEL DIAMETER CALC application block must be APPLICATION BLOCKS APPLICATION BLOCKS active to acquire the diameter value.

  • Page 313: 509)Material Width

    16.6.10 509)MATERIAL WIDTH Set a ratio % to accommodate material width or mass changes. Parameter description Range Default MATERIAL WIDTH 200.00% 100.00% The material used during the empirical measurement ENTRY MENU ENTRY MENU LEVEL LEVEL of inertia compensation currents is the 100% width/ APPLICATION BLOCKS APPLICATION BLOCKS mass.

  • Page 314: 511)Accel Scaler

    16.6.12 511)ACCEL SCALER Set a scaling factor to normalise the acceleration calculation. Parameter description Range Default ACCELERATION SCALER ±100.00 10.00 Typically set this value to equal the 100% ramp time. ENTRY MENU ENTRY MENU LEVEL LEVEL For example, if the total ramp time equals 10 seconds, APPLICATION BLOCKS APPLICATION BLOCKS set this parameter to 10.00.

  • Page 315: 514)Tension Dem Ip

    16.6.15 514)TENSION DEM IP Set the tension demand input. Parameter description Range Default TENSION DEMAND INPUT ±100.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS TORQUE COMPENSATOR TORQUE COMPENSATOR 514)TENSION DEM IP 514)TENSION DEM IP 16.6.16 515)TENSION SCALER Scale the tension from the taper tension block.

  • Page 316: 517)Torque Mem Input

    16.6.18 517)TORQUE MEM INPUT Set the input value for parameter 516)TORQUE 516)TORQUE MEM MEM SEL Parameter description Range Default TORQUE MEMORY INPUT ±300.00% 0.00% This parameter is helpful if you need to hold the torque ENTRY MENU ENTRY MENU LEVEL LEVEL at a stored value because the input speeds are not APPLICATION BLOCKS...

  • Page 317: 519)Over/Underwind

    16.6.20 519)OVER/UNDERWIND Select the direction of layer addition on the reel. Parameter description Range Default OVER/UNDERWIND DISABLED ENABLED ENABLED ENABLED = Overwind. ENTRY MENU ENTRY MENU LEVEL LEVEL DISABLED = Underwind. APPLICATION BLOCKS APPLICATION BLOCKS The term overwinding refers to the chosen direction TORQUE COMPENSATOR TORQUE COMPENSATOR of layer addition on the reel.

  • Page 318: Centre Winding Block Arrangement

    16.7 Centre winding block arrangement To activate this block, connect the GOTO. For example, to a staging post. Reel Diameter Calc 491)DIA PRESET VALUE 487)DIA MIN SPEED 488)DIAMETER HOLD 489)DIA FILTER TC 492)DIA WEB BRK THR. 10.00% 5.00% Disabled 5.00 s 7.50% 690)WEB BREAK FLAG 695)WEB SPEED RECT.

  • Page 319: Applications Block / Preset Speed

    16.8 APPLICATIONS BLOCK / PRESET SPEED This block provides a versatile preset value selection machine. Its primary use is for preset speeds. By defining output values for each of eight possible input combinations, it is possible to create various ENTRY MENU ENTRY MENU LEVEL LEVEL...
  • Page 320 Ascending priority Inputs PIN number Actual value SEL3,2,1 to set value Assuming that there are three output values (1 for W, 2 for X, 0 0 0 PIN 527 0.00% 3 for Y) required and that logic 0 0 1 PIN 528 select input 3 has the highest priority, followed by 2 and 1 in...

  • Page 321: 523)Preset Speed Mon

    16.8.1 523)PRESET SPEED MON Monitor the preset speed block output. Parameter description Range PRESET SPEED MONITOR ±300.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PRESET SPEED PRESET SPEED 523)PRESET SPEED MON 523)PRESET SPEED MON 16.8.2 524)PRESET SEL1(LSB) Set the logic state of the preset speed block digital input.

  • Page 322: 527)Pr.value For 000

    16.8.5 527)PR.VALUE FOR 000 Set a value for the preset speed block digital input code 000. Parameter description Range Default PRESET VALUE FOR 000 ±300.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PRESET SPEED PRESET SPEED 527)PR.VALUE FOR 000 527)PR.VALUE FOR 000 16.8.6 528)PR.VALUE FOR 001...

  • Page 323: 531)Pr.value For 100

    16.8.9 531)PR.VALUE FOR 100 Set a value for the preset speed block digital input code 100. Parameter description Range Default PRESET VALUE FOR 100 ±300.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS PRESET SPEED PRESET SPEED 531)PR.VALUE FOR 100 531)PR.VALUE FOR 100 16.8.10 532)PR.VALUE FOR 101...
  • Page 324 16.9 APPLICATION BLOCKS / MULTI-FUNCTION 1 TO 8 There are eight identical, independent MULTI-FUNCTION blocks, identified by the suffix 1 to 8. This description shows only the PINs for MULTI-FUNCTION 1. They are used to perform simple signal processing on 1 ENTRY MENU ENTRY MENU LEVEL...

  • Page 325: Figure 71 Multi-Function - Block Diagram

    Multi-function 1 977)MFUNC 1 GET FROM 400)Block Disconnect 969)MULTIFUNC 1 GOTO 400)Block Disconnect 985)MF1 AUX GET FROM 400)Block Disconnect 544)MULTIFUN1 MODE C/O SWITCH or JUMPER MODE 0 545)MULTIFUN1 OP SEL Disabled MODE MULTI-FUNCTION GET FROM Refer to the Aux input table for PINs Function (Enabled)

  • Page 326: 544)Multifun1 Mode

    16.9.1 544)MULTIFUN1 MODE Select one of seven transfer functions. Parameter description Range Default MULTI-FUNCTION 1 MODE 1 of 7 functions C/O SWITCH NOTE: A logical function will treat a linear signal as a ENTRY MENU ENTRY MENU LEVEL LEVEL logical 0 if its value is zero (any units). Any other value, APPLICATION BLOCKS APPLICATION BLOCKS including negative values, will be treated as a logical 1.

  • Page 327: 545)Multifun1 Op Sel

    16.9.2 545)MULTIFUN1 OP SEL Enable/disable the output selected by the parameter. 544)MULTIFUN1 544)MULTIFUN1 MODE MODE Parameter description Range Default MULTI-FUNCTION 1 OUTPUT SELECT DISABLED DISABLED ENABLED • When DISABLED, the main value flows GETFROM GETFROM ENTRY MENU ENTRY MENU LEVEL LEVEL directly to the GOTO...

  • Page 328: Goto

    16.9.5 GOTO Set the target PIN for the multi-function GOTO signal. Parameter description Range Default GOTO 000 to 720 400)Block disconnect ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS MULTI-FUNCTION 1 MULTI-FUNCTION 1 GOTO GOTO The APPLICATION BLOCKS menu...

  • Page 329: Application Blocks / Latch

    16.10 APPLICATION BLOCKS / LATCH This block provides a standard D type latch function. The PL/X scans the logic inputs at least once every 50 ENTRY MENU ENTRY MENU LEVEL LEVEL ms, and so the maximum operating frequency is 10 Hz. APPLICATION BLOCKS APPLICATION BLOCKS of this block resides in the...

  • Page 330: Figure 72 Latch - Block Diagram

    Figure 72 LATCH - block diagram The APPLICATION BLOCKS menu...

  • Page 331: 561)Latch Data Ip

    16.10.2 561)LATCH DATA IP Set the logic level for the latch data input. Parameter description Range Default LATCH DATA INPUT HIGH If the clock level has changed from a low to a high since ENTRY MENU ENTRY MENU LEVEL LEVEL the last sample, then the logic level of the data input APPLICATION BLOCKS APPLICATION BLOCKS...

  • Page 332: 564)Latch Reset Ip

    16.10.5 564)LATCH RESET IP Set the logic level for the latch reset input. Parameter description Range Default LATCH RESET INPUT HIGH Refer to the truth table for a complete definition. ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS LATCH LATCH 564)LATCH RESET IP...

  • Page 333: Application Blocks / Filter

    16.11 APPLICATION BLOCKS / FILTER 1, 2 These filters help eliminate mechanical resonance effects from the control system closed-loop. There are two identical FILTER blocks, identified by the suffix 1 and 2. This description shows only the PINs for FILTER 1. ENTRY MENU ENTRY MENU LEVEL...

  • Page 334: 568)Filter1 Op Mon

    16.11.1 568)FILTER1 OP MON Monitor the Filter 1 output. Parameter description Range FILTER1 OUTPUT MONITOR ±315.00% ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS FILTER 1 FILTER 1 568)FILTER1 OP MON 568)FILTER1 OP MON 16.11.2 569)FILTER1 TC Set the value of the time constant for the Filter 1 block. Parameter description Range Default...

  • Page 335: Fixed Low Pass Filter

    16.11.4 Fixed low pass filter A simple low pass filter function with a cut-off frequency of approximately 10 Hz. It can help with smoothing linear signals or eliminating resonances. It uses hidden pins, and so the filter has no adjustments. To use the filter, connect its input using a from GOTO...

  • Page 336: Application Blocks / Batch Counter

    16.12 APPLICATION BLOCKS / BATCH COUNTER This block provides a batch counter function. The minimum low or high logic input dwell time is 50 ms giving a maximum count frequency of 10 Hz. A positive clock transition causes the counter to count up. If the count is equal to or greater than the target, then ENTRY MENU ENTRY MENU...

  • Page 337: 578)Counter Count

    16.12.1 578)COUNTER COUNT Monitor the batch counter value. Parameter description Range Default COUNTER COUNT 0 to 32000 NOTE: This value also appears on the GOTO. ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS BATCH COUNTER BATCH COUNTER 578)COUNTER COUNT 578)COUNTER COUNT 16.12.2 579)COUNTER CLOCK The clock input logic level for the batch counter.

  • Page 338: 581)Counter Target

    16.12.4 581)COUNTER TARGET Set the target number for the batch counter. Parameter description Range Default COUNTER TARGET 0 to 32000 32000 When the batch counter value equals or exceeds the ENTRY MENU ENTRY MENU LEVEL LEVEL target value, the output goes 582)COUNTER 582)COUNTER >=TARGET...

  • Page 339: Application Blocks / Interval Timer

    16.13 APPLICATION BLOCKS / INTERVAL TIMER The INTERVAL TIMER can control event sequencing in systems applications. For example, you can use it to make a motion control sequence wait before starting or delay a relay changeover. ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS...

  • Page 340: 584)Timer Reset

    16.13.2 584)TIMER RESET Enable/disable the resetting of the timer. Parameter description Range Default TIMER RESET DISABLED DISABLED ENABLED When ENABLED, the timer is reset and held at zero. ENTRY MENU ENTRY MENU LEVEL LEVEL When DISABLED, the timer commences timing. APPLICATION BLOCKS APPLICATION BLOCKS INTERVAL TIMER...

  • Page 341: Figure 77 Comparator 1 - Block Diagram

    16.14 APPLICATION BLOCKS / COMPARATOR 1 to 4 There are four identical COMPARATOR blocks, identified by the suffix 1 to 4, each with adjustable hysteresis and a window comparator mode option. This description shows only the PINs for COMPARATOR 1. ENTRY MENU ENTRY MENU LEVEL...

  • Page 342: Application Blocks / Comparator 1 To 4 16.14.1 588)Comp1 Input 1

    16.14.1 588)COMP1 INPUT 1 Set the level of input 1 of comparator 1. Parameter description Range Default COMPARATOR1 INPUT 1 ±300.00% 0.00% The GOTO is high for Input 1 > Input 2 (algebraic). ENTRY MENU ENTRY MENU LEVEL LEVEL The GOTO is low for Input 1 =< Input 2 (algebraic). APPLICATION BLOCKS APPLICATION BLOCKS COMPARATOR 1...

  • Page 343: 591)Comp1 Hysterisis

    16.14.4 591)COMP1 HYSTERISIS Set the level of hysteresis applied to input 1. Parameter description Range Default COMPARATOR1 HYSTERESIS 0 to 10.00% 0.50% For example, a value of 1.00% would require: ENTRY MENU ENTRY MENU LEVEL LEVEL • Input 1 to exceed Input 2 by more than 1.00% APPLICATION BLOCKS APPLICATION BLOCKS for a HIGH output,...

  • Page 344: Sample And Hold Function

    16.15 APPLICATION BLOCKS / C/O SWITCH 1 TO 4 There are four identical Changeover Switch blocks, each with two inputs and one output. They are identified by the suffix 1 to 4. This description shows only the PINs for C/O SWITCH 1. ENTRY MENU ENTRY MENU LEVEL...

  • Page 345: 604)C/O Sw1 Control

    16.15.2 604)C/O SW1 CONTROL Set the changeover switch position to the LO or HI input. Parameter description Range Default CHANGEOVER SWITCH 1 CONTROL HIGH ENTRY MENU ENTRY MENU LEVEL LEVEL APPLICATION BLOCKS APPLICATION BLOCKS C/O SWITCH 1 C/O SWITCH 1 604)C/O SW1 CONTROL 604)C/O SW1 CONTROL 16.15.3 605)C/O SW1 HI VALUE...

  • Page 346: C/O Sw1 Lo Value

    16.15.5 C/O SW1 LO VALUE Set the PIN for the GOTO connection target parameter. Parameter description Range Default GOTO 2 to 720 400)Block Disconnect NOTE: To activate the block, connect the GOTO to a PIN ENTRY MENU ENTRY MENU LEVEL LEVEL other than 400)Block...

  • Page 347: Application Blocks / 16-Bit Demultiplex

    16.16 APPLICATION BLOCKS / 16-BIT DEMULTIPLEX The primary use for this block is to extract individual alarm flags from parameters 181)ACTIVE 181)ACTIVE TRIP TRIP MON 182)STORED 182)STORED TRIP TRIP MON The valued stored in the Alarms monitor parameters ENTRY MENU ENTRY MENU LEVEL LEVEL...

  • Page 348: Figure 79 16-Bit Demultiplex - Block Diagram

    Figure 79 16-bit Demultiplex - block diagram The APPLICATION BLOCKS menu...

  • Page 349: The Configuration Menu

    17 The CONFIGURATION menu The CONFIGURATION menu The drive’s internal block diagram connections can be re-configured using the legacy PL PILOT configuration tool or the HMI. To begin a configuration session, you must set the parameter CONFIGURATION CONFIGURATION / / to ENABLED.

  • Page 350: Configuration

    17.2 CONFIGURATION There are 720 parameters used in the process of configuration, each with a unique identifying PIN. The PINs identify the connection points made during Configuration. Each parameter stores a value. By connecting ENTRY MENU ENTRY MENU LEVEL LEVEL parameters, you can pass the value of the source CONFIGURATION CONFIGURATION...

  • Page 351: Configuration / Enable Goto,Getfrom

    17.2.1 CONFIGURATION / ENABLE GOTO,GETFROM ENABLE/DISABLE the option to configure the internal system connections. An Ethernet-based distributed control system (DCS) ENTRY MENU ENTRY MENU LEVEL LEVEL hardware and software may complete the following automatically. CONFIGURATION CONFIGURATION ENABLE GOTO,GETFROM ENABLE GOTO,GETFROM Configuration using the HMI To begin a Configuration session, you must CONFIGURATION...

  • Page 352: Configuration / Universal Inputs

    17.3 CONFIGURATION / UNIVERSAL INPUTS The PL/X has eight analog inputs. The voltage range for each input is programmable to ± ENTRY MENU ENTRY MENU LEVEL LEVEL 5/10/20/30 V. This allows for using signals other than CONFIGURATION CONFIGURATION 10 V full scale, enabling it for use as a sophisticated digital input.
  • Page 353 17.4 CONFIGURATION / UNIVERSAL INPUTS / UIP2 to 9 PL/X terminals T2 to T9 are provided respectively with their processing block UIP2 to UIP9. Each processing block has three outputs: one linear output and a dual-logic output. This description shows only the PINs for UIP2. NOTE: UIPs offer increased noise immunity when ENTRY MENU ENTRY MENU...

  • Page 354: Figure 80 Uip2 (Universal Inputs) - Block Diagram

    parameter changeover functions are selectable by a single input. For example, you might have the DIGITAL DIGITAL value change to target PIN XXX and OP1 GOTO GOTO simultaneously have logic DIGITAL DIGITAL OP2 OP2 GOTO GOTO change to target PIN YYY. For logic-only usage: •...

  • Page 355: 320)Uip2 Ip Range

    17.4.1 320)UIP2 IP RANGE Select the '0 to ±100%' voltage range of the UIP2 input signal. Parameter description Range Default UIP2 INPUT RANGE ±10 V ±10 V ±5 V ±20 V ±30 V For example: for a range setting of 0, an input signal ENTRY MENU ENTRY MENU LEVEL...

  • Page 356: 321)Uip2 Ip Offset

    17.4.2 321)UIP2 IP OFFSET Set the level of bipolar offset to be added to the input signal. Parameter description Range Default UIP2 INPUT OFFSET ±100.00% 0.00% NOTE: +/-100% always represents a +/-10 V offset, ENTRY MENU ENTRY MENU LEVEL LEVEL independent of the selected range.

  • Page 357: 322)Uip2 Cal Ratio

    17.4.3 322)UIP2 CAL RATIO Set a linear scaling factor for the signal at the UIP2 input. Parameter description Range Default UIP2 CALIBRATION RATIO ±3.0000 1.0000 NOTE: This linear scaling factor does not affect the ENTRY MENU ENTRY MENU LEVEL LEVEL signal used for the digital THRESHOLD comparison.

  • Page 358: Uip Analog Goto

    17.4.6 UIP ANALOG GOTO Set the target destination PIN for the analog connection to UIPx. Parameter description Range Default UIP ANALOG GOTO 000 to 720 See table ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION UNIVERSAL INPUTS UNIVERSAL INPUTS UIP2 (T2) SETUP UIP2 (T2) SETUP UIP ANALOG GOTO UIP ANALOG GOTO...

  • Page 359: Uip Digital Op1 Goto

    17.4.7 UIP DIGITAL OP1 GOTO Set the target destination PIN for the logic connection to UIPx. Parameter description Range Default UIP DIGITAL OP1 GOTO 000 to 720 See table ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION UNIVERSAL INPUTS UNIVERSAL INPUTS UIP2 (T2) SETUP UIP2 (T2) SETUP UIP DIGITAL OP1 GOTO...

  • Page 360: 325)Uip2 Hi Val Op1

    17.4.9 325)UIP2 HI VAL OP1 Set the OP1 value selected by a high UIP2 input. Parameter description Range Default UIP2 HIGH VALUE OUTPUT1 ±300.00% 0.01% ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION UNIVERSAL INPUTS UNIVERSAL INPUTS UIP2 (T2) SETUP UIP2 (T2) SETUP 325)UIP2 HI VAL OP1 325)UIP2 HI VAL OP1...

  • Page 361: 328)Uip2 Lo Val Op2

    17.4.12 328)UIP2 LO VAL OP2 Set the OP2 value selected by a low UIP2 input. Parameter description Range Default UIP2 LOW VALUE OUTPUT1 ±300.00% 0.01% ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION UNIVERSAL INPUTS UNIVERSAL INPUTS UIP2 (T2) SETUP UIP2 (T2) SETUP 328)UIP2 LO VAL OP2 328)UIP2 LO VAL OP2...

  • Page 362: Configuration / Analog Outputs

    17.5 CONFIGURATION / ANALOG OUTPUTS There are four analog outputs: AOP1 to AOP3 (terminals T10 to T12) are programmable, plus one analog output on T29 representing armature current. AOP1/2/3 - Programmable output specification: ENTRY MENU ENTRY MENU LEVEL LEVEL • 12-bit +sign resolution (2.5 mV steps). CONFIGURATION CONFIGURATION •...

  • Page 363: Figure 82 Aop1 (T10) Speed Feedback - Block Diagram

    AOP1 (T10) Speed Feedback 252)AOP1 OFFSET 159)AOP1 (T10) MON 0.00% 0.000V 927)AOP1 GETFROM 715)SPD FBK% UNF MON 251)AOP1 DIVIDER 253)AOP1 RECTIFY EN 3.0000 Disabled Figure 82 AOP1 (T10) Speed Feedback - block diagram AOP2 (T11) Total Speed Reference 255)AOP2 OFFSET 160)AOP2 (T11) MON 0.00% 0.000 V...

  • Page 364: Analog Outputs / Aop1/2/3 Setup

    17.6 ANALOG OUTPUTS / AOP1/2/3 SETUP There are three menus, one for each analog output. ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION Parameter ANALOG OUTPUTS ANALOG OUTPUTS DIVIDER AOP1 (T10) SETUP AOP1 (T10) SETUP OFFSET 251)AOP1 DIVIDER 251)AOP1 DIVIDER RECTIFY EN 252)AOP1 OFFSET 252)AOP1 OFFSET...

  • Page 365: 252)Aop1 Offset

    17.6.3 252)AOP1 OFFSET Set the level of bipolar offset to be added to the final signal. Parameter description Range Default AOP1 OFFSET ±100.00% 0.00% NOTE: 100.00% is equivalent to 10.00V. Changing the ENTRY MENU ENTRY MENU LEVEL LEVEL divider factor will not affect the offset value. CONFIGURATION CONFIGURATION ANALOG OUTPUTS...

  • Page 366: Configuration / Digital Inputs

    17.7 CONFIGURATION / DIGITAL INPUTS There are four digital logic inputs DIP1/2/3/4 located on terminals T14/15/16/17, plus the RUN input on T31. You can use the DIP inputs for incremental encoder or register mark inputs. In this case, the logic functions will continue to operate as described here.

  • Page 367: Configuration / Digital Inputs / Dip1 (T14) Setup

    17.8 CONFIGURATION / DIGITAL INPUTS / DIP1 (T14) SETUP Drive terminals T14 to T17 are provided with processing blocks DIP1 to DIP4, respectively. This description shows only the PINs for DIP1. Enter the LO VAL and HI VAL values using the PL/X HMI, ENTRY MENU ENTRY MENU LEVEL...

  • Page 368: Goto

    17.8.3 GOTO Set the target source PIN for the connection to DIP1. Parameter description Range Default GOTO PIN 000 to 720 See table ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION DIGITAL INPUTS DIGITAL INPUTS DIP1 (T14) SETUP DIP1 (T14) SETUP GOTO GOTO DIPX Terminal Function...

  • Page 369: Configuration / Digital Inputs / Run Ip Setup

    17.9 CONFIGURATION / DIGITAL INPUTS / RUN IP SETUP In the unlikely event that there is a shortage of digital inputs, you can use the RUN input. The default GOTO PIN usually used by the RUN input ENTRY MENU ENTRY MENU LEVEL LEVEL is called...

  • Page 370: 319)Run Ip Lo Value

    17.9.2 319)RUN IP LO VALUE Set the level of the value selected by a low RUN input. Parameter description Range Default RUN INPUT LOW VALUE ±300.00% 0.00% ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION DIGITAL INPUTS DIGITAL INPUTS RUN IP SETUP RUN IP SETUP 319)RUN IP LO VALUE 319)RUN IP LO VALUE...

  • Page 371: Configuration / Digital In/Outputs

    17.10 CONFIGURATION / DIGITAL IN/OUTPUTS There are four digital input/outputs, DIO1/2/3/4, located on terminals T18/19/20/21. ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION Parameter DIGITAL IN/OUTPUTS DIGITAL IN/OUTPUTS OP MODE DIO1 (T18) SETUP DIO1 (T18) SETUP RECTIFY EN DIO2 (T19) SETUP DIO2 (T19) SETUP THRESHOLD DIO3 (T20) SETUP...

  • Page 372: Figure 87 Dio1 Digital Io - Block Diagram

    Figure 87 DIO1 Digital IO - block diagram The CONFIGURATION menu...

  • Page 373: 271)Dio1 Op Mode

    17.11.1 271)DIO1 OP MODE Enable/disable the output mode operation of the DIO1 terminal. Parameter description Range Default DIO1 OUTPUT MODE DISABLED DISABLED ENABLED NOTE: The input function senses the terminal logic level ENTRY MENU ENTRY MENU LEVEL LEVEL irrespective of the output mode selection. CONFIGURATION CONFIGURATION DIGITAL IN/OUTPUTS...

  • Page 374: 274)Dio1 Invert Mode

    17.11.4 274)DIO1 INVERT MODE Invert/non-invert the logic for DIO1. Parameter description Range Default DIO1 INVERT MODE INVERT NON-INVERT NON-INVERT ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION DIGITAL IN/OUTPUTS DIGITAL IN/OUTPUTS DIO1 (T18) SETUP DIO1 (T18) SETUP 274)DIO1 INVERT MODE 274)DIO1 INVERT MODE 17.11.5 GET FROM Set the source PIN for connection to DIO1.

  • Page 375: Goto

    17.11.6 GOTO Set the destination PIN for connection from DIO1. Parameter description Range Default GOTO PIN 000 to 720 efer to table opposite This parameter is the connection for the digital input ENTRY MENU ENTRY MENU LEVEL LEVEL HI or LO result GOTO destination - refer to the GOTO CONFIGURATION CONFIGURATION shown in "Figure 87 DIO1 Digital IO - block diagram"...

  • Page 376: 276)Dio1 Ip Lo Value

    17.11.8 276)DIO1 IP LO VALUE Set the level of the value selected by a low DIO1 input. Parameter description Range Default DIO1 INPUT LOW VALUE ±300.00% 0.01% Refer to "17.11.6 GOTO" on page 349 - make input ENTRY MENU ENTRY MENU LEVEL LEVEL GOTO destination connection.

  • Page 377: Configuration / Digital Outputs

    17.12 CONFIGURATION / DIGITAL OUTPUTS There are three digital outputs, DOP1/2/3, located on terminals T22/23/24. ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION Parameter DIGITAL OUTPUTS DIGITAL OUTPUTS RECTIFY EN THRESHOLD DOP1 (T22) SETUP DOP1 (T22) SETUP DOP2 (T23) SETUP DOP2 (T23) SETUP INVERT MODE DOP3 (T24) SETUP...

  • Page 378: 261)Dop1 Rectify En

    17.13.1 261)DOP1 RECTIFY EN Enable/disable the rectified mode for DOP1 OP. Parameter description Range Default DOP1 RECTIFY ENABLE DISABLED DISABLED ENABLED ENABLED = Rectified. ENTRY MENU ENTRY MENU LEVEL LEVEL DISABLED = Bipolar. CONFIGURATION CONFIGURATION An internal linear or logic signal is compared with a DIGITAL IN/OUTPUTS DIGITAL IN/OUTPUTS threshold to generate the digital output, for example,...

  • Page 379: 263)Dop1 Invert Mode

    17.13.3 263)DOP1 INVERT MODE Invert/non-invert the logic for DOP1. Parameter description Range Default DOP1 INVERT MODE INVERT NON-INVERT NON-INVERT ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION DIGITAL IN/OUTPUTS DIGITAL IN/OUTPUTS DOP1 (T22) SETUP DOP1 (T22) SETUP 263)DOP1 INVERT MODE 263)DOP1 INVERT MODE 17.13.4 GET FROM Set the source PIN for connection to DOP1.

  • Page 380: Configuration / Staging Posts

    17.14 CONFIGURATION / STAGING POSTS There are four digital posts and four analog posts, acting like virtual wire-wrap posts. This description shows only the PINs for POST 1. Each post has a PIN and can contain a value or act as a ENTRY MENU ENTRY MENU LEVEL...

  • Page 381: Connecting Linear Values With Different Units

    17.14.1.1 Connecting linear values with different units To find the pure number, remove the decimal point and the units, for example: 5.00% = 200.00 = 20000 range 0.1 to 600.0 seconds. 60)Drop-out 60)Drop-out DELAY DELAY In this case, the pure number range is 1 to 6000. range 0.00 to 100.00%.

  • Page 382: Connecting To Multi-State Logic Parameters

    If the value from a PIN uses a binary or hexadecimal string (for example, digital IO monitor), then the pure decimal equivalent is used. When calculating the decimal equivalent, the most significant bit is on the right and the least significant on the left. 17.14.1.3 Connecting to multi-state logic parameters When connecting to multi-state logic parameters (e.g.

  • Page 383: 296)Digital Post 1

    17.14.2 296)DIGITAL POST 1 A storage PIN for a logic state and/or connecting point. Parameter description Range Default DIGITAL POST 1 HIGH When a pure logic value of 0 arrives at a DIGITAL POST, ENTRY MENU ENTRY MENU LEVEL LEVEL the display shows LOW;...

  • Page 384: Configuration / Software Terminals

    17.15 CONFIGURATION / SOFTWARE TERMINALS The three drive control functions (RUN, JOG, START) are ANDed with their respective hardware equivalent input terminals. The resulting output controls the drive. It allows a remote command to override the local ENTRY MENU ENTRY MENU LEVEL LEVEL terminal function or a local terminal to override a...

  • Page 385: 307)Anded Start

    17.15.3 307)ANDED START Set a logic input to an internal AND gate to control START. Parameter description Range Default ANDED START HIGH HIGH A serial link might typically use 307)ANDED 307)ANDED START START ENTRY MENU ENTRY MENU LEVEL LEVEL control the drive. CONFIGURATION CONFIGURATION SOFTWARE TERMINALS...
  • Page 386 17.16 CONFIGURATION / JUMPER CONNECTIONS There are sixteen uncommitted JUMPER CONNECTIONS blocks, and this menu defines their JUMPER connection PINS by using GET FROMs and GOTOs. This description shows only the PINs for JUMPER 1. ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION...
  • Page 387 17.17 CONFIGURATION / BLOCK OP CONFIG Use this menu to connect the Application Block diagrams. This Block Output Configuration menu conveniently ENTRY MENU ENTRY MENU LEVEL LEVEL displays just the GOTO connections of many Application CONFIGURATION CONFIGURATION Block diagrams. BLOCK OP CONFIG BLOCK OP CONFIG Connecting the GOTO to a PIN other than 400)Block...
  • Page 388 17.18 CONFIGURATION / FIELDBUS CONFIG Use this menu to select parameters for transmitting to or receiving from the host drive using, for example, PROFIBUS protocol. Refer to the FIELDBUS manual, HG105409EN00. ENTRY MENU ENTRY MENU LEVEL LEVEL CONFIGURATION CONFIGURATION FIELDBUS CONFIG FIELDBUS CONFIG JUMPER 1 JUMPER 1...
  • Page 389 17.19 CONFIGURATION / DRIVE PERSONALITY Use this menu to modify or monitor various aspects of the PL/X personality. • contains all the parameters PASSIVE PASSIVE MOTOR MOTOR SET ENTRY MENU ENTRY MENU LEVEL LEVEL in ascending PIN order to set the passive reduced values for motor 1 or 2.

  • Page 390: Figure 89 Recipe Page - Functional Diagram

    To install a Recipe NOTE: If AUTHORISATION AUTHORISATION is displayed when NEEDED NEEDED Remove power from the drive. SAVING, it means that the page Press and hold the required key combination, now is LOCKED and is read-only. reapply the control supply to the PL/X. Refer to your supplier or system integrator.
  • Page 391 17.19.2 678)MAX CUR RESPONSE Enable to activate an improved small-signal current response. Parameter description Range Default MAXIMUM CURRENT RESPONSE DISABLED DISABLED ENABLED When ENABLED: ENTRY MENU ENTRY MENU LEVEL LEVEL • You can adjust the internally adjusted current CONFIGURATION CONFIGURATION loop algorithm to provide a reduced dead band DRIVE PERSONALITY DRIVE PERSONALITY...

  • Page 392: Figure 90 Burden And Jumper Selections For Frames 1 - 3 (Pl/X5 - Pl/X265)

    17.19.3.1 Frames 1 - 3 (PL/X5 - PL/X265) JUMPER MODE 1 JUMPER MODE 2 With jumper in this 50% position, With jumper in this 100% R102 and R103 are in parallel with R104. position R100 and R101 Result = 50% current. are in parallel with R104.

  • Page 393: Figure 91 Burden And Jumper Selections For Frame 4 (Pl/X275 - Pl/X440)

    17.19.3.2 Frame 4 (PL/X275 - PL/X440) solderable links JUMPER MODE 1 JUMPER MODE 2 100% With jumper in this 50% position, With jumper in this 100% position, for example, R5 is in parallel with an for example, R1 is in parallel with an on-board resistance: on-board resistance: Result = 50% current.

  • Page 394: Figure 92 Burden And Jumper Selections For Frame 5 (Pl/X520 - Pl/X980)

    17.19.3.3 Frame 5 (PL/X520 - PL/X980) solderable links R168 R167 R170 R169 Refer to "Figure 94 Burden resistor values for frames 4 & 5 with solderable links selection" SMALL MOTOR TEST Park on one pin for on page 370. 100% small motor test.
  • Page 395 17.19.3.3.1 Jumper selections (50% / 100% rating) Model JUMPER MODE 1 JUMPER MODE 2 JUMPER MODE 3 (left-hand position) (right-hand position) (parked position) PL/X 5-50 50% of maximum model rating 100% of maximum model rating 6 A maximum 330R PL/X 65-145 50% of maximum model rating 100% of maximum model rating 24 A maximum 82R...

  • Page 396: Figure 93 Burden Resistor Values For Frames 1 - 3 With Jumper Selection

    680)Iarm 680)Iarm Current calibration (burden) resistors Drive Type BURDEN BURDEN OHMS OHMS (values in Ohms) measured burden resistance (Ohms) R100 R101 R102 R103 PL/X5 not fitted 10K5 166.66 PL/X10 83.33 PL/X15 66.5 55.55 * PL/X15 55.55 PL/X20 88.7 88.7 39.21 PL/X30 60.4 60.4...
  • Page 397 17.20 CONFIGURATION/DRIVE PERSONALITY/PASSIVE MOTOR SET This menu displays the passive motor set (either MOTOR 1 or MOTOR 2). You can change the values in the passive motor set here. For example, if MOTOR 1 is selected (as active) in (this is the default), 20)MOTOR 20)MOTOR 1,2 1,2 SELECT...
  • Page 398 PIN TABLE FOR PASSIVE MOTOR SET Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Values 11.4.7 JOG CRAWL SLACK / Jog/Slack ramp 0.1 –...
  • Page 399 17.21 CONFIGURATION / CONFLICT HELP MENU This menu identifies and warns of accidental User programming that has connected a single PIN to more than one GOTO. An automatic conflict check is performed at the end of ENTRY MENU ENTRY MENU LEVEL LEVEL each configuration session whenever you set...
  • Page 400 18 PIN tables PIN tables 18.1 CHANGE PARAMETERS: 1 – 122 PIN TABLE FOR CHANGE PARAMETERS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number...
  • Page 401 PIN TABLE FOR CHANGE PARAMETERS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 11.3.10 RUN MODE RAMPS / Ramp external preset 0 : DISABLED enable 1 : ENABLED...
  • Page 402 PIN TABLE FOR CHANGE PARAMETERS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 11.7.5 SPEED REF SUMMER / Speed/ Current 0 : NON-INVERT reference 3 sign 1 : INVERT...
  • Page 403 PIN TABLE FOR CHANGE PARAMETERS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 11.13.1 FIELD CONTROL / Field enable 0 : DISABLED 1 : ENABLED 11.13.2...
  • Page 404 18.2 DIAGNOSTICS: 123 – 170 PIN TABLE FOR DIAGNOSTICS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 12.2.1 SPEED LOOP MONITOR / Total speed ±300.00% 0.00%...
  • Page 405 PIN TABLE FOR DIAGNOSTICS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 12.5.1 ANALOG IO MONITOR / UIP5 analog input ±30.730 V 0.000 V monitor...
  • Page 406 18.3 MOTOR DRIVE ALARMS: 171 – 183 PIN TABLE FOR MOTOR DRIVE ALARMS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value...
  • Page 407 18.4 SERIAL LINKS: 184 – 244 PIN TABLE FOR SERIAL LINKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value Reserved Reserved...
  • Page 408 18.5 CONFIGURATION: 250 – 400 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 12.8 FIELDBUS / Anybus type diagnostic 0 : NOT FITTED 1 : NOT SUPPORTED...
  • Page 409 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.13.2 DOP1 (T22) SETUP / DOP1 OP comparator ±300.00% 0.00% threshold...
  • Page 410 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.11.7 DIO4 (T21) SETUP / DIO4 Input HI value ±300.00% 0.01% 17.11.8...
  • Page 411 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.4.13 UIP2 (T2) SETUP / UIP2 Threshold ±30.000 V 6.000 V 17.4.1...
  • Page 412 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.4.1 UIP6 (T6) SETUP / UIP6 Input range 0 : ±10 V 1 : ±5 V 2 : ±20 V...
  • Page 413 PIN TABLE FOR CONFIGURATION Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.4.1 UIP9 (T9) SETUP / UIP9 Input range 0 : ±10 V 1 : ±5 V 2 : ±20 V...
  • Page 414 18.6 APPLICATION: 401 – 680 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.1.1 SUMMER 1 / Total output value monitor ±200.00%...
  • Page 415 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.2.12 PID 1 / Pid1 integrator preset enable 0 : DISABLED 1 : ENABLED 16.2.13...
  • Page 416 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.3.6 PARAMETER PROFILER / Profile X-axis ±300.00% 100.00% maximum...
  • Page 417 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.6.13 TORQUE COMPENSATOR / Accel input/mon 0.00 –...
  • Page 418 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.9.1 MULTI-FUNCTION 3 Function mode 3 0 : C/O SWITCH or Jumper 1: COMPARATOR...
  • Page 419 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.10.4 LATCH / Latch set input PIN 563 0 : LOW 1 : HIGH 16.10.5...
  • Page 420 PIN TABLE FOR APPLICATION BLOCKS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 16.14.2 COMPARATOR 4 / Input 2 ±300.00% 0.00% 16.14.3...
  • Page 421 18.7 DRIVE PERSONALITY: 677 – 680 PIN TABLE FOR DRIVE PERSONALITY Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Property Paragraph Menu / Description Range Default number Value 17.19.1 DRIVE PERSONALITY / Recipe page...
  • Page 422 18.8 Hidden pins: 681 – 720 PIN TABLE FOR HIDDEN PINS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Paragraph Menu / Description Range Default number Value 10.7.1 POWER SAVED ONCE MON 0 : LOW...
  • Page 423 PIN TABLE FOR HIDDEN PINS Key to Properties: R = in REDUCED MENU, P = Not changed by 4-key reset, S = STOP DRIVE TO ADJUST Paragraph Menu / Description Range Default number Value 13.1 USER ALARM INPUT 0 : LOW 1 : HIGH 11.8 SPEED LOOP PI OP / Speed loop PI output monitor...
  • Page 424 19 Block diagram (default) Block diagram (default) Block diagram (default)
  • Page 425 Block diagram (default)
  • Page 426 Block diagram (default)
  • Page 427 Block diagram (default)
  • Page 428 We may, at our discretion, raise a charge for any faults without notifi cation. repaired that fall outside the warranty cover. www.sprint-electric.com Sprint Electric Limited, Peregrine House, Ford Lane, Ford, Arundel BN18 0DF, U.K. Tel: +44 (0)1243 558080 Fax:+44 (0)1243 558099 Email: info@sprint-electric.com...

This manual is also suitable for:

Plx seriesPlx 5Plx 10Plx 15Plx 20Plx 30 ... Show all

Table of Contents

Save PDF
