Sprint Electric 340XRi Product Manual

Model 340XRi / 680XRi / 1220XRi DC drive product manual HG102909 iss 9

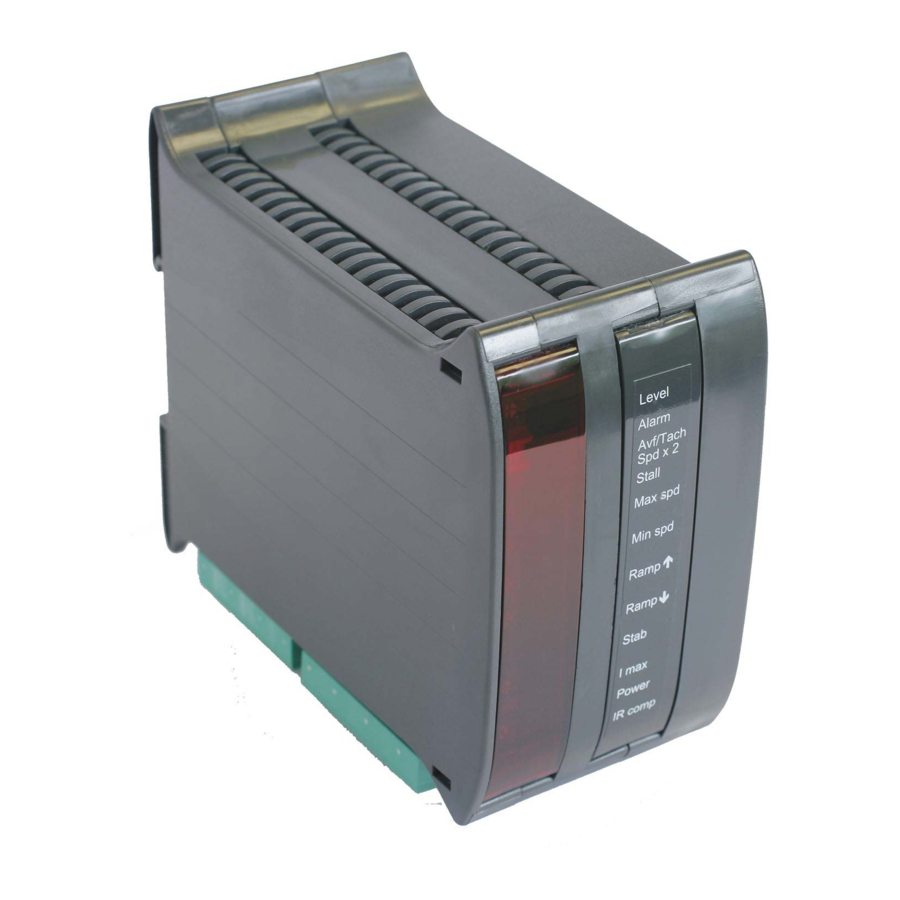

This drive is an isolated 4 Quadrant speed controller for shunt wound or permanent magnet motors. It utilises
speed feedback from the armature voltage (Avf), or from a shaft mounted tachogenerator. It incorporates an
accurate current control loop to protect the drive and motor, and can be used in speed or current control
modes. The drive can operate in forward or reverse, motoring or regenerative braking.
Please obtain expert help if you are not qualified to install this equipment. Make safety a priority. This
component is hazardous.

POWER RATING

Versions that work from 60V / 30V AC supply are also available.
340XRi / LV60, 680XRi / LV60, 1220XRi / LV60.

MAXIMUM OUTPUT

Ac Supply INPUT

SPEED RANGE

USER ADJUSTMENTS

Relay driver threshold (Level)
Maximum Speed (Max spd)
Minimum Speed (Min spd)
Up Ramp (Ramp )
Down Ramp (Ramp )
Stability
Maximum Current
Ir Compensation (IR comp)

EXTERNAL CONTROLS

Built in functions are+/- channel with pushbutton control inputs, and relay driver with variable
threshold. There is a pot kit available with graduated dial and knob. Sprint Electric part ref. POTKIT.

CONTROL ACTION

INSTALLATION

DOC# HG102909 iss 9 07/11/05
(
All specifications in this document are nominal).
340XRi
680XRi
1220XRi
Armature: +/-200 Volts DC, or +/-50V for LV60 models.
Models 340XRi / 680XRi /1220XRi - 3.4/ 6.8/ 12.2 Amps.
Field: Volts DC=
(0.45 x AC for field connected to F- and N).
110V AC or 240V AC +/-10%, 50–60 Hz.
30V AC or 60V AC +/-10%, 50-60Hz for LV60 models.
Speed range 0–100%. (motor dependant)
Load Regulation typically 0.2% tach, 2% Arm Volts.
Presets accessible under lift up cover.
Clockwise rotation for linear increase in parameter.
+/-(0.5% to 105%). (+/-10.5V) Symmetrical about zero.
40V-200V span with Spd x 2 switch. (Avf/Tach fb volts)
LV60 models have an Avf range 10 - 50V.
0 to 30% of maximum speed. (With 10K external pot).
20 to 1 seconds up ramp rate.
20 to 1 seconds down ramp rate
(Stab) Gain 1 to 10
0 to 100% current limit.
(I max)
0 to 25%
Speed setpoint from external 10K Ohms pot.
External RUN contact for electronic STOP/START.
Speed loop: Full P+I armature voltage feedback.
Current loop: Full P+I isolated current feedback.
Use correctly rated cable minimum 600V AC, 1.5 times
armature current.
Sprint Electric Limited, Arundel, UK
Tel.
Fax.
Email. info@sprint-electric.com
www.sprint-electric.com
0.55KW (0.5 HP) at 180 Volts DC, 3.4 Amps
0.75KW (1.0 HP) at 180 Volts DC, 6.8 Amps
1.80KW (2.0 HP) at 180 Volts DC, 12.2 Amps
For motors rated up to 48V DC
0.9 x AC supply volts.
+44 (0)1903 730000
+44 (0)1903 730893
1 Amp
1 Amp.
(For 0 to +10V)
(For +10 to 0V)
