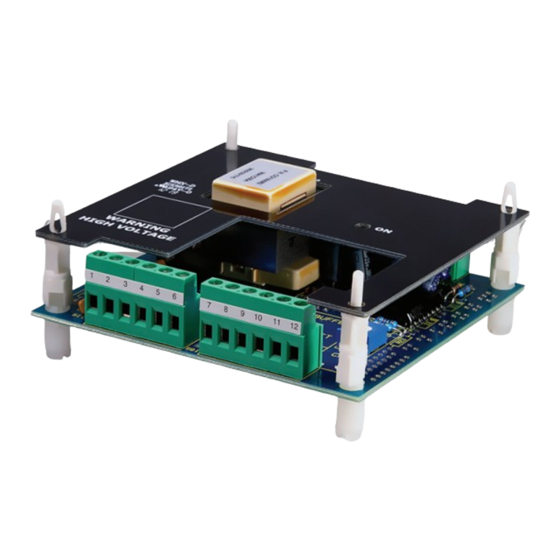

- Page 1 World Class Design | World Class Function | 30 Years Expertise in Industrial Motor Control BUFFER BOARD Option CON113 Product Manual HG105408EN00 Issue 1 (01/2022)
- Page 2 Please read this information before installing or using the product. Install, use and maintain this product following the procedures provided. The manual(s) cannot provide all details, variations and contingencies required for your installation, operation and maintenance of this product or the apparatus with this product installed.
- Page 3 WARNING! Only qualifi ed personnel must install, operate and maintain this equipment. A qualifi ed person is someone technically competent and familiar with all safety information, established safety practices, installation, operation, maintenance and the hazards involved with this equipment and any associated machinery. Hazards This equipment can endanger life through rotating machinery and high voltages.
- Page 4 Products that must be recycled in accordance with the WEEE Regulations are marked with the symbol opposite. Contact us when recyling the product. SPRINT ELECTRIC LTD. does not Health and Safety at Work accept any liability whatsoever for Devices constitute a safety hazard.
- Page 5 1 Introduction Introduction APPLICATION AREA: Industrial (non-consumer) "Motor speed control utilising DC Motors". This product conforms to IP00 protection. The Sprint-Electric Buffer Board has five Operational Amplifier channels, with dedicated inputs and outputs, to provide a generic PID control function: CHANNEL 1 and CHANNEL 2 Differential Amplifier CHANNEL 3 and CHANNEL 4...
- Page 6 2 Installation Installation WARNING! ELECTRIC SHOCK HAZARD Disconnect the mains supply before working on the unit. DO NOT TOUCH PRESETS, SWITCHES AND JUMPERS! Always use the correct insulated adjustment tools. Mount the unit in a suitable enclosure. Do not allow contact of the enclosure with the drive board electronics. 5 mm 90 mm Terminals 19 - 24...
- Page 7 for R1=R3 and R2=R4 3 Channel information Channel information RAMP RATE REFERENCE OUTPUT FEEDBACK CH4 DIFF GAIN K1 INTEGRATOR CLOSE TO PRESET INPUT PRESET INTEGRATOR CH3 SCALE High gain differential amplifier Channels Default operating mode CHANNEL 1 Differential CHANNEL 1 DIFFERENTIAL AMPLIFIER CHANNEL 1 only +12 V amplifier having...
- Page 8 We may, at our discretion, raise a charge for any faults without notifi cation. repaired that fall outside the warranty cover. www.sprint-electric.com Sprint Electric Limited, Peregrine House, Ford Lane, Ford, Arundel BN18 0DF, U.K. Tel: +44 (0)1243 558080 Fax:+44 (0)1243 558099 Email: info@sprint-electric.com...
