Anybus
Communicator
RTU/Serial

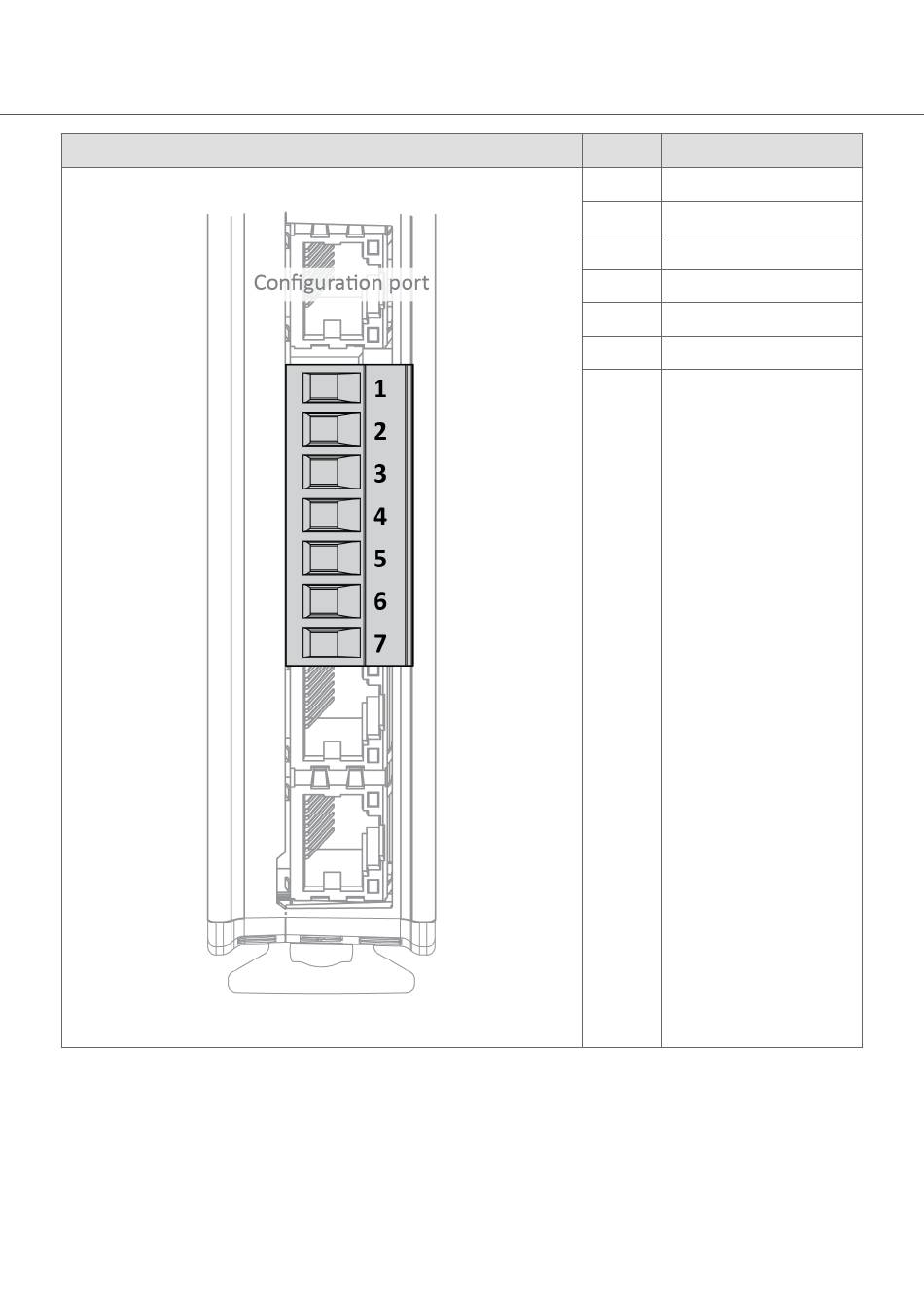

7-pin connector
Page 12 of 28
- PROFINET to Modbus
Connect to Serial RS232/RS485 Subnetwork
Pin
Signal
1
+5 V OUT
2
RS485+ A
3
RS485- B
4
Signal GND
5
Functional Earth (FE)
6
RS232 Tx Transmit Data
7
RS232 Rx Receive Data
SP2954 Version 1.12
