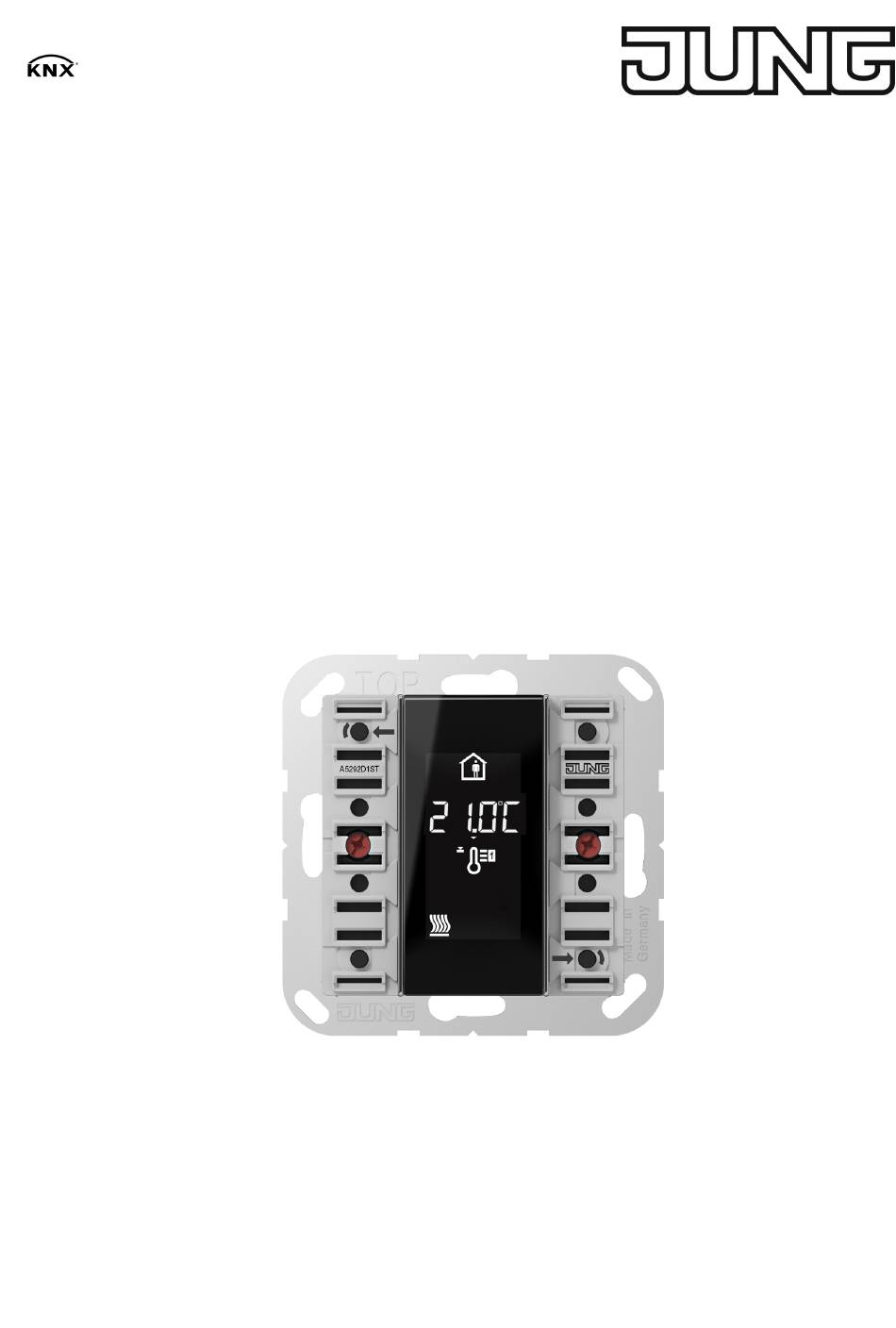

Operating instructions
Room controller display module 2-gang
Art. no. ..5292 D1 ST
Room controller display module 4-gang
Art. no. ..5294 D1 ST
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Product image non-binding
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
07.02.2024
32409003 j0082409003
www.jung.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 5292 D1 ST Series
Summary of Contents for Jung 5292 D1 ST Series
- Page 1 Operating instructions Room controller display module 2-gang Art. no. ..5292 D1 ST Room controller display module 4-gang Art. no. ..5294 D1 ST ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Product image non-binding Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
-
Page 2: Table Of Contents
Room controller display module 2-gang, Room controller display module 4- gang Table of contents Safety .......................... 3 System information ...................... 3 Intended use ........................ 3 Product characteristics ..................... 4 Operation .......................... 4 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 6.1.1 Commissioning.................. -
Page 3: Safety
The device can be updated. Firmware can be easily updated with the Jung ETS Ser- vice App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. -
Page 4: Product Characteristics
Room controller display module 2-gang, Room controller display module 4- gang Product characteristics All buttons can be assigned with push-button sensor functions or functions for con- troller operation. – Back-lit LC display – One or two functions per button – Completion with set of buttons –... - Page 5 Room controller display module 2-gang, Room controller display module 4- gang Operating modes and indication icons The device compares the current room temperature with the setpoint temperature and controls heating or cooling devices according to the current demand. The set- point temperature depends on the current operating mode and can be changed by the user, depending on the programming.
- Page 6 Room controller display module 2-gang, Room controller display module 4- gang – Change for Heating night mode – Change for Cooling night mode – Presence mode – Setpoint shift – Changing the operating mode – Fan controller – Current room temperature indication –...
-
Page 7: Information For Electrically Skilled Persons
Room controller display module 2-gang, Room controller display module 4- gang Information for electrically skilled persons DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Cover up live parts in the installation environment. Mounting and electrical connection Mounting and connecting the device Figure 3: Mounting of room controller module Figure 4: Rear view, room controller module... -
Page 8: 6.1.1 Commissioning
Room controller display module 2-gang, Room controller display module 4- gang Box screws Remote sensor connection (optional) DANGER! Device defect if KNX voltage is applied between one of the KNX terminals and one of the other connections. The device can be damaged. Only connect the KNX voltage to the device connection terminal (7) with the red and black bus terminal. - Page 9 Room controller display module 2-gang, Room controller display module 4- gang Figure 5: Activating programming mode ￭ Activate programming mode: Press and hold push-button at the upper left (10). Then press push-button at the lower right (11). The top status LEDs flash blue at 8 Hz. The display alternately shows Prog and the firmware version.
-
Page 10: Flashing Frequencies Of The Leds
Room controller display module 2-gang, Room controller display module 4- gang The safe-state mode is activated. The top LEDs flash slowly (approx. 1 Hz, blue) and SAFE is shown on the display. Only release the buttons when the upper LEDs are flashing. Deactivating safe-state mode ￭... -
Page 11: Technical Data
..5094TSEM External temperature sensor FFNTC Warranty The warranty is provided by the specialist trade in accordance with statutory require- ments. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de... - Page 12 Room controller display module 2-gang, Room controller display module 4- gang www.jung.de 32409003 12 / 12 07.02.2024 j0082409003...
