Operating Instructions
Hygrostat

Table of contents

1. Safety instructions ............................................................................ 2
2. Device layout ..................................................................................... 2
3. Function ............................................................................................. 2
3.1. Designated use ............................................................................. 2
3.2. Product features............................................................................ 3
3.3. Automatic mode ............................................................................ 3
3.4. Manual mode ................................................................................ 3
3.5. Party mode.................................................................................... 3
3.6. Standby mode............................................................................... 3
4. Operation............................................................................................ 4
4.1. Setting the humiditiy manually ...................................................... 4
4.2. Dehumidifying the ambient air manually....................................... 4
4.3. Activating the party mode ............................................................. 4
4.4. Activating the standby mode......................................................... 4
4.5. Switching back to automatic mode ............................................... 5
4.6. Cleaning the hygrostat.................................................................. 5
5. Fitting and electrical connection ..................................................... 5
5.1. Fitting and connecting the device ................................................. 5
6. Annex.................................................................................................. 7
6.1. Technical data............................................................................... 7
6.2. Help in case of trouble .................................................................. 7
6.3. Guarantee ..................................................................................... 7
Hygrostat
Ref.-no.: ..5201 HYG..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5201 HYG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Jung 5201 HYG Series

Summary of Contents for Jung 5201 HYG Series

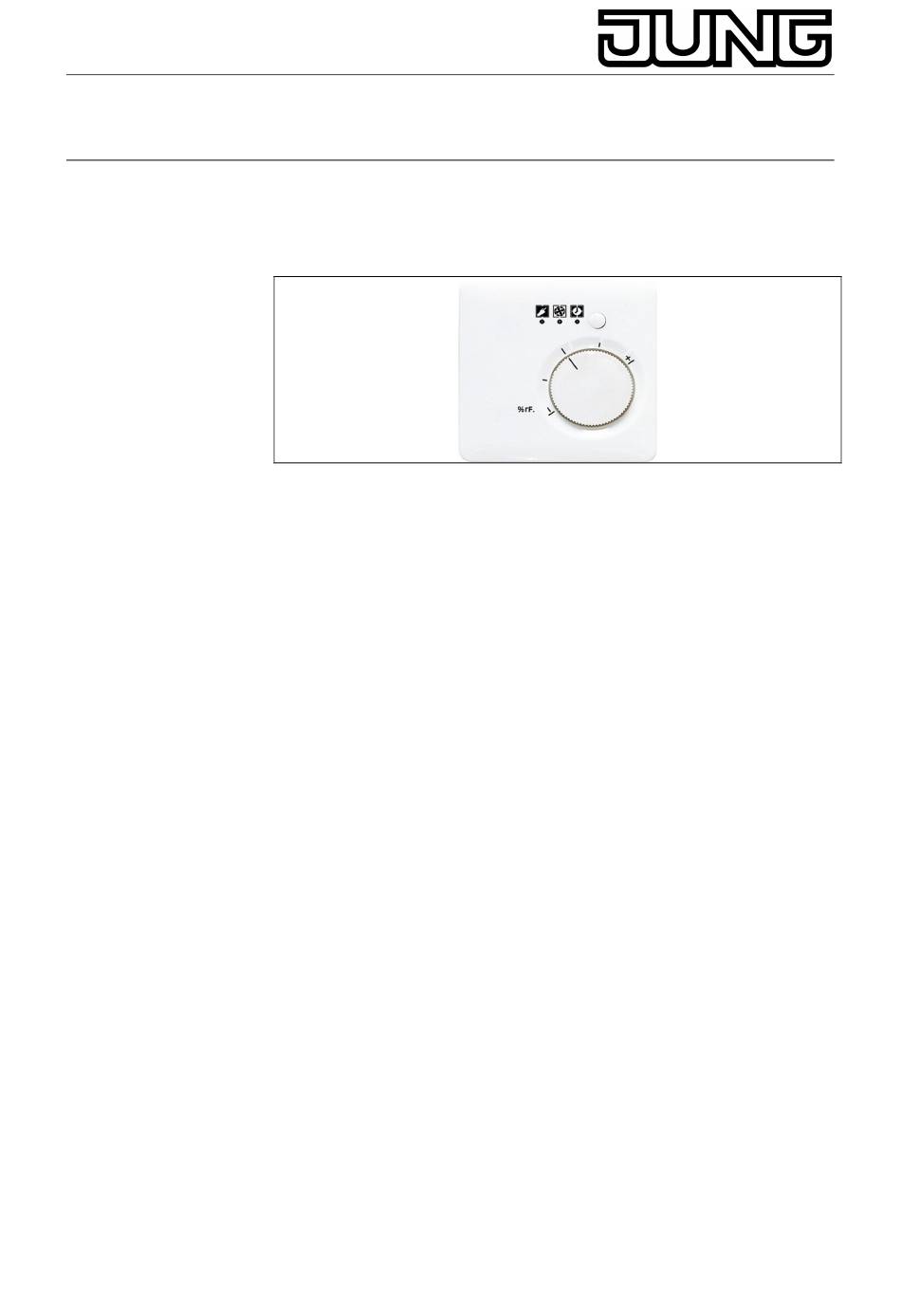

  • Page 1 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. Operating Instructions Hygrostat Table of contents 1. Safety instructions ................2 2. Device layout ..................2 3. Function ..................... 2 3.1. Designated use ................2 3.2. Product features................3 3.3. Automatic mode ................3 3.4.
  • Page 2 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. 1. Safety instructions Electrical equipment must be installed and fitted by qualified electricians only. Before working on the device, disconnect the supply voltage (by cutting out the circuit breaker) to avoid the risk of an electric shock. Failure to observe the instructions may cause damage to the device and result in fire or other hazards.
  • Page 3 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. 3.2. Product features • Measurement of room temperature and air humidity to determine the optimal content of moisture in the air • Control of heating and ventilation appliances for the removal of moisture in rooms •...
  • Page 4 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. 4. Operation 4.1. Setting the humiditiy manually The center position of the control knob corresponds to approx. 55 % relative humidity, which is generally considered just right for comfort. The device must be in the automatic mode of operation. The device has been enabled for free selection of the humidity with the control knob (Fig.
  • Page 5 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. 4.5. Switching back to automatic mode • Press the mode-of-operation selector longer. After abt. 5 s, the hygrostat switches back to the automatic mode of operation. yellow: off, LED green: off, LED red: off When the relay is switched on in the automatic mode, the green LED is on.
  • Page 6 Temperature Management Hygrostat Ref.-no.: ..5201 HYG.. Install the hygrostat in a place shielded from direct sunlight, draughts and heat radiation from nearby electrical appliances as, for instance, cooking ranges or refrigerators. Do not install the hygrostat above or in the vicinity of heating appliances. If possible, install the hygrostat only on a base behaving neutrally in the presence of moisture.
  • Page 7 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
