- Page 1 9A UPS 9A EBM Advance user guide T LOAD OUTPU BATTE INPUT CT ENTE OFF SELE T LOAD OUTPU BATTE INPUT CT ENTE OFF SELE LOA D OUT PUT TER Y T BAT INPU ENT ER SEL ECT...
- Page 3 Copyright © 2024 EATON All rights reserved.
- Page 4 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. The 9A models that are covered in this manual are intended for installation in an environment within 0 to 40 °C, free of conductive contaminant. Please check section "6.1 Equipment care", page 28, for additional information.
- Page 5 ෮ Do not lay tools or metal parts on top of batteries. ෮ Disconnect charging source prior to connecting or disconnecting battery terminals. ෮ Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any part of a grounded battery can result in electri- cal shock.
- Page 6 EATON representative. • All repairs and service should be performed by AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS inside the UPS. • For potential safety issue on defective UPS: DISCONNECT INTERNAL BATTERY for storage and transportation.
-
Page 7: Table Of Contents
Contents Introduction ....................1 1.1 Environmental protection ................1 1.2 Benefits ......................3 Presentation ...................4 2.1 Standard installation ..................4 2.2 Rear panel ......................5 2.3 Optional accessories ..................8 Installation ....................9 3.1 Inspecting the equipment ................9 3.2 UPS Tower 1-3KVA ................... 9 3.3 EBM Tower 1-3KVA .................. - Page 8 7.2 Service and support..................34 Specification and technical characteristics ..........35 8.1 Electrical input ....................35 8.2 Electrical output .................... 36 8.3 Battery ......................36 8.4 Environmental and safety ................37...
-
Page 9: Introduction
Follow the indications in the quick start guide and if necessary, refer to this advance user guide. To discover the entire range of Eaton products, we invite you to visit our web site at eaton. com or contact your Eaton local representative. - Page 10 Follow all local regulations for the disposal of packing materials. End of life Eaton will process products at the end of their service life in compliance with local regula- tions. Eaton works with companies in charge of collecting and eliminating our products at the end of their service life.
-
Page 11: Benefits
- causing hours of lost productivity and expensive repairs. With the Eaton 9A, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. Providing outstanding performance and reliability, the Ea- ton 9A’s unique benefits include:... -
Page 12: Presentation

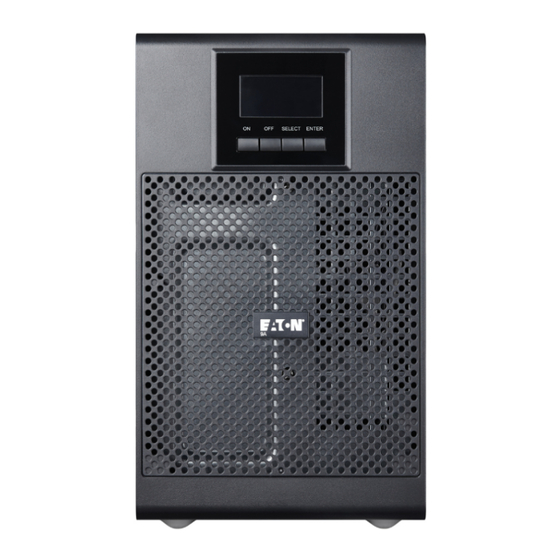

9A UPS 1-3K Presentation 2.1 Standard installation Tower Installation LOA D OUT PUT BAT TER INP UT TE R LEC T EN OF F SE Rack Installation T LO OU TPU BA TTE INP UT EN TE R SE LE CT... -
Page 13: Rear Panel
9A UPS 1-3K Weights and dimensions: Catalog Number Weights (kg) Dimensions: D x W x H (mm) 9A1000I 355*145*230 9A2000I 17.8 400*190*325 9A3000I 23.5 400*190*325 9A1000IR 12.6 435*438*86 9A2000IR 19.3 435*438*86 9A3000IR 27.9 608*438*86 9AEBM24 18.8 355*145*230 9AEBM48 36.7 400*190*325 9AEBM72 36.7... - Page 14 9A UPS 1-3K 9A2000I RS232 BATTERY CONNECTOR OUTPUT BREAKER 250VAC,16A INPUT 9A3000I RS232 BATTERY CONNECTOR OUTPUT Imax 10A BREAKER 250VAC,20A OUTPUT INPUT RS232 communication port EPO port (Emergency Power Off) USB communication port Input breaker Input AC power source Output outlets 10A...
- Page 15 9A UPS 1-3K 9A1000IR 9A2000IR BREAKER 250VAC,16A INPUT 9A3000IR OUTPUT BREAKER 250VAC,20A Input AC power source Input breaker Slot for optional communication card USB communication port RS232 communication port EPO port (Emergency Power Off) Output outlets 10A Output outlets 16A...
-
Page 16: Optional Accessories
9A UPS 1-3K 9AEBM24/9AEBM48/9AEBM72 1. Connectors for battery modules (to the other battery modules). 2. Power cord for battery modules or UPS. 9AEBM24R & 9AEBM48R & 9AEBM72R 2.3 Optional accessories Part Number Description 9AEBM24 Extended Battery Module for 9A1000I 9AEBM48... -
Page 17: Installation
9A UPS 1-3K Installation 3.1 Inspecting the equipment If any equipment has been damaged during shipment, keep the shipping cartons and pack- ing materials for the carrier or place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a claim for concealed damage. - Page 18 9A UPS 1-3K B-Installation If you ordered other UPS accessories, refer to specific user manuals to check the tower installation with the UPS. T LO AD OU TPU BA TTE INP UT TE R LE CT EN OF F SE 1.
-
Page 19: Ebm Tower 1-3Kva
9A UPS 1-3K 1. 9A1000I / 2000I: connect the UPS input socket (250V - 10A) to the AC-power source ② using the cable of the protected equipment. 9A3000I: connect the cable (250V - 16A) to the UPS input socket , then to the AC-power source. -
Page 20: Ups Rack 1-3Kva
9A UPS 1-3K B-Connecting the EBM 1. Plug the EBM power cable(s) into the battery connector(s). Up to 4 EBMs may be con- nected to the UPS. 2. Verify that the EBM connections are tight, and that adequate bend radius and strain relief exist for each cable. - Page 21 2. Attach the rail on the front of the rack using the two holes at the bottom. 3. Attach the mounting kit plate to the UPS. 4. Place the UPS on the rails and fix the mounting plate to the top hole of the rail. The rails and necessary hardware are supplied by Eaton.
-
Page 22: Ebm Rack 1-3Kva
9A UPS 1-3K C-UPS Connection Check that the indications on the name plate located on the top of the UPS meets to the AC-power source and the true electrical consumption of the total load. 1. For 9A1000IR and 9A2000IR connect the UPS input socket to the AC-power source ①... - Page 23 2. Attach the rail on the front of the rack using the two holes at the bottom. 3. Attach the mounting kit plate to the UPS. 4. Place the UPS on the rails and fix the mounting plate to the top hole of the rail. The rails and necessary hardware are supplied by Eaton.
-
Page 24: Connection Other Accessories
To increase stability, it is preferable to place the EBM below the UPS. Extension Battery Module (EBM) Eaton 9AEBM24R is compatible only with 9A1000IR UPS, Eaton 9AEBM48R is compatible only with 9A2000IR UPS and Eaton 9AEBM72R is compatible only with 9A3000IR UPS. UPS must be switched off and disconnected from the power supply prior to battery installation. -
Page 25: Interfaces And Communication
9A UPS 1-3K Interfaces and communication 4.1 Display and Buttons The screen provides useful information about the UPS input, output, load, setting and fault information. INPUT BATTERY OUTPUT LOAD The following table shows the description of LCD button: Switch Function Turn on UPS system: By pressing the “ON”... -
Page 26: Lcd Description
9A UPS 1-3K 4.2 LCD description In order to make sure all segments are OK, LCD begins to do self-test after power on. During self-test, all the segments will be lighted for 2 seconds, then the LCD will turn to normal display status. -
Page 27: Measurement And Working Mode Display
9A UPS 1-3K 4.3 Measurement and working mode display The front panel will be used to display some important information of UPS. The LCD first show the “STbY” mode (standby mode) after UPS connected to AC power source, turn on the UPS and press the function button repeatedly to display a different display screen until the desired screen appears. -
Page 28: User Setting
9A UPS 1-3K Graphic example Description ECO mode It is also called high efficiency mode. In ECO mode, on LCD display, the mode sting is “ECO”. After the UPS is turned on, the power used by the load is supplied from the... - Page 29 9A UPS 1-3K The following table displays the options that can be changed by the user: Submenu Available setting Default setting [230] [240] [220] [230] [ASF] [50] [60] [ASF] bYPA [000] [001] [000] ① MOdE [UPS] [ECO] [CVF] [UPS] EbPN...
- Page 30 9A UPS 1-3K Here is a example for changing the Operating mode from normal mode to converter mode through the LCD panel. Step 1: “OPV” after pressing the “Enter” button. INPUT BATTERY OUTPUT LOAD Step 2: “OPF” after pressing the “Select” button.
- Page 31 9A UPS 1-3K Step 4: “MOdE” after pressing the “Select” button, press the “Enter” button to set mode, then “UPS” flickering. INPUT BATTERY OUTPUT LOAD Step 5: “ECO” flickering after pressing button the “Select” button. INPUT BATTERY OUTPUT LOAD Step 6: “CVF” flickering after pressing the “Select” again. Press the “Enter” button to make sure to change the mode.
-
Page 32: Commeunication Ports
2. Connect the other end of the communication cable to the USB or RS232 communication port on the UPS. The UPS can now communicate with Eaton power management software. USB communication is higher priority than RS232, that means when USB and RS232 are connected at the same time, the RS232 communication will be disable and only USB communication is enable. -
Page 33: Epo (Emergency Power Off)
Enable the EPO status 4.7 Cybersecurity Eaton is committed to minimizing the Cybersecurity risk in its products and employs cyber- security best practices and the latest cybersecurity technologies in its products and solu- tions, making them more secure, reliable and competitive for our customers. Eaton also offers Cybersecurity Best Practices whitepapers to its customers, referenced at www.eaton. -
Page 34: Operation
9A UPS 1-3K Operation 5.1 Start-up and normal operation Check that the indications on the name plate located on the back of the UPS meets to the AC power source and the true electrical consumption of the total load. Starting the UPS on utility power Press “ON”... -
Page 35: Ups Shutdown
9A UPS 1-3K 5.3 UPS shutdown To shut down the UPS: Press the “OFF” button on the front panel for more than 1 seconds. The UPS will get into no output or bypass mode. At this time, the UPS might has output if bypass is enable. -
Page 36: Ups Maintenance
6.3 When to replace batteries Eaton UPS batteries have an expected life span of 3-5 years. After 4 years operation, you should take proactive steps to ensure batteries replacement for optimal operation and reli- ability,contact your service representative to order new batteries. - Page 37 9A UPS 1-3K Consider all warnings, cautions, and notes before replacing batteries. • Battery replacement should be performed by qualified service personnel knowledgeable of batteries and required precautions. Keep unauthorized personnel away from batteries. • When replacing batteries, replace with the same type and number of batteries or battery packs.
- Page 38 9A UPS 1-3K 7. Verify that the replacement batteries have the same rating as the batteries being re- placed. 8. Put the new battery pack into the UPS. Push the battery pack firmly to ensure a proper connection. 9. Reassemble in the reverse order.
-
Page 39: Recycling The Used Equipment
9A UPS 1-3K Warning: take care not to reverse the polarity + (red) and - (black) when connecting the batteries as this will destroy the device. Testing new batteries To test new batteries: 1. Charge the batteries for 48 hours. -
Page 40: Troubleshooting
9A UPS 1-3K Troubleshooting The Eaton 9A is designed for reliable, autonomous operation while providing you with noti- fications and alerts whenever a potential operational or performance issues occur. Usually, the alarms shown by the product do not mean that the output power is affected. - Page 41 9A UPS 1-3K Conditions Possible cause Action Batteries not fully Charge the batteries for at least 5 - 8 hours and Emergency supply period shorter charged / batteries then check capacity. If the problem still persists, than norminal value. consult your dealer.
-
Page 42: Service And Support
9A UPS 1-3K 7.2 Service and support If you have any questions or problems with the UPS, call Eaton or your local service repre- sentative in your country / region. Please have the following information ready when you call for service: •... -
Page 43: Specification And Technical Characteristics
9A UPS 1-3K Specification and technical characteristics Bypass DC/AC Input AC/DC Output Inverter Filter Boost Filter DC/DC Battery Charger 8.1 Electrical input Default frequency 50Hz Nominal frequency 50/60Hz 45~55Hz (for 50Hz system); Frequency range 54~66Hz (for 60Hz system) Protective class... -
Page 44: Electrical Output
9A UPS 1-3K 8.2 Electrical output All models Normal mode High Efficiency mode Battery mode Voltage regulation ±1% ±1% Efficiency (1K/2K/3K) 90%/90%/91% Up to 97% Up to 85% Nominal output 220/230/240V Nominal Frequency 50Hz or 60Hz, autosensing or configurable as a frequency converter... -
Page 45: Environmental And Safety
9A UPS 1-3K 8.4 Environmental and safety IEC62040-1:2008+A1:2013, EN IEC 62040-1: 2019+A11:2021 Standards EN/IEC 62040-2 Electromagnetic Compatibility EMC (UPS EMC), category C2 IEC/EN 62040-3 Performance CISPR32 Class A EMC (Emissions) IEC/EN 61000-3-2 Flickers IEC/EN 61000-3-3 Harmonics IEC 61000-4-2, (ESD): 4kV Contact Discharge / 8kV Air Discharge... - Page 46 614-40302-00...
