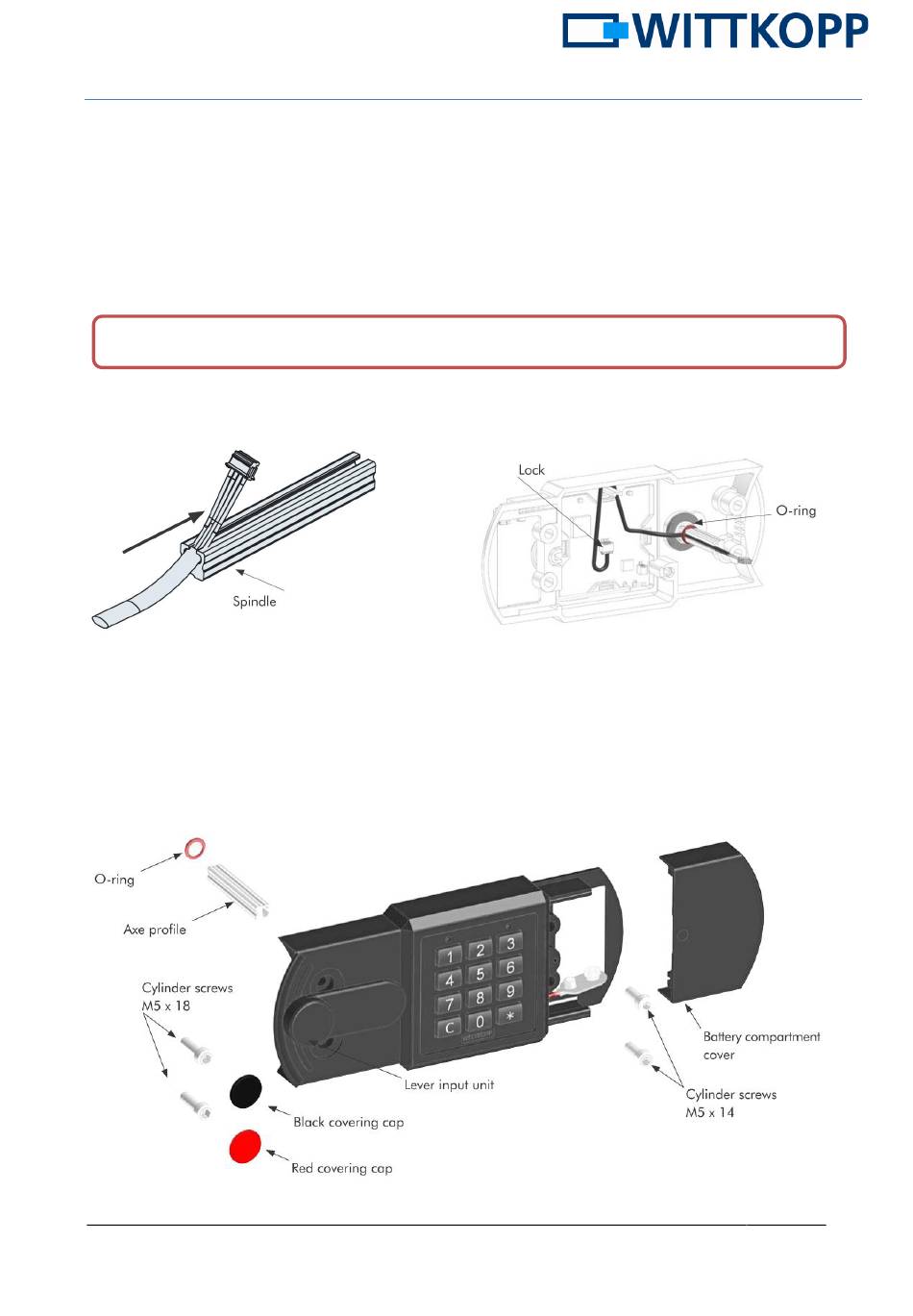

Cable guidance / plug position

Lead the connection cable through the
Spindle. Push the cable and the O-ring in
the direction of the arrow until the inset.

Installation

Fasten the input unit from the front with the
supplied M5 screws.
02 en_APxxx-Teil 2a-Errichterhandbuch Tastatur V2.05.docx
Don't put the connection cable under tensile stress.
Connect the plug of the cable with the plug
on the circuit board.
Then mount the cover caps and battery
compartment cover.
