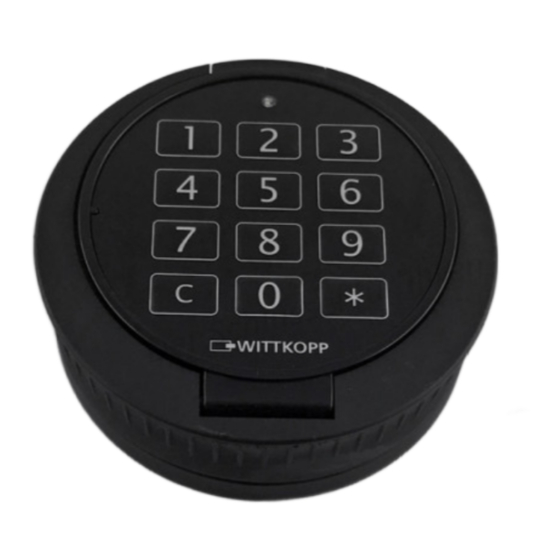

Anchor 4000
Installer manual
Installation and commissioning instructions
Note:
On the cover sheet you can find warning information, and an explanation of the symbols and
terms used, together with the exclusion of liability.
Mount the keypad before installing the electronic lock. All the keypads of the Primor series
can be used. Details on installing the keypads are given in the "Primor installation
instructions (see sections 3 to 7)".
Contents
General ................................................................................................................................. 2
Preparation for installation ..................................................................................................... 3
Installation dimensions ...................................................................................................... 3
Preparation of the boltwork / door ...................................................................................... 3
Installation ............................................................................................................................. 4
Wiring / installation ................................................................................................................ 5
Connection of an analog keypad ....................................................................................... 5
Connection P- signal plus / UART ..................................................................................... 6
Function test .......................................................................................................................... 6
Input of the opening code .................................................................................................. 6
Keypad test ....................................................................................................................... 7
System setup ........................................................................................................................ 7
en_A4000-Teil 2-Errichterhandbuch V2.03.docx
1 / 7
Advertisement
Table of Contents
Related Manuals for Wittkopp Anchor 4000 Series
Summary of Contents for Wittkopp Anchor 4000 Series
-
Page 1: Table Of Contents
Anchor 4000 Installer manual Installation and commissioning instructions Note: On the cover sheet you can find warning information, and an explanation of the symbols and terms used, together with the exclusion of liability. Mount the keypad before installing the electronic lock. All the keypads of the Primor series can be used. -
Page 2: General
Anchor 4000 Installer manual Installation and commissioning instructions General Locks of the Anchor 4000 series have It is essential that the lock is protected standard installation dimensions and can against attacks from outside. be mounted in all 4 installation positions recommend that you protect against access (right, left, top, bottom). -
Page 3: Preparation For Installation
Anchor 4000 Installer manual Installation and commissioning instructions Preparation for installation Installation dimensions Preparation of the boltwork / door For installation of the lock there must be screws or cylinder screws (minimum three threaded holes with 5 mm screw-in strength class 8.8). depth for attachment to the boltwork or The length of the screws must be 25 mm or within the safe door. -
Page 4: Installation
Anchor 4000 Installer manual Installation and commissioning instructions Installation The included toothed lock washer must be on the slanted sliding surfaces of the bolt used to attach the lock. To do this, turn the and when fully open on the bolt head. screws by a few turns, but only so far that Tighten up the retaining screws so as movement in the direction of the bolt is still... -
Page 5: Wiring / Installation
Anchor 4000 Installer manual Installation and commissioning instructions Tighten up the fastening screws to a The bolt of the lock may not be under maximum torque of 10 Nm. We recommend tension or pressure after installation. the use of a bolt locking agent (adhesive) to prevent the screws from coming undone by themselves. -
Page 6: Connection P- Signal Plus / Uart
Anchor 4000 Installer manual Installation and commissioning instructions Connection P- signal plus / UART Connection via the second port (see above) Additional hardware is required to do this. is always done if The lock is compatible with all the available ... -
Page 7: Keypad Test
Anchor 4000 Installer manual Installation and commissioning instructions Keypad test We recommend a final keypad test using function menu 5 to ensure that all the numeric keys function properly. ☼ Checking the menu system Press the keys in the Press each numeric key once.
