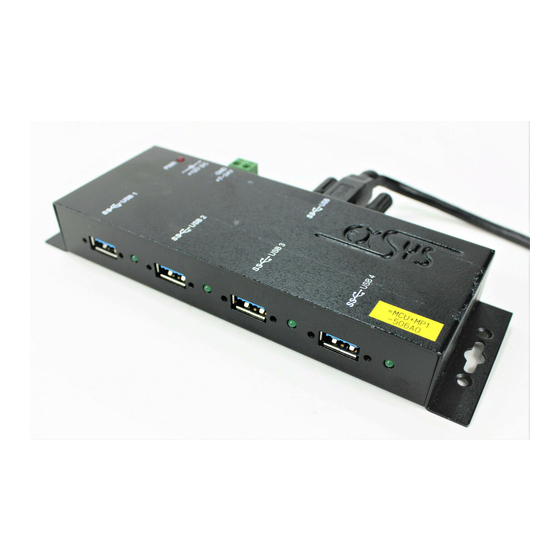

- Page 1 Manuale EX-1184HMV HUB 4 Porte USB 3.1 (Gen1) in Metallo, con blocco a vite 4 Port USB 3.1 (Gen1) Metal HUB, screw lock Vers. 1.0 / 21.02.18 Manu...
-
Page 2: Table Of Contents
3.1 Layout ····································································································· 10 3.2 Connections ························································································ 10-11 3.3 Jumper Settings ························································································ 12 Hardware Installation··········································································· 13 Driver Installation················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserve... -
Page 3: Descrizione
Italiano 1. Descrizione L’EX-1184HMV è un HUB con struttura in metallo USB 3.1 (Gen1) per aggiungere un massimo di 4 dispositivi. L'HUB è dotato di 4 porte IN/OUT e 1 porta per il collegamento al PC. Supporta tutte le porte USB da 1.1 a 3.1. Inoltre è possibile avvitare ogni dispositivo alla porta UBS della EX-1184HMV. -
Page 4: Layout, Connessioni E Impostazioni Dei Jumper
Non collegare mai l'alimentazione a terra (GND), questo può distruggere il tuo hardware !!! GND (Ground) +7V - 24V 12V Presa di Corrente: ATTENZIONE !!! Usare solo con alimentatore incluso!!! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 5 Non collegare mai con forza o nella direzione sbagliata USB 3.1 (Gen1) B-Porta: GND_DRAIN StdB_SSTX + StdB_SSTX+ Attenzione! StdB_SSTX - StdB_SSTX - Non collegare mai con forza o nella direzione VBus sbagliata © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Impostazioni Jumper
3. Layout, Attacchi & Impostazione Jumper 3.3 Impostazione Jumper EX-1184HMV viene fornito con l'impostazione Bus Power. Ma hai la possibilità cambiare l’uscita del’EX-1184HMV. Per fare questo devi prima aprire l'alloggiamento con le quattro viti sui lati. Ora è necessario impostare il ponticello JP1 da BUS (Bus- Powered) a SELF (Self-Powered). -
Page 7: Installazione Hardware
Si prega di osservare le seguenti istruzioni d’installazione. Poiché ci sono grandi differenze tra i PC,in questo caso possiamo solo darti una guida in generale per l'installazione della EX-1184HMV. In caso di domande, fare riferimento alle istruzioni d'uso (manuale) del computer. -
Page 8: Dati Tecnici
5% bis 95% Alimentazione : +7 fino a +24 Volt (con morsettiera) & +12 Volt Alimentatore Dimensione : 178,40 x 58,50 x 24,11 mm Peso : 850g 8. Disegno Tecnico © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
English 1. Description The EX-1184HMV is a plug & play high-speed USB 3.1 (Gen1) metal hub for 4 USB devices. The EX-1184HMV provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. Via a external power supply it is possible to provide a maximum of 900mA on each USB port. -
Page 10: Layout, Connections & Jumper Settings
+7V - 24V T-Block: ATTENTION!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V 12V Connector: ATTENTION!!! Use only with Power Supply which is included in delivery! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 11 Never plug in with force or in wrong direction. USB 3.1 (Gen1) B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. VBus © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 12: Jumper Settings
EX-1184HMV 3. Layout, Connections & Jumper Settings 3.3 Jumper Settings The EX-1184HMV will be delivered with the setting Bus-Power. But you have the pos- sibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 13: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 bis +24 Volt & +12 Volt Size: 178,40 x 58,50 x 24,11 mm Weight: 850g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
