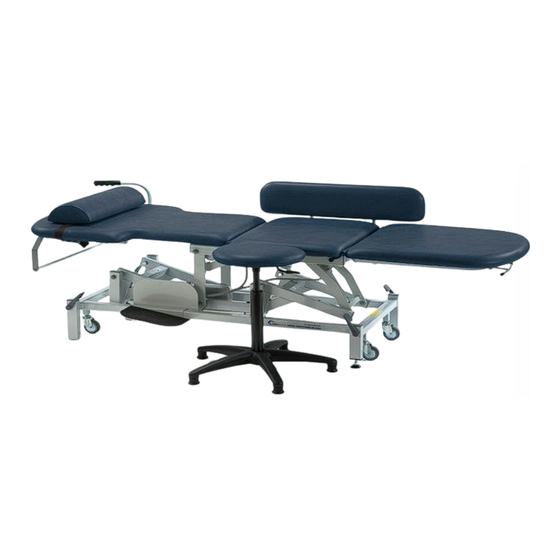

- Page 1 Instructions for Use SEERS Medicare Echocardiography Couch 03-07-011-SM | Issue 3...
- Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use 03-07-011-SM | ISSUE 3...
- Page 3 This Instructions for Maintenance document applies to the following products: Echocardiography Range: Models: SM3590, SM3690 03-07-011-SM | ISSUE 3...
-
Page 4: General Maintenance
1. General Maintenance CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these maintenance instructions are adhered to, the products will provide many years of safe use. If these instructions are NOT followed, your warranty could be invalid! Always keep these Instructions for Maintenance available for reference. -
Page 5: Cleaning Instructions
2. Cleaning Instructions WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT! IF THE PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 6 Chewing gum Place ice cubes in a plastic bag and apply on the chewing gum. Wait several minutes, lift the ice bag, and remove the chewing gum. DO NOT USE CHEMICALS, SADDLE SOAP, CLEANING SOLVENTS, FURNITURE POLISH, OILS, VARNISH, ABRASIVE CLEANERS OR AMMONIA IN WATER. Frequency of routine couch cleaning will depend on exact application.
-
Page 7: Maintenance
3. Maintenance WARNING Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. 1. - Page 8 Actions to be done by clinician Daily Weekly • Check the power cable and connecting leads on hand and foot switch controls, looking for any cuts, abrasions or any other deterioration that may have occurred and replace if necessary • Visually check castors •...
- Page 9 4. Preventative Maintenance 1- Hinge Pin: Remove the e-clip, tap them out, clean and grease them as necessary and ensure there is no sign of fatigue and refit them. 2- Lubrication of all the pivot points: It is important to keep the pivot points and moving parts lubricated to ensure smooth movement.
-
Page 10: Troubleshooting
5. TROUBLESHOOTING Fault Possible Cause Solution Electrical Mains cable has become Check beneath shroud to locate functions not disconnected, either from the wall control box and see whether the working correctly socket or the control box power light is illuminated and that the lead is connected at both ends. - Page 11 Fault Possible Cause Solution should also go to CPR position with backrest and horizontal foot sections lowered too horizontal. Mechanical faults Squeaking or A tight pivot point either a bolt or pin Locate the noisy pivot point, then grinding noise slacken the securing nut by ¼...
- Page 12 W: www.seersmedical.com © SEERS MEDICAL Limited 2024 Manufactured in the UK by SEERS MEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. Product Lifetime The lifetime of this equipment is typically 12 years from the manufacturing date.
- Page 13 03-07-011-SM | ISSUE 3...
- Page 14 03-07-011-SM | ISSUE 3...
- Page 15 03-07-011-SM | ISSUE 3...
- Page 16 03-07-011-SM | ISSUE 3...
- Page 17 03-07-011-SM | ISSUE 3...
- Page 18 03-07-011-SM | ISSUE 3...
- Page 19 03-07-011-SM | ISSUE 3...
- Page 20 03-07-011-SM | ISSUE 3...
- Page 21 03-07-011-SM | ISSUE 3...
- Page 22 03-07-011-SM | ISSUE 3...
- Page 23 : +44 (0)1728 861590 f : +44 (0)1728 861868 e : info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR.
