Main Back Board (S722)
Panel Module Slots
Board Slot C

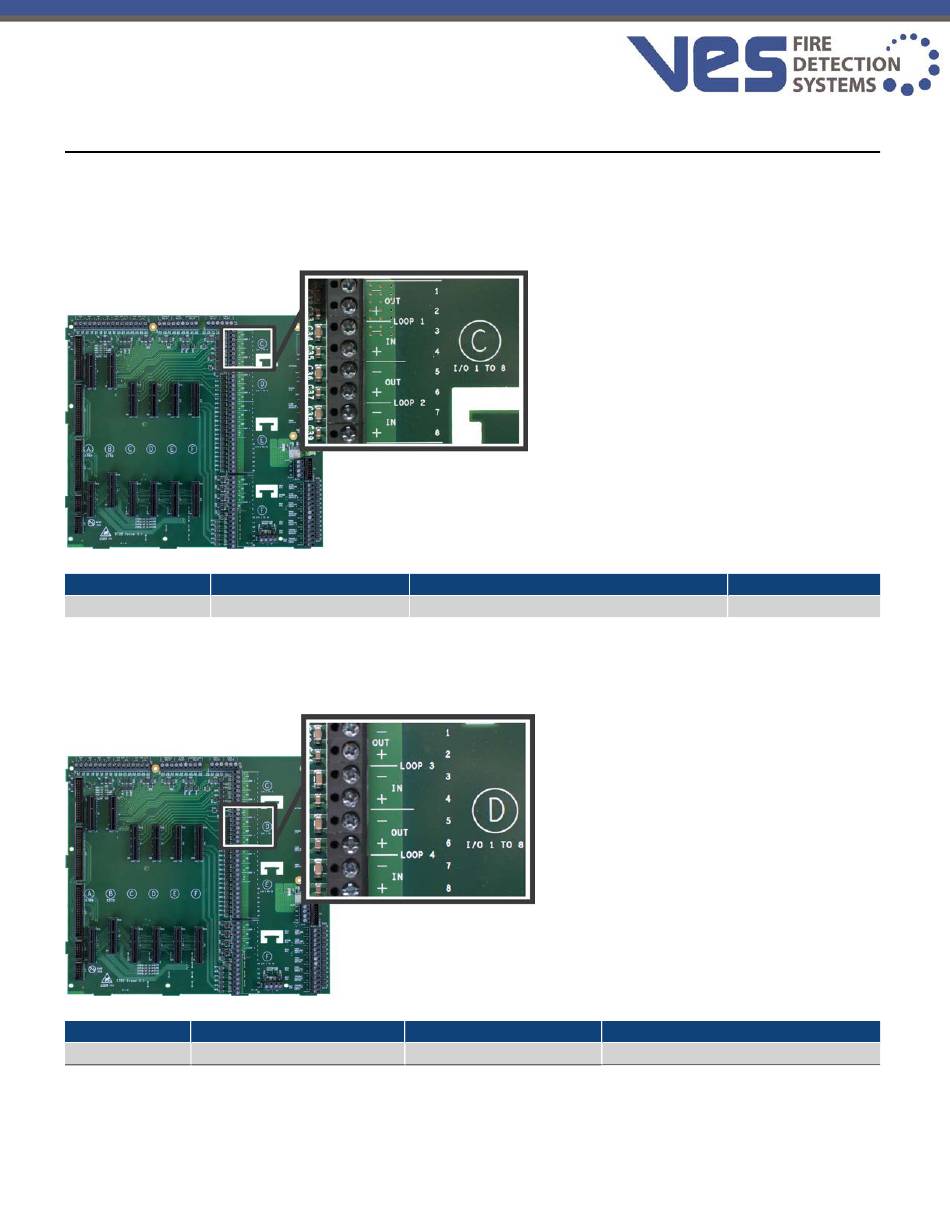

The following figure illustrates the Board Slot C terminals of loops 1 and 2:
Field Terminals
Board Location
1-8
Slot C
Board Slot D
The following figure illustrates the Board Slot D terminals of loops 3 and 4:
Field Terminals Board Location
1-8
Slot D
1-8
Slot D
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
Possible Panel Modules
Dual Loop Panel Module (pre-installed)
Possible Panel Modules
Dual Loop Panel Module
4 Channel NAC Panel
Module
Version 4.00 | January 2024 | MAN-1431COM
Function
Loop 1 and Loop 2
Function
SLC In / Out
NAC Outputs
Page 85
