Installing Municipal Boxes

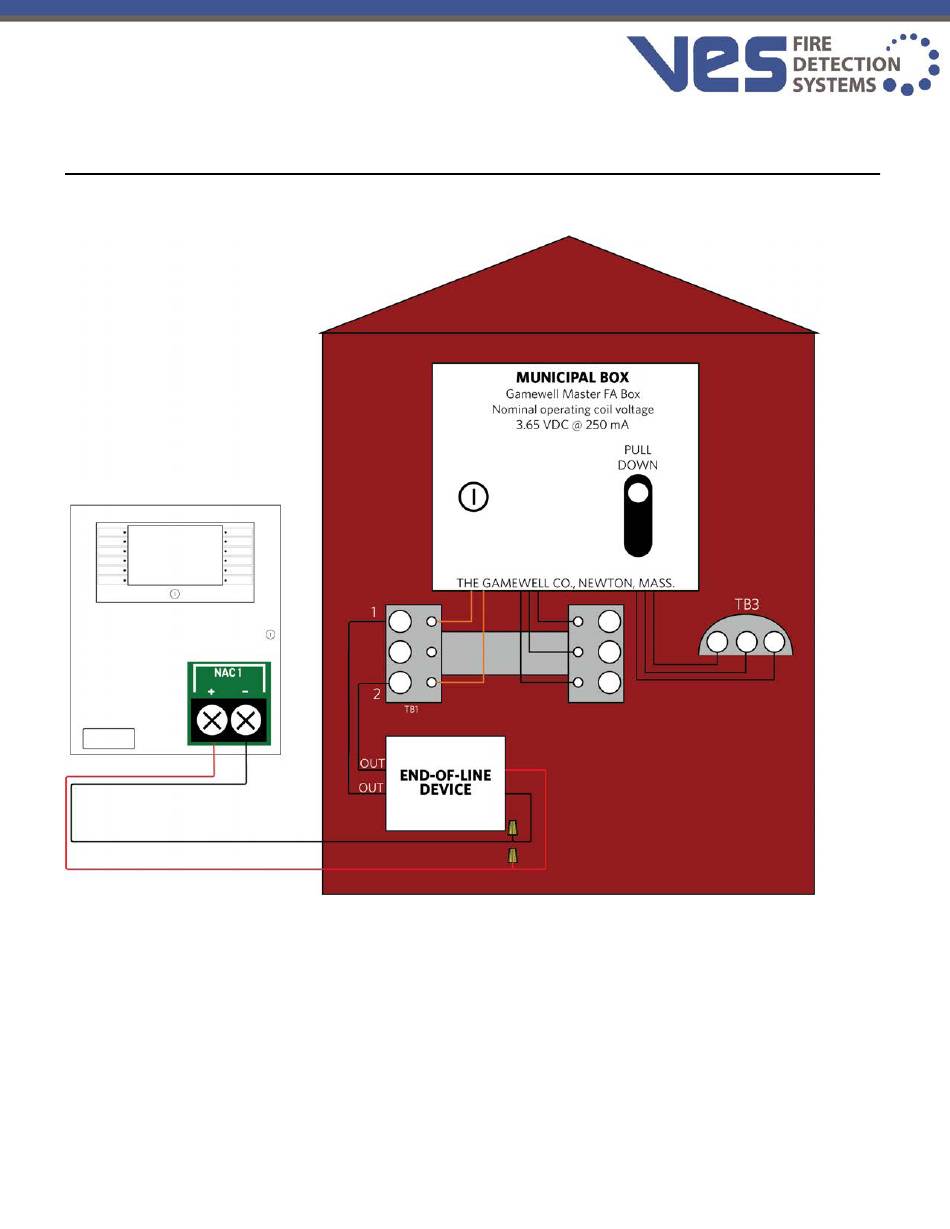

The figure below illustrates typical municipal box connections of the Compas Fire Alarm Control Panel:
Perform this installation to connect the Gamewell Master F. A. Box for municipal-station notification. Install this
product in accordance with NFPA 72, NEC 70, the National Electrical Code and all local codes. The NAC output
can provide a non-pulsing, regulated 24 VDC, 2.5A maximum output when a fire condition is reported to the
Compas Panel. The OUT leads of the EOLD (K14070) shall connect directly to the terminal block of the
municipal box.
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
Version 4.00 | January 2024 | MAN-1431COM
