Network; Rs-485 I/O - VES Compas Fire Alarm Control Panel Installation Manual

Each relay can be configured independently through Loop Explorer 2 or the panel GUI using Access Level 3.
Refer to the Programming the Panel
these field terminals.

Network

These terminals provide Class X connections for intra-panel and annunciator networking and allow for individual
panels to communicate the following data with each other:
1. Trouble, Supervisory signals
2. Alarms: CO, Fire
3. Other events tab information
Data passed can be reported at each panel GUI and trigger panel responses such as the buzzer or fire alarms.
Networked panels that go off-line will appear as missing at networked panels. Refer to
wiring information.

RS-485 I/O

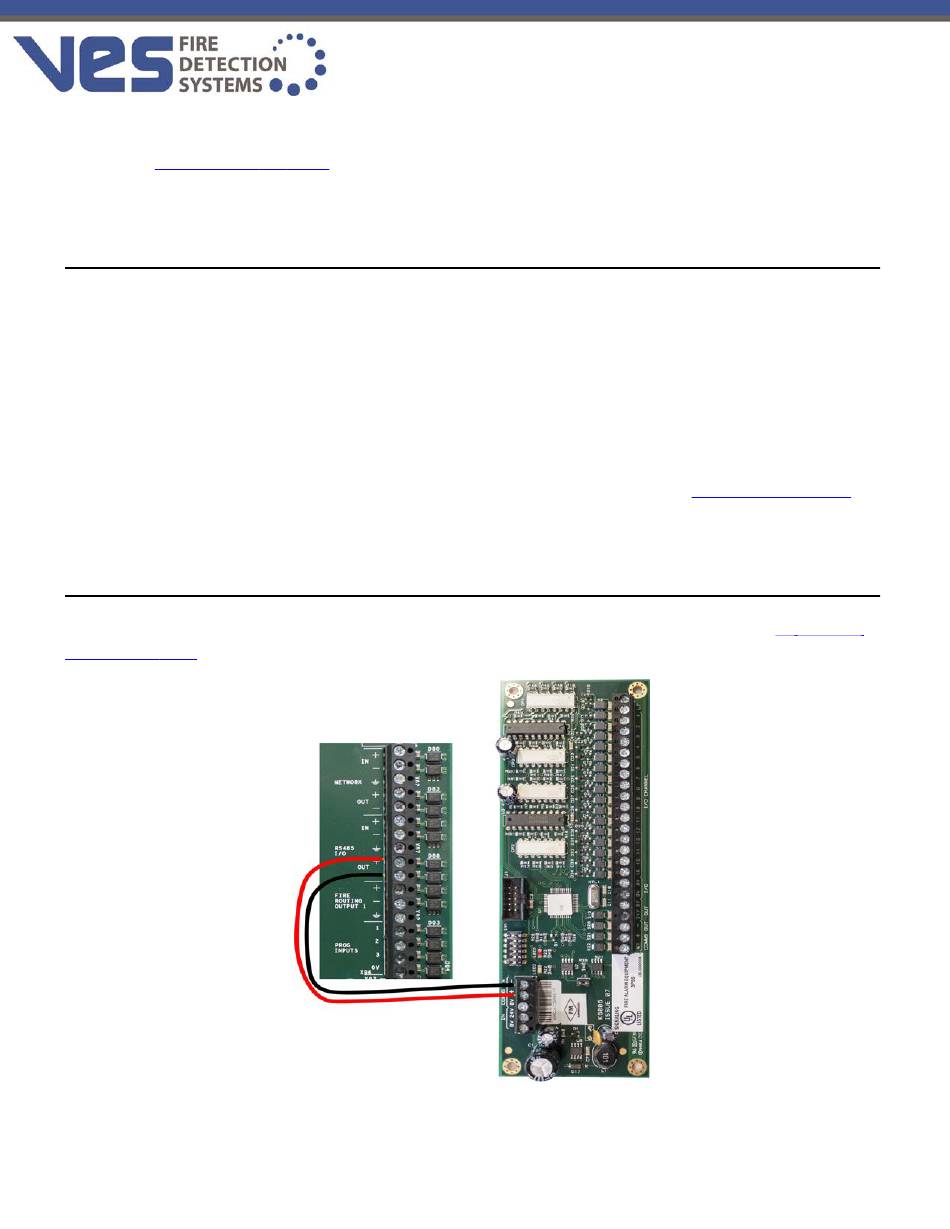

These terminals provide data communication between the panel and legacy products, such as the
I/O Interface Card. Connections are:
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
for LE2 information. Refer to Specifications for operating characteristics of
Network Connections
Version 4.00 | January 2024 | MAN-1431COM
Installation
for
16 Channel
Page 44
