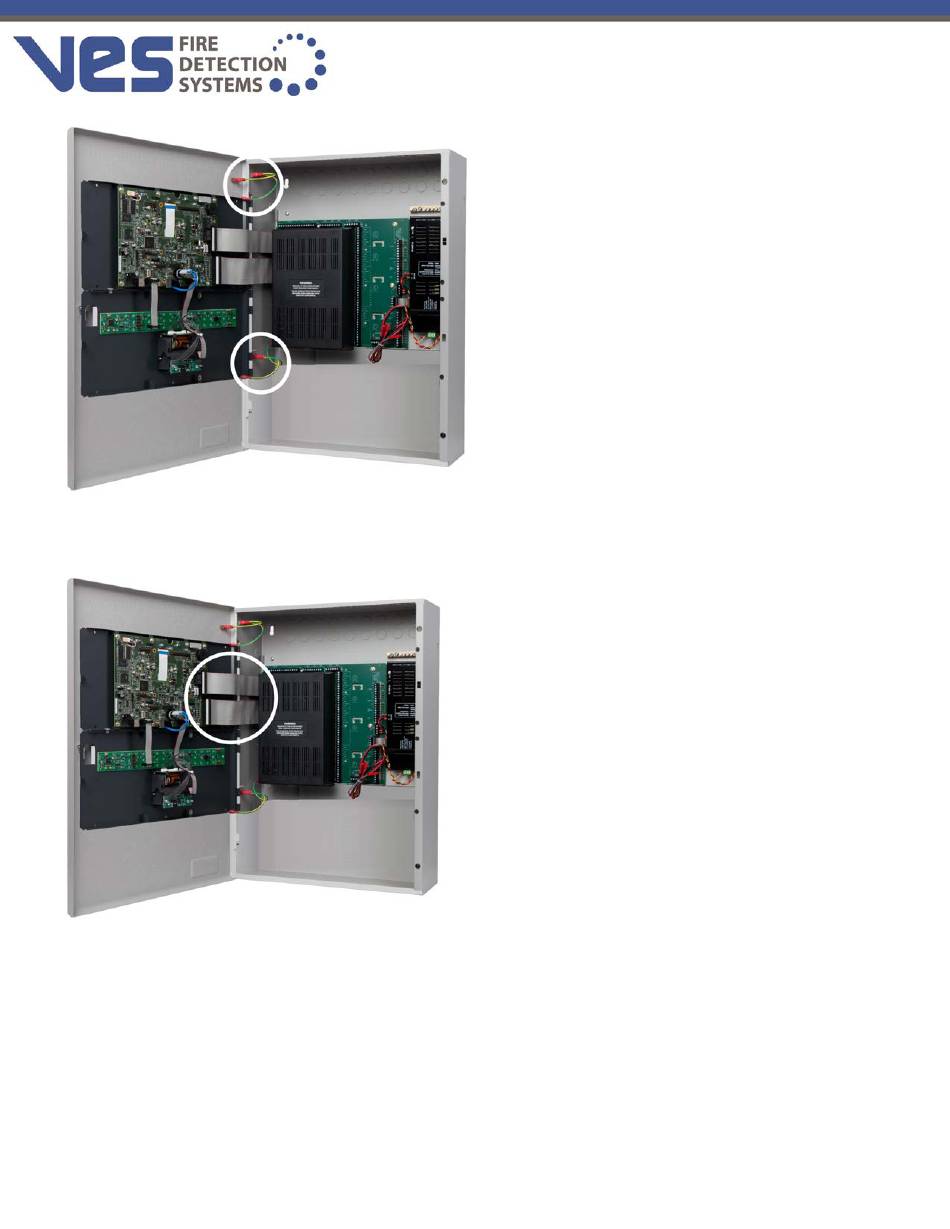

2. Disconnect the ribbon cables from the LCD Main Processor Board, leaving the cable ends connected to the Main
Back Board.
3. Remove the hinge pins of the fascia and then remove it from the cabinet box. Return the hinge pins to the hinges of
the cabinet box for safekeeping.
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
Version 4.00 | January 2024 | MAN-1431COM
Installation
Page 22
