Installation

Preparing for Installation

1. Refer to the checklist provided above before beginning the installation process. For detailed information, refer to the
appropriate, referenced section in this document.
2. Select a suitable operation environment. The site should be clean, dry, and not subject to shock or vibration. Ensure
that the environment is free from wire ends, knockout tabs, and other debris.

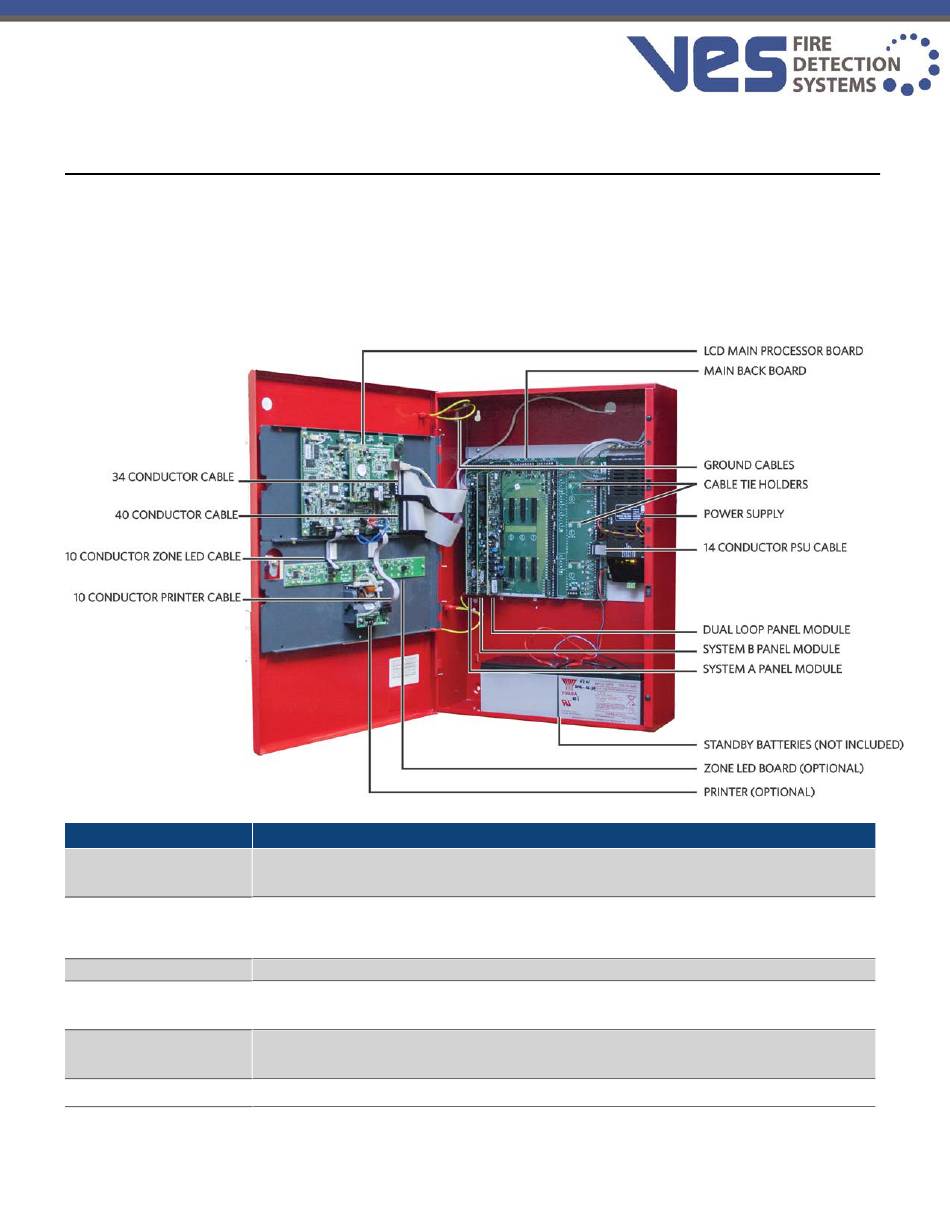

3. Familiarize yourself with the panel and components.
Item
Power Supply
Main Back Board
LCD Main Processor Board The LCD Main Processor Board provides operation of the panel GUI.
System A Panel Module
System B Panel Module
Dual Loop Panel Module
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
Description
Depending on the model, the Compas Fire Alarm Control Panel will have either a 5.25 Amp or
10.25 Amp power supply.
The Main Back Board contains slots for six circuit boards, and accepts the System A Panel
Module, System B Panel Module, Dual Loop Panel Module(s), and various optional panel
modules.
System A Panel Module is required for operation of the fire alarm control panel. All models of
the Compas Fire Alarm Control Panel contain one System A Panel Module.
System B Panel Module is required for operation of the fire alarm control panel. All models of
the Compas Fire Alarm Control Panel contain one System B Panel Module.
The Dual Loop Panel Module provides two addressable loop functions for the fire alarm control
