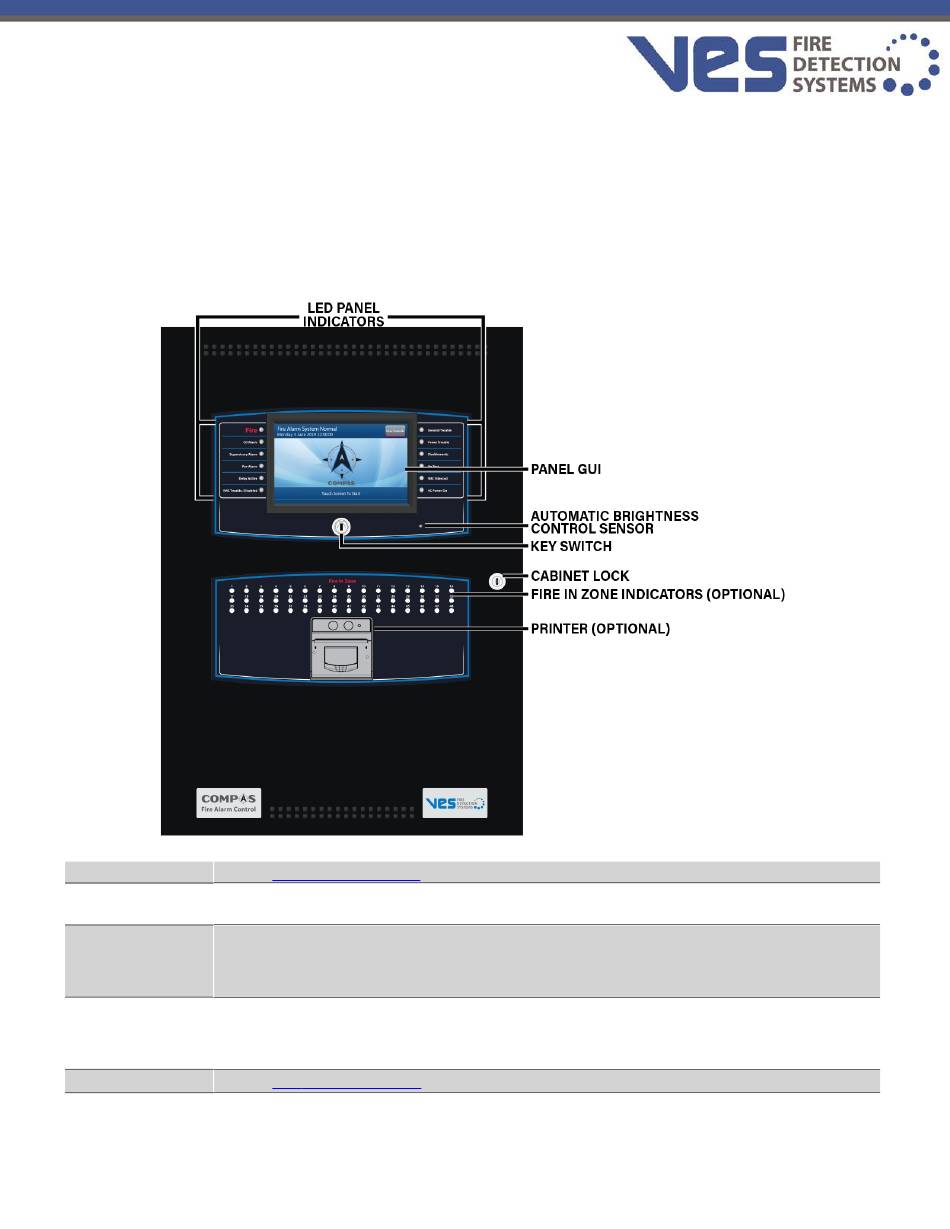

Fascia
FASCIA
This section describes the features (standard and optional) of the Compas Fire Alarm Control Panel that are
located on the fascia.
LED Panel Indicators Refer to
Panel GUI
Key Switch
Cabinet Lock
Fire In Zone
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
LED Status Indicators
The 7 inch, full-color, high-resolution panel GUI provides a resistive touchscreen that allows
operation when users are wearing gloves.
The key switch on the Compas Fire Alarm Control Panel provides level 2 access to the panel, which
allows the user to silence alarms and reset the system. These functions can also be accessed by
using a 6-digit access level 2 code.
This provides access to panel electronics. Some models of the Compas Fire Alarm Control Panel
place all user controls behind glass. In these models, the cabinet lock provides access to all
controls, including access level 2 controls.
Refer to
Fire In Zone Indicators
below for details.
below for details.
Version 4.00 | January 2024 | MAN-1431COM
Page 75
