Installation

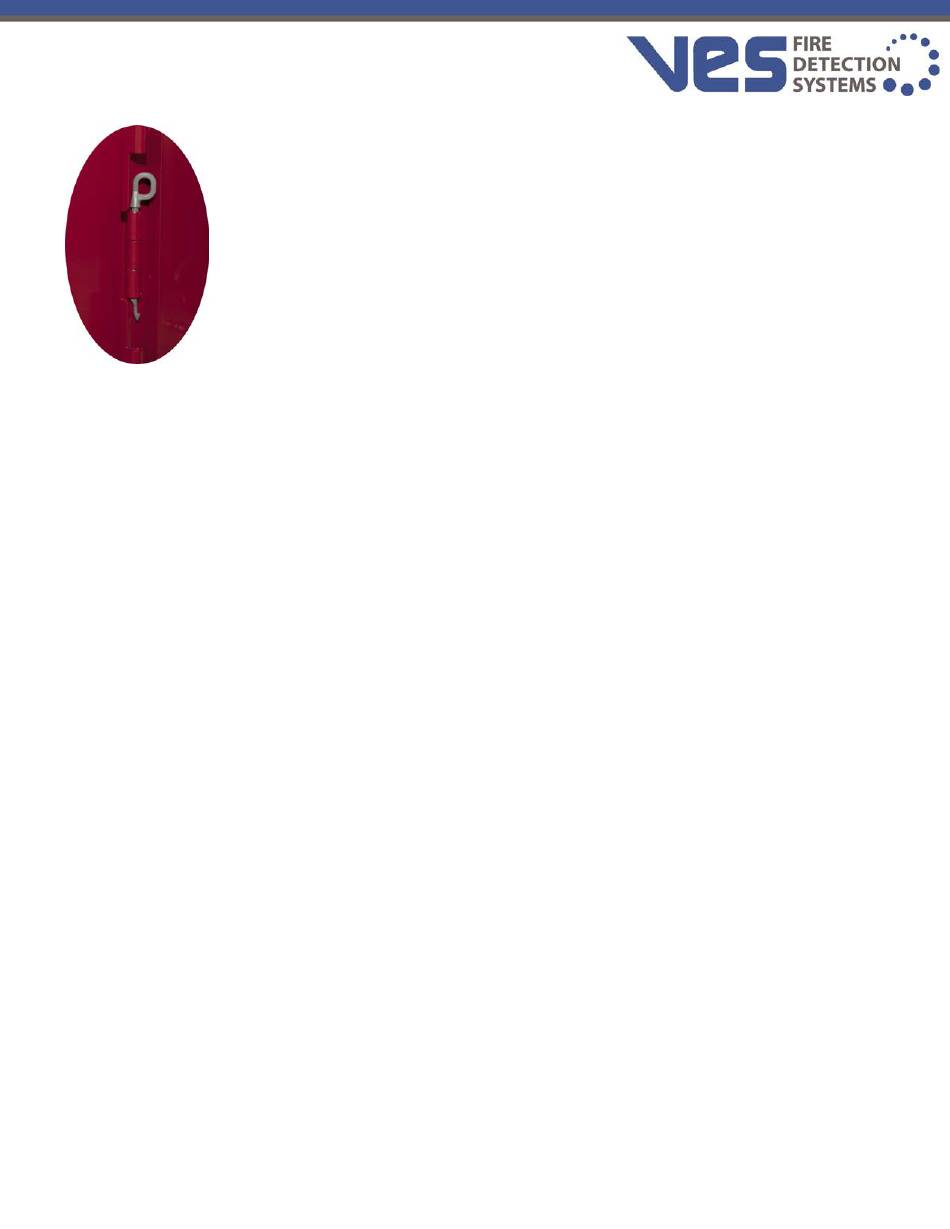

4. Remove the hinge pins of the cabinet lid and then remove the cabinet lid from the cabinet box of the fire control
panel. Return the two hinge pins to the hinges of the cabinet box for safekeeping.
5. Remove the retaining screws from the backplate, slide the backplate tabs up, and remove the backplate from the
cabinet. The empty cabinet box is now prepared for mounting on the premises wall.
6. If the power supply is not mounted to the backplate (as with an extension board), disconnect the power supply and
remove it from the cabinet.
7. Mark hole locations on the wall for mounting the empty cabinet.
8. Drill four holes in the premises wall.
9. Anchor the empty cabinet box to the wall using appropriate mounting hardware to secure it.
10. Remove the necessary number of knockout tabs from the cabinet box and feed external cabling into the Compas
Fire Alarm Control Panel.
VES Fire Detection Systems
Compas Fire Alarm Control Panel Installation Manual
Version 4.00 | January 2024 | MAN-1431COM
Page 23
