- Page 1 PNOZ m EF 2DOR Operating Manual-1005867-EN-05 - Configurable, safe small controllers PNOZmulti 2...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Operation ..........................17 LED indicators...........................17 Function test of the relay outputs ....................17 Maintenance and testing .......................18 Technical details ........................19 Safety characteristic data......................22 Supplementary data .......................23 10.1 Service life graph for the relay contacts ..................23 Operating Manual PNOZ m EF 2DOR 1005867-EN-05... - Page 4 Contents Order reference ........................25 11.1 Product............................25 11.2 Accessories..........................25 EC declaration of conformity ....................26 UKCA-Declaration of Conformity ..................27 Operating Manual PNOZ m EF 2DOR 1005867-EN-05...
-
Page 5: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ m EF 2DOR from Version HW:01, FW:01.00. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 6 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ m EF 2DOR 1005867-EN-05...
-
Page 7: Overview
Expansion module PNOZ m EF 2DOR Jumper Unit features Application of the product PNOZ m EF 2DOR: Expansion module for connection to a base unit from the PNOZmulti 2 system. The product has the following features: Can be configured in the PNOZmulti Configurator Positive-guided relay outputs: –... -
Page 8: Front View

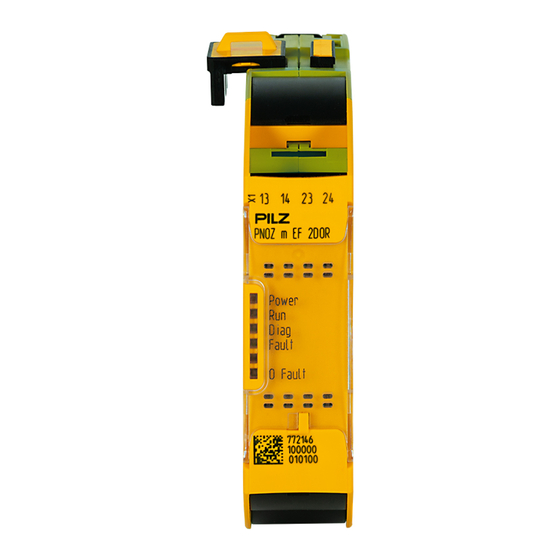

Overview Front view Legend: Outputs O0 – O1 LEDs: – POWER – Run – Diag – Fault – O Fault Operating Manual PNOZ m EF 2DOR 1005867-EN-05... -
Page 9: Safety
Safety circuits in accordance with VDE 0113 Part 1 and EN 60204-1 Use in furnaces The module PNOZ m EF 2DOR can be used in furnaces in accordance with EN 298. If the module's relay outputs shut down the entire fuel supply and the furnace is used in continu- ous operation, appropriate external measures must be used to establish diversity of the shutdown elements (requirement of EN 50156-1). -
Page 10: Applicable Documentation
Are familiar with the basic regulations concerning health and safety / accident prevention, Have read and understood the information provided in this description under "Safety", And have a good knowledge of the generic and specialist standards applicable to the specific application. Operating Manual PNOZ m EF 2DOR | 10 1005867-EN-05... -
Page 11: Warranty And Liability
Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ m EF 2DOR | 11 1005867-EN-05... -
Page 12: Function Description
Calculation of the maximum reaction time between an input switching off and a linked out- put in the system switching off is described in the document "PNOZmulti System Expan- sion". Block diagram Operating Manual PNOZ m EF 2DOR | 12 1005867-EN-05... -
Page 13: Installation
Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 (0.88") Operating Manual PNOZ m EF 2DOR | 13 1005867-EN-05... -
Page 14: Connecting The Base Unit And Expansion Modules
CAUTION! Please note: Only connect the expansion modules on the slot stated in the document "System expansion", otherwise the expansion module may be destroyed as a result. Operating Manual PNOZ m EF 2DOR | 14 1005867-EN-05... -
Page 15: Commissioning
To prevent contact welding, a fuse should be connected before the output contacts (see Technical details [ 19]). Adequate protection must be provided on all output contacts with capacitive and inductive loads. Connection Relay outputs Dual output Single output Operating Manual PNOZ m EF 2DOR | 15 1005867-EN-05... -
Page 16: Download Modified Project To The Pnozmulti System
Proceed as described in the operating manual for the base unit. NOTICE For the commissioning and after every user program change, you must check whether the safety devices are functioning correctly. Operating Manual PNOZ m EF 2DOR | 16 1005867-EN-05... -
Page 17: Operation
No supply voltage Expansion module PNOZ m EF 2DOR running without error. Expansion module PNOZ m EF 2DOR is in a STOP condition. Internal error on the expansion module PNOZ m EF 2DOR or on the overall system. Expansion module is in a safe condition. -
Page 18: Maintenance And Testing
Maintenance and testing Maintenance and testing It is not necessary to perform maintenance work on the product in normal operation. Please return any faulty products to Pilz. Operating Manual PNOZ m EF 2DOR | 18 1005867-EN-05... -
Page 19: Technical Details
EN 60947-5-1 Utilisation category of safety contacts AC15 at 230 V Max. current Max. power 690 W DC13 (6 cycles/min) at 24 V Max. current Max. power 72 W Operating Manual PNOZ m EF 2DOR | 19 1005867-EN-05... - Page 20 5 - 150 Hz Acceleration Shock stress in accordance with the standard EN 60068-2-27 Acceleration Duration 11 ms Airgap creepage in accordance with the standard EN 61131-2 Overvoltage category Pollution degree Operating Manual PNOZ m EF 2DOR | 20 1005867-EN-05...
- Page 21 Stripping length with spring-loaded terminals 9 mm Dimensions Height 101,4 mm Width 22,5 mm Depth 120 mm Weight 144 g Where standards are undated, the 2023-01 latest editions shall apply. Operating Manual PNOZ m EF 2DOR | 21 1005867-EN-05...
-
Page 22: Safety Characteristic Data
If the service life graphs are not accessible, the stated PFH value can be used irrespective of the switch frequency and the load, as the PFH value already considers the relay's B10d value as well as the failure rates of the other components. Operating Manual PNOZ m EF 2DOR | 22 1005867-EN-05... -
Page 23: Supplementary Data
DC-13: 24V 3 4 5 6 8 10 Switching current (A) Fig.: Service life graphs at 24 VDC and 230 VAC Switching current (A) Fig.: Service life graphs at 110 VDC Operating Manual PNOZ m EF 2DOR | 23 1005867-EN-05... - Page 24 With capacitive loads, any power surges that occur must be noted. With DC contact- ors, use flywheel diodes for spark suppression. We recommend you use semiconductor outputs to switch 24 VDC loads. Operating Manual PNOZ m EF 2DOR | 24 1005867-EN-05...
-
Page 25: Order Reference
1 set of spring-loaded terminals 751018 PNOZm screw terminals 1 set of screw terminals 750018 Terminator, jumper Product type Features Order no. PNOZ mm0.xp connector Jumper yellow/black to connect the modules, 10 piece 779260 left Operating Manual PNOZ m EF 2DOR | 25 1005867-EN-05... -
Page 26: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PNOZ m EF 2DOR | 26... -
Page 27: Ukca-Declaration Of Conformity
2008. The complete UKCA Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Pilz Automation Technology, Pilz House, Little Colliers Field, Corby, Northamptonshire, NN18 8TJ United Kingdom, eMail: mail@pilz.co.uk Operating Manual PNOZ m EF 2DOR | 27... - Page 28 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, E-Mail: info@pilz.com, Internet: www.pilz.com...
