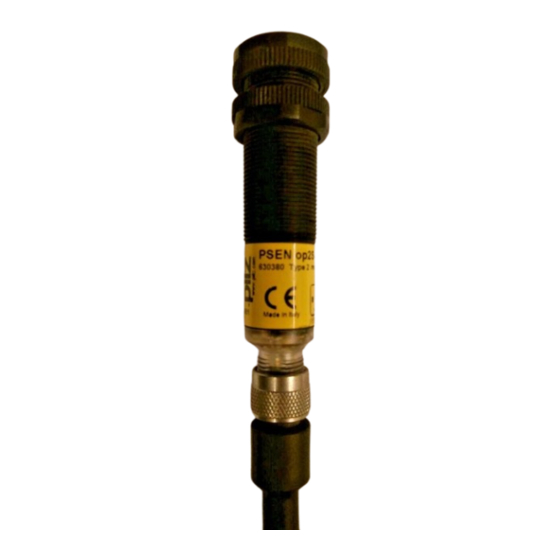

PSEN op2S

PSEN op4S

Operating Manual-1001182-EN-09

- PSEN sensor technology

Need help?

Do you have a question about the PSEN op2S and is the answer not in the manual?

Questions and answers

Summary of Contents for Pilz PSEN op2S

Page 1 PSEN op2S PSEN op4S Operating Manual-1001182-EN-09 - PSEN sensor technology...
Page 2 PSEN op4S-1-2.........................13 Minimum distance: Transmitters and receivers on opposite sides..........14 7.2.1 PSEN op2S-1-1/PSEN op4S-1-1 ....................14 7.2.2 PSEN op4S-1-2.........................14 Dimensions ..........................15 Technical details ........................16 Safety characteristic data......................17 Order reference ........................20 EC declaration of conformity ....................21 Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 3 This describes a situation in which the product or devices could be dam- aged and also provides information on preventive measures that can be taken. It also highlights areas within the text that are of particular import- ance. Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 4 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 5 Damage can be attributed to not having followed the guidelines in the manual, Operating personnel are not suitably qualified, Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 6 For your safety The following applies for PSEN op4S-1-2: Laser protection class 1 in accord- ance with EN 60825-1 Do not remove the protective cap until you are just about to connect the device. Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 7 Laser sensor Test pulse input LED display for – Status of the outputs (red, receiver) – Stability of the receive signal (green, receiver) – Operating status (green, transmitter) Operating range: 0 ... 40 m Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 8 A function test can be carried out on the transmitter and receiver through a test pulse input on the transmitter. The test pulse signal simulates short interruptions of the light beam. If a fault is detected, the OSSDs switch to the OFF state. Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 9 The transmitters and receivers from two different safety light barriers must not be syn- chronised. Avoid strong electromagnetic interference when operating the safety light barrier. When operating the safety light barrier, avoid strong smoke, mist and dust formation that would reduce the safety light barrier's operating range. Operating Manual PSEN op2S,PSEN op4S 1001182-EN-09...
Page 10 Assignment of the 4-pin M12 n. c. White male connector Blue Output Black Transmitter Function Cable colour +20 ... 30 VDC Brown Assignment of the 4-pin M12 n. c. White male connector Blue Test Black Operating Manual PSEN op2S,PSEN op4S | 10 1001182-EN-09...
Page 11 PNOZ m EF 8DI2DOT Reaction time of safety light barrier + evaluation device: When operated with PNOZmulti: <30 ms When operated with PSS: 2x set minimum scan time When operated with PNOZelog: <35 ms Operating Manual PSEN op2S,PSEN op4S | 11 1001182-EN-09...
Page 12 Empfänger/ Sender/ transmitter/ transmitter/ transmitter/ transmitter/ receiver/ transmitter/ émetteur émetteur émetteur émetteur récepteur émetteur Empfänger/ Empfänger/ Empfänger/ Empfänger/ Sender/ Empfänger/ receiver/ receiver/ receiver/ receiver/ transmitter/ receiver/ récepteur récepteur récepteur récepteur émetteur récepteur Operating Manual PSEN op2S,PSEN op4S | 12 1001182-EN-09...
Page 13 0.44 m 7.1.2 PSEN op4S-1-2 Distance between transmitter Distance between two light barriers (D2) and receiver (D1) 10 m 0.08 m 20 m 0.12 m 30 m 0.12 m 40 m 0.14 m Operating Manual PSEN op2S,PSEN op4S | 13 1001182-EN-09...
Page 14 0.04 m 20 m 0.06 m 30 m 0.06 m 40 m 0.07 m The function of the safety light barrier can be tested with a test rod with 18 mm diameter. Operating Manual PSEN op2S,PSEN op4S | 14 1001182-EN-09...
Page 15 Dimensions Dimensions PSEN op2S-1-1 Empfänger/receiver/récepteur Sender/transmitter/émetteur 18,4 18,4 23,5 PSEN op4S-1-1 Empfänger/receiver/récepteur Sender/transmitter/émetteur 62,6 18,4 72,6 18,4 23,5 PSEN op4S-1-2 Empfänger/receiver/récepteur Sender/transmitter/émetteur 68,2 18,4 72,6 18,8 42,5 42,5 23,5 Operating Manual PSEN op2S,PSEN op4S | 15 1001182-EN-09...
Page 16 11 ms in accordance with the standard EN 60068-2-27 EN 60068-2-27 EN 60068-2-27 Protection type Housing IP67 IP67 IP67 Mechanical data 630380 630381 630382 Connection type M12, 4-pin M12, 4-pin M12, 4-pin Operating Manual PSEN op2S,PSEN op4S | 16 1001182-EN-09...
Page 17 Cat 2, PL c, SIL 1 Control unit PNOZ m0p 773110 2.21 x 10 PNOZ m1p 773100 2.50 x 10 PNOZ m2p 773120 PNOZ mm0p 772000 PNOZ mm0.1p 772001 PNOZ mm0.2p 772002 Operating Manual PSEN op2S,PSEN op4S | 17 1001182-EN-09...
Page 18 772102 Expansion PNOZ m EF 16DI 772140 1,86E-05 module PNOZ m EF 8DI4DO 772142 2,10E-10 [1/h] PNOZ m EF 8DI4DOT 772144 PNOZ m EF 772143 4DI4DOR 772145 PNOZ m EF 4DI4- DORD Operating Manual PSEN op2S,PSEN op4S | 18 1001182-EN-09...
Page 19 772102 Expansion PNOZ m EF 16DI 772140 1,86E-05 module PNOZ m EF 8DI4DO 772142 2,10E-10 [1/h] PNOZ m EF 8DI4DOT 772144 PNOZ m EF 772143 4DI4DOR 772145 PNOZ m EF 4DI4- DORD Operating Manual PSEN op2S,PSEN op4S | 19 1001182-EN-09...
Page 20 Order reference Order reference Product type Features Connection type Order no. PSEN op2S-1-1 Type 2, infrared 4-pin M12 male connector 630380 sensor PSEN op4S-1-1 Type 4, infrared 4-pin M12 male connector 630381 sensor PSEN op4S-1-2 Type 4, laser sensor 4-pin M12 male connector...
Page 21 European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PSEN op2S,PSEN op4S | 21...
Page 22 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, E-Mail: info@pilz.com, Internet: www.pilz.com...
