- Page 1 PSSu H F PN Decentralised system PSSuniversal I/O Operating Manual-22071-EN-09...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
..........................Interface configuration ......................6.1.1 Connection to PROFINET ....................... Operation ..........................Display elements ........................Technical Details ........................Safety characteristic data ......................Order reference ........................EC declaration of conformity ....................UKCA-Declaration of Conformity ..................Operating Manual PSSu H F PN 22071-EN-09... -
Page 4: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the PSSu H F PN module. It is valid until new documenta- tion is published. Please also refer to the following documents: PSSuniversal System Description PSSuniversal Installation Manual This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSSu H F PN 22071-EN-09...
-
Page 6: Overview
– PSSu E S 4DI-D – PSSu E S PD-D Electronic modules that can be used for input/output: – All failsafe modules (PSSu E F...) – All standard modules (PSSu E S...) Operating Manual PSSu H F PN 22071-EN-09... -

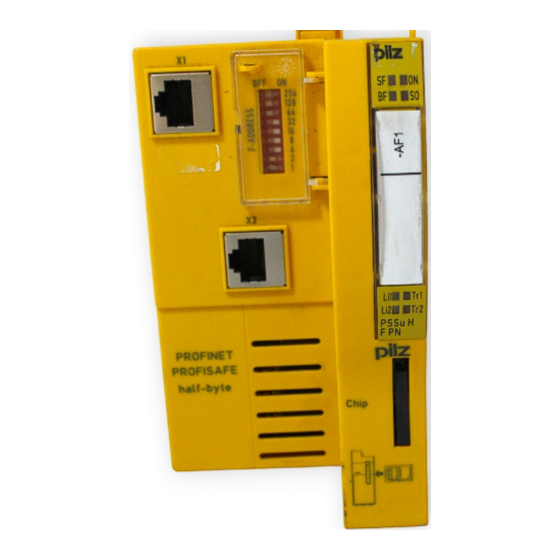

Page 7: Front View
– Serial number – Hardware version number – Firmware version number on delivery 6: Field for 2D code 7: LEDs for diagnostics on the PROFINET connection 8: Description of head module 9: Chip card slot Operating Manual PSSu H F PN 22071-EN-09... -
Page 8: Safety
Updating the firmware can also expand the module's functionality. INFORMATION The module's actual firmware version can only be established using the Firmware Manager on the PSSuniversal Assistant. Operating Manual PSSu H F PN 22071-EN-09... -
Page 9: Safety Regulations
In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSSu H F PN 22071-EN-09... -
Page 10: Function Description
Using the PROFINET project chip card – If the head module already contains a project, you will need to delete this project first (see below). Operating Manual PSSu H F PN | 10 22071-EN-09... -
Page 11: Profinet
– The station address is set via a DIP switch. All the project data is stored in the head module. The project data can also be stored on a chip card. Operating Manual PSSu H F PN | 11 22071-EN-09... -
Page 12: Dip Switch For Setting The F Address
A station address is set via a combination of the relevant binary coded switches: “F-ADDRESS” DIP switch Meaning Example Switch designation Station address 52 OFF ON INFORMATION Each station address on PROFINET with PROFIsafe must be unique. Operating Manual PSSu H F PN | 12 22071-EN-09... -
Page 13: Installation
Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions 21,6 mm (0.85") 75,2 mm 72,6 mm (2.858") (2.96") Operating Manual PSSu H F PN | 13 22071-EN-09... -
Page 14: Installing The Head Module
Install an end bracket to the left of the head module or leave enough space for one. Slot the groove on the head module on to the mounting rail from below [1]. Push the head module back [2] until you hear it lock into position. Schematic representation: Operating Manual PSSu H F PN | 14 22071-EN-09... -
Page 15: Interfaces
(e.g. through shock, vibration). Such measures include fixed routing und strain relief, for example. We also recommend the use of an angled RJ45 connector. Operating Manual PSSu H F PN | 15 22071-EN-09... -
Page 16: Operation
"SF" status "BF" status 312 040 0000000 (red) (red) HW 000 No supply voltage or fault-free operation No Ethernet connection No PROFINET connection PSSu H Diagnostic entry present F PN CHIP Operating Manual PSSu H F PN | 16 22071-EN-09... - Page 17 Green FS section is running Green Requires the user to confirm via the reset button (e.g. after swapping an FS module) Flash Head module is in PROFIsafe test mode green, 2 Hz Operating Manual PSSu H F PN | 17 22071-EN-09...
- Page 18 312 040 0000000 HW 000 Li 1 Green Connection X1 Li 2 Green Connection X2 Tr 1 Yellow Data transfer X1 Tr 2 Yellow Data transfer X2 PSSu H F PN CHIP Operating Manual PSSu H F PN | 18 22071-EN-09...
-
Page 19: Technical Details
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4 Vibration In accordance with the standard EN 60068-2-6 Frequency 10 - 150 Hz Amplitude 0,35 mm Acceleration Operating Manual PSSu H F PN | 19 22071-EN-09... - Page 20 Mounting area (e.g. control cabinet) IP54 Mechanical data Material Bottom Front Dimensions Height 128,4 mm Width 75,2 mm Depth 79,4 mm Weight 170 g Where standards are undated, the 2012-04 latest editions shall apply. Operating Manual PSSu H F PN | 20 22071-EN-09...
-
Page 21: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSSu H F PN | 21 22071-EN-09... -
Page 22: Order Reference
Order reference Order reference Product type Features Order No. PSSu H F PN Head module with PROFIsafe interface, base type 312 043 Operating Manual PSSu H F PN | 22 22071-EN-09... -
Page 23: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PSSu H F PN... -
Page 24: Ukca-Declaration Of Conformity
2008. The complete UKCA Declaration of Conformity is available on the Internet at www.pilz.com/ support/downloads. Representative: Pilz Automation Technology, Pilz House, Little Colliers Field, Corby, Northamptonshire, NN18 8TJ United Kingdom, eMail: mail@pilz.co.uk Operating Manual PSSu H F PN | 24... - Page 25 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
