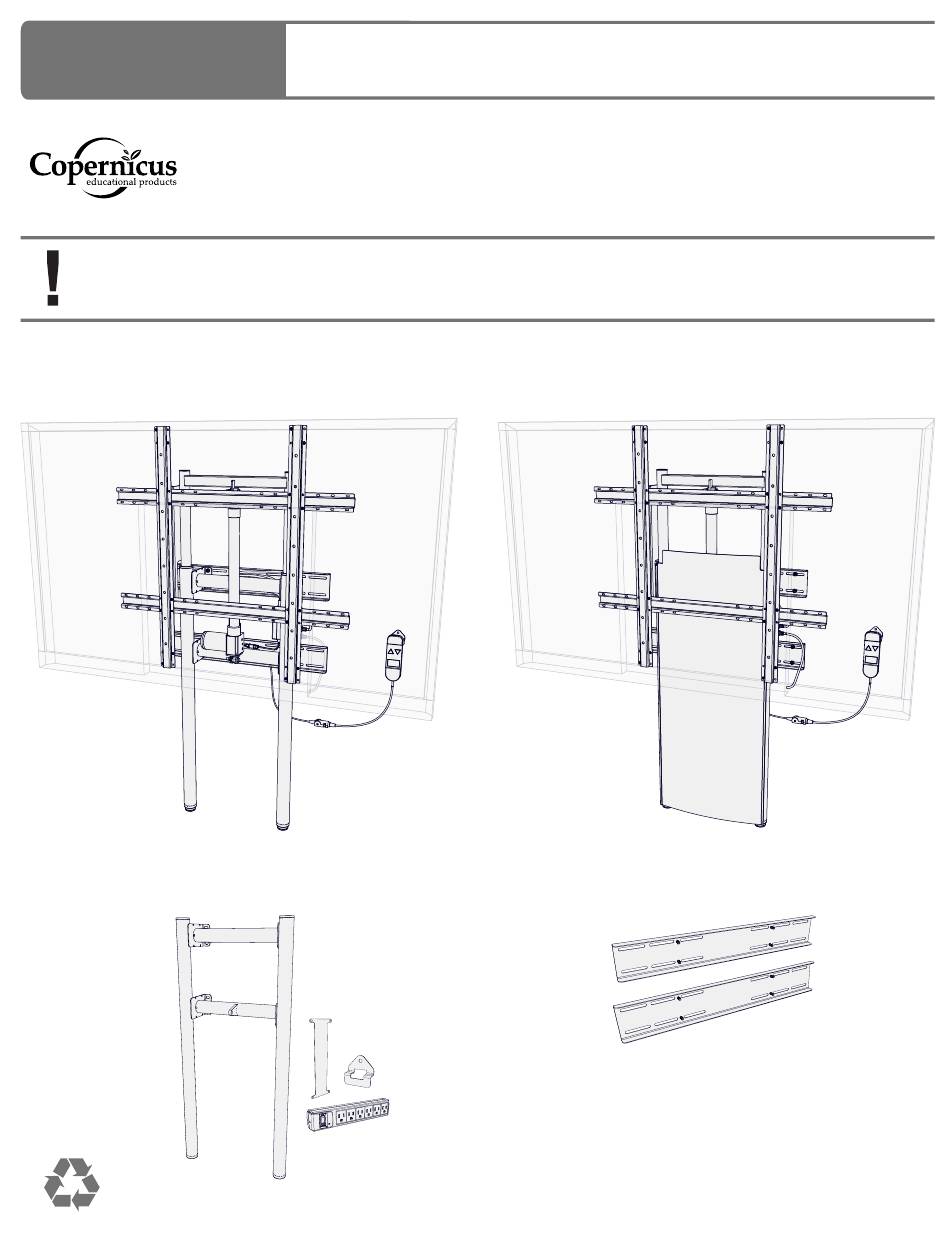

Height Adjustable Wall Mount for Flat Panels
Assembly Guide
Check out our other products online at www.copernicused.com
For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
Have your packing slip ready for reference.
HAWM2
HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024
Copernicus Educational Products Inc.
Shown with Flat Panel (sold separately).
HAWM3
(with cover)
HAWM2-SMK - Stud Mounting Kit
(compatible with HAWM2, HAWM3)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus HAWM2
Summary of Contents for Copernicus HAWM2
- Page 1 (not compatible with cover ) (with cover) HAWM2-CK, HAWM3-CK - Conversion Kit HAWM2-SMK - Stud Mounting Kit (showing HAWM2-CK) (compatible with HAWM2, HAWM3) HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Please Recycle Copernicus Educational Products Inc.
- Page 2 Registering your warranty ensures we have all the information we need to make any future warranty claims quick and easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim Lifetime We offer a Lifetime Warranty on almost everything we make.
- Page 3 Electrical Do not install or use the electrical components of this unit during a lightning storm. Shock HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 4 Power Strip Mounting Plate Bracket (255153) Mounting Plate Bracket (255153) (32364) (34099) (32364) (34099) Hardware Inside Cover (36000) Hardware Inside ...hardware on following page HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 5 M6 x 20mm VESA Screw M8 x 15mm VESA Screw M8 x 25mm VESA Screw (432151) (43222) (432764) (432765) M8 x 40mm 3/4” Spacer (432762) (4303141) HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 6 (433211) 3x / 3x Parts: HAWM2-SMK (Optional Accessory) HAWM2-SMK 1/2” Lock Nut 1-4” Flat Washer Wood Stud Mounting Bracket (430101) (430192) (32362) Inside HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 7 T o e n s u r e p o w e r c a b c a n r e a c h o u t l e t HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 8 Remove all 4 Safety Screws Lift up and pull out all 4 adapters from keyholes Lock all casters before removing flat panel from cart HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 9 You will need: (Not to Scale) CK-3 Moving Fame Remove Moving Frame Save the Moving Frame, you will need it later for Step 2 HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
-
Page 10: Note For Installation
You will need: (Not to Scale) Levelling Feet Main Wall Bracket Remove Cover (HAWM3) & Install Levelling Feet Save Cover for Step 10 HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc. - Page 11 Moving Frame Level 2-Person Task Level Moving Frame Before Installing On Wall Position against wall in the location where the mount will be installed HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 12 See Page 6 for recommended hardware. Use the supplied flat washers. FASTENERS ARE NOT INCLUDED..For Wood Stud Wall Installation go to Step 4 HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 13 ...For Masonry Wall Installation go to Step 3 Use hardware recommended for your wall type. See Page 6 for recommended hardware. Use the supplied flat washers. FASTENERS ARE NOT INCLUDED. HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 14 Power Strip Mounting Plate Install Power Strip Mounting Plate Power Strip Mounting Plate can be installed on either side closest to your wall outlet HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 15 Attach Power Strip You will need: (Not to Scale) Hook & Loop Tape Electric Lift Power Adapter 1x / 1x Attach Electric Lift Power Adapter HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 16 You will need: (Not to Scale) Hook & Loop Straps Attach All Electric Lift Cables & Secure With Straps HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 17 For HAWM3 & HAWM3-CK Install Cover (Otherwise Skip Step) Remove Moving Frame (save top fasteners). Slide in cover from top. Textured side faces outward Reinstall Moving Frame & Hardware. HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 18 (4x) For TVs without a flat back (Ex. Promethean) use the provided 3/4” spacers and longer screws. Install spacers between mount and TV. HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 19 Install screws in holes with threads, only 2 of 4 holes will have threads HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 20 Attach & Secure Flat Panel to Wall Mount Showing with HAWM2 Version Insert all 4 adapters into keyholes. Insert all 4 Safety Screws HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
- Page 21 Mount The Remote Hanger Bracket On Wall & Connect Remote Use hardware recommended for your wall type. See Page 6 for recommended hardware. FASTENERS ARE NOT INCLUDED. HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
-
Page 22: Care And Maintenance
Jelly all around the top of both bushings, pressing some in the gap between the frame and bushing. Lower the unit back down to its lowest position. HAWM2, HAWM2-CK, HAWM2-SMK, HAWM3, HAWM3-CK - Version A - Released March 28, 2024 Copernicus Educational Products Inc.
