Copernicus HAWM-AC1 Assembly Manual

Height adjustable wall mount - stud wall mounting kit
Hide thumbs Also See for HAWM-AC1:

Advertisement

Quick Links

Download this manual
HAWM-AC1
WARNING
NOTE:
Wall mounting hardware is not included.
Installer must supply wall mounting hardware as specified in this guide.
The following instructions are for mounting to wood stud walls.
For concrete or cinder block walls please follow the assembly guide included with the HAWM.
Please Recycle
Height Adjustable Wall Mount - Stud Wall Mounting Kit
Assembly Guide
HAWM -AC1_2020_A
Check out our other products online at
www.copernicused.com
This product must be assembled by a qualified installer.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference

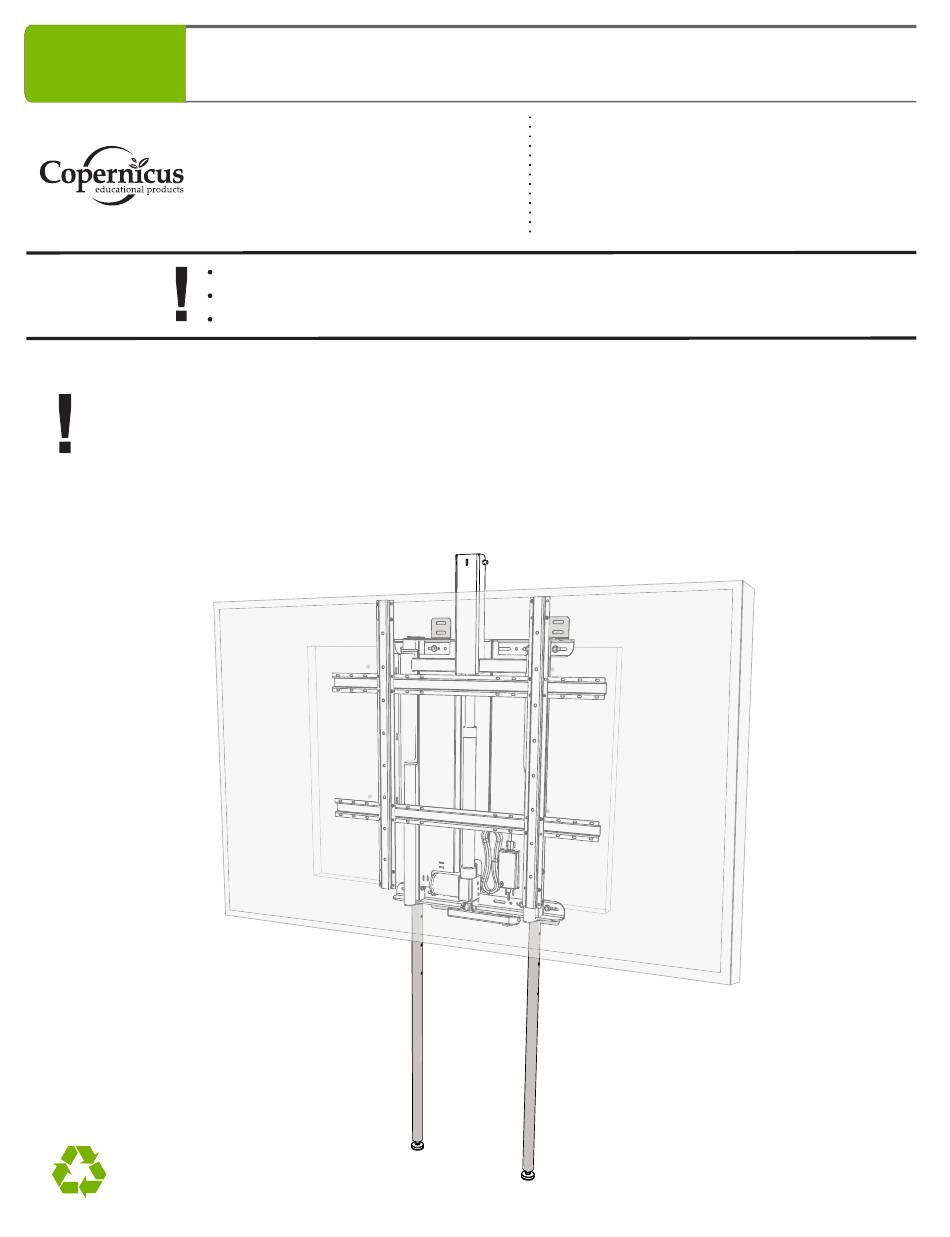

Shown with SMART MX265
Flat Panel (sold separately)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAWM-AC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Copernicus HAWM-AC1

Summary of Contents for Copernicus HAWM-AC1

  • Page 1 The following instructions are for mounting to wood stud walls. For concrete or cinder block walls please follow the assembly guide included with the HAWM. Shown with SMART MX265 Flat Panel (sold separately) Please Recycle Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 2 Lifetime easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product Frame Warranty assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim Lifetime We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim.
  • Page 3 Unplug when not in use. Turn off power strip before Power Strip unplugging. Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury. Electronic...
  • Page 4 “WARNING”, “Risk of Electric Shock, Fire, and Injury”, “Review the assembly instructions to confirm that the appropriate critical components and accessories are being used with the furnishing.” SAVE THESE INSTRUCTIONS! Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 5 Shear - 200lbs (91kg) Tension - 150lbs (68kg) Hardware Actual Size 1/4-20 x 2” Screw (43008) 1/4-20 x 3/4” Screw (430039) 1/4-20 Lock Nut (430101) 3/4” Flat Washer (430192) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 6 Customer Service - FAQ’s For missing parts and other issues regarding the mount: Please call Copernicus Customer Service, where we will be happy to help. 1-800-267-8494. Monday - Friday 8:00am - 4:30 pm EST. Need Tech Support? Check out some of our...

  • Page 7: Product Specifications

    78.1” (198.3cm) 61” (155.1cm) Floor NOTE: Do NOT mount the HAWM (with Stud Mounting Kit) 5” (127mm) over a marker ledge that is deeper than MAX 5” (127mm) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 8 Please follow the main assembly guide included with the HAWM for steps 1-6, then complete this assembly guide to attach the Stud Mounting Kit HAWM Stud Mounting Kit Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 9 Prepare HAWM for Stud Mounting Kit Pry black plastic caps from bottom ONLY of HAWM Main Frame and discard Bottom Thread Levelling Feet all the way into Support Legs Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 10 Insert Support Legs into square holes on bottom of Main Frame and align holes HEIGHT POSITION A HEIGHT POSITION B HEIGHT POSITION C Fasten Support Legs to Main Frame Always use two holes per leg when fastening legs to Main Frame Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 11 Note the orientation of the Wall Brackets below (8x) WALL BRACKET (8x) ORIENTATION - TOP: (8x) (8x) Tab is pointing up WALL BRACKET ORIENTATION - BOTTOM: Tab is pointing down Version A - Released June 17, 2020 - Copernicus Educational Products Inc.

  • Page 12: Select Mounting Location

    NOTE: Do NOT mount the HAWM (with Stud Mounting Kit) over a marker ledge that 5” (12.7cm) is deeper than MAX 5” (127mm) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 13 1. Align the slots in the Wall Brackets with the stud center markings 2. Level the HAWM in the mounting location before fastening to wall Align with stud center marks MAX 60” (152.4cm) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 14 2-Person Task Trace mounting holes (8x) You will need: (Not to Scale) 3/32” Drill Bit Drill Drill 3/32” pilot hole for 1/4” lag screw (8x) Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
  • Page 15 Fasten HAWM to wall using 8 fasteners Once the HAWM is fastened to the wall, return to the main assembly guide and complete steps 12 -14 to complete the assembly. Version A - Released June 17, 2020 - Copernicus Educational Products Inc.
